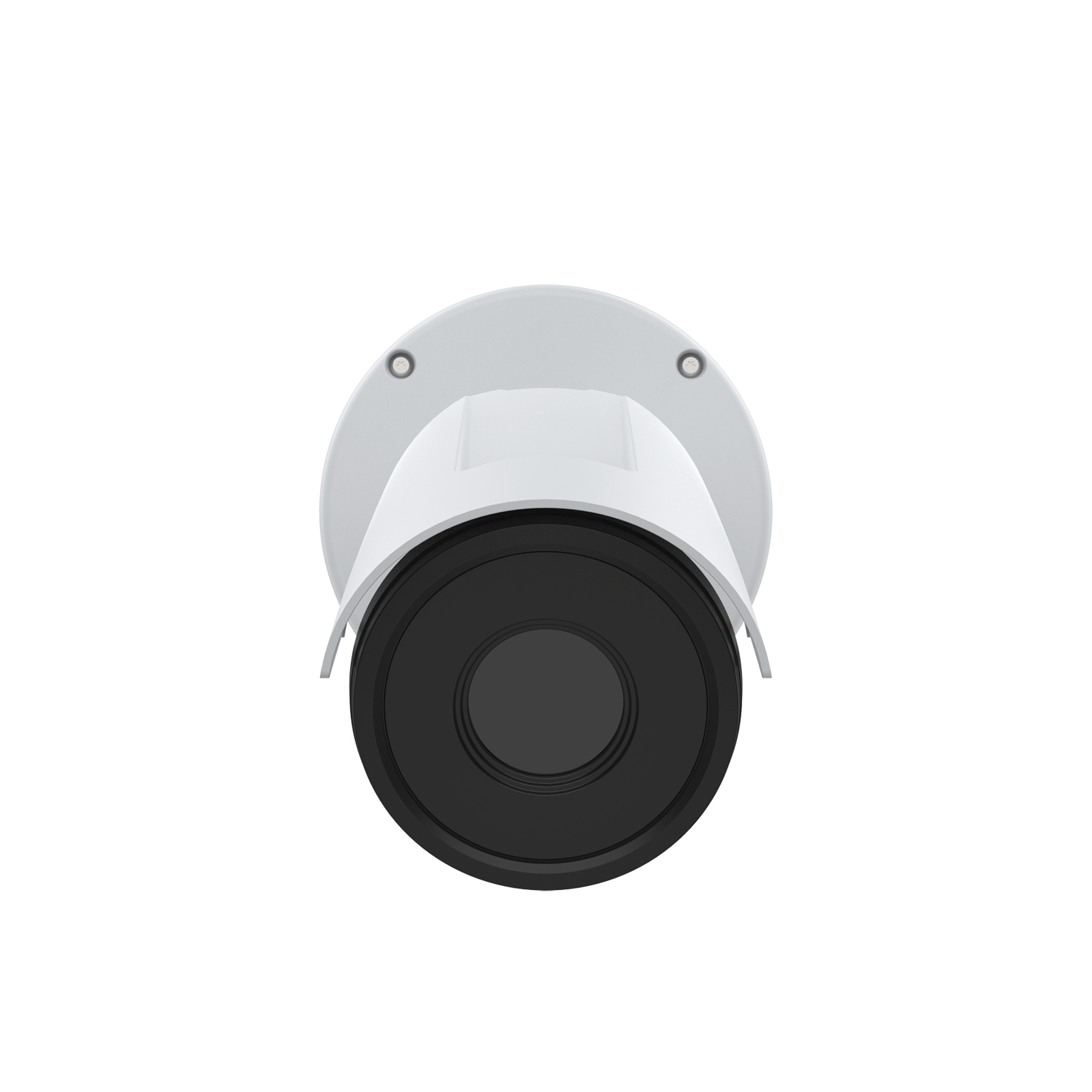

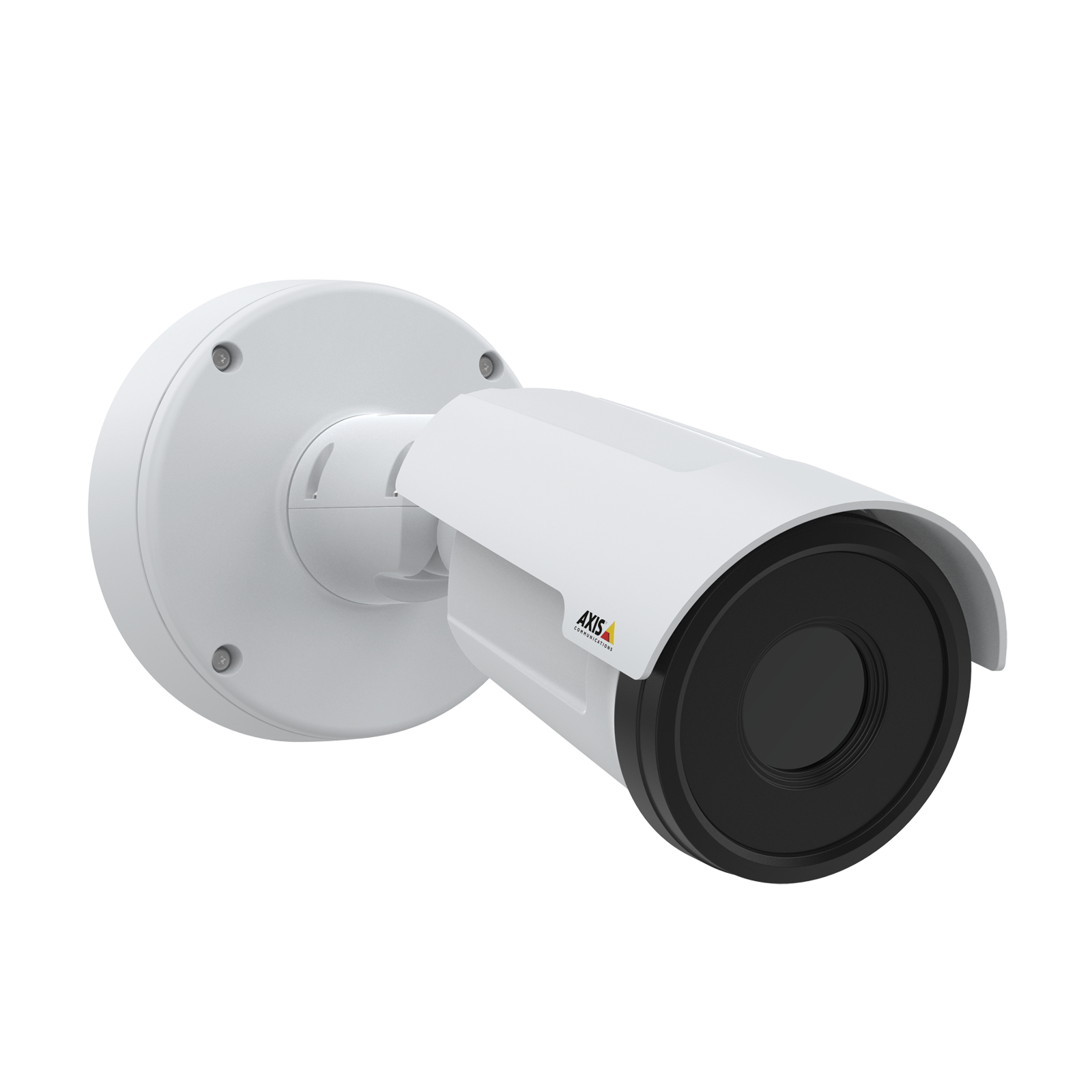

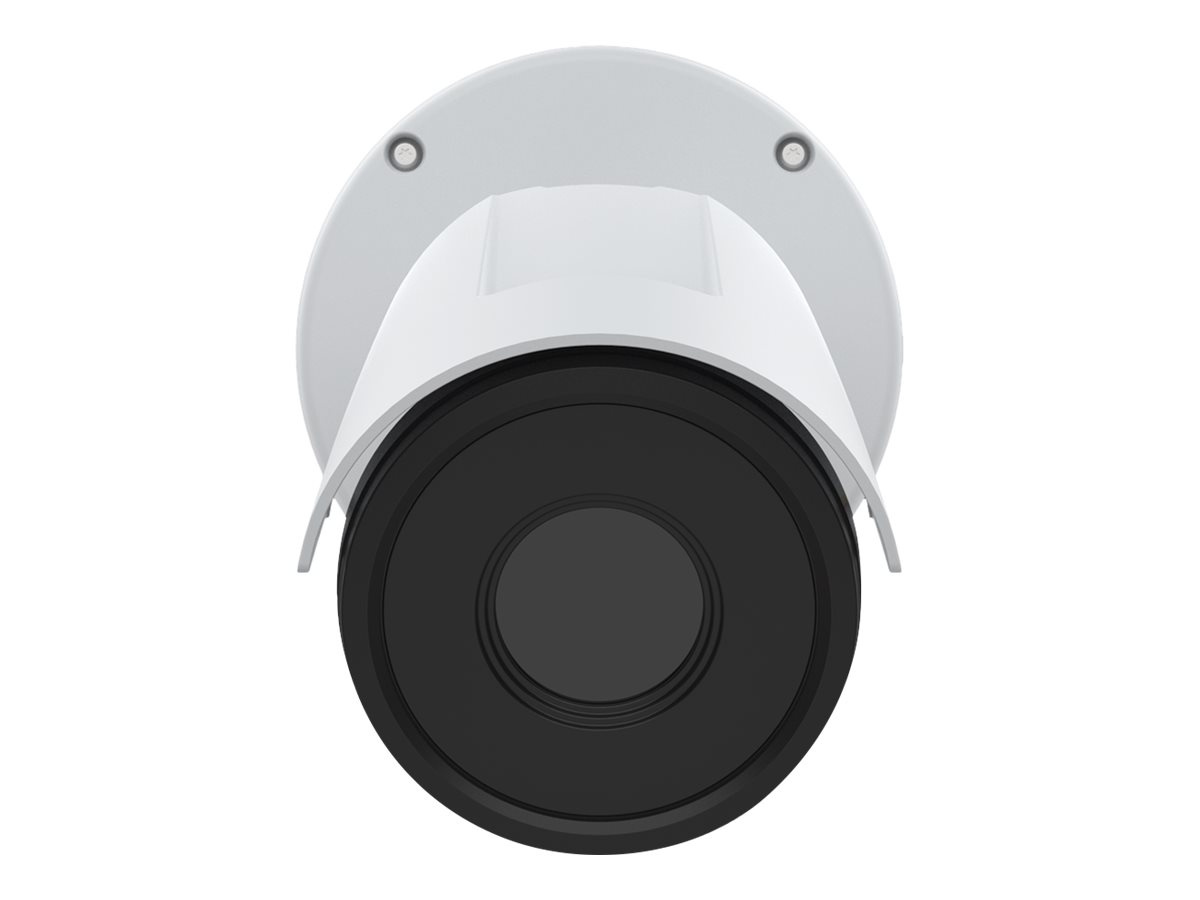

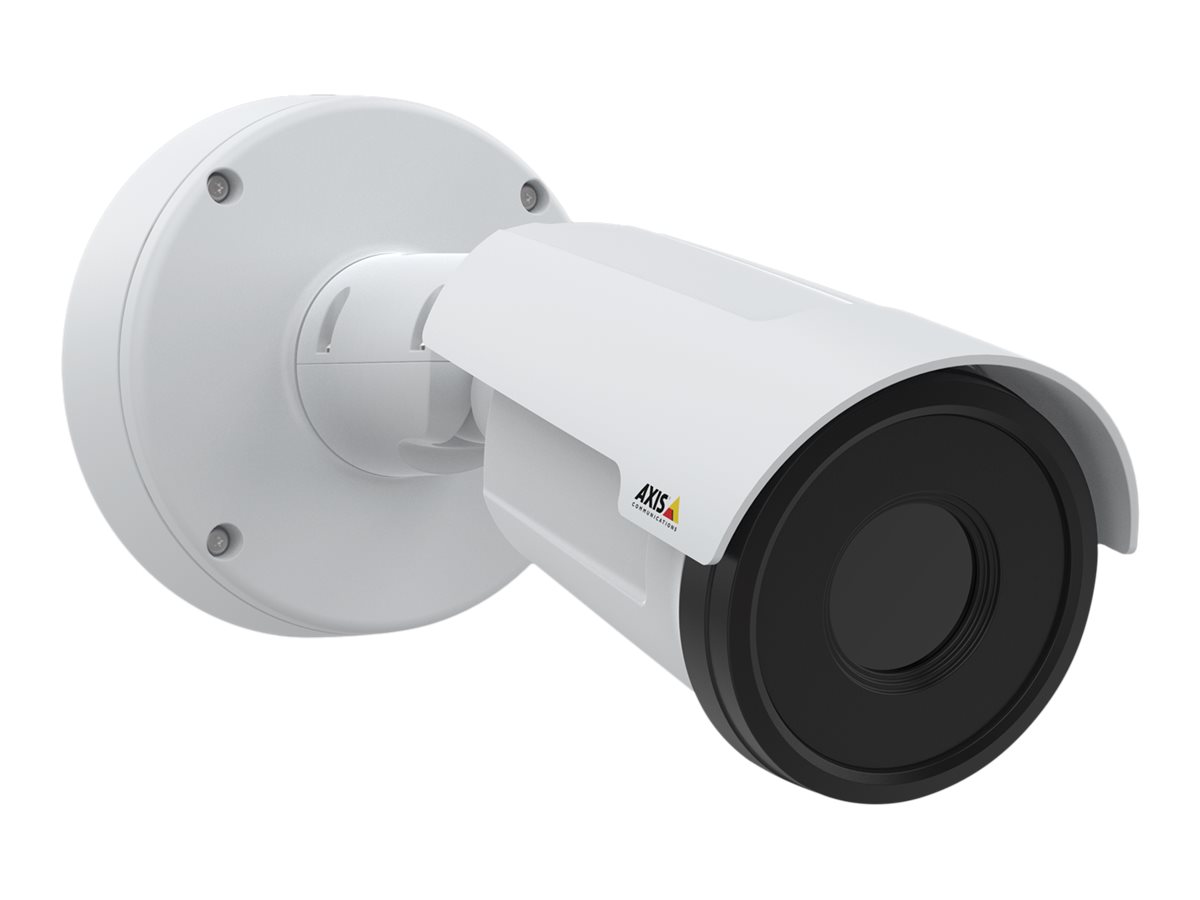

Axis Q1951-E Bullet IP security camera Indoor & outdoor 768 x 576 pixels Ceiling/wall

OVERVIEWUsing thermal technology, AXIS Q1951-E offers reliable detection and verification. This compact, robust, halogen-free camera is built on a powerful analytics platform so it s easy to add custom-made third-party analytics. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for object classification that allows you to detect and classify humans and vehicles.Reliable detection alwaysAXIS Q1951-E delivers a high-quality thermal video stream 24/7, in all weather, and any light conditions. Ideal for perimeter security and long-range detection, it captures events taking place at great distances. With four lens alternatives (7 mm, 13mm, 19 mm and 35 mm), the network camera can optimize detection performance to meet most application requirements. Thanks to electronic image stabilization (EIS), it ensures stable, reliable video in all environments. And, thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. Furthermore, thermal cameras are often in compliance with privacy regulations making them ideal in situations where visual cameras can t be installed.Powerful analytics capabilitiesWith a low false alarm rate, AXIS Q1951-E Thermal Camera offers reliable detection and verification. It comes with AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard preinstalled for proactive surveillance. Plus, you can buy AXIS Perimeter Defender with AI-based functionality for object classification so you can detect and classify humans and vehicles around the perimeter of your property. AXIS Q1951-E includes a microphone connector, so you can add audio capabilities. Built on a powerful analytics platform, it s possible to add custom-made third-party analytics as well as audio analytics to trigger events for instance when detecting aggressive behavior or gunshots.Lightweight, secure, and robustAXIS Q1951-E is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. Axis Edge Vault ensures secure storage of all cryptographic keys and certificates and protects your Axis device ID. It also simplifies authorization of Axis products on your network. With signed firmware and secure boot, it guarantees that the firmware hasn t been compromised and ensures only authorized firmware is installed. AXIS Q1951-E also includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. And, with IK10, IP66/67, and NEMA TS2 ratings, this compact, lightweight camera is robust and vandal-resistant.

Performance
Type:	IP security camera
Placement supported:	Indoor & outdoor
Connectivity technology:	Wired
Number of languages:	12
Languages support:	English, Polish, Spanish, Italian, Portuguese, Japanese, Russian, Simplified Chinese, French, Korean, Traditional Chinese, German
Certification:	CISPR 24, CISPR 35, EN 50121-4, EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR32 Class A, VCCI Class A, IEC/EN/UL 60950-22, IEC/EN/UL 62368 1, IEC 60068-2-1, IEC/EN 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC/EN 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10b , ISO 21207 Method B, MIL-STD-810H (Method 501.7, 502.7, 505.7, 506.6, 507.6, 509.7, 510.7, 514.8, 516.8, 521.4), NEMA 250 Type 4X, NEMA TS 2 (2.2.7 2.2.9), NIST SP500-267
Design
Mounting type:	Ceiling/wall
Product colour:	Black, White
Form factor:	Bullet
Housing material:	Aluminium, Polycarbonate (PC)
International Protection (IP) code:	IP66, IP67
IK code:	IK10
Camera
Lens viewing angle, horizontal:	55°
Camera pixel size:	17 µm
Image sensor
Sensor type:	Microbolometer
Number of sensors:	1
Effective sensor resolution (thermal module):	384 x 288 pixels
Lens system
Number of lenses:	1
Maximum aperture number:	1.18
Fixed focal length:	7 mm
Closest focusing distance:	1.3 m
Infrared spectral band:	8 - 14 µm
Video
Maximum resolution:	768 x 576 pixels
Video formats supported:	H.264, H.265, AVC, MPEG4, HEVC, M-JPEG
Frame rate:	30 fps
Video streaming:
Image quality adjustment:	Brightness, Contrast, Sharpness
Flip & mirror:
Privacy masking:
Text caption overlay:
Image stabilizer:
Bit rate control:	Variable Bit Rate (VBR)
Audio
Audio formats supported:	G.711, G.726, AAC-LC, LPCM, ADPCM, PCM
Sample rate:	8 kHz
Audio detection:
Network
Ethernet LAN:
Ethernet interface type:	Fast Ethernet, Gigabit Ethernet
Networking standards:	IEEE 802.3af, IEEE 802.3at
Supported network protocols:	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS , HTTP/2, SSL/TLS , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SOCKS, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)
Quality of Service (QoS) support:
Streaming method:	Multicast, Unicast
Storage
Card reader integrated:
Compatible memory cards:	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Flash memory:	512 MB
ROM capacity:	1024 MB
Ports & interfaces
Ethernet LAN (RJ-45) ports:	1
Microphone in:
Terminal block port:
Security
Password protection:
Video motion detection:
Active tampering alarm:
IP address filtering:
Security algorithms:	EAP-TLS
HTTPS encryption:
Alert notification type:	E-mail
Pixel counter:
Digest authentication:
Power
Power source type:	DC, PoE
Power consumption (typical):	4.96 W
Power consumption (max):	12.95 W
DC output voltage:	12, 28
Operational conditions
Operating temperature (T-T):	-40 - 60 °C
Storage temperature (T-T):	-40 - 65 °C
Operating relative humidity (H-H):	10 - 100%
Storage relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	132 mm
Depth:	272 mm
Height:	132 mm
Weight:	1.4 kg
Packaging content
Number of cameras:	1
Mounting brackets included:
Manual:
Technical details
Doesn't contain:	PVC, BFR, Halogen
Logistics data
Harmonized System (HS) code:	85258900
