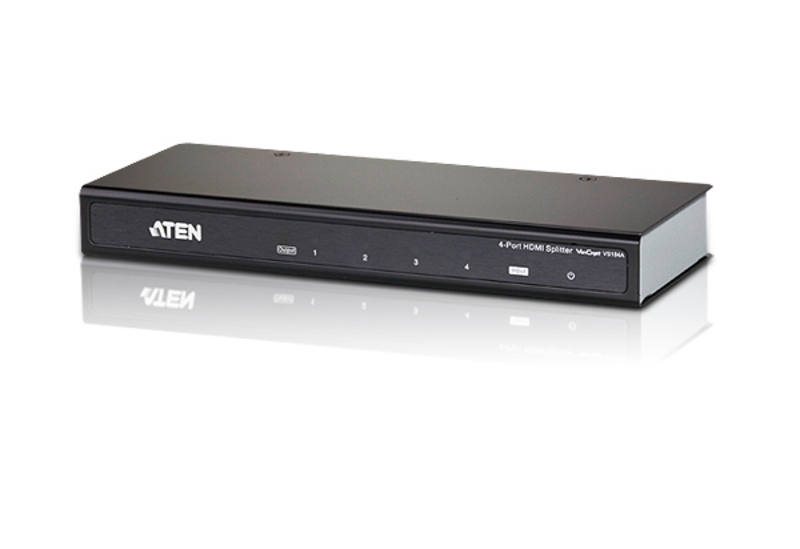

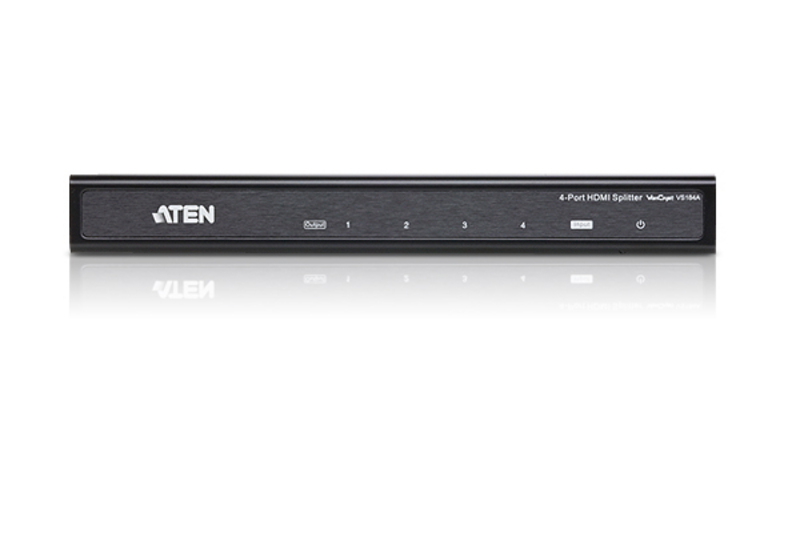

The VS184A HDMI Splitter is the perfect solution for anyone who needs to send one source of digital high definition video to four displays at the same time. It supports all HDMI-enabled equipment, such as DVD players, satellite set-top boxes and all HDMI displays.The VS184A HDMI Splitter is HDCP (High Bandwidth Digital Content Protection) compliant, making it effective for use with all HDMI displays in home theater applications, as well as in corporate, educational and commercial settings.

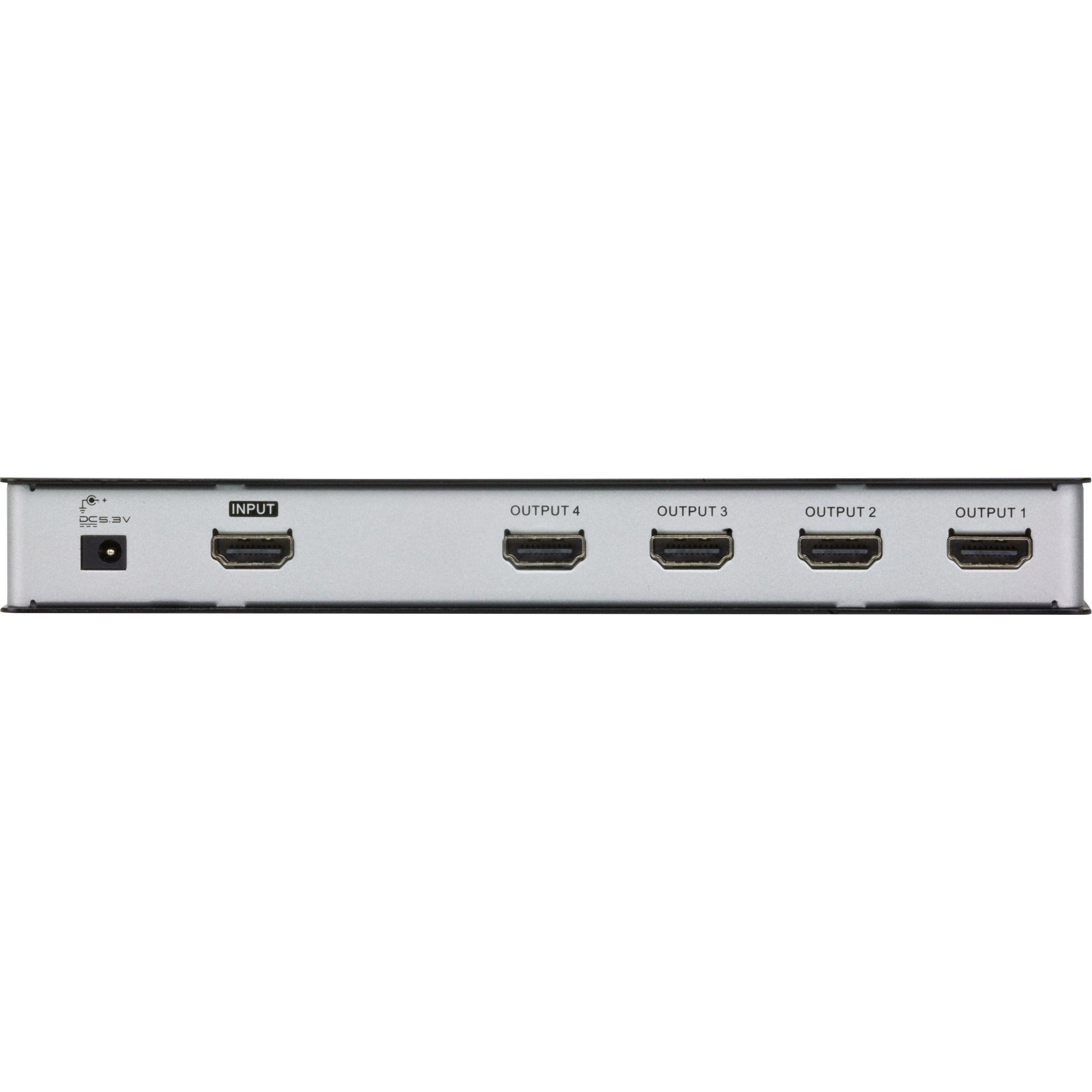

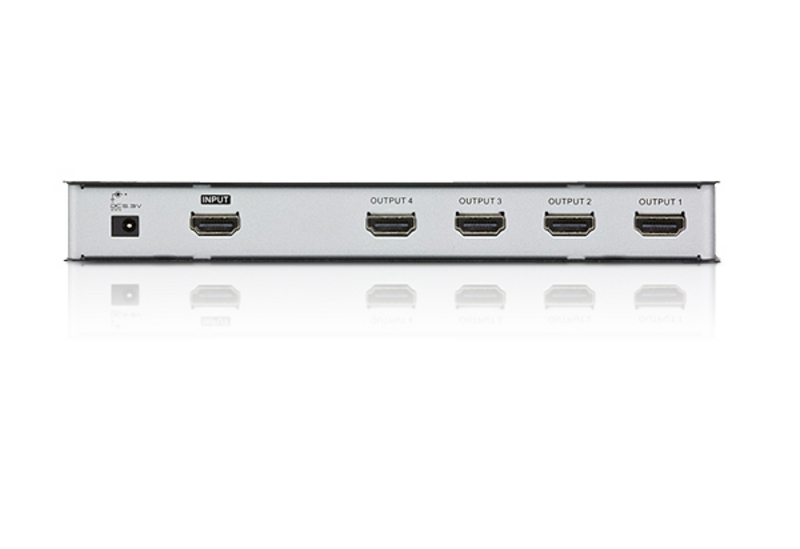

| Ports & interfaces | |
| Video ports quantity: | 5 |
| Video port type: | HDMI |
| Video out: | 4x HDMI |
| DC-in jack: |  |
| Features | |
| Maximum resolution: | 4096 x 2160 pixels |
| Product colour: | Black |
| HD type: | 4K Ultra HD |
| 3D: | |
| Maximum operating distance: | 15 m |
| Maximum refresh rate: | 60 Hz |
| Bandwidth: | 340 MHz |
| HDCP version: | 1.4 |
| HDCP: | |
| Plug and Play: | |
| LED indicators: | |
| Dolby technologies: | DTS-HD Master Audio, Dolby TrueHD |
| Power | |
| AC input voltage: | 5 V |
| Power consumption (typical): | 6.02 W |
| Weight & dimensions | |
| Width: | 80 mm |
| Depth: | 200 mm |
| Height: | 25 mm |
| Weight: | 703 g |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 59 mm |
| Package depth: | 239 mm |
| Package height: | 160 mm |
| Package weight: | 825 g |
| Packaging content | |
| Manual: | |
| Cables included: | HDMI |
| AC adapter included: | |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -20 - 60 °C |
| Operating relative humidity (H-H): | 0 - 80% |
| Storage relative humidity (H-H): | 0 - 80% |
| Logistics data | |
| Master (outer) case net weight: | 14.1 kg |
| Harmonized System (HS) code: | 85176990 |
| Master (outer) case width: | 315 mm |
| Master (outer) case length: | 490 mm |
| Master (outer) case height: | 338 mm |
| Master (outer) case gross weight: | 17.3 kg |
| Products per master (outer) case: | 20 pc(s) |
