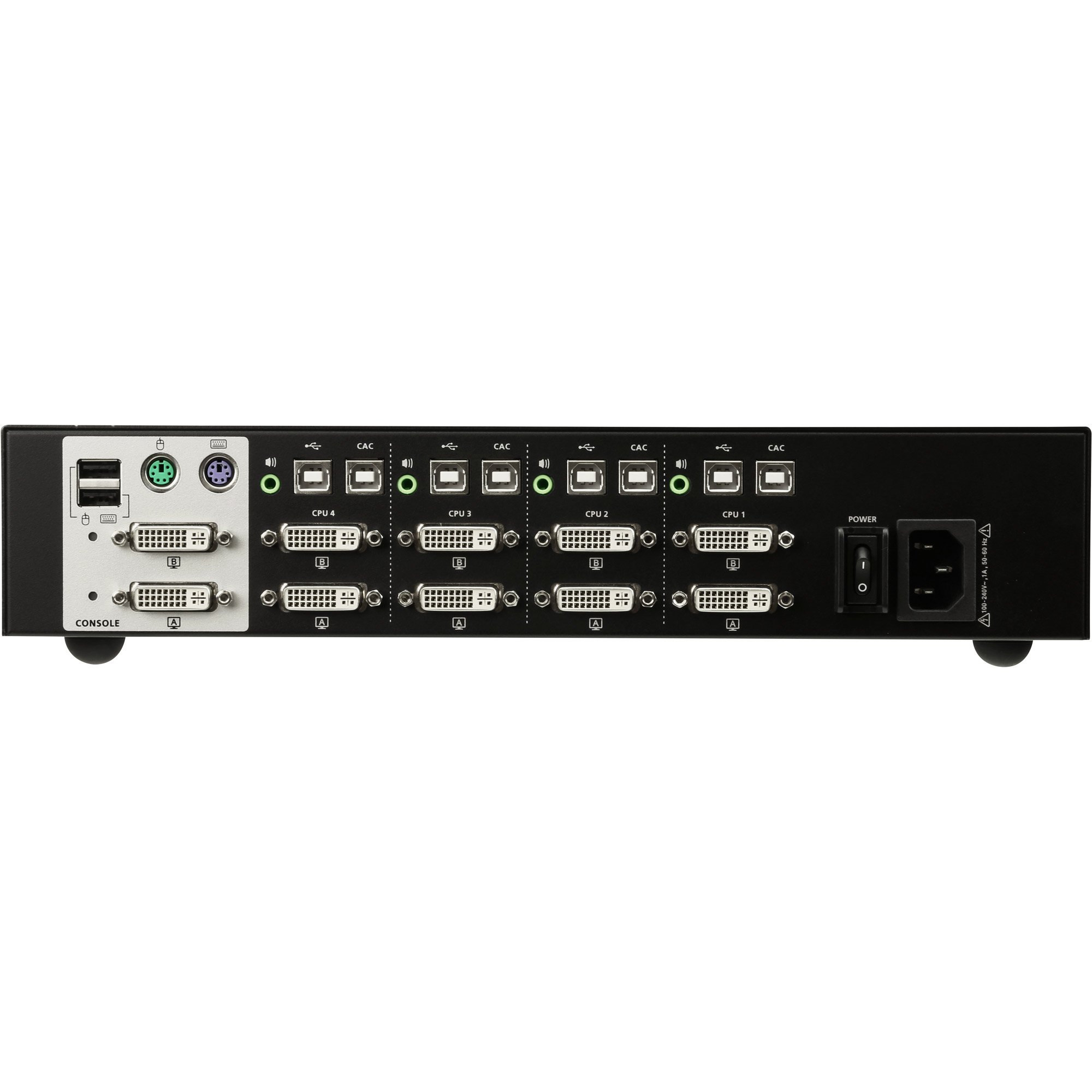

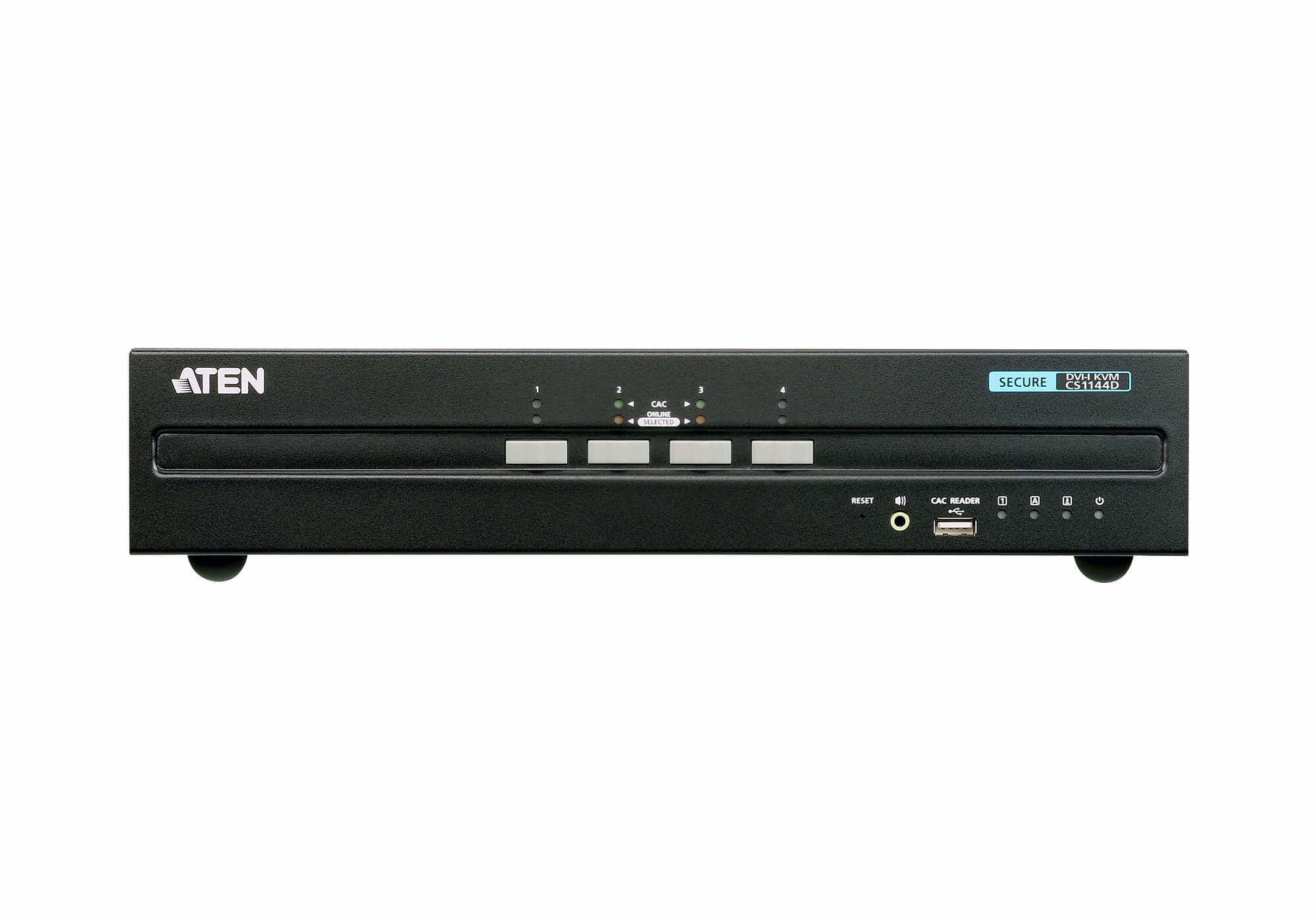

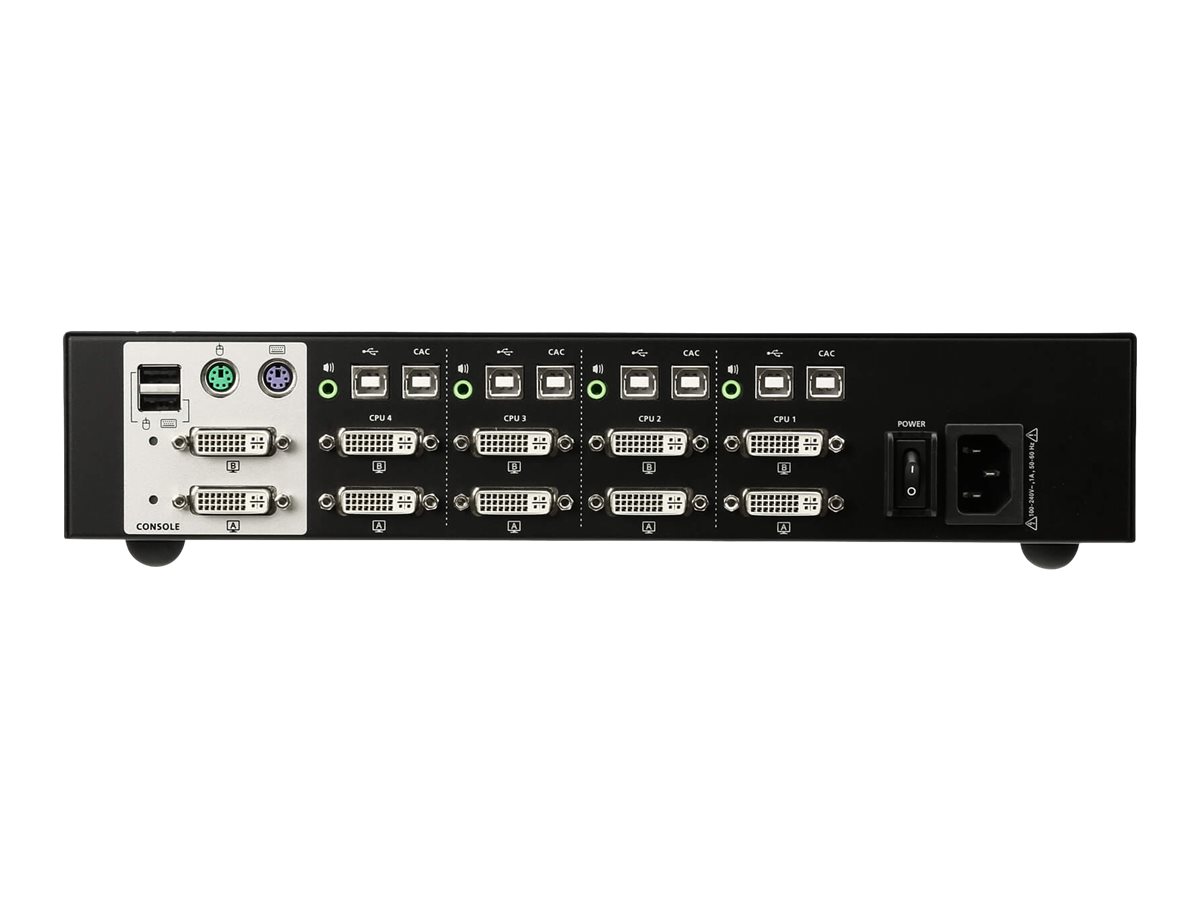

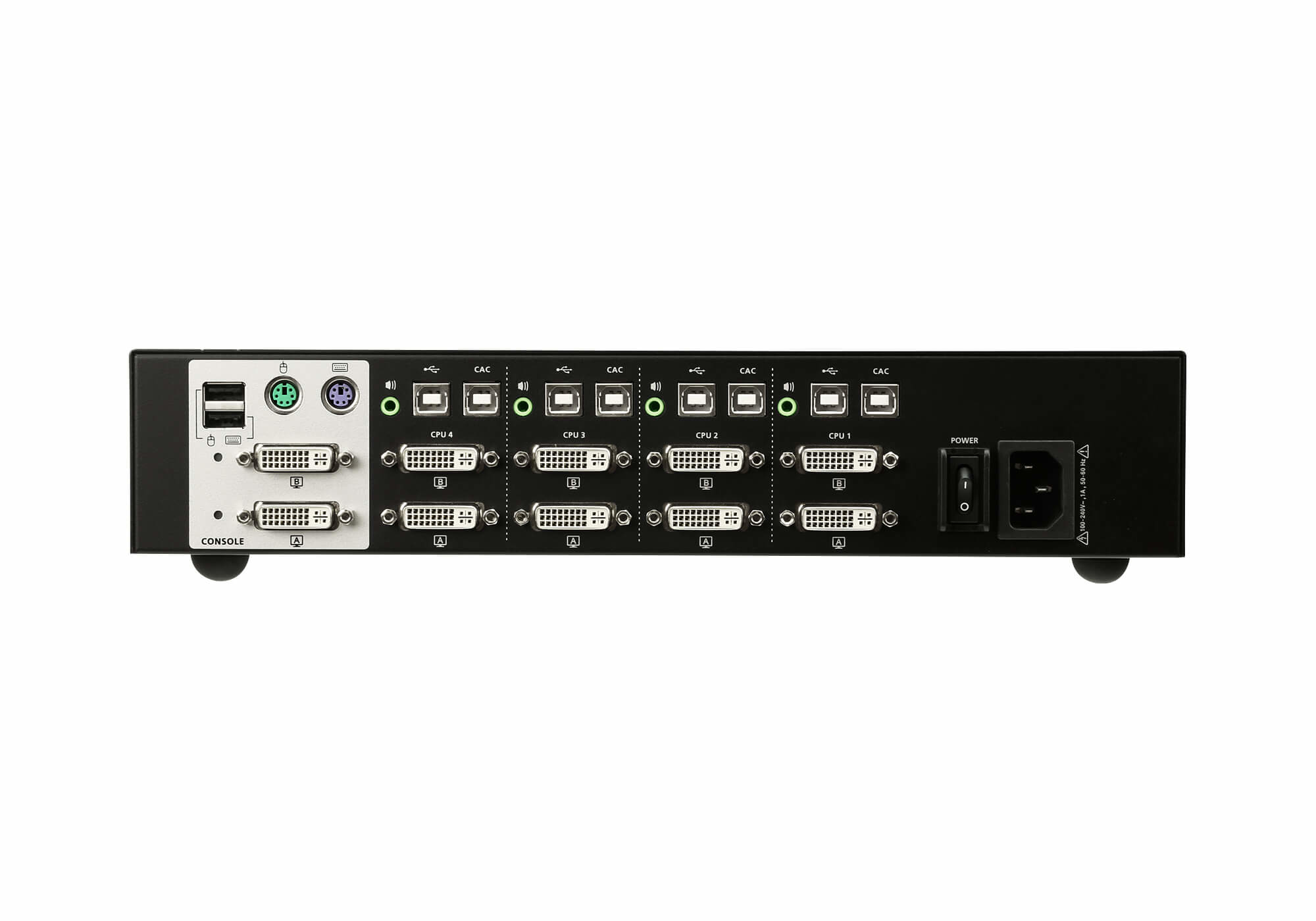

ATEN 4-Port USB DVI Dual Display Secure KVM

ATEN PSS PP v3.0 Secure KVM Switch (CS1144D) is specifically designed to meet the stringent security requirement of secure defense and intelligence installations. ATEN PSS PP v3.0 Secure KVM Switch (CS1144D) is compliant with PSS PP v3.0 (Protection Profile for Peripheral Sharing Switch, Version 3.0) standard certified by the National Information Assurance Partnership (NIAP).1x CS1144D 4-Port USB DVI Dual Display Secure KVM Switch1x LIN2-418K-E12G Power Cord1x User Instructions

Ports & interfaces
Number of computers controlled:	4
Keyboard port type:	USB
Mouse port type:	USB
Video port type:	DVI-I
Console ports:	DVI-I, USB A
DVI-I ports quantity:	10
USB 2.0 Type-B ports quantity:	8
Console USB ports quantity:	2
USB connector type:	USB Type-B
PS/2 ports quantity:	2
Audio connections:
Headphone outputs:	4
Performance
HD type:	4K Ultra HD
Maximum resolution:	3840 x 2160 pixels
Video bandwidth:	30 Hz
Design
Rack mounting:
Product colour:	Black
Housing material:	Metal
LED indicators:
Push button:
Display
Built-in display:
Power
Power source:	AC
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	1 A
Power consumption (typical):	7.8 W
System requirements
Windows operating systems supported:
Sustainability
Sustainability certificates:	RoHS
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Storage temperature (T-T):	-20 - 60 °C
Operating relative humidity (H-H):	0 - 80%
Weight & dimensions
Width:	163.9 mm
Depth:	335 mm
Height:	65.5 mm
Weight:	2.49 kg
Packaging data
Package width:	131 mm
Package depth:	540 mm
Package height:	233 mm
Package weight:	2.97 kg
Packaging content
Cables included:	AC
Quick installation guide:
Manual:
Logistics data
Master (outer) case net weight:	7.47 kg
Harmonized System (HS) code:	85176200
Master (outer) case width:	420 mm
Master (outer) case length:	555 mm
Master (outer) case height:	258 mm
Master (outer) case gross weight:	9.96 kg
Products per master (outer) case:	3 pc(s)
