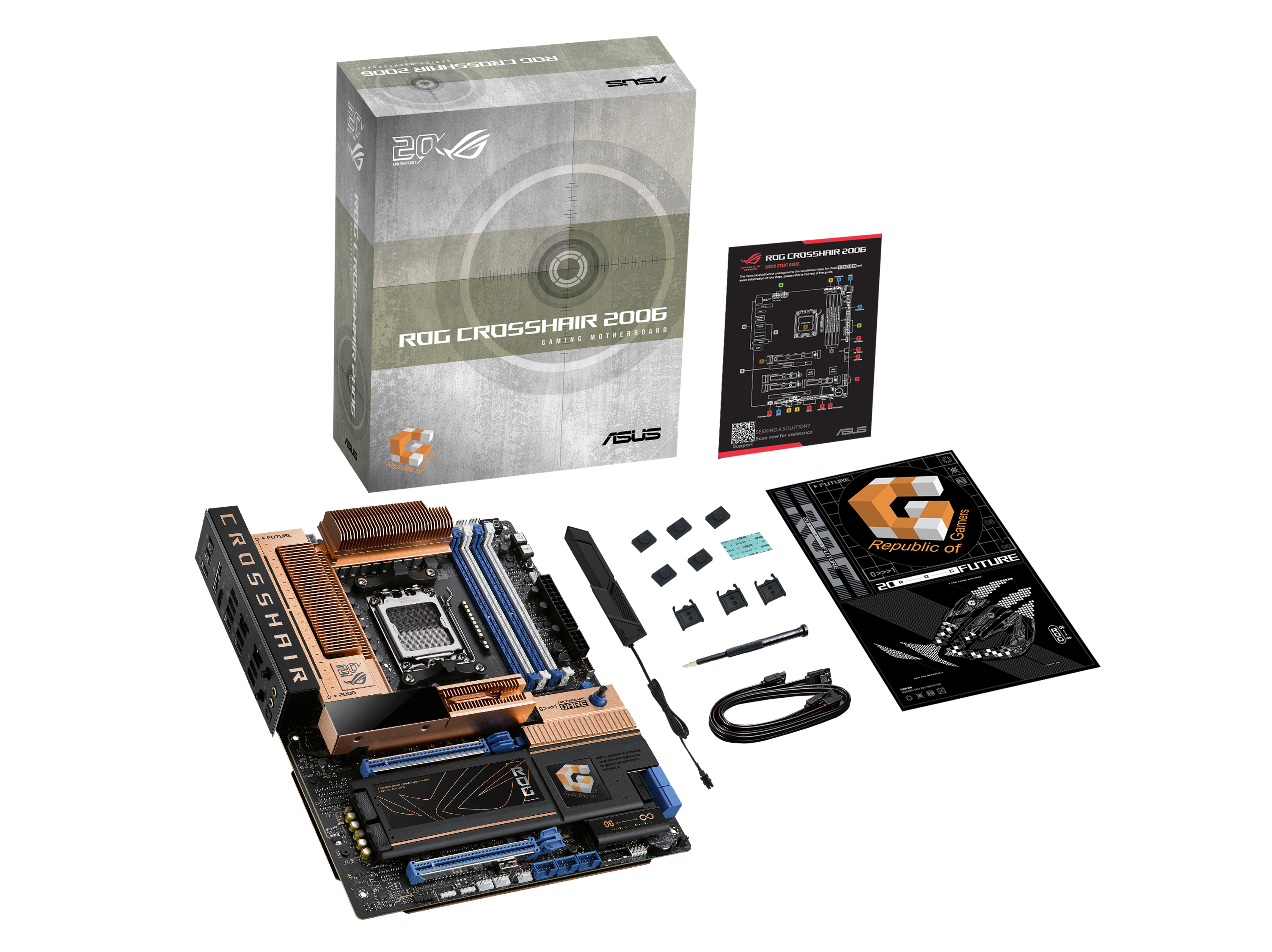

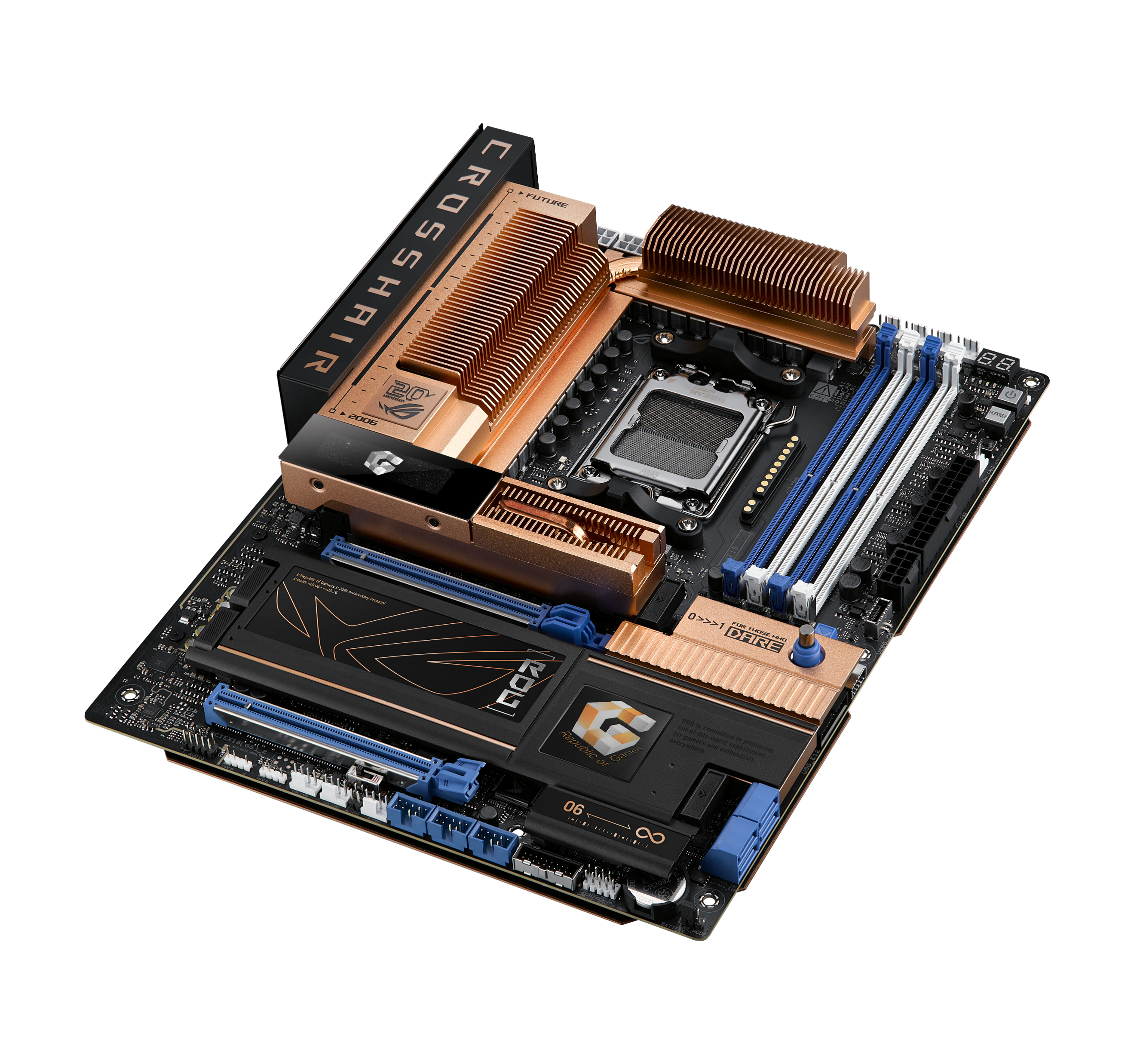

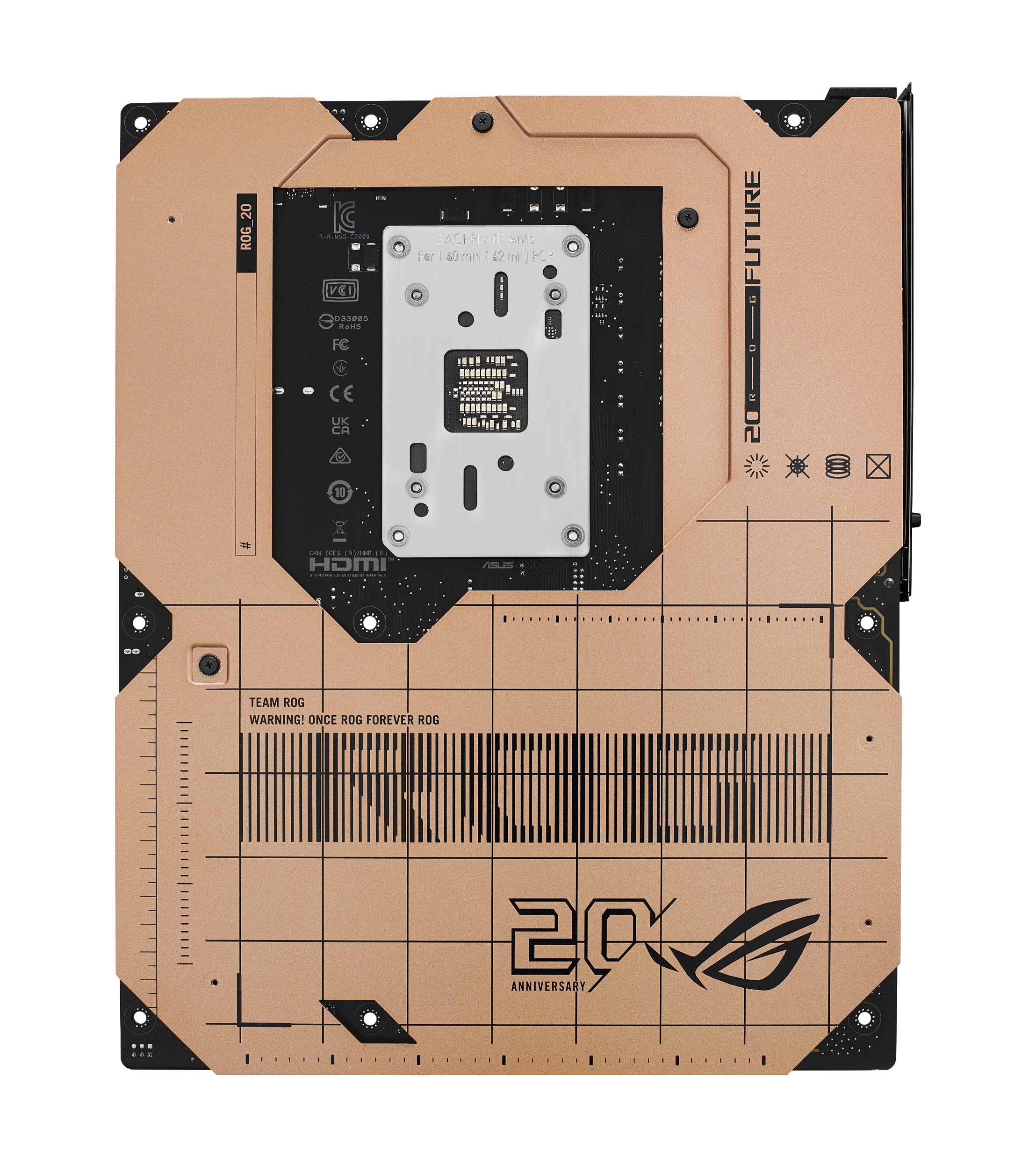

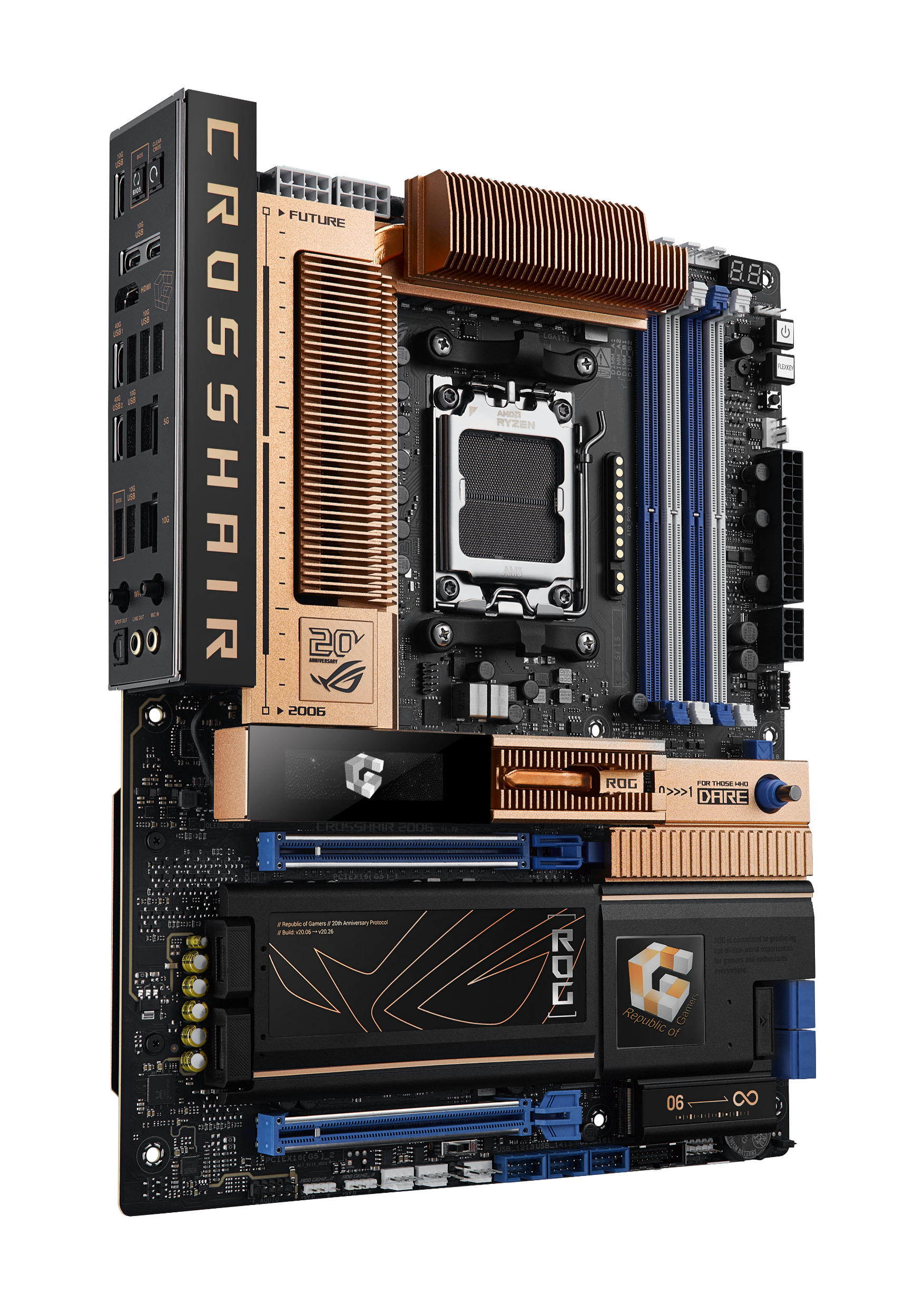

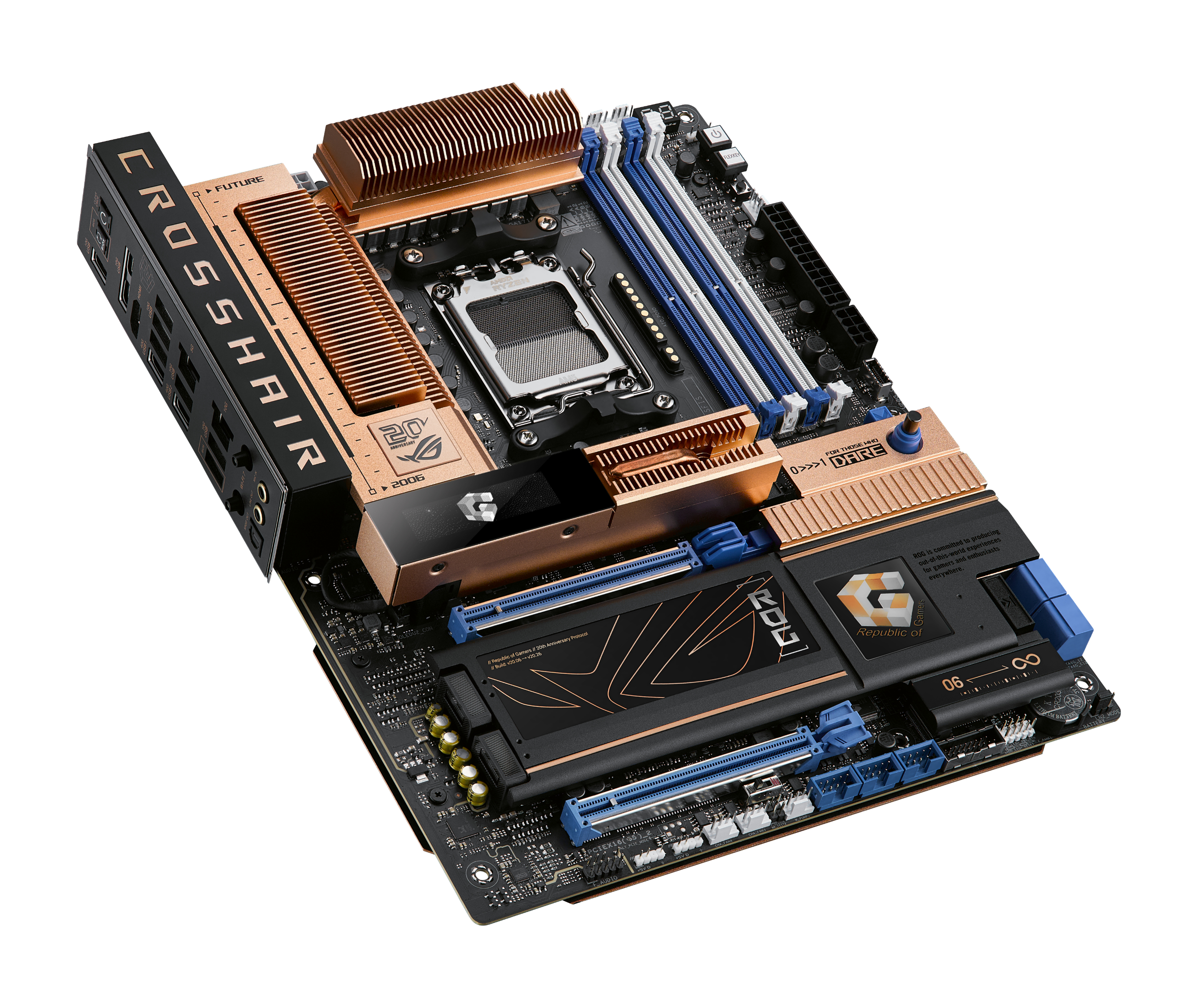

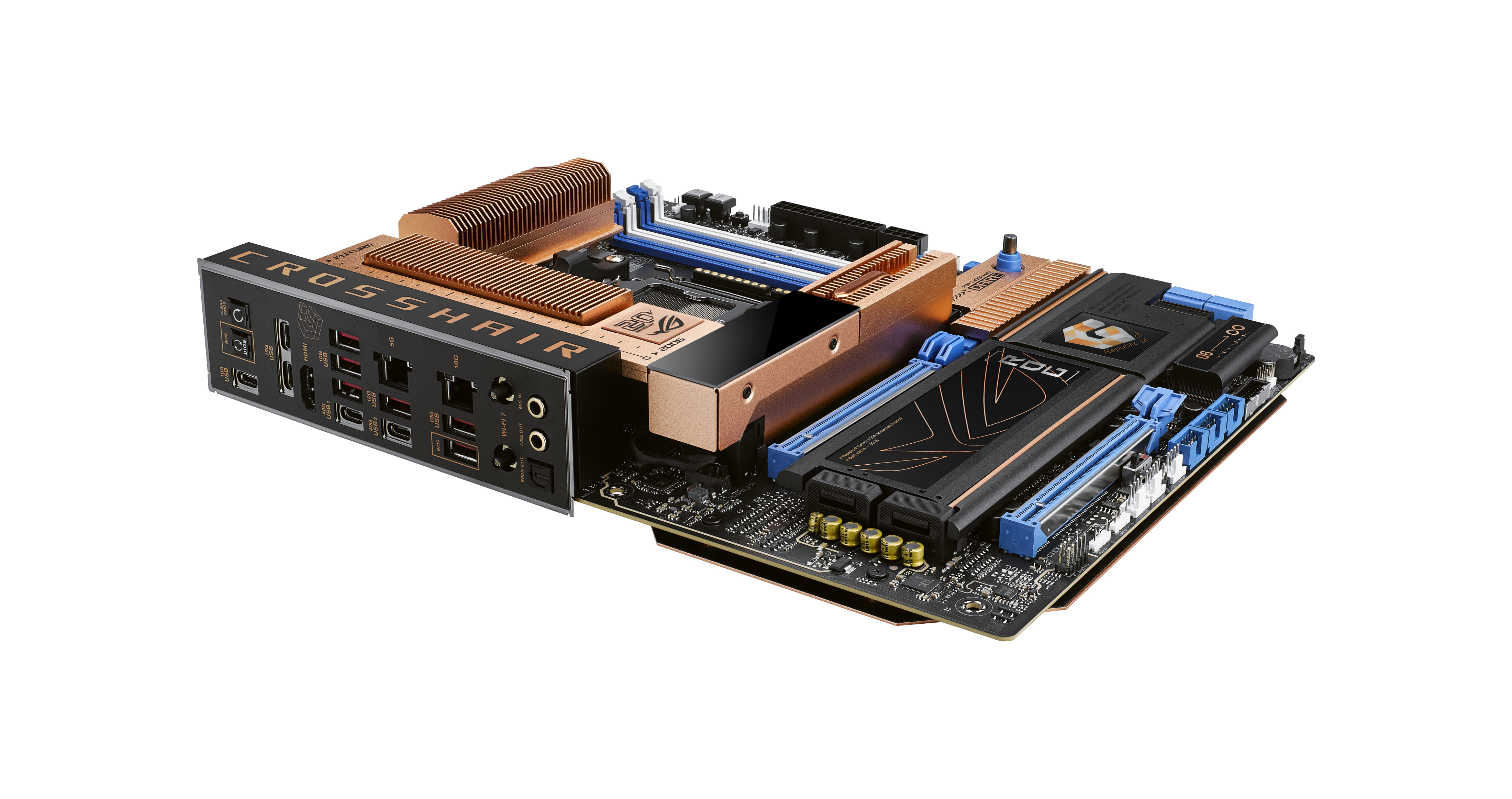

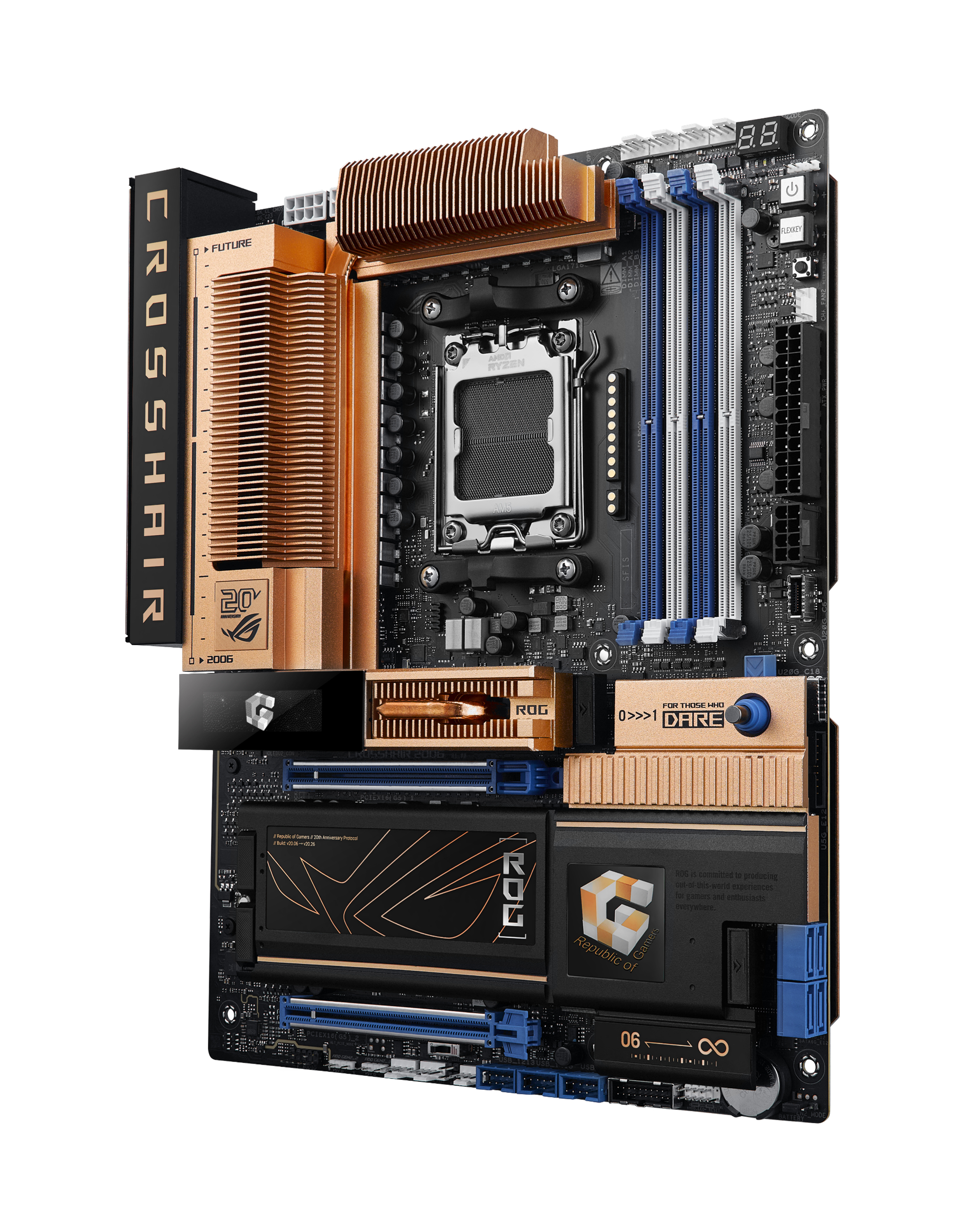

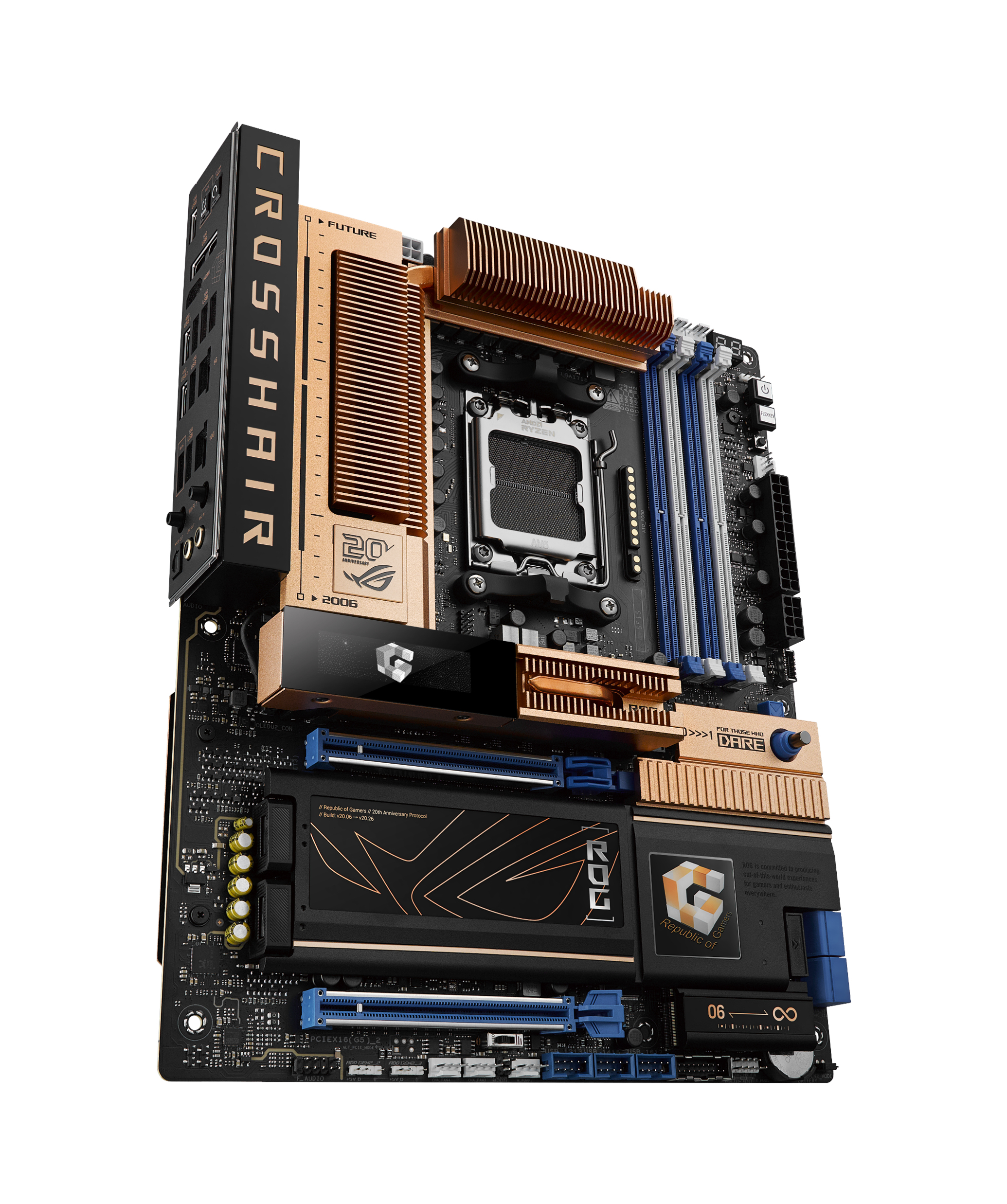

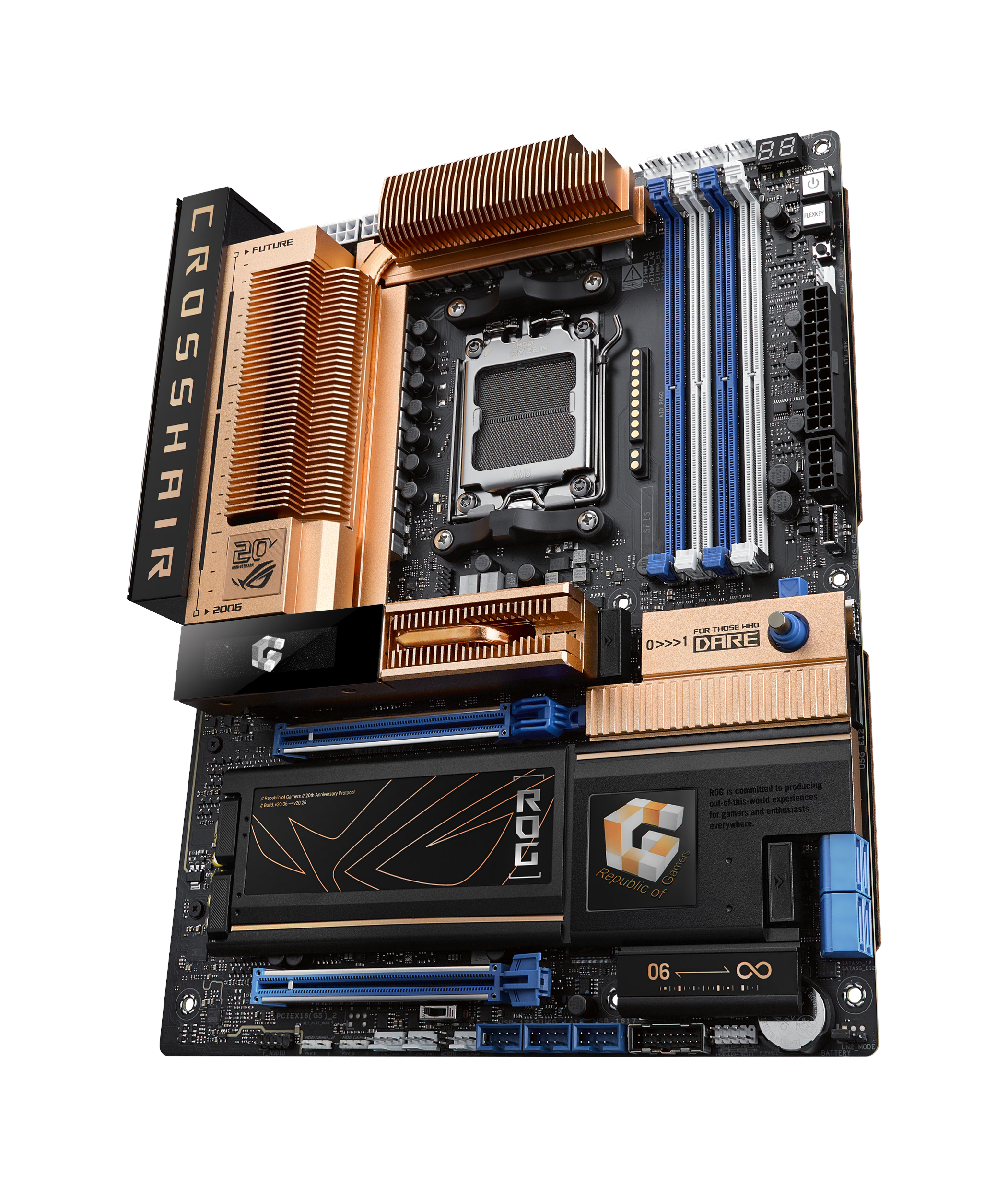

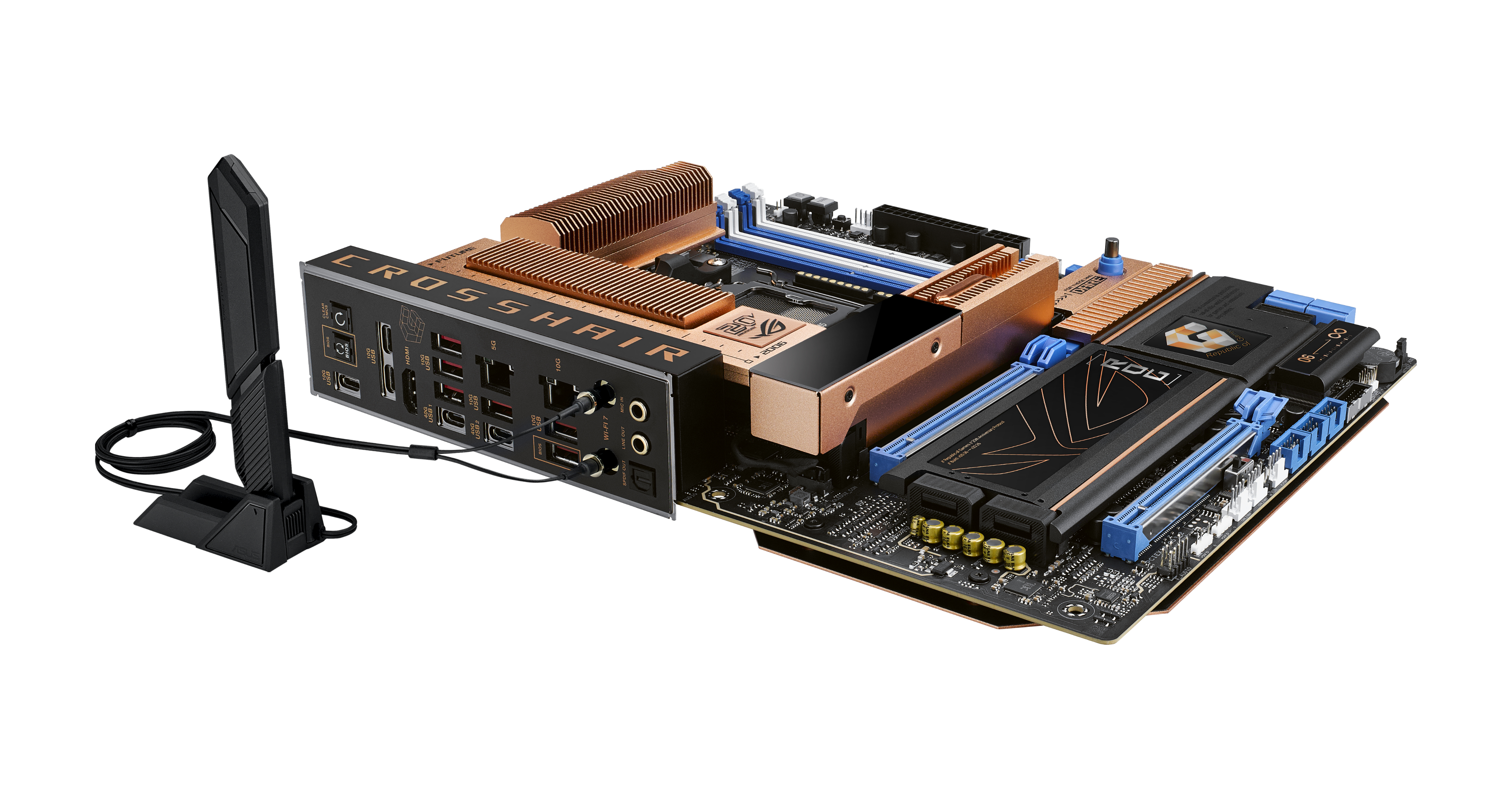

ROG Crosshair 2006
The ROG Crosshair 2006 celebrates the 20th anniversary of the very first ROG motherboard with a retro-inspired copper color design and signature OLED animation. This flagship platform also offers advanced power delivery and cutting-edge memory technologies, blending heritage with modern performance.
Personalization
The ROG Crosshair 2006 includes LiveDash, a built-in 2-inch OLED panel that shows useful information and features customizable graphics. During the power-on, self-test (POST) phase, the OLED shows key stats in simple language using traditional POST codes. In normal operation, the panel can be programmed to show CPU frequency, device temperatures, or fan speeds. You can also personalize the default OLED GIF with a preferred image or animation.
*Supports custom animation uploads in 256x64 pixel monochrome format (up to 100KB).
| Processor | |
| Processor manufacturer: | AMD |
| Processor socket: | Socket AM5 |
| Compatible processor series: | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets: | Socket AM5 |
| Memory | |
| Supported memory types: | DDR5-SDRAM |
| Number of memory slots: | 4 |
| Maximum internal memory: | 256 GB |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| ECC ompatibility: | ECC & Non-ECC |
| Unbuffered memory: | Yes |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| Number of HDDs supported: | 4 |
| Number of storage drives supported: | 9 |
| RAID support: | Yes |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support: | Not supported |
| Internal I/O | |
| USB 2.0 connectors: | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors: | 0 |
| Number of SATA III connectors: | 4 |
| USB 3.2 Gen 2x2 connectors: | 2 |
| Front panel audio connector: | Yes |
| Front panel connector: | Yes |
| ATX Power connector (24-pin): | Yes |
| CPU fan connector: | Yes |
| Number of chassis fan connectors: | 4 |
| EPS power connector (8-pin): | Yes |
| 12V power connector: | Yes |
| Number of temperature sensor headers: | 1 |
| RGB LED pin header: | Yes |
| Number of RGB LED pin headers: | 3 |

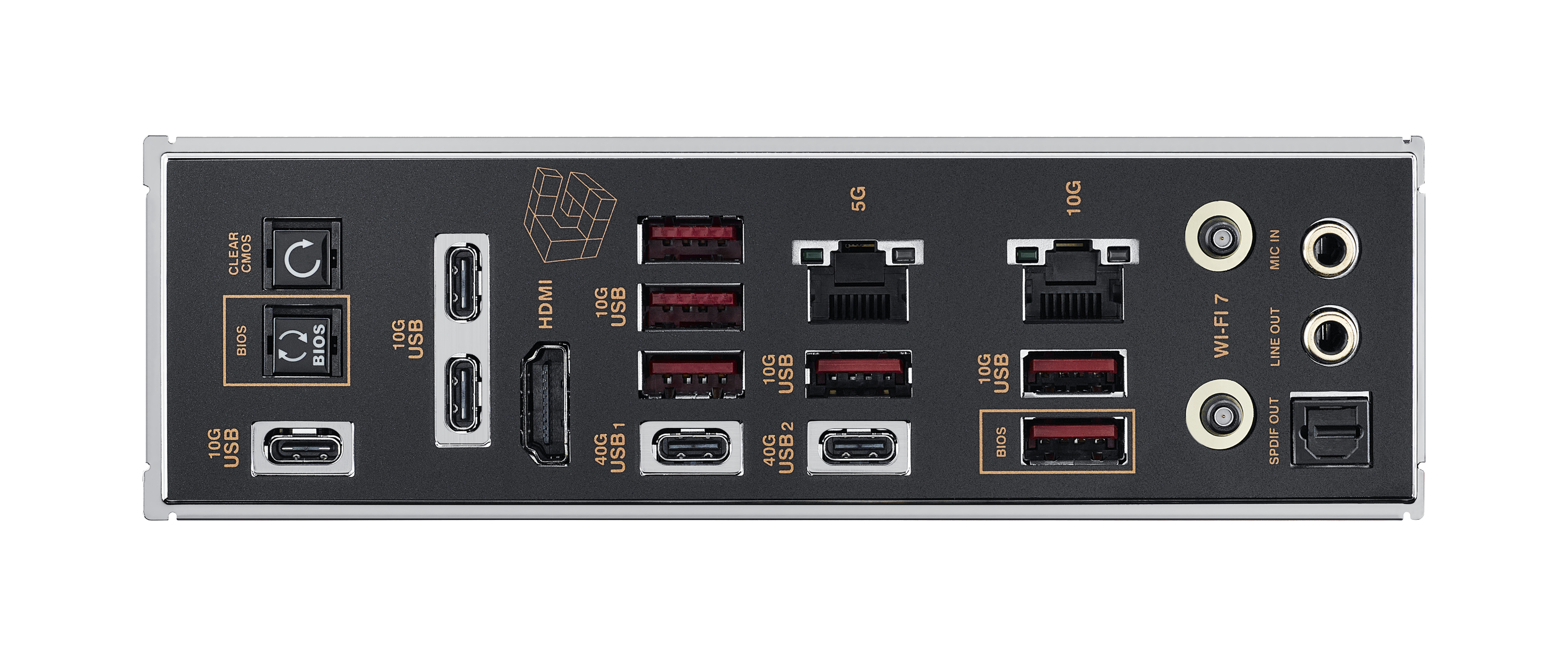

| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 3 |
| Ethernet LAN (RJ-45) ports: | 2 |
| VGA (D-Sub) ports quantity: | 0 |
| HDMI ports quantity: | 1 |
| DVI-D ports quantity: | 0 |
| USB4 Gen 3x2 ports quantity: | 2 |
| S/PDIF out port: | Yes |
| WiFi-AP antenna jack: | 1 |
| Network | |
| Wi-Fi: | Yes |
| Ethernet LAN: | Yes |
| Ethernet interface type: | 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| Top Wi-Fi standard: | Wi-Fi 7 (802.11be) |
| Wi-Fi standards: | Wi-Fi 7 (802.11be) |
| WLAN controller model: | MediaTek MT7927 |
| Bluetooth: | Yes |
| Bluetooth version: | 5.4 |
| Features | |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | AMD |
| Motherboard chipset: | AMD X870E |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC4082 |
| Product colour: | Black, Gold |
| Power source type: | ATX |
| Windows operating systems supported: | Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots: | 1 |
| PCI Express x16 (Gen 4.x) slots: | 2 |
| PCI Express x16 (Gen 5.x) slots: | 2 |
| Number of M.2 (M) slots: | 5 |
| 1st M.2 largest key size: | 22110 |
| 1st M.2 highest PCI Express generation: | 5.0 |
| 2nd M.2 largest key size: | 2280 |
| 2nd M.2 highest PCI Express generation: | 5.0 |
| 3rd M.2 largest key size: | 2280 |
| 3rd M.2 highest PCI Express generation: | 4.0 |
| 4th M.2 largest key size: | 2280 |
| 4th M.2 highest PCI Express generation: | 4.0 |
| 5th M.2 largest key size: | 2230 |
| 5th M.2 highest PCI Express generation: | 4.0 |
| BIOS | |
| BIOS type: | UEFI AMI |
| BIOS memory size: | 512 Mbit |
| Packaging data | |
| Package width: | 370 mm |
| Package depth: | 312 mm |
| Package height: | 108 mm |
| Package weight: | 5.57 kg |
| Weight & dimensions | |
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 50 mm |
| Packaging content | |
| Cables included: | SATA |
| Antenna included: | Yes |
| Screws included: | Yes |
| Other features | |
| Weight: | 2.51 kg |
