Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built sustainably with all-steel construction, it lasts for years and can be used for various applications. It also boasts a 3.3% decarbonization rate and ships in sturdy, recyclable packaging.
| Features | |
| Rack capacity: | 48U |
| Type: | Freestanding rack |
| Maximum weight capacity: | 1814 kg |
| Maximum weight capacity (rolling): | 1020 kg |
| Product colour: | Black |
| Side panels included: | Yes |
| Key lock: | Yes |
| Side panel key lock: | Yes |
| Adjustable feet: | Yes |
| Door opening angle: | 270° |
| Weight & dimensions | |

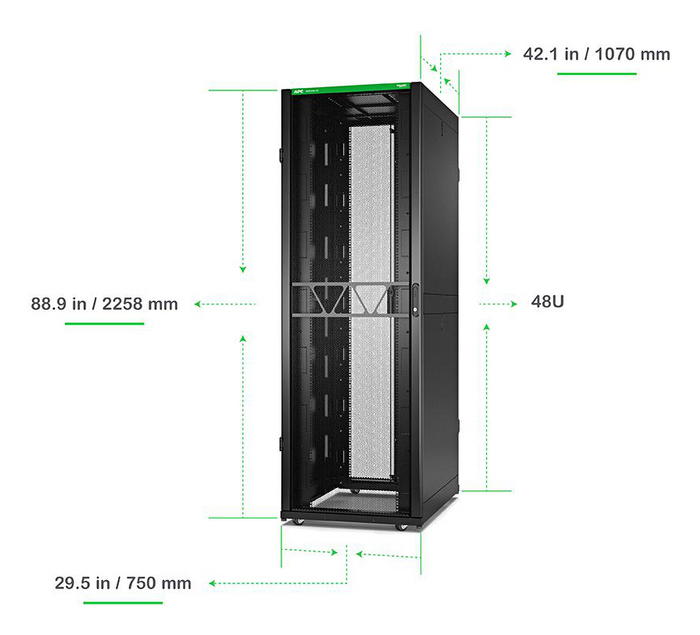

| Size (imperial): | 48.3 cm (19") |
| Width: | 750 mm |
| Depth: | 1070 mm |
| Height: | 2258 mm |
| Weight: | 160.8 kg |
| Mounting depth (min): | 28.6 cm |
| Mounting depth (max): | 91.5 cm |
| Packaging data | |
| Package width: | 853 mm |
| Package depth: | 1158 mm |
| Package height: | 2395 mm |
| Package weight: | 184.1 kg |
| Technical details | |
| Doesn't contain: | SVHC |
| Warranty period: | 5 year(s) |
| Compliance certificates: | REACH, RoHS |
| Logistics data | |
| Country of origin: | China |
