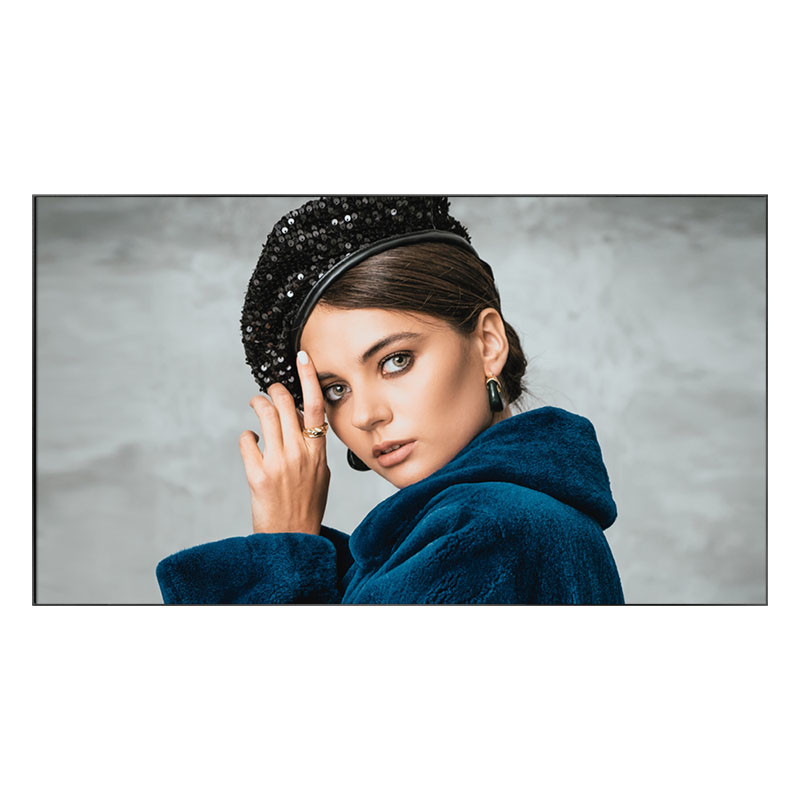

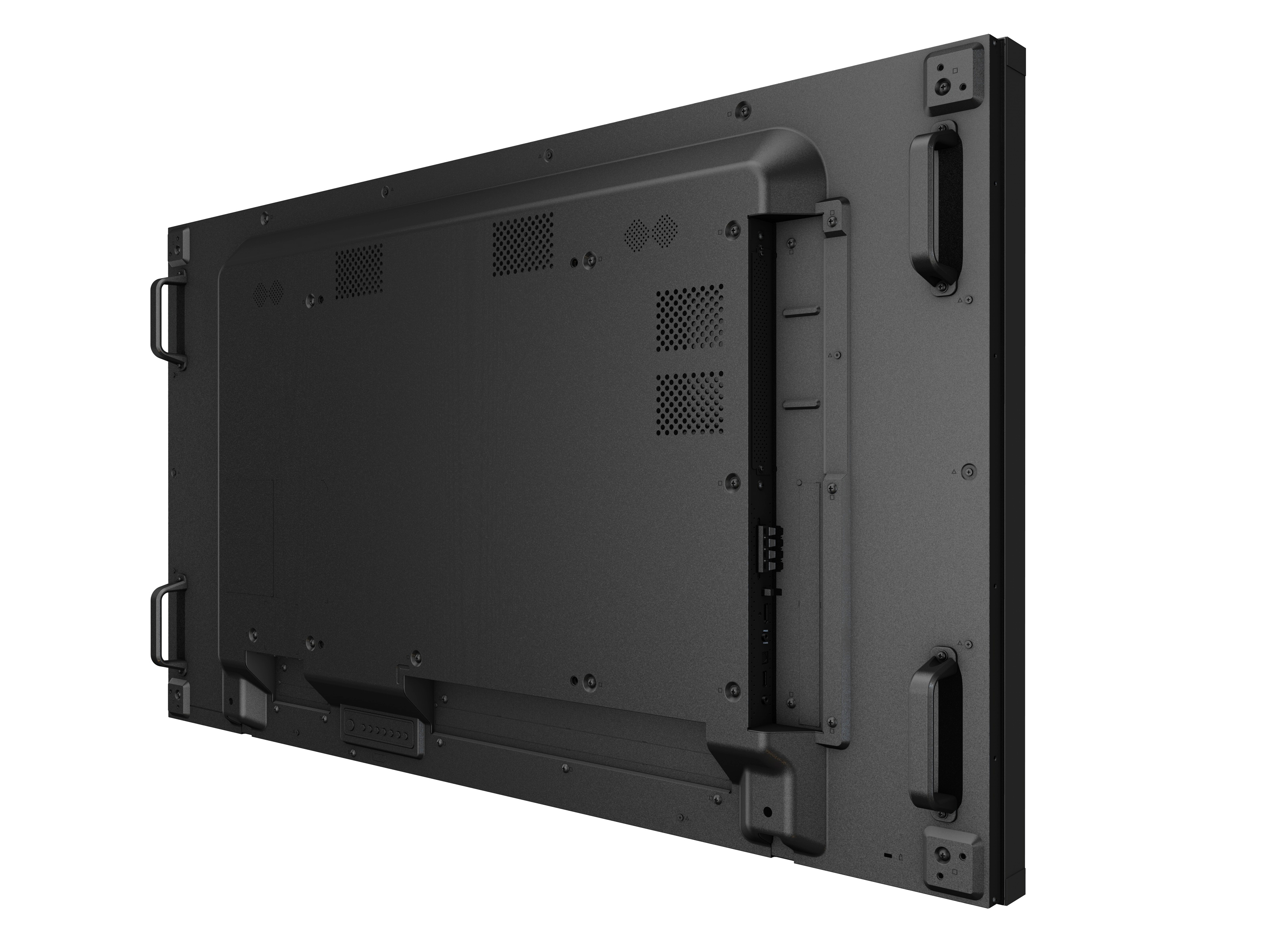

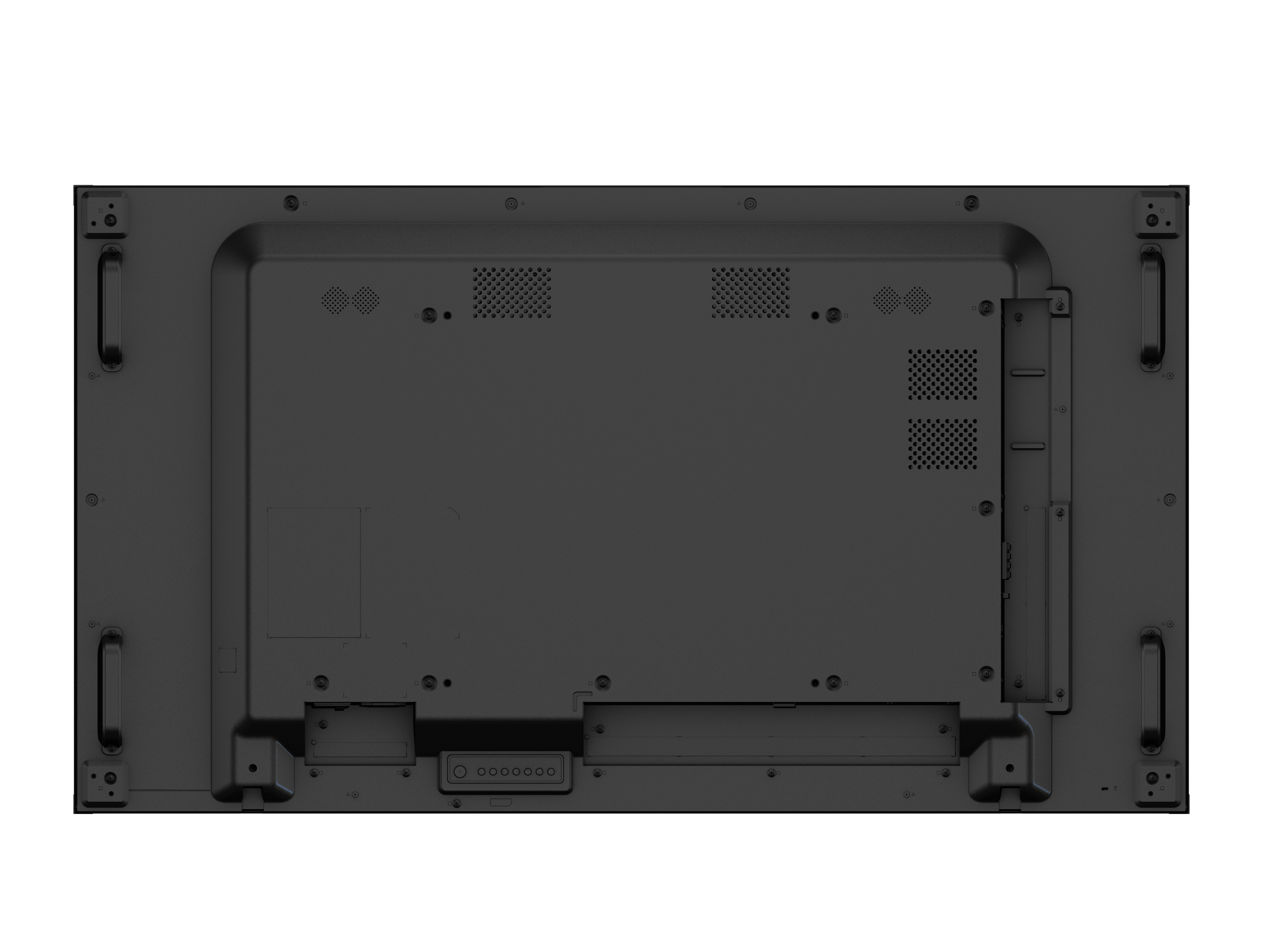

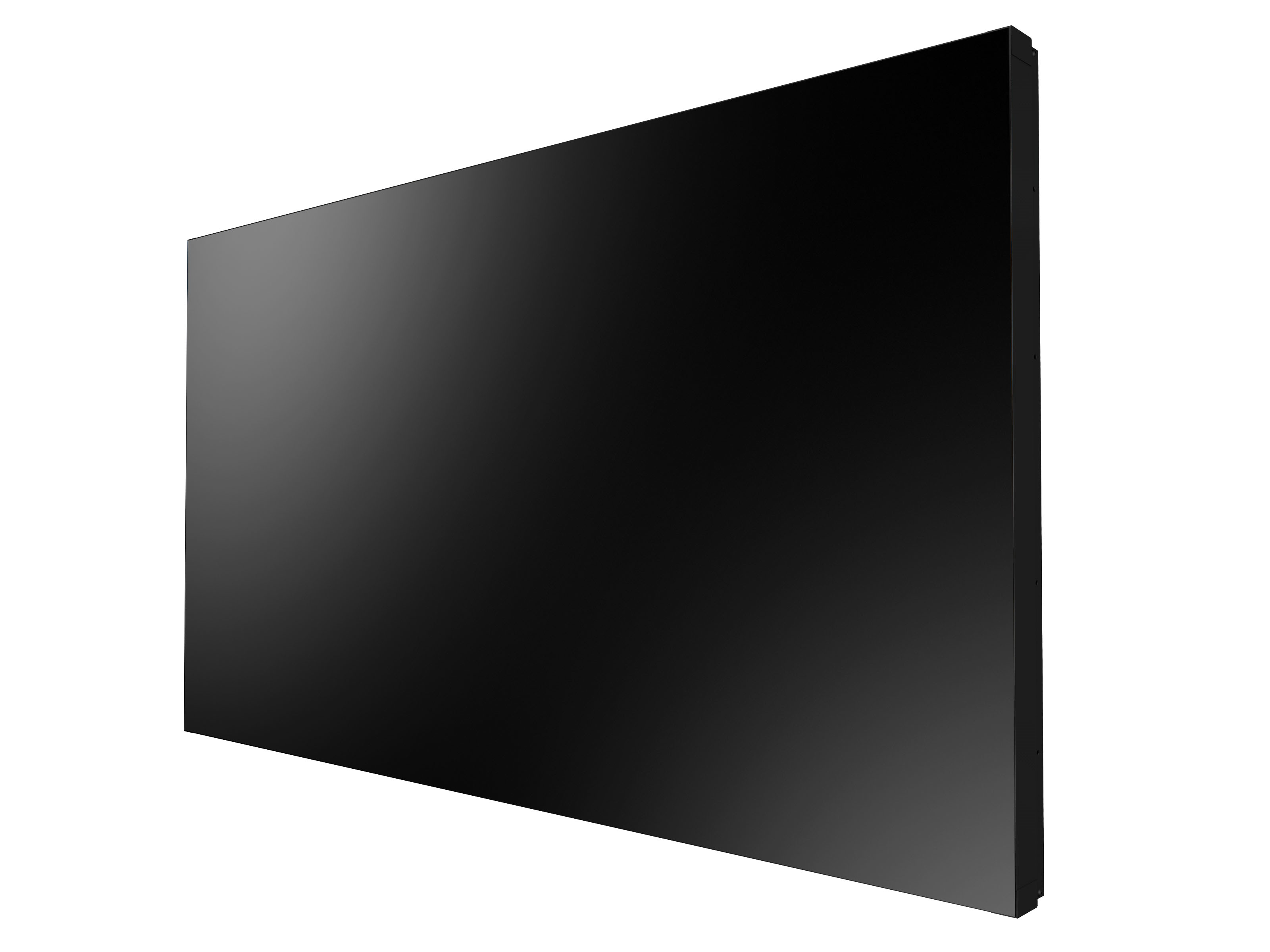

AG Neovo 55-Inch 1080p 500 Nits Ultra Narrow Bezel Video Wall Display

The PN-55D3 55-Inch 1080p 500 nits ultra-narrow bezel displays are designed for commercial and professional large-scale video wall installations. Given its built-in scheduler, OPS slot, UniWall feature, the PN-55D3 high-end video wall displays can easily create 15×15 large-scale and eye-catching digital content without third-party devices. The anti-reflective, 500 nits brightness panel makes visually stunning video walls in demanding environments from large public venues to 24/7 operation control rooms.IMMERSIVE VISUAL EXPERIENCETo ensure that viewers are presented with an uninterrupted visual experience, the PN-55D3 features IPS panel technology with 24/7 operation. The display is further enhanced by a minuscule 3.5 mm bezel-to-bezel transition to create immersive video walls.ANTI-GLARE COATING WITH HIGH VISIBILITYAnti-glare treatment with the haze of 28%, high contrast, wide viewing angles, and 500 nits brightness produce images with superior clarity and visibility under ambient light.PATENTED ANTI-BURN-IN TECHNOLOGYTo combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and ensure an extended lifespan for displays.GAMMA SETTINGS FOR CORRECTING COLOUR TONESThe PN-55D3 video wall displays can provide real-time adjustment on the spot. Additionally, multiple sets of Gamma settings produce smoother and more consistent colour tones.COLOUR CALIBRATION FOR VIDEO WALL SETUPScreen colour varies due to temperature changes or after long-term use. Fortunately, AG Neovo offers a colour calibration tool, which detects each area using on-screen sensors and automatically fine-tunes colours and details for large-scale display installations.* This requires consultation with an AG Neovo sales representative.15x15 LARGE-SCALE VIDEO WALLSThe UniWall feature allows the PN-55D3 to natively support video walls of up to 15×15 displays, which can easily be connected to external sources.DISPLAYPORT 1.2 MULTISTREAM AND IR/RS232 CONTROL CAPABILITYThe DisplayPort 1.2 Multistream functionality allows users to set up, configure, and maintain a 2×2 4K video wall with ease. Users can also easily control multiple PN-55D3 displays via IR or RS232 connections to external devices.POWERFUL OPS SLOT-IN OPTIONThe embedded OPS slot is ready for standardised OPS module installation. Accordingly, the PN-55D3 video wall displays can be seamlessly upgraded to powerful digital signage that is tailor-made for various user scenarios.LANDSCAPE/PORTRAIT CAPABILITYThe PN-55D3 video wall displays are signage-friendly and can perfectly fit in landscape or portrait mode for complete screen orientation flexibility and to fulfil the needs of various scenarios.PID COMMAND & CTRL SOFTWAREPID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers the easy creation of video wall displays. The software also features simple colour calibration, temperature checks, IR/key-locking options, and usage monitoring for daily maintenance.

Display
Display diagonal:	138.7 cm (54.6")
Display technology:	LCD
Display resolution:	1920 x 1080 pixels
Display brightness:	500 cd/m²
HD type:	Full HD
Touchscreen:
Response time:	5 ms
Contrast ratio (typical):	1200:1
Viewing angle, horizontal:	178°
Viewing angle, vertical:	178°
Display number of colours:	1.07 billion colours
Pixel pitch:	0.63 x 0.63 mm
Display diagonal (metric):	138.68 cm
Horizontal scan range:	31 - 92 kHz
Vertical scan range:	49 - 85 Hz
Haze rate:	28%
Surface hardness:	2H
Ports & interfaces
HDMI ports quantity:	1
DVI port:
DisplayPorts quantity:	2
USB port:
Ethernet LAN:
Wi-Fi:
HDMI version:	2.0
DVI-D ports quantity:	1
VGA (D-Sub) input ports:	1
DisplayPorts in:	1
DisplayPorts out:	1
USB ports quantity:	1
USB version:	2.0
Ethernet LAN (RJ-45) ports:	1
Audio (L/R) in:	1
Audio (L/R) out:	1
RS-232 interface:
Infrared data port:
Remote (IR) input:	1
Remote (IR) output:	1
OPS module slot:
Audio
Built-in speaker(s):
Number of built-in speakers:	2
RMS rated power:	10 W
Design
Product design:	Digital signage flat panel
Product colour:	Black
Placement supported:	Indoor
VESA mounting:
Orientation:	Horizontal
Panel mounting interface:	400 x 400 mm
Anti-glare screen:
Performance
Purpose:	Universal
TV tuner integrated:
Operating hours (hours/days):	24/7
Power
Power consumption (typical):	79 W
Power consumption (standby):	0.5 W
Energy efficiency class (SDR):	F
Energy consumption (SDR) per 1000 hours:	79 kWh
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Energy efficiency scale:	A to G
Computer system
Computer system:
Built-in processor:
Weight & dimensions
Width:	1213.4 mm
Depth:	102.7 mm
Height:	684.2 mm
Weight:	26.6 kg
Packaging data
Package width:	1395 mm
Package depth:	280 mm
Package height:	838 mm
Package weight:	35.3 kg
Packaging content
Remote control included:
Cables included:	DVI, HDMI, IR sensor, RS-232
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	20 - 80%
Storage temperature (T-T):	-20 - 60 °C
Storage relative humidity (H-H):	10 - 90%
Certificates
Certification:	CE ,LVD, WEEE, RoHS, REACH, UKCA, EAC, BSMI
Logistics data
Harmonized System (HS) code:	85285210
Technical details
Sustainability certificates:	CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Other features
Manual:
Power cord included:
RS-232 input ports:	1
RS-232 output ports:	1
DisplayPort version:	1.2
