Products description

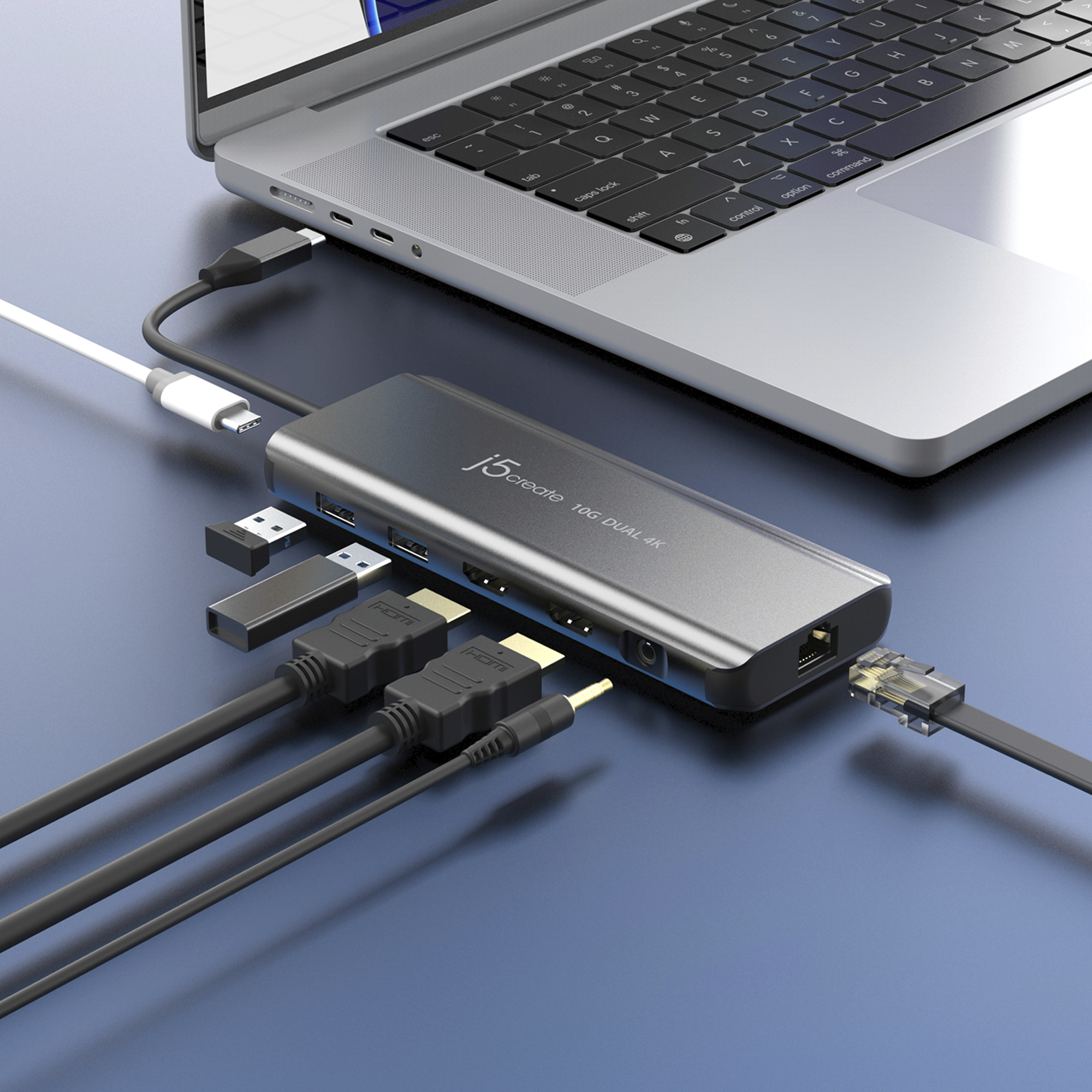

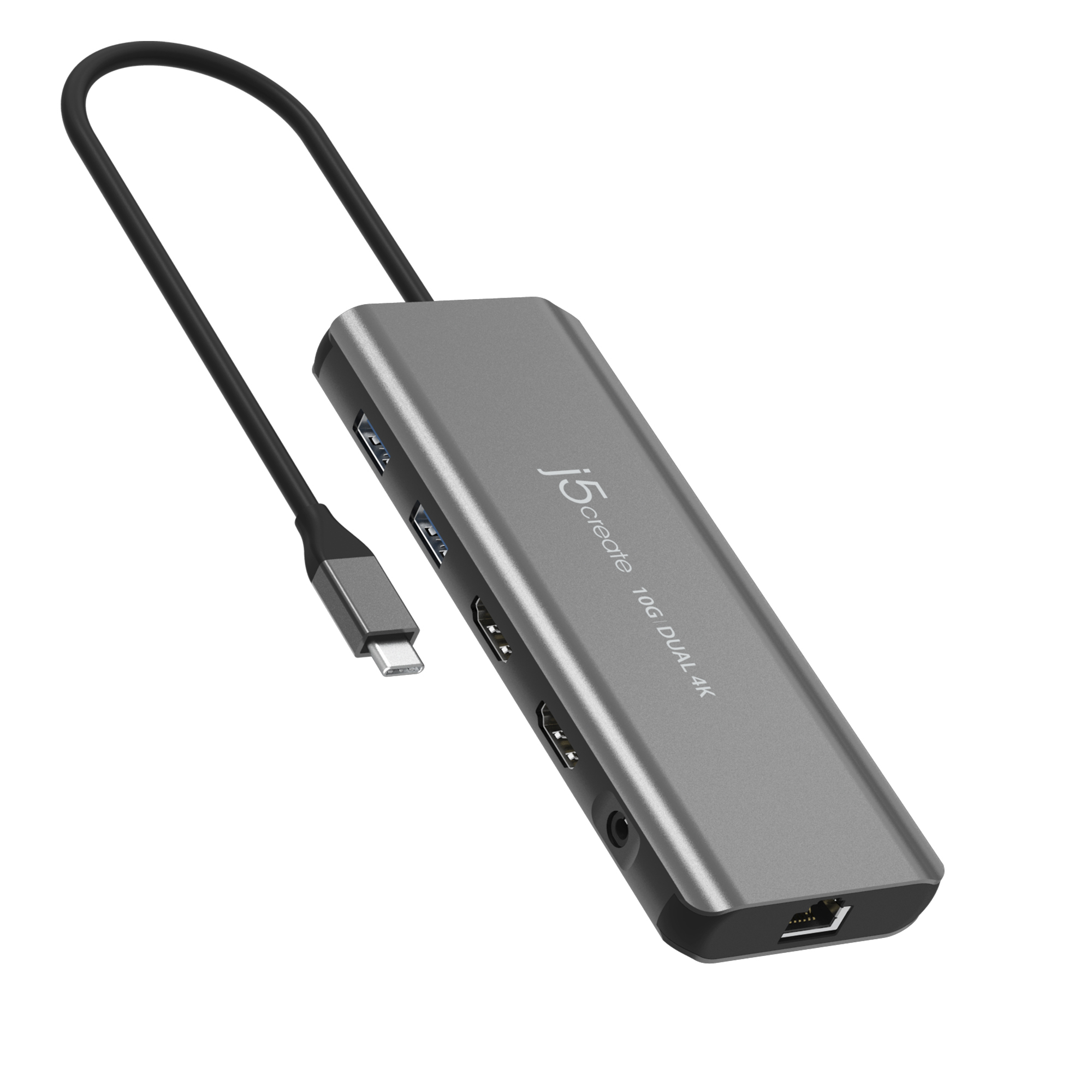

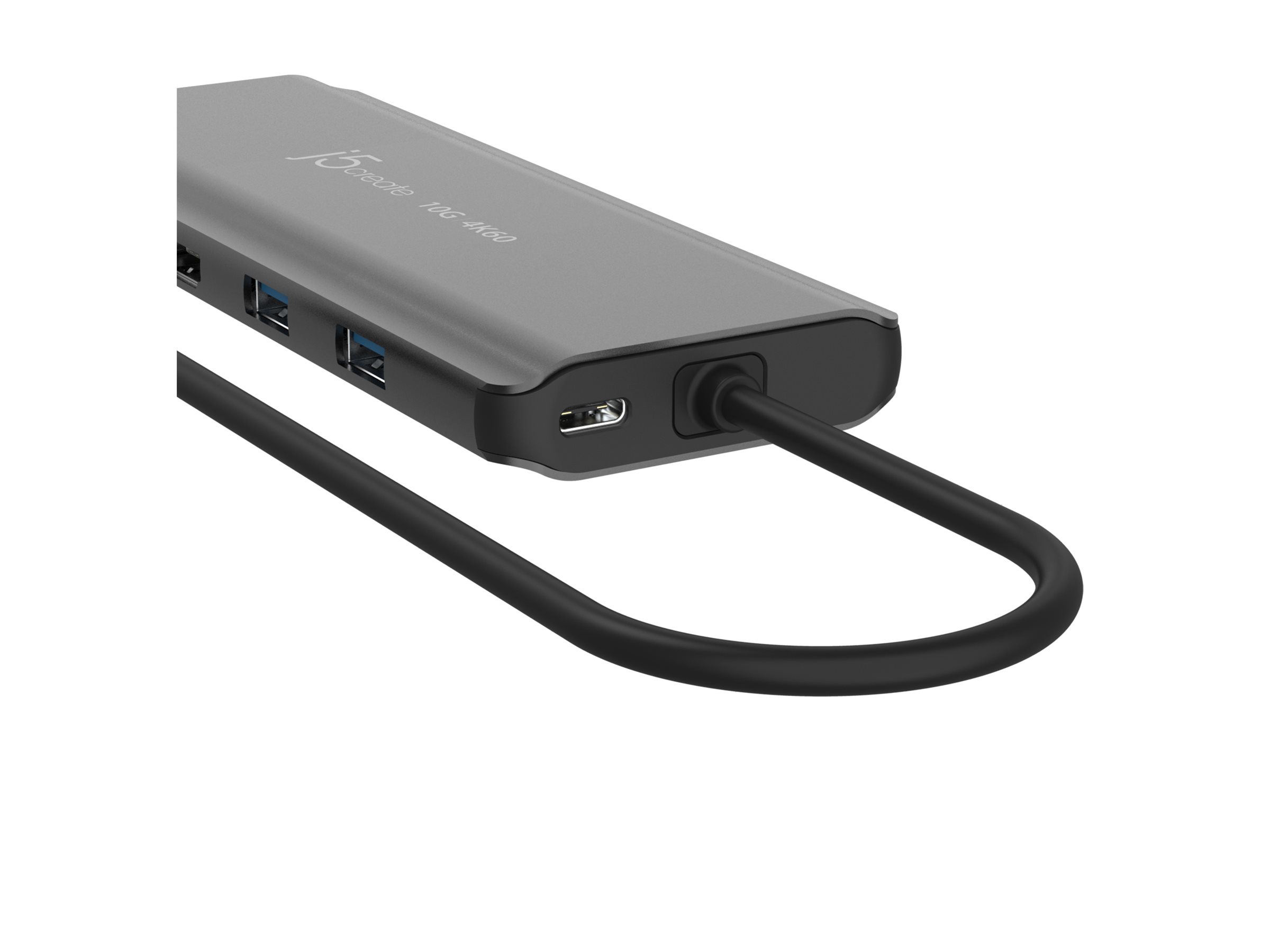

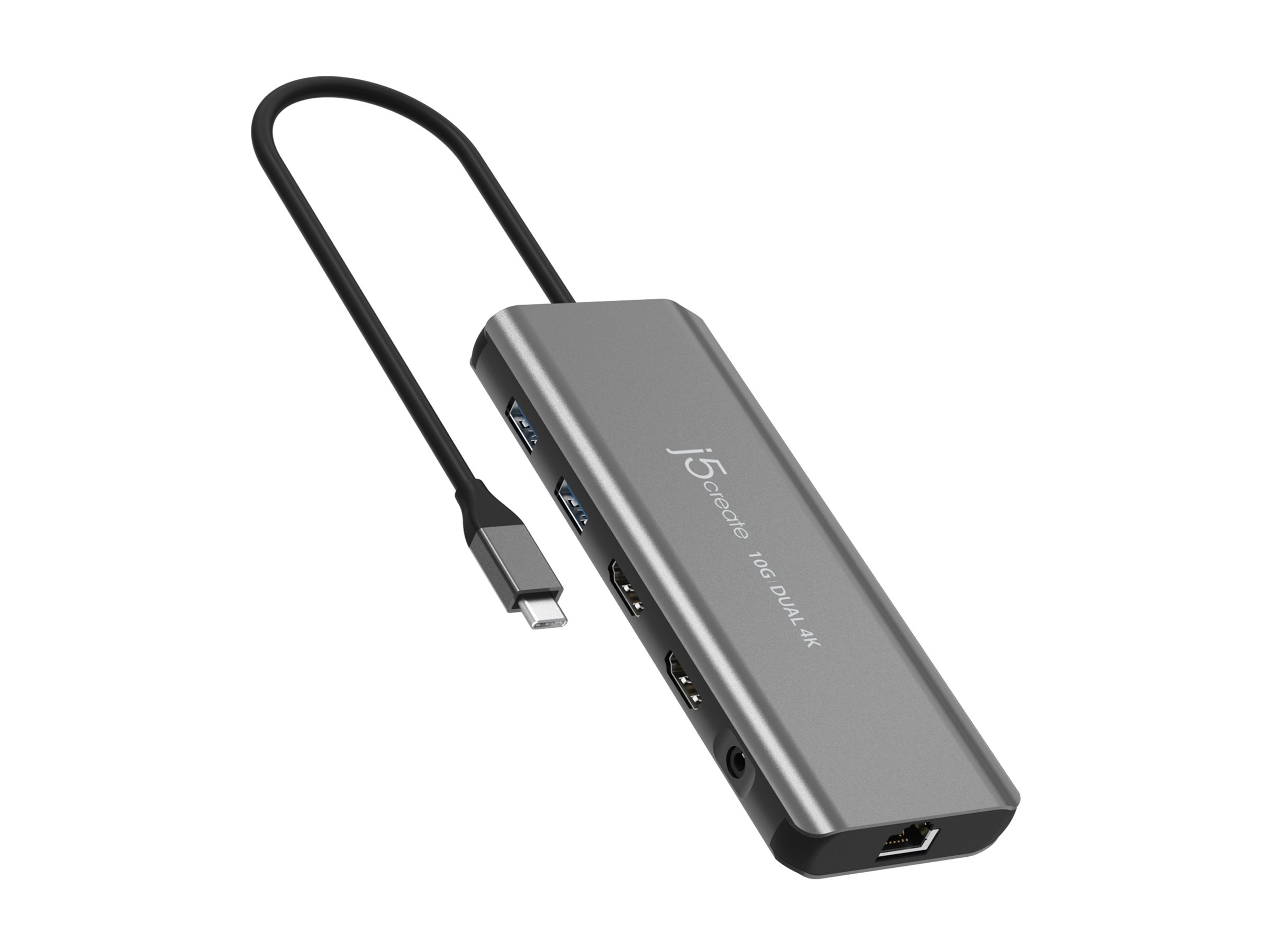

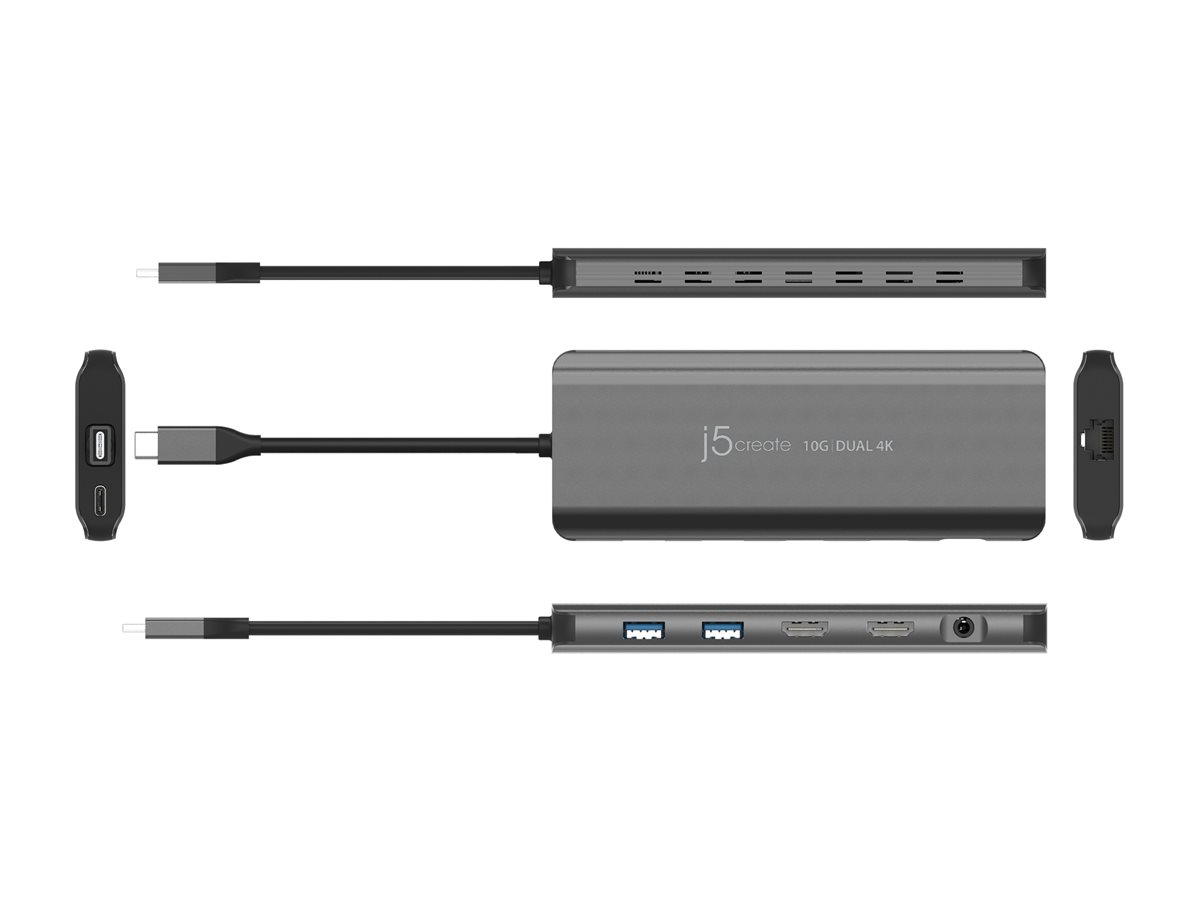

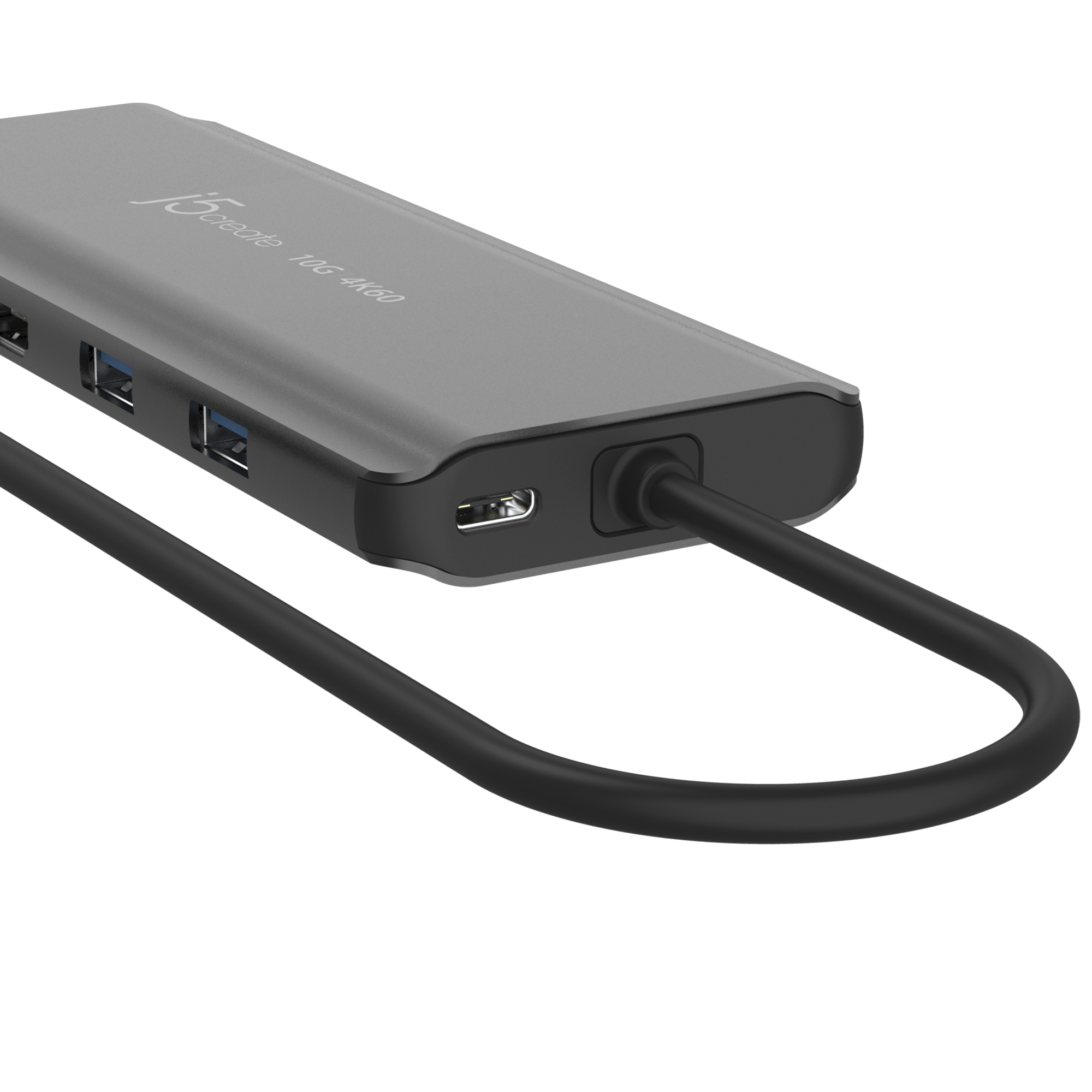

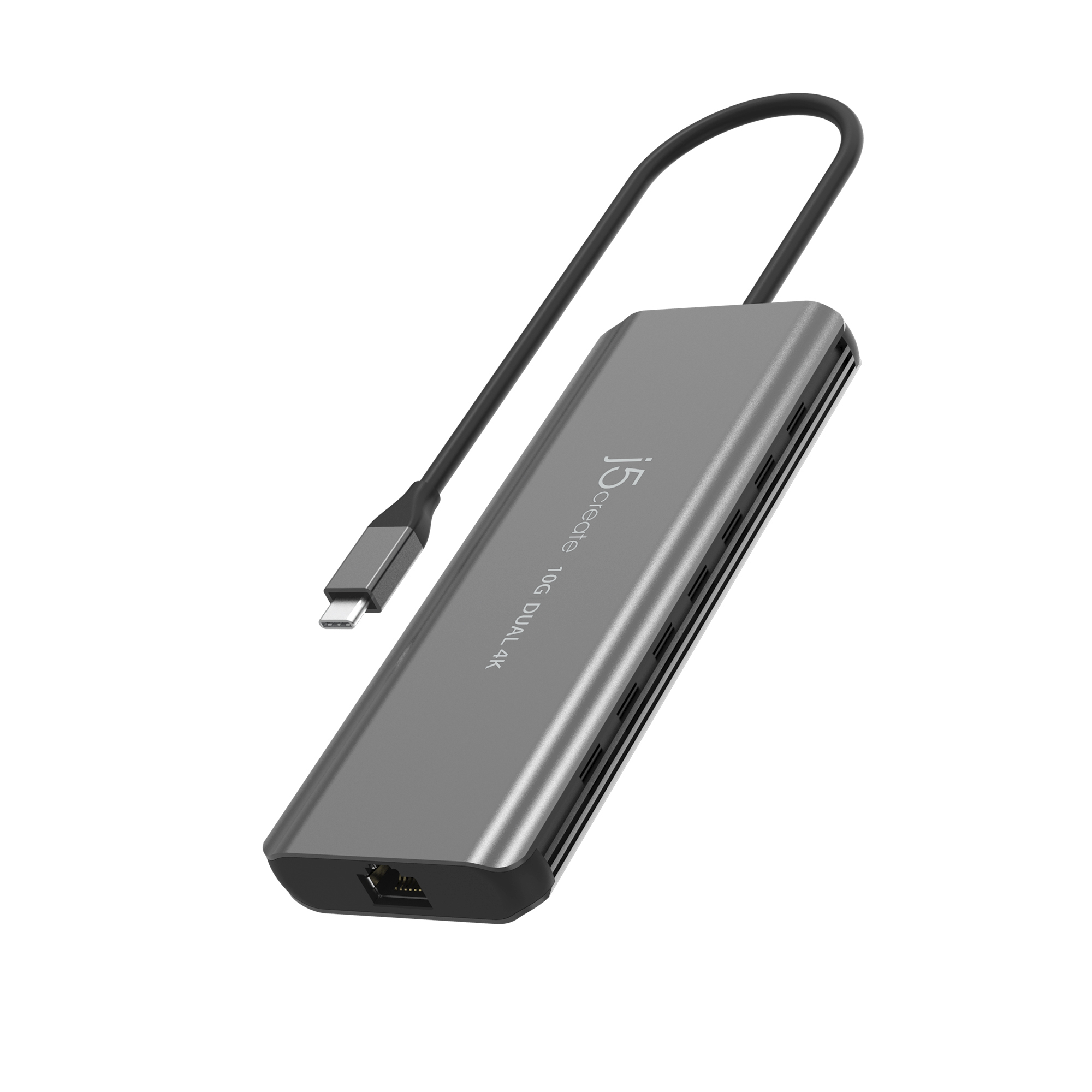

The JCD398 USB-C® Dual 4K HDMI 10Gbps Mini Dock is great for adding two 4K UHD displays to your laptop PC including MacBook® computers with the Apple® M-Series chip. Its compact size makes it suitable for desk environments that lack space. The USB ports support up 10Gbps data transfer rates for connect high speed storage devices and other devices. Supports Power Delivery 3.0 for up to 100W of power passthrough for laptop and tablets. One Gigabit Ethernet port is included for high-speed network connectivity.
| Ports & interfaces | |
| Connectivity technology: | Wired |
| Host interface: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 0 |
| HDMI ports quantity: | 2 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.0 |
| USB Power Delivery up to: | 100 W |
| Combo headphone/mic port: | Yes |
| Network | |

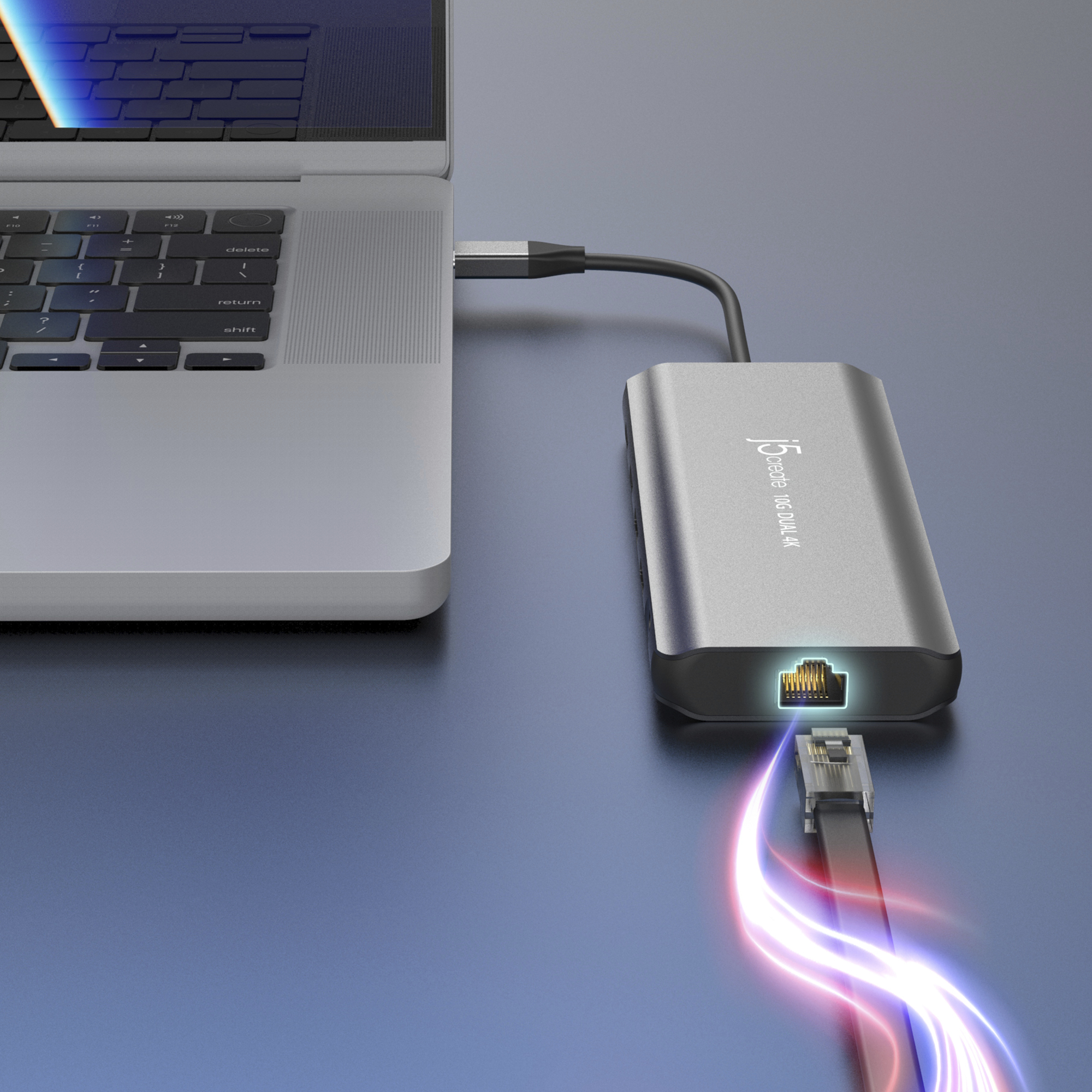

| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Performance | |
| Product colour: | Grey |
| Colour name: | Space Grey |
| Data transfer rate: | 10 Gbit/s |
| HD type: | 4K Ultra HD |
| Maximum digital resolution: | 3840 x 2160 pixels |

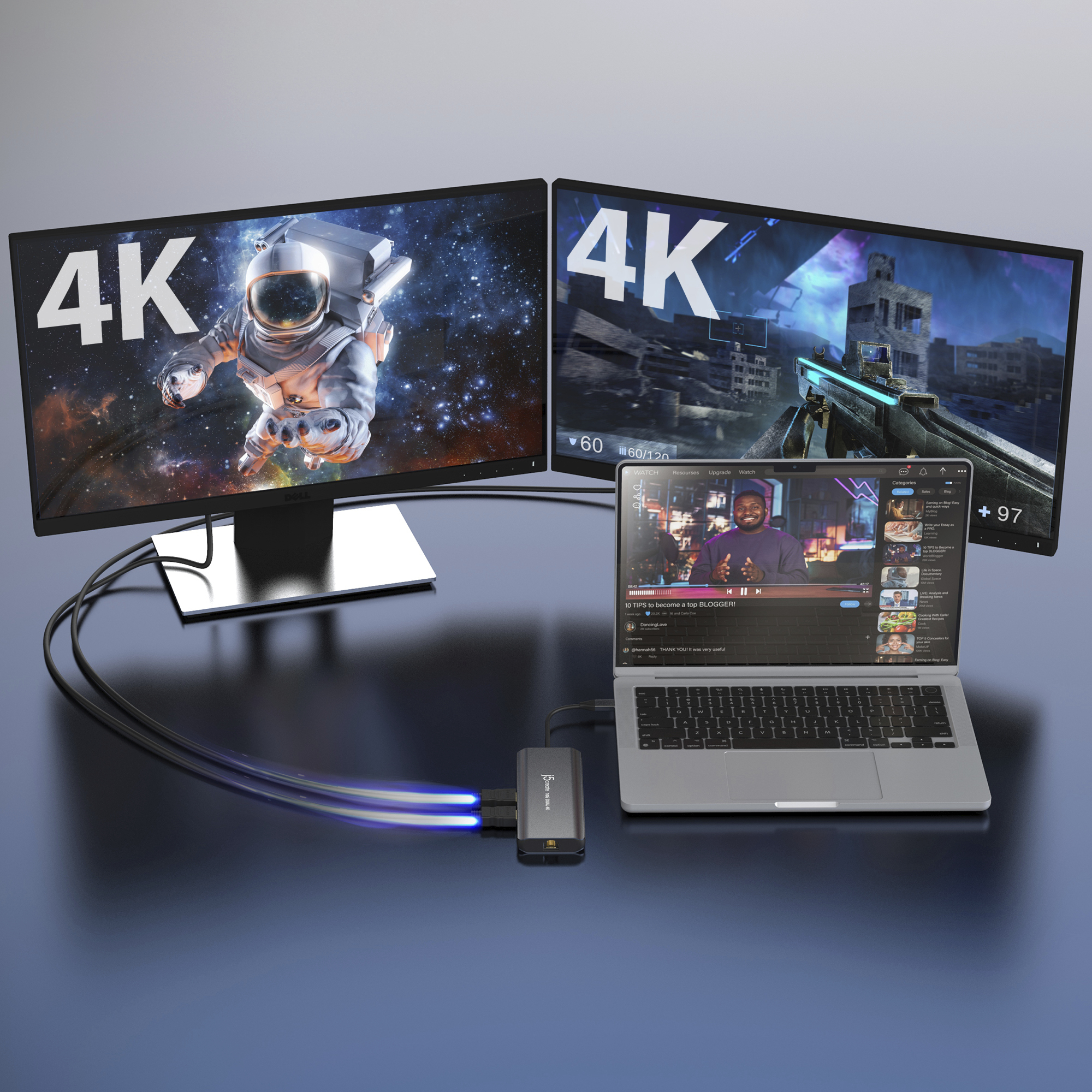

| Number of displays supported: | 2 |
| Maximum refresh rate: | 144 Hz |
| Housing material: | Aluminium |
| Country of origin: | Taiwan |
| Power | |
| Input current: | 5 A |
| Output voltage: | 20 V |
| Output current: | 4.5 A |
| Software | |
| Windows operating systems supported: | Windows 10, Windows 11 |
| Mac operating systems supported: | Yes |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 37 °C |
| Storage temperature (T-T): | -10 - 65 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Storage relative humidity (H-H): | 0 - 85% |
| Weight & dimensions | |
| Width: | 57 mm |
| Depth: | 147.2 mm |
| Height: | 14.8 mm |
| Weight: | 113.5 g |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 193 mm |
| Package depth: | 125 mm |
| Package height: | 22.5 mm |
| Package weight: | 191 g |
| Packaging content | |
| Packaging content: | 1 - JCD398 USB-C® Dual 4K HDMI 10Gbps Mini Dock 1 - Quick Installation Guide (QIG) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC): | 24712795088193 |
| Warranty period: | 2 year(s) |
| Compliance certificates: | CE, REACH, RoHS |
| Logistics data | |
| Products per master (outer) case: | 18 pc(s) |
| Master (outer) case width: | 226 mm |
| Master (outer) case length: | 445 mm |
| Master (outer) case height: | 190 mm |
| Products per shipping (inner) case: | 6 pc(s) |
| Export Control Classification Number (ECCN): | EAR99 |
| Master (outer) case net weight: | 4.3 kg |
| Shipping (inner) case width: | 16.5 cm |
| Shipping (inner) case length: | 21.2 cm |
| Shipping (inner) case height: | 13.7 cm |
| Shipping (inner) case net weight: | 1.3 kg |
| Other features | |
| Cable length: | 0.19212 m |
| Sustainability | |
| Sustainability compliance: | Yes |
