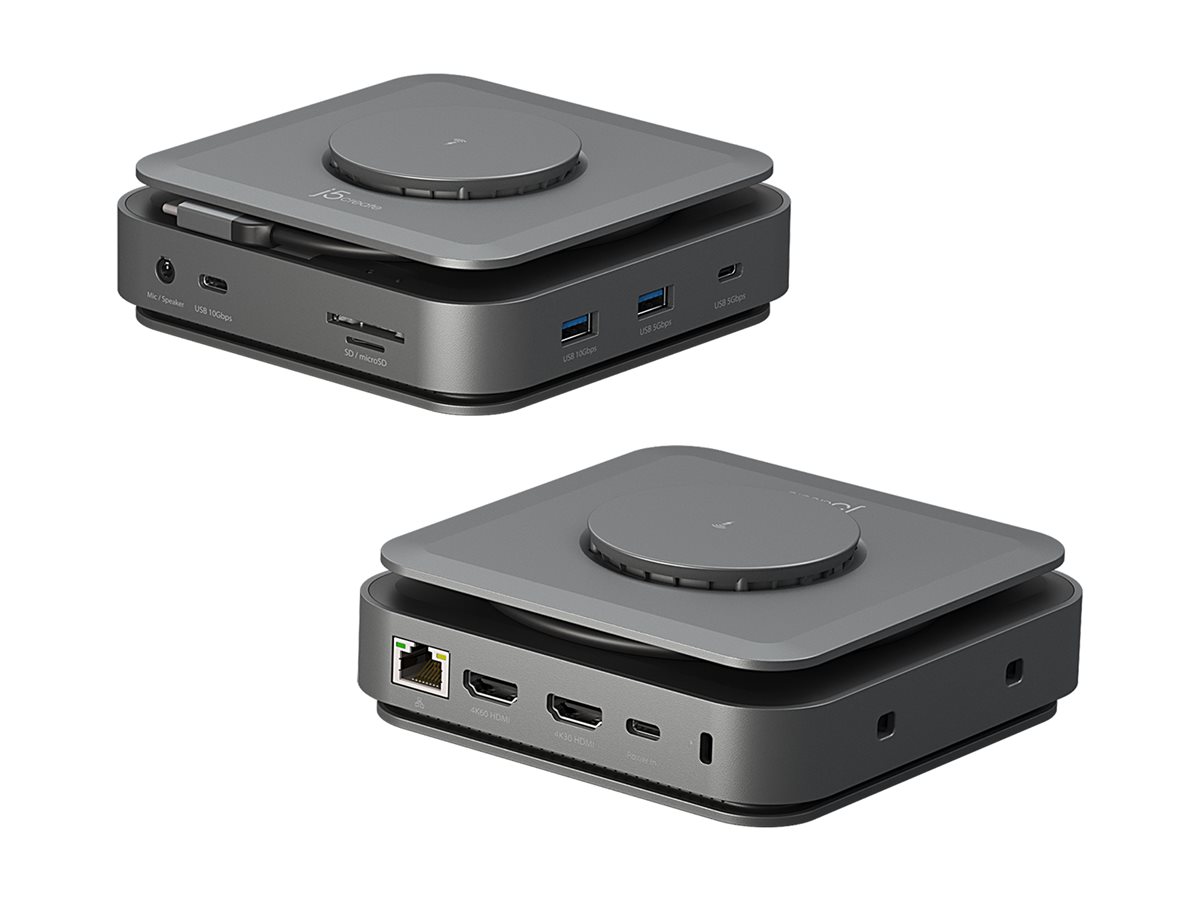

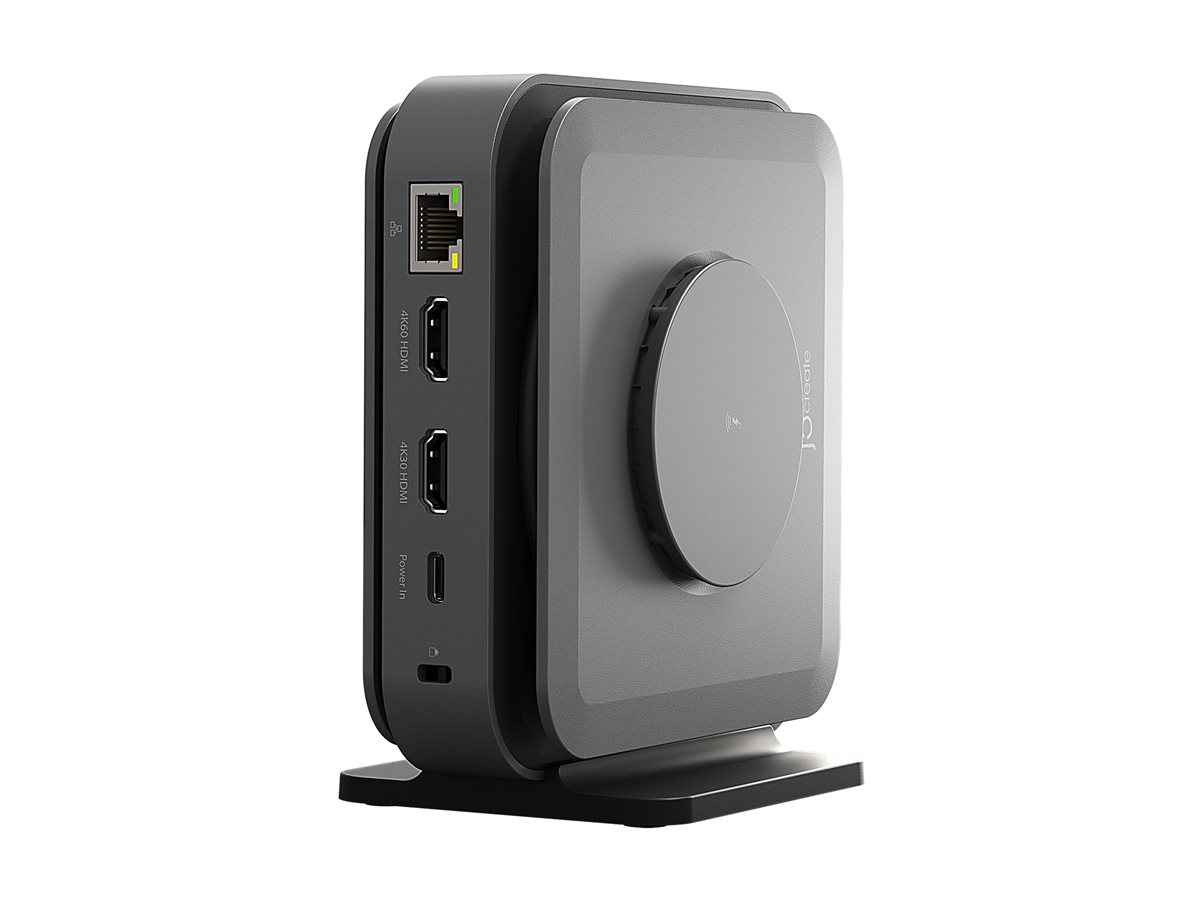

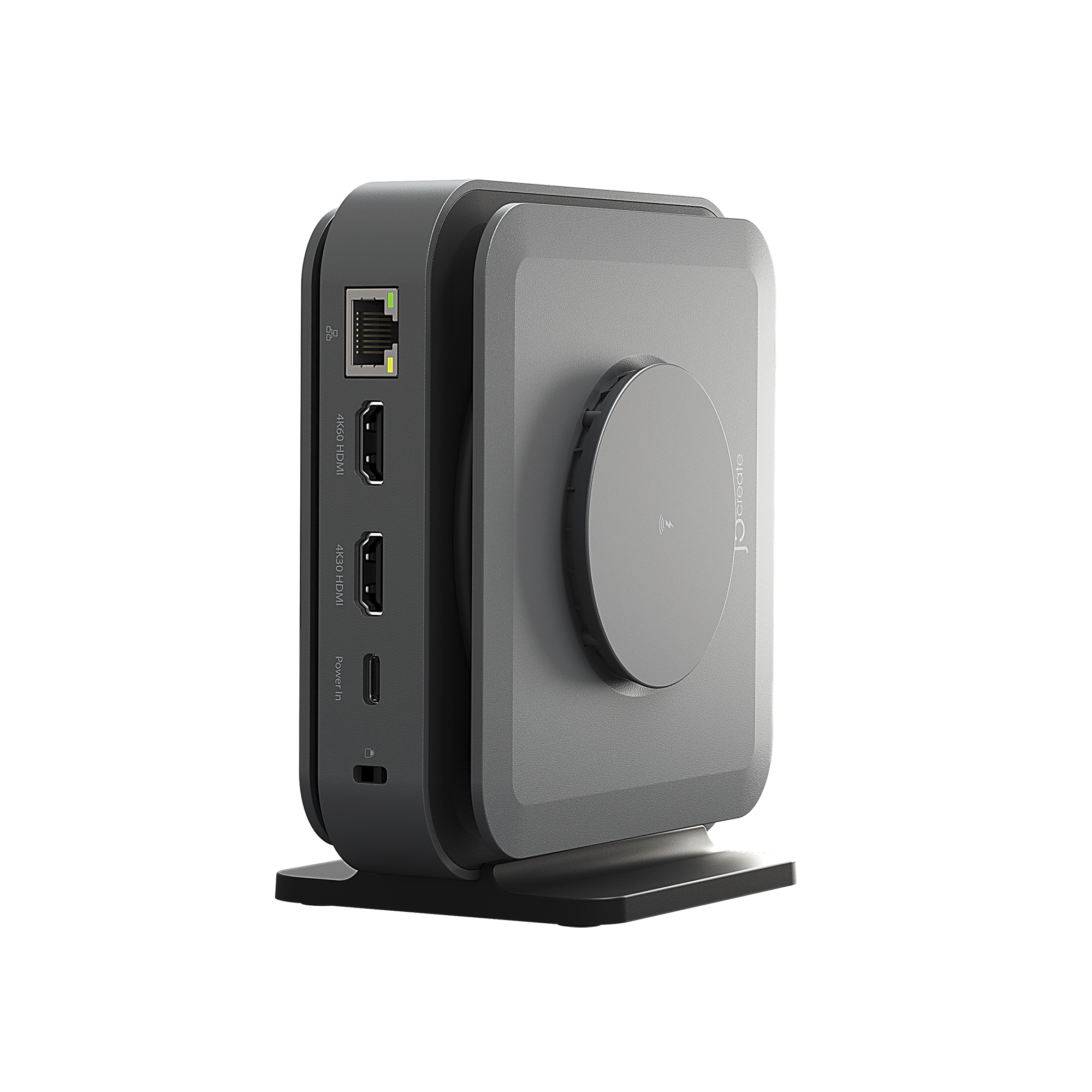

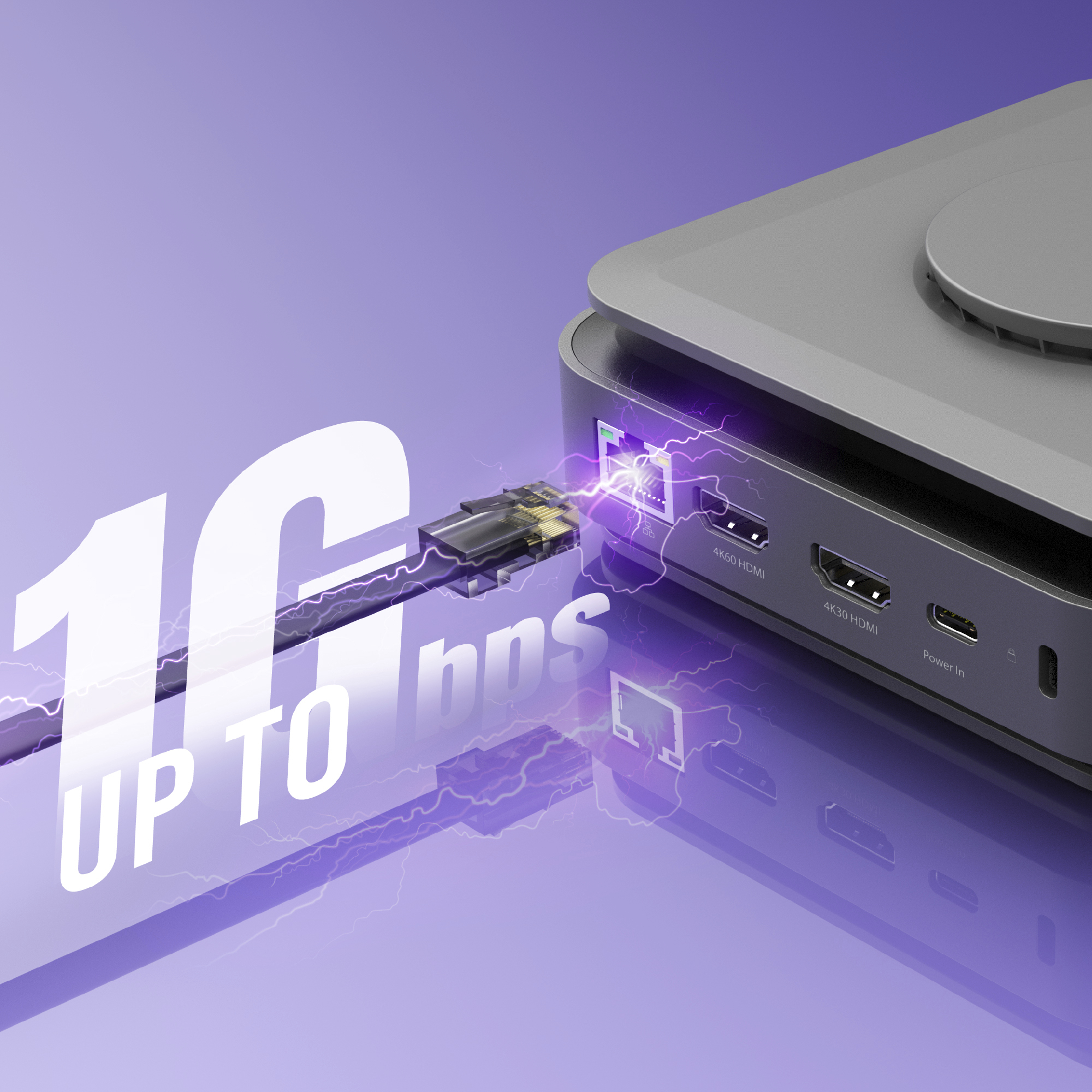

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI outputs, USB ports, Gigabit Ethernet, SD /microSD card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB Power Delivery 3.1 it ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging and is also compatible with MagSafe®. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment ensures an easy connection regardless of your USB-C® port s location. Through a single USB-C® (Thunderbolt 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
| Ports & interfaces | |
| Connectivity technology: | Wired |
| Host interface: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 2.0 ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 1 |
| HDMI ports quantity: | 2 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.1 |
| USB Power Delivery up to: | 140 W |
| HDMI version: | 2.1 |
| Combo headphone/mic port: | Yes |
| Network | |

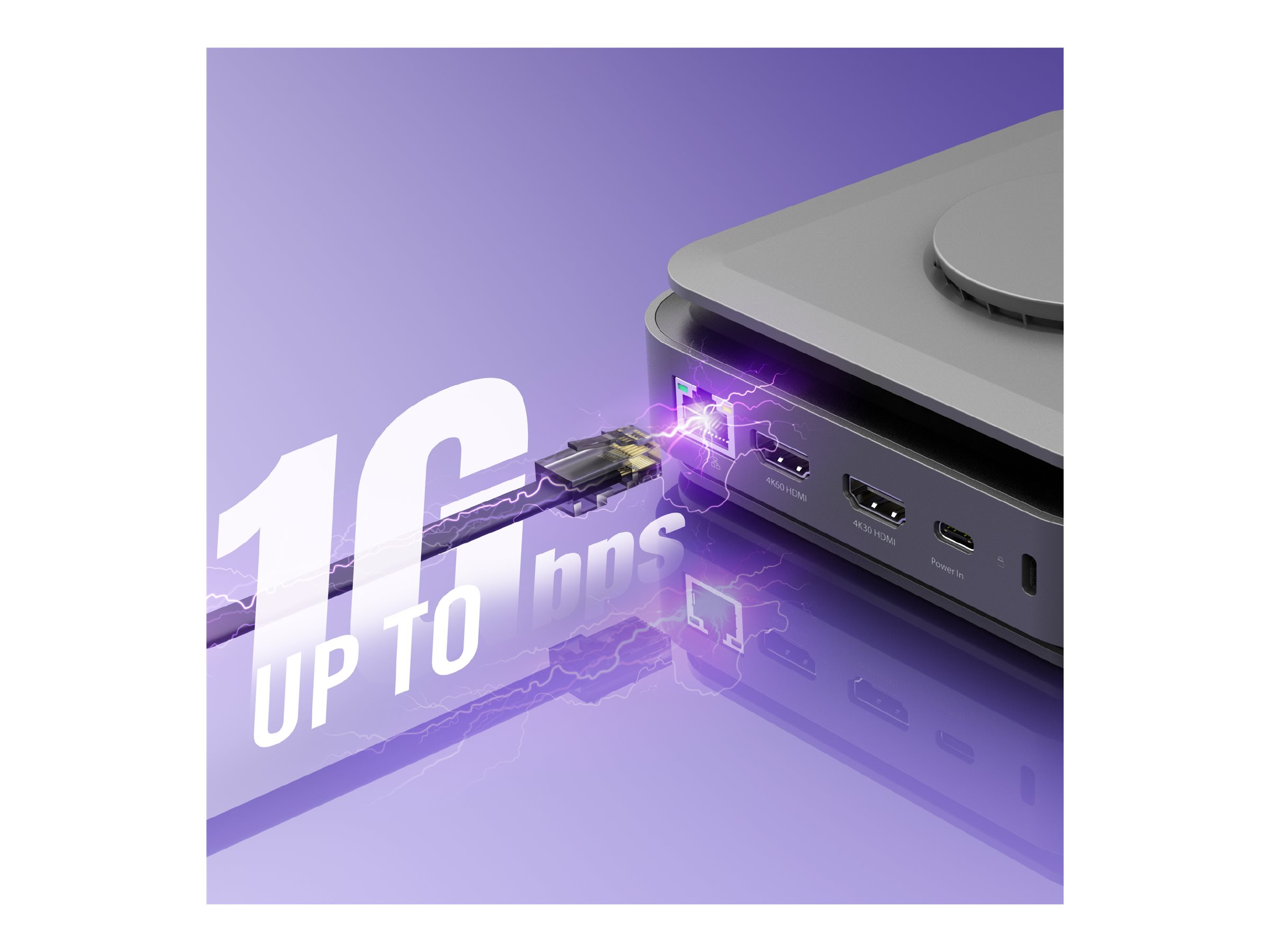

| Ethernet LAN: | Yes |
| Ethernet LAN (RJ-45) ports: | 1 |
| Ethernet LAN data rates: | 10,100,1000 Mbit/s |
| Performance | |
| Product colour: | Grey |
| Card reader integrated: | Yes |
| Colour name: | Space Grey |
| Compatible memory cards: | MicroSD (TransFlash), SD |
| Data transfer rate: | 10 Gbit/s |

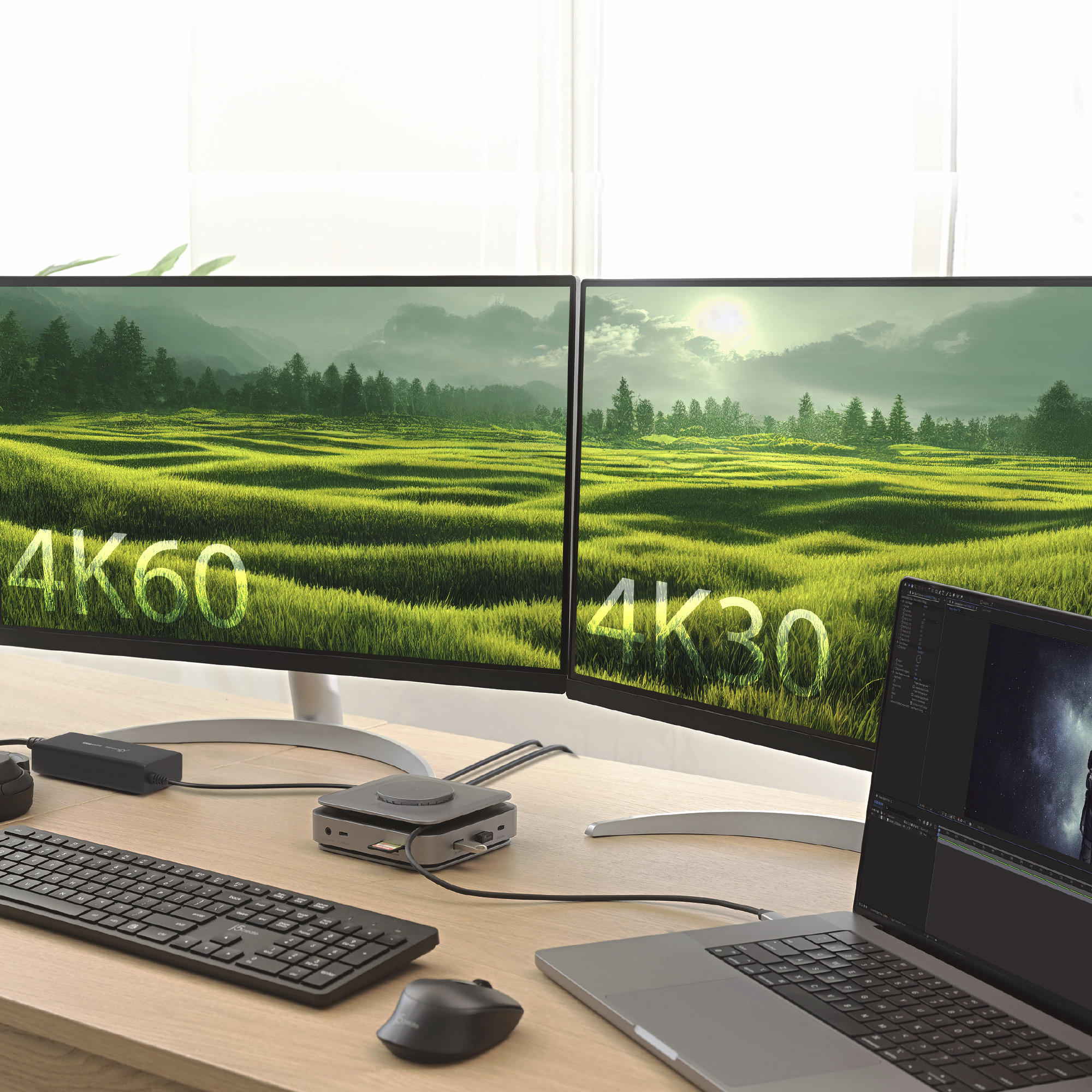

| HD type: | 4K Ultra HD |
| Maximum digital resolution: | 3840 x 2160 pixels |
| Number of displays supported: | 2 |
| Maximum refresh rate: | 60 Hz |
| Cable lock slot: | Yes |
| Display modes: | Extended, Mirror |
| Housing material: | Aluminium, Plastic |
| Country of origin: | Taiwan |
| Power | |
| Power source type: | USB |
| Power connector: | USB Type-C |
| Input current: | 5 A |
| Output voltage: | 20 V |
| Output current: | 5 A |
| Compatible power plug types: | EU |
| Wireless charging: | Yes |
| Wireless charging power: | 15 W |
| Software | |
| Windows operating systems supported: | Windows 10, Windows 11 |
| Mac operating systems supported: | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Operational conditions | |
| Operating temperature (T-T): | -1 - 41 °C |
| Storage temperature (T-T): | -17 - 68 °C |
| Operating relative humidity (H-H): | 0 - 85% |
| Storage relative humidity (H-H): | 0 - 85% |
| Weight & dimensions | |
| Depth: | 180 mm |
| Weight: | 877 g |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 154 mm |
| Package depth: | 175 mm |
| Package height: | 103 mm |
| Package weight: | 1.01 kg |
| Packaging content | |
| Cables included: | AC |
| AC adapter included: | Yes |

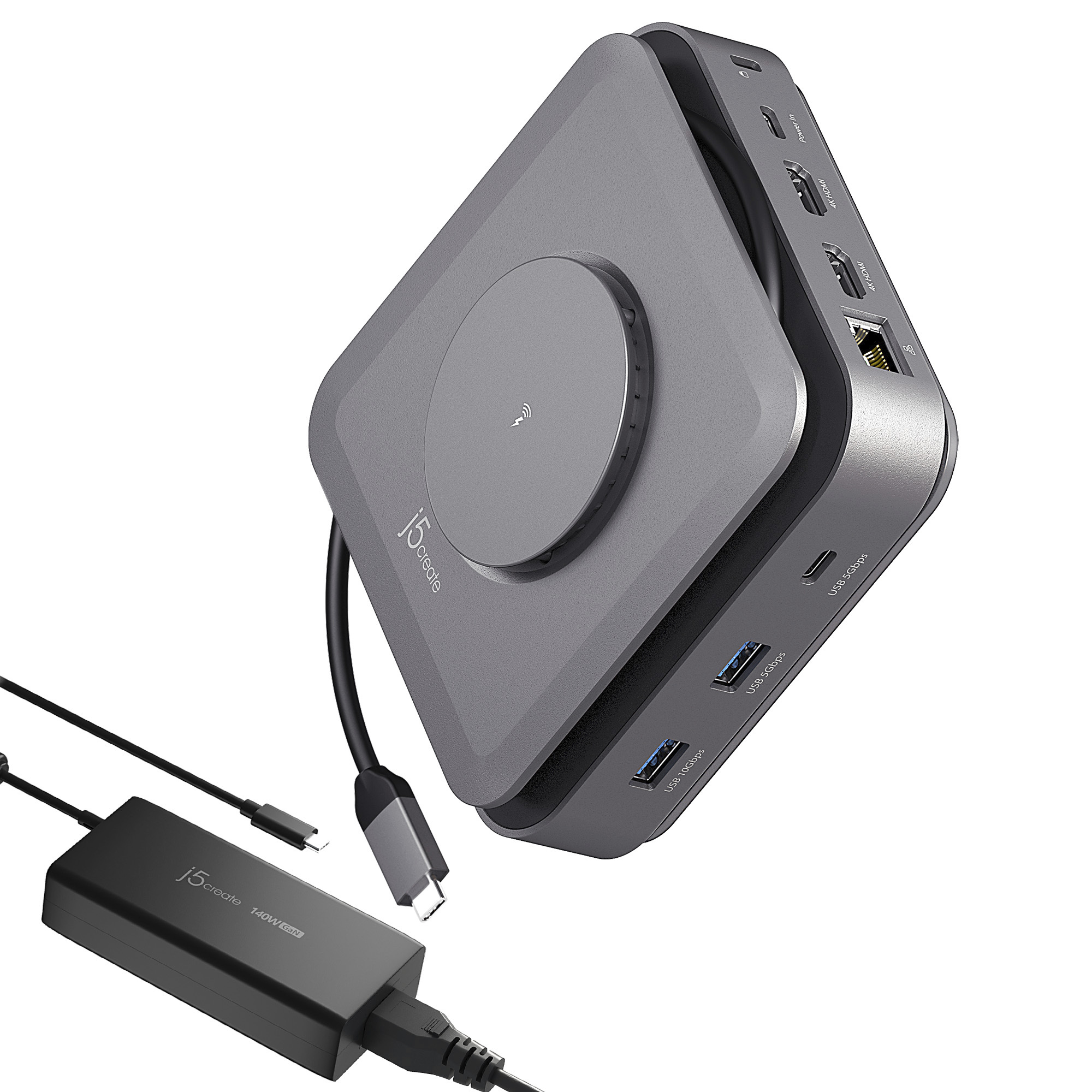

| Packaging content: | 1 - JCD3199P USB-C® Dock Dual 4K HDMI with 140W GaN PD3.1 Power Adapter 1 -140W GaN PD3.1 USB-C® 1-Port Charger Detachable 3 Pin Power Cord (*Depends on selling area) 47.24 in /120 cm for US 39.37in / 100cm for AU/EU/UK 1 - Quick Installation Guide (QIG) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC): | 24712795088544 |
| Warranty period: | 2 year(s) |
| Compliance certificates: | CE, REACH, RoHS |
| Logistics data | |
| Products per master (outer) case: | 2 pc(s) |
| Master (outer) case width: | 186 mm |
| Master (outer) case length: | 249 mm |
| Master (outer) case height: | 174 mm |
| Export Control Classification Number (ECCN): | EAR99 |
| Master (outer) case net weight: | 2.3 kg |
| Other features | |
| Cable length: | 0.695 m |
| Sustainability | |
| Sustainability compliance: | Yes |
