- Details

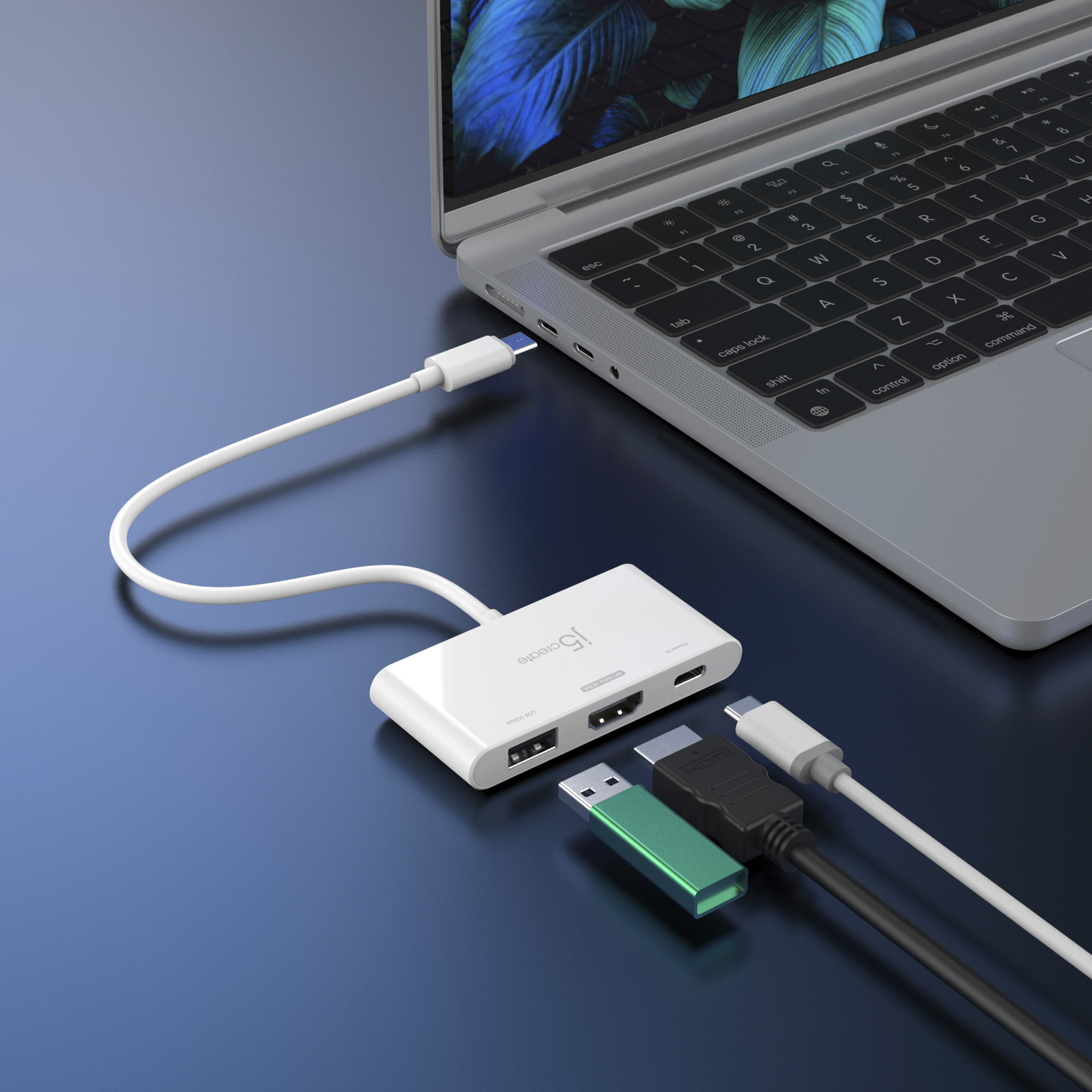

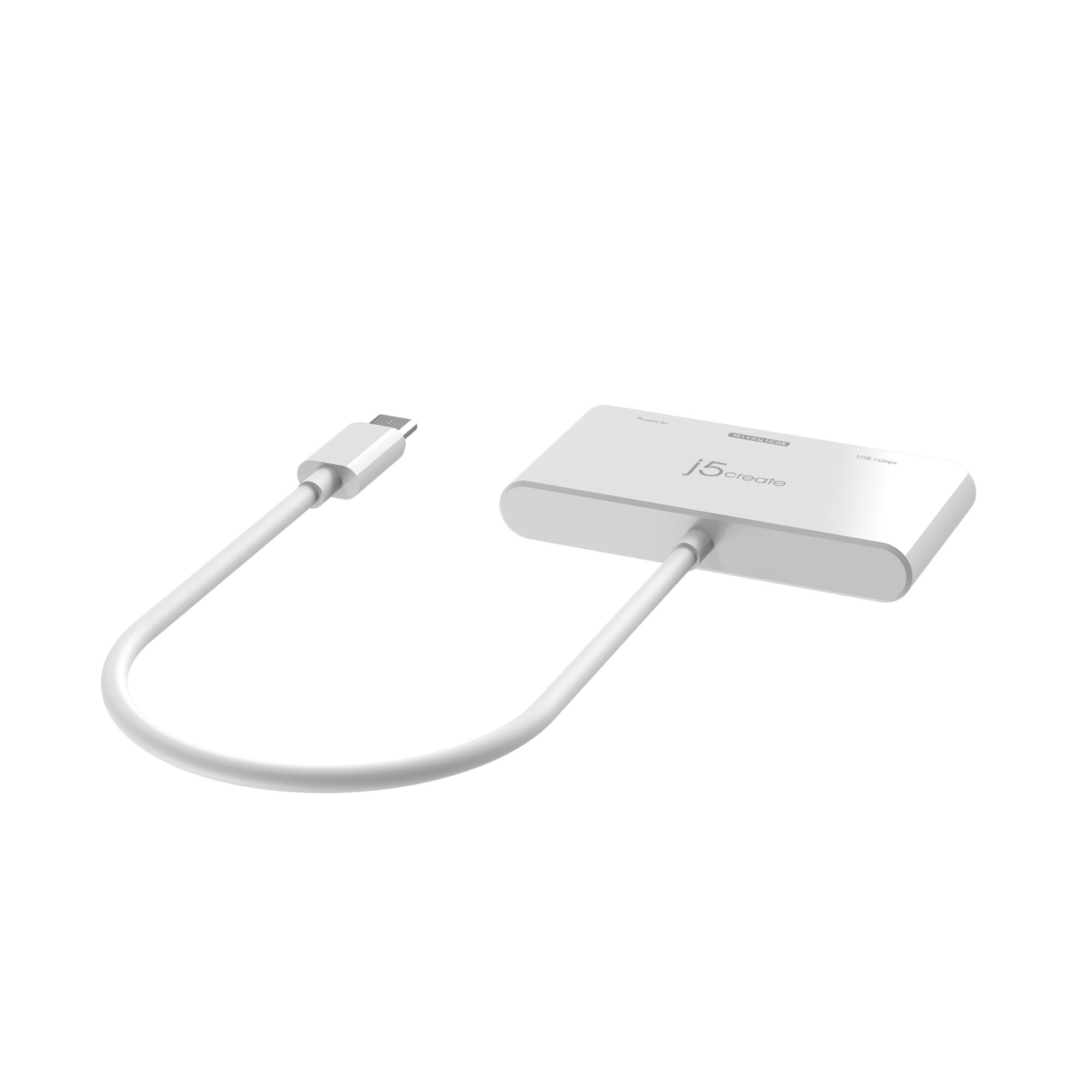

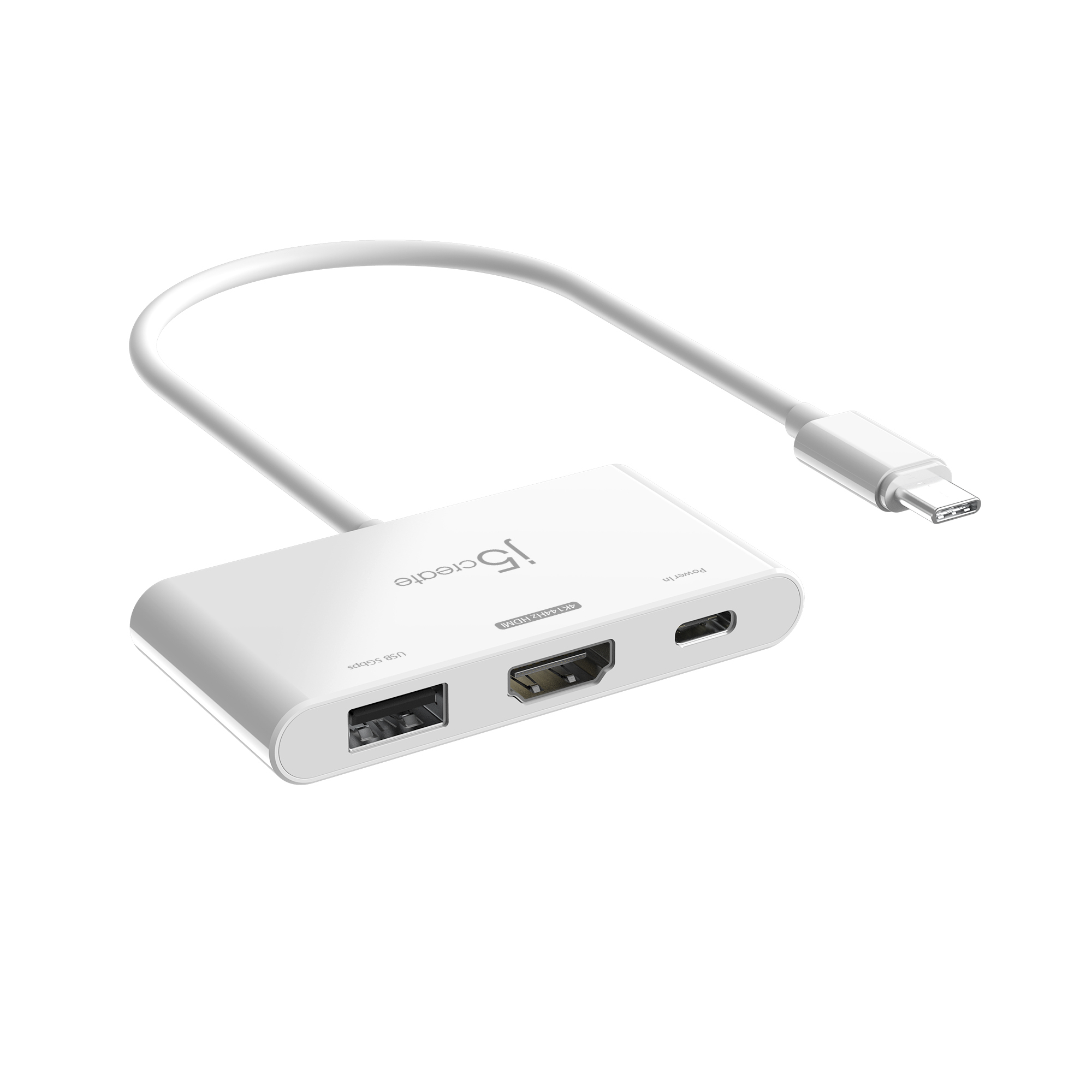

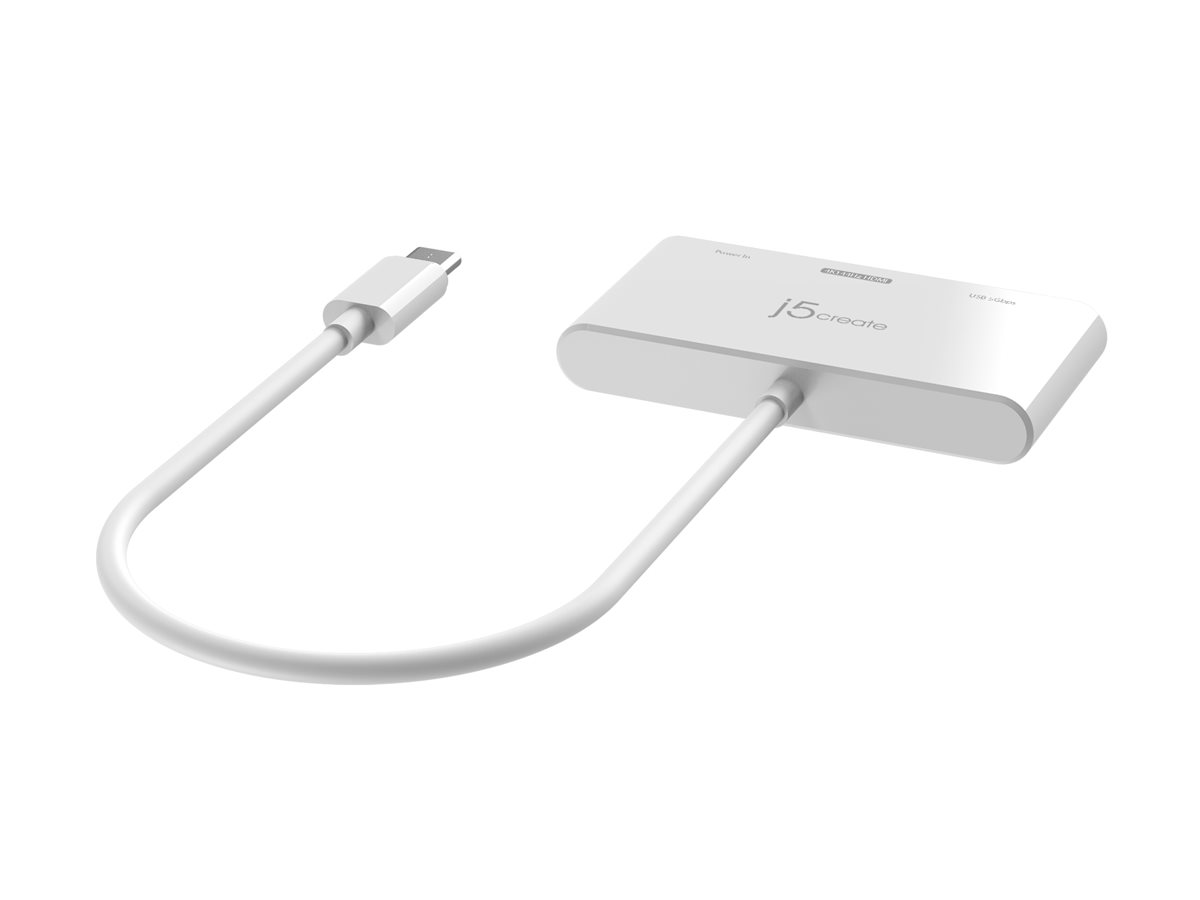

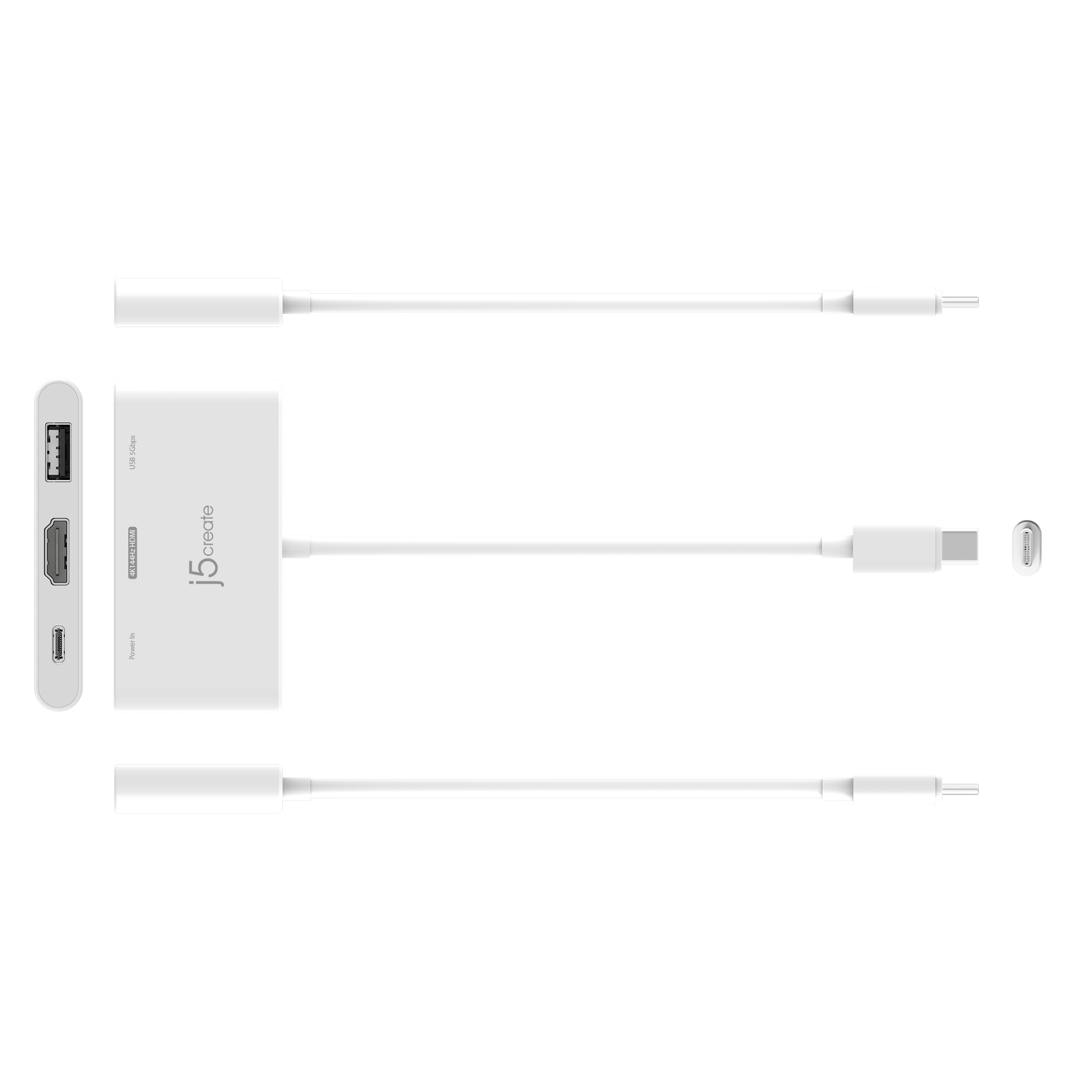

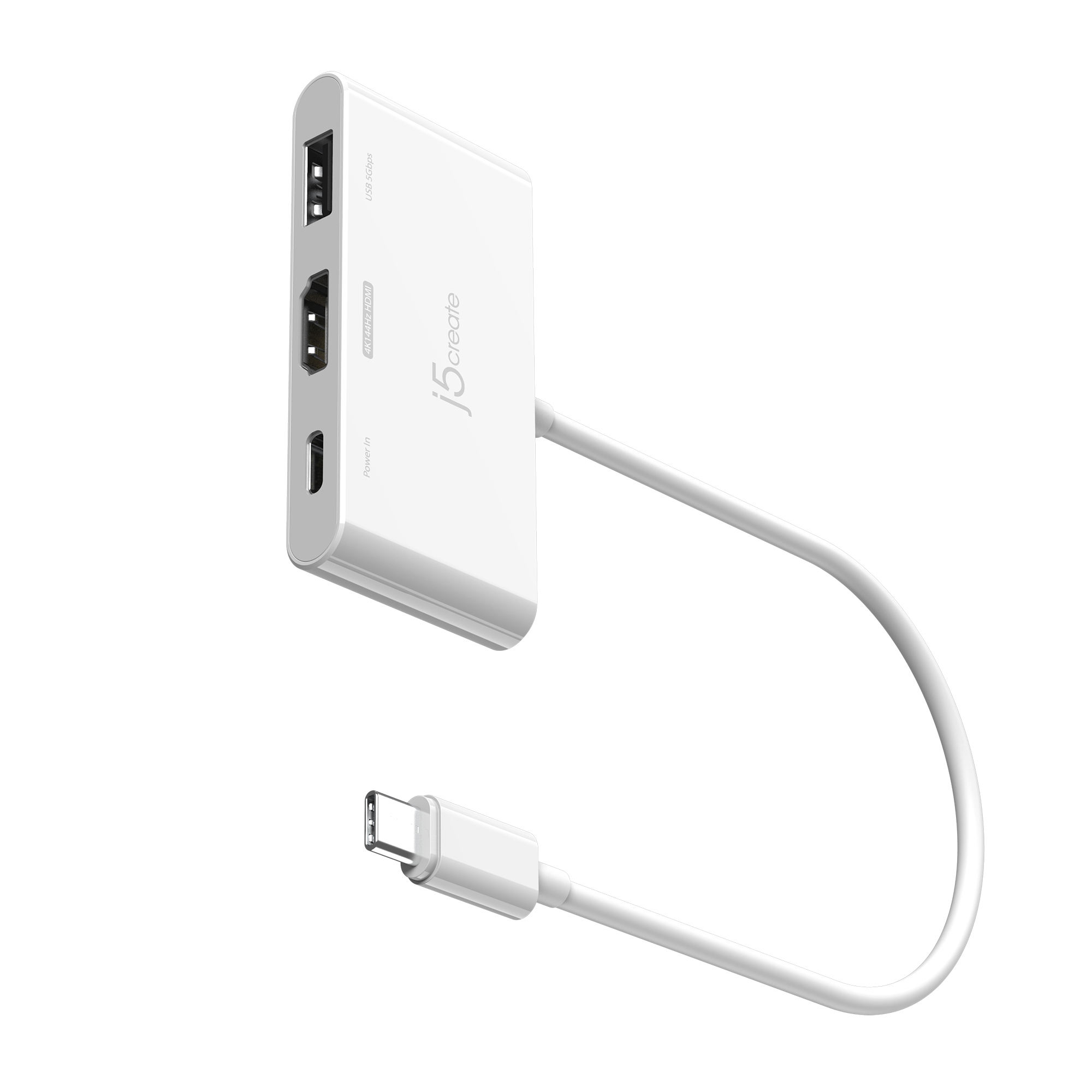

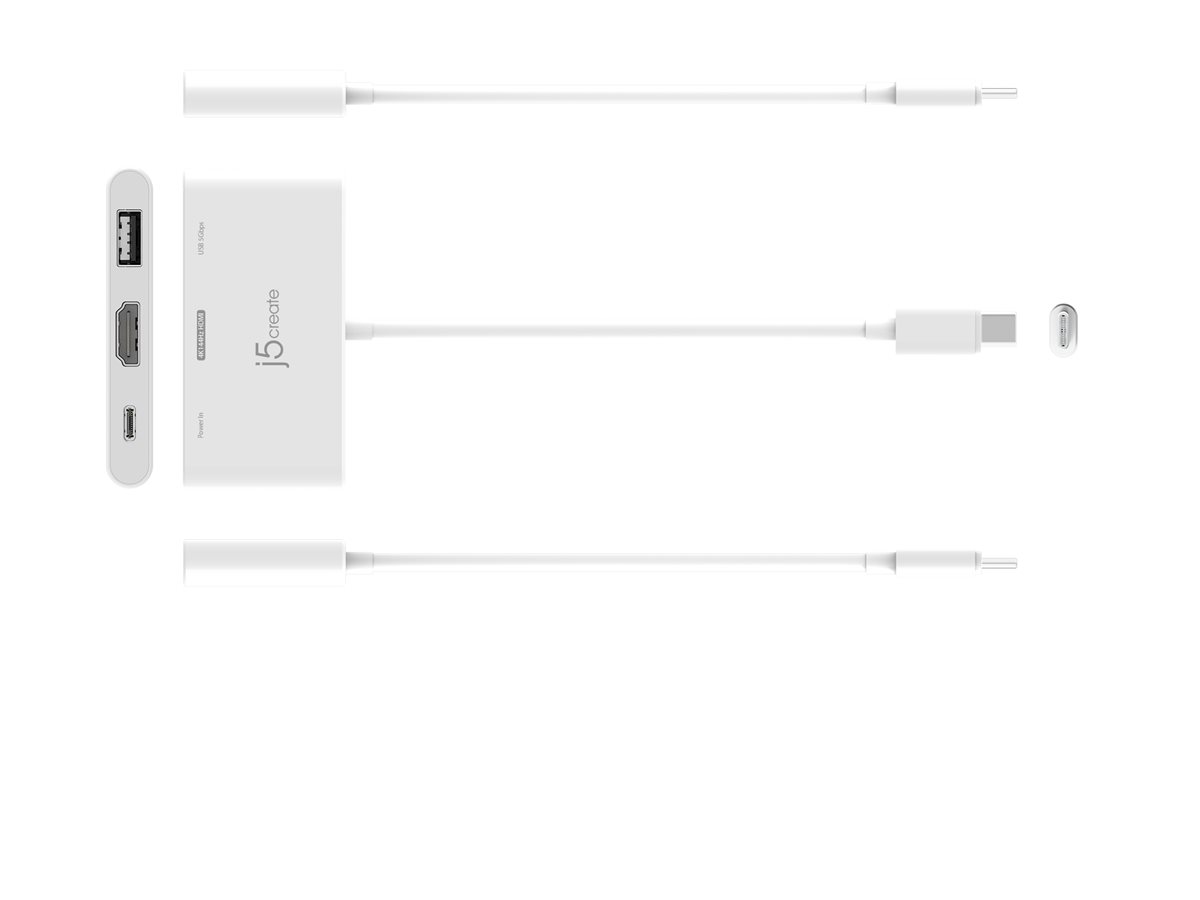

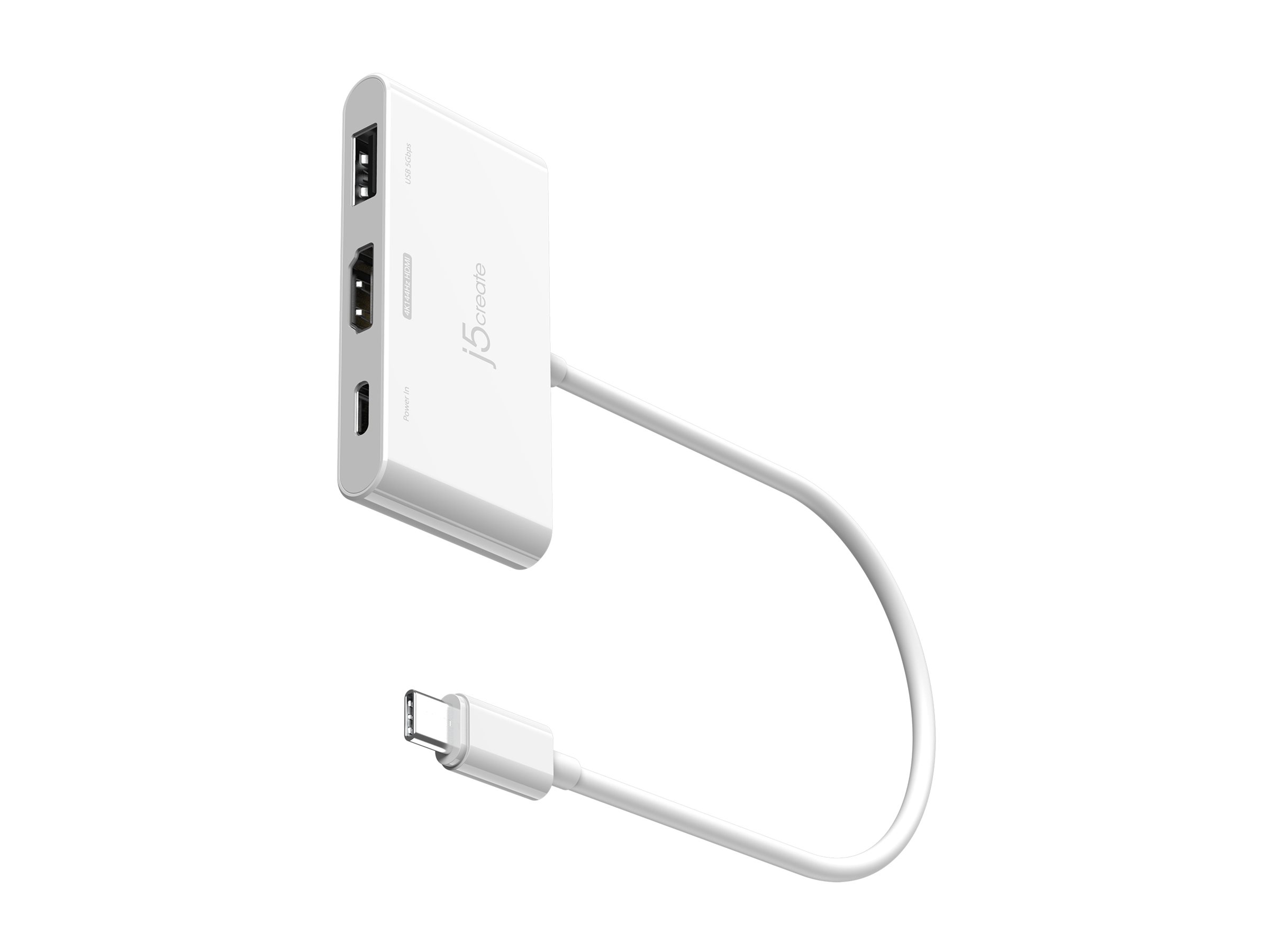

The JCA399 adapter adds extra functionality to your laptop, tablet, or smartphone. The adapter s small size makes it easy to transport and place on a desk while saving space. This adapter allows you to connect a display such as a monitor or TV to your device and supports resolutions up to 4K 144 Hz. Includes a 5Gbps USB Type-A port and a USB-C® Power Delivery port that can be used to charge your laptop when a USB-C® power adapter is connected. The 4K144 HDMI port supports Extended, and Mirrored display modes. It come with a 5Gbps USB Type-A that allows you to connect USB peripherals such as a USB flash drive, keyboard, or mouse. The USB-C® port supports upstream charging and Power Delivery 3.0 100W to keep your connected mobile device powered up while in use.
| Ports & interfaces | |
| Ports quantity: | 3 |
| Host interface: | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Hub interfaces: | HDMI, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 1 |
| HDMI ports quantity: | 1 |
| USB Type-C DisplayPort Alternate Mode: | Yes |
| Features | |
| Data transfer rate: | 5000 Mbit/s |
| Maximum refresh rate: | 144 Hz |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160 |
| Supported video modes: | 1080p, 1440p, 2160p |
| Maximum resolution (HDMI): | 3840 x 2160 pixels |
| Product colour: | White |
| Housing material: | Acrylonitrile butadiene styrene (ABS), Plastic |
| USB Power Delivery (USB PD): | Yes |
| USB Power Delivery revision: | 3.0 |
| USB Power Delivery up to: | 100 W |
| Cable length: | 0.2 m |
| Country of origin: | Taiwan |
| Power | |
| Power supply type: | USB |
| Input voltage: | 20 V |
| Input current: | 5 A |
| Output voltage: | 20 V |
| Output current: | 4.5 A |
| System requirements | |
| Windows operating systems supported: | Yes |
| Mac operating systems supported: | Yes |
| Other operating systems supported: | ChromeOS |
| Weight & dimensions | |
| Width: | 75 mm |
| Depth: | 11 mm |
| Height: | 45 mm |
| Weight: | 31.5 g |
| Packaging data | |
| Quantity per pack: | 1 pc(s) |
| Package width: | 170 mm |
| Package depth: | 105 mm |
| Package height: | 25 mm |
| Package weight: | 101 g |
| Package type: | Box |
| Packaging content | |
| Packaging content: | 1 - USB-C® to HDMI 4K 144Hz & USB 3.2 with Power Delivery 100W (JCA399) 1 - Quick Installation Guide (QIG) |
| Operational conditions | |
| Minimum operating temperature: | -1 °C |
| Maximum operating temperature: | 41 °C |
| Operating temperature (T-T): | -1 - 41 °C |
| Operating temperature (T-T): | 30 - 106 °F |
| Storage temperature (T-T): | -17 - 68 °C |
| Performance | |
| Export Control Classification Number (ECCN): | EAR99 |
| Logistics data | |
| Master (outer) case net weight: | 2.3 kg |
| Master (outer) case width: | 255 mm |
| Master (outer) case length: | 260 mm |
| Master (outer) case height: | 224 mm |
| Products per master (outer) case: | 16 pc(s) |
| Master (outer) case GTIN (EAN/UPC): | 24712795088209 |
| Shipping (inner) case width: | 11.8 cm |
| Shipping (inner) case length: | 19.9 cm |
| Shipping (inner) case height: | 11.7 cm |
| Products per shipping (inner) case: | 4 pc(s) |
| Shipping (inner) case net weight: | 500 g |
| Technical details | |
| Warranty period: | 2 year(s) |
| Compliance certificates: | CE, REACH, RoHS |
| Other features | |
| Maximum resolution: | 3840 x 2160 pixels |
| Sustainability | |
| Sustainability compliance: | Yes |
