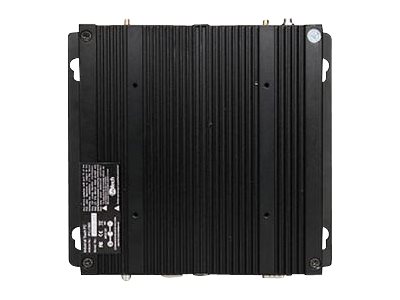

faytech J1900 Intel® Celeron® 4 GB DDR3L-SDRAM 64 GB SSD Ubuntu Linux Mini PC Black

Based on faytechs own industrial mainboard fay-002 the small industrial PC delivers all industrial and consumer connectors needed. Without moving parts faytechs industrial PC fits perfect for harsh environments.Based on faytechs own industrial mainboard fay-002, the small J900 industrial PC delivers all industrial and consumer connectors needed.Without moving parts faytechs industrial PC fits perfect for harsh environments.J900 Series is equipped with 4Gbyte DDR3 RAM and faytechs industrial reliable 64GByte SSDs.

Processor
Processor family:	Intel® Celeron®
Processor manufacturer:	Intel
Processor model:	J1900
Processor frequency:	2 GHz
Processor cores:	4
Processor boost frequency:	2.42 GHz
Processor socket:	BGA 1170
Processor cache:	2 MB
Processor cache type:	L2
Processor threads:	4
Processor lithography:	22 nm
Processor operating modes:	32-bit, 64-bit
Processor series:	Intel Celeron Processor J1000 series for Desktop
Processor codename:	Bay Trail
Thermal Design Power (TDP):	10 W
Tjunction:	105 °C
PCI Express slots version:	2.0
Maximum number of PCI Express lanes:	4
PCI Express configurations:	1x4
Stepping:	B3
Maximum internal memory supported by processor:	8 GB
Memory types supported by processor:	DDR3L-SDRAM
Memory clock speeds supported by processor:	1333 MHz
Memory
Internal memory:	4 GB
Maximum internal memory:	8 GB
Internal memory type:	DDR3L-SDRAM
Memory layout (slots x size):	1 x 4 GB
Memory slots:	1x SO-DIMM
Memory clock speed:	1333 MHz
Memory channels:	Single-channel
Storage
Total storage capacity:	64 GB
Optical drive type:
Storage media:	SSD
Card reader integrated:
Number of storage drives installed:	1
Number of storage drives supported:	1
Total SSDs capacity:	64 GB
Number of SSDs installed:	1
SSD capacity:	64 GB
Graphics
Discrete graphics card:
On-board graphics card:
Discrete graphics card model:	Not available
On-board graphics card model:	Intel® HD Graphics
On-board graphics card base frequency:	688 MHz
On-board graphics card dynamic frequency (max):	854 MHz
Number of displays supported (on-board graphics):	2
Network
Ethernet LAN:
Wi-Fi:
WLAN controller model:	Realtek RTL8111G
Ports & interfaces
USB 2.0 ports quantity:	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
DVI port:
DisplayPorts quantity:	1
Ethernet LAN (RJ-45) ports:	2
Microphone in:
Headphone outputs:	1
S/PDIF out port:
DC-in jack:
Design
Product colour:	Black
VESA mounting:
Number of 2.5" bays:	1
Housing material:	Aluminium
Performance
Product type:	Mini PC
Audio chip:	Realtek ALC887
Audio output channels:	8.0 channels
Software
Operating system installed:	Ubuntu Linux
Processor special features
Intel® Wireless Display (Intel® WiDi):
Intel 64:
Enhanced Intel SpeedStep Technology:
Embedded options available:
Intel® InTru 3D Technology:
Intel® Insider :
Intel Stable Image Platform Program (SIPP):
Intel® AES New Instructions (Intel® AES-NI):
Execute Disable Bit:
Intel FDI Technology:
Processor package size:	25 X 27 mm
Processor code:	SR1SC
Physical Address Extension (PAE):	36 bit
CPU configuration (max):	1
Graphics & IMC lithography:	22 nm
Intel Virtualization Technology for Directed I/O (VT-d):
Intel Identity Protection Technology version:	0.00
Intel Stable Image Platform Program (SIPP) version:	0.00
Intel Virtualization Technology (VT-x):
Intel Small Business Advantage (SBA) version:	0.00
Intel Rapid Storage Technology:
Processor ARK ID:	78867
Intel® Turbo Boost Technology:
Intel® Hyper Threading Technology (Intel® HT Technology):
Intel® Quick Sync Video Technology:
Intel® Identity Protection Technology (Intel® IPT):
Intel® Anti-Theft Technology (Intel® AT):
Conflict-Free processor:
Power
Power supply input voltage:	100 - 240 V
Operational conditions
Operating temperature (T-T):	-10 - 60 °C
Weight & dimensions
Width:	195 mm
Depth:	216 mm
Height:	41 mm
Weight:	2.2 kg
Package weight:	3.2 kg
Packaging content
Display included:
