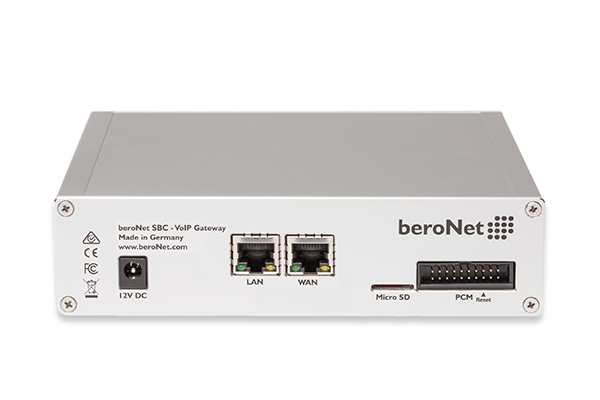

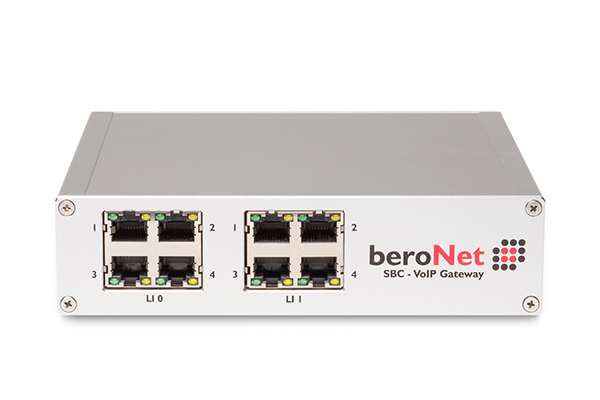

beroNet 8 BRI VoIP Gateway

The beroNet 8 BRI VoIP SBC-Gateway (BNSBC-M-8BRI) contains 8 BRI ports. It can be connected to the public telephone network or to an internal connection of the telephone system. Furthermore, a classic telephone system can be connected to a VoIP connection or a VoIP PBX, joining the advantages of ISDN and VoIP. By adding a virtual CAPI, a Fax Server can also be connected. It includes two network interfaces, and additional beroNet SIP-to-SIP licenses allow SBC functionalities to secure VoIP networks and to make IP PBX systems and VoIP providers compatible. BNSBC-M-8BRI replaces BF4008S0Box, and needs no BFTAdapter.

Design
Product colour:	Grey
Rack capacity:	1U
Mounting type:	Wall mounting
Features
Voice codecs:	G.165, G.168, G.711, G.723.1, G.726, G.729A, G.729B
Channels quantity:	16 channels
Performance
Control display unit:
Network
Ethernet LAN data rates:	100 Mbit/s
Number of concurrent sessions (max):	128
Security
Access Control List (ACL):
DoS attack prevention:
Ports & interfaces
Ethernet LAN (RJ-45) ports:	1
WAN connection:	Ethernet (RJ-45)
Power
Power consumption (typical):	6 W
Input voltage:	110 - 230 V
Output voltage:	12 V
Weight & dimensions
Width:	170 mm
Depth:	168 mm
Height:	42 mm
Weight:	800 g
Operational conditions
Operating temperature (T-T):	0 - 70 °C
Storage temperature (T-T):	-20 - 70 °C
Operating relative humidity (H-H):	20 - 90%
Sustainability
Sustainability compliance:
Sustainability certificates:	CE
