- Details

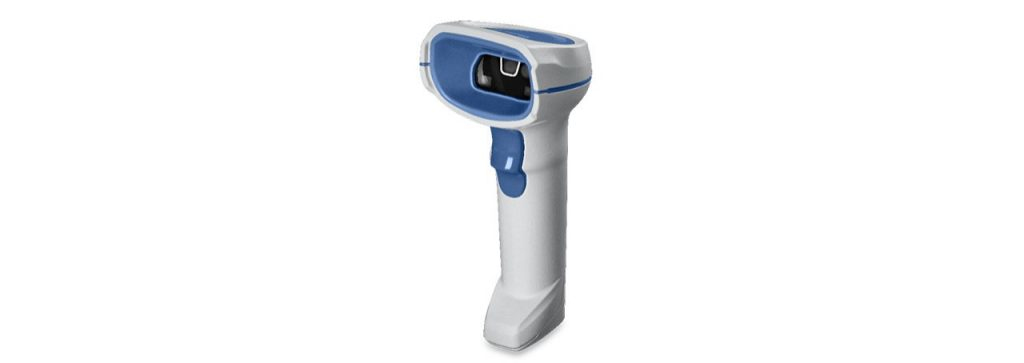

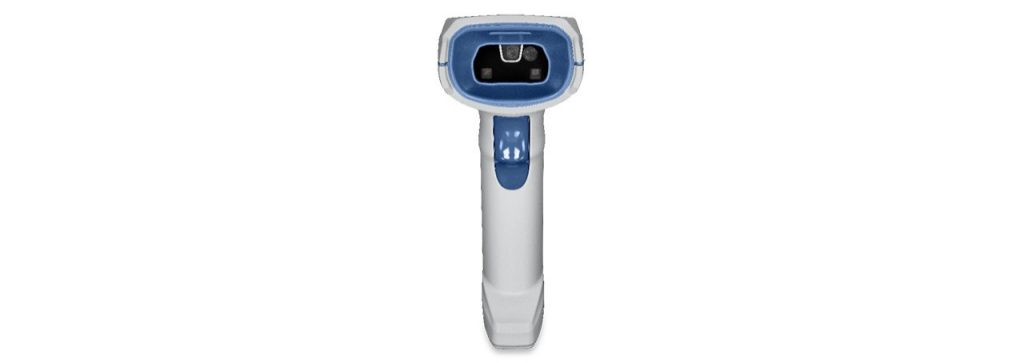

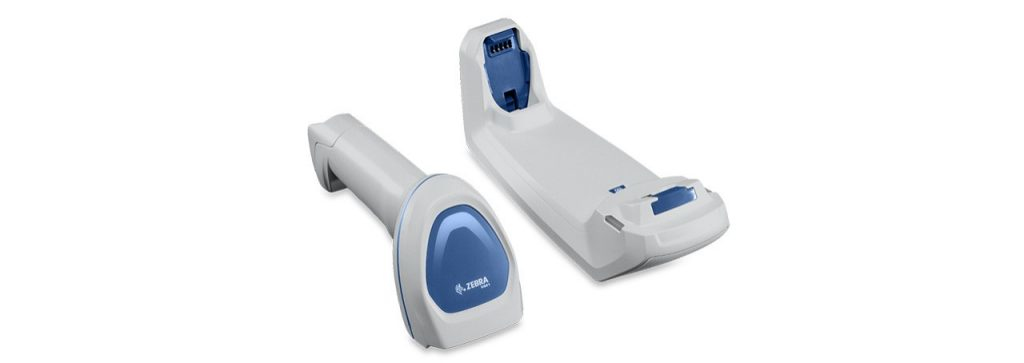

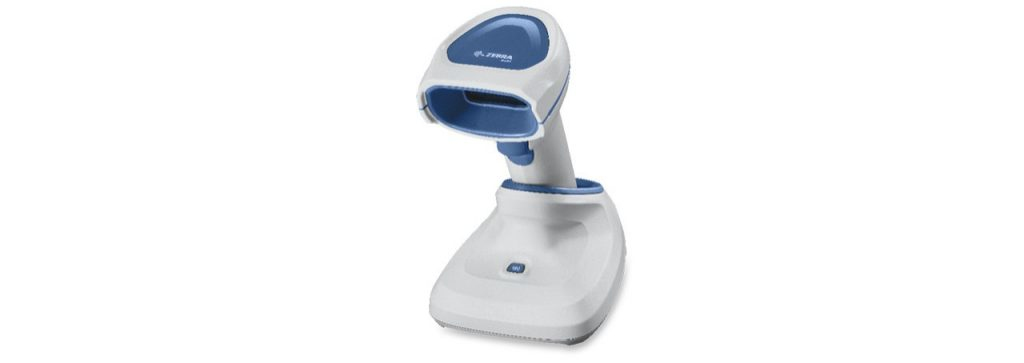

Better Workflows for Healthcare Professionals. Better Experiences for Patients.As a healthcare provider, you need to give your healthcare professionals the tools they need to provide the very best in patient care, every second of every day. With the DS8100-HC Series handheld imagers, you can.This premium handheld scanner is purpose-built for healthcare environments, with unparalleled performance on virtually every barcode in any condition, a first-of-its-kind housing delivering maximum protection against the spread of bacteria, flexible user-selectable feedback modes designed for around-the-clock use and more. Streamline workflows for your healthcare professional and deliver better patient experiences with the DS8100-HC Series only from Zebra.
| Scanning | |
| Type: | Handheld bar code reader |
| Scanner type: | 1D/2D |
| Sensor type: | LED |
| Linear (1D) barcodes supported: | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded, Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported: | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Wavelength: | 528 nm |
| Tilt reading angle: | 0 - 360° |
| Pitch reading angle: | 0 - 60° |
| Yaw reading angle: | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology: | Wired & Wireless |
| Standard interfaces: | Keyboard wedge, RS-232, USB |
| Wireless range: | 100 m |
| Bluetooth version: | 4.0 |
| Bluetooth Low Energy (BLE): |  |
| Performance | |
| Product colour: | White |
| International Protection (IP) code: | IP42 |
| Power | |
| Power source type: | Battery |
| Battery technology: | Lithium-Ion (Li-Ion) |
| Battery type: | Built-in battery |
| Number of batteries supported: | 1 |
| Battery capacity: | 2500 mAh |
| Number of reads per charge: | 65000 |
| Battery life: | 83 h |
| Input voltage: | 5 V |
| Weight & dimensions | |
| Weight: | 235 g |
| Width: | 66 mm |
| Depth: | 107 mm |
| Height: | 168 mm |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code: | 84716070 |
