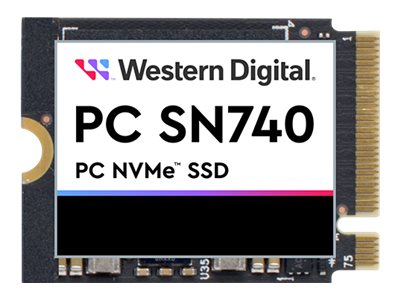

Western Digital SN740 M.2 2 TB PCI Express 4.0 3D NAND NVMe

Performance Redefined
The Western Digital PC SN740 NVMe SSD enables manufacturers to create thin and light systems that are ready to accept the challenge of tomorrows demanding workloads with a balance of performance and power efficiency.

Innovation Through the PCIe® Gen4 Interface
The Western Digital PC SN740 NVMe SSD resets expectations in performance through innovating with the scalable NVMe architecture bringing a new standard for what users can expect from their storage.

The Western Digital PC SN740 provides the computing customer looking for thin and longer lasting mobile devices with a solution that does not sacrifice performance and offers a range of capacities from 256GB to 2TB.

Versatility Takes a Step Forward
With PCIe Gen4x4 compatibility, the PC SN740 is designed to provide higher performance with lower power draw. This means it is certified for Intel® Evo laptops as well.

A fully integrated solution, the PC SN740 is designed with Western Digital s own in house controller, 3D NAND and firmware all while going through rigorous testing to provide a reliable and robust supply.

The Western Digital PC SN740 NVMe SSD provides performance to meet tomorrow s challenging workloads with read speeds of up to 5,150 MB/s (1TB and 2TB models) and write speeds of up to 4,900 MB/s (1TB model) and endurance of up to 500 TBW (2TB model). All this comes in a small and thin but powerful form factor.

Features
SSD form factor:	M.2
SSD capacity:	2 TB
Interface:	PCI Express 4.0
Memory type:	3D NAND
NVMe:	Yes
Component for:	Laptop
Read speed:	5150 MB/s
Write speed:	4850 MB/s
Random read (4KB):	650000 IOPS
Random write (4KB):	800000 IOPS
PCI Express interface data lanes:	x4
Mean time between failures (MTBF):	1750000 h
TBW rating:	500
Certification:	Windows HLK, FCC, UL, TUV, KC, BSMI, VCCI, CE
Power
Power consumption (average):	0.065 W
Power consumption (sleep):	0.0033 W
Operational conditions
Operating temperature (T-T):	0 - 85 °C
Storage temperature (T-T):	-40 - 85 °C
Maximum operating temperature:	85 °C
Operating vibration:	5 G
Non-operating vibration:	4.9 G
Operating shock:	1500 G
Weight & dimensions
Width:	22 mm
Depth:	30 mm
Height:	2.38 mm
Weight:	2.8 g
