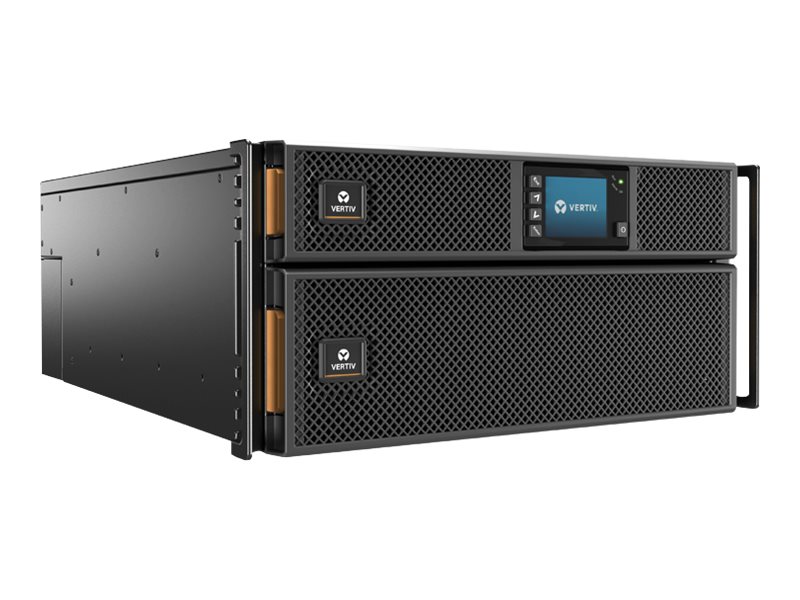

Vertiv Liebert GXT5 UPS - 6000VA/6000W| 230V| Rack/Tower Mountable| Energy Star| Online Double Conversion| 5U| Color/Graphic LCD| 2-Year Warranty

The Liebert GXT5 UPS in an on-line double conversion USP solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. This single phase UPS operates with a high power efficiency and it is ideally suited to protect critical infrastructure in both centralized and edge of network applications.

Features
UPS topology:	Double-conversion (Online)
Output power capacity:	5 kVA
Output power:	5000 W
Waveform:	Pure sine
Input operation voltage (min):	176 V
Input operation voltage (max):	288 V
Input frequency:	50/60 Hz
Output operation voltage (min):	230 V
Output operation voltage (max):	240 V
Output frequency:	50/60 Hz
Output voltage regulation:	3%
Number of input phases:	1
Number of output phases:	1
Single-phase input voltage supported:	200,208,220,230,240 V
Efficiency:	94%
Efficiency (On-line mode):	94%
Power factor:	1
Input power factor:	0.99
Output power factor:	1
Emergency Power Off (EPO):
Overload capacity (5 minute):	125%
Overload capacity (1 minute):	150%
Noise level:	55 dB
Power protection features:	Overload
Audible alarm(s):
Ports & interfaces
AC outlet types:	C13 coupler, C19 coupler, IEC 320, Terminal
Power plug:	Terminal
AC outlets quantity:	8 AC outlet(s)
USB port:
Serial ports quantity:	1
RS-232 ports:	1
Battery
Battery technology:	Sealed Lead Acid (VRLA)
Battery capacity:	9 Ah
Battery voltage:	12 V
Number of batteries supported:	16
Typical backup time at full load:	7 min
Typical backup time at half load:	18.5 min
Battery recharge time(90%):	5 h
Hot-swap battery:
Design
Form factor:	Rackmount/Tower
Product colour:	Black
Rack capacity:	5U
Cooling type:	Active
Display type:	LCD
International Protection (IP) code:	IP20
Safety:	IEC62040-1:2008
Certification:	CE, EMI/EMC/C-Tick EMC, ESD
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-15 - 40 °C
Operating relative humidity (H-H):	0 - 95%
Storage relative humidity (H-H):	0 - 95%
Operating altitude:	0 - 3000 m
Technical details
Sustainability certificates:	RoHS
Weight & dimensions
Width:	430 mm
Depth:	630 mm
Height:	217 mm
Weight:	70.8 kg
Package width:	646 mm
Package depth:	816 mm
Package height:	520 mm
Package weight:	89 kg
Logistics data
Harmonized System (HS) code:	85078000
Other features
Battery type:	VRLA
Output voltage:	230 V
