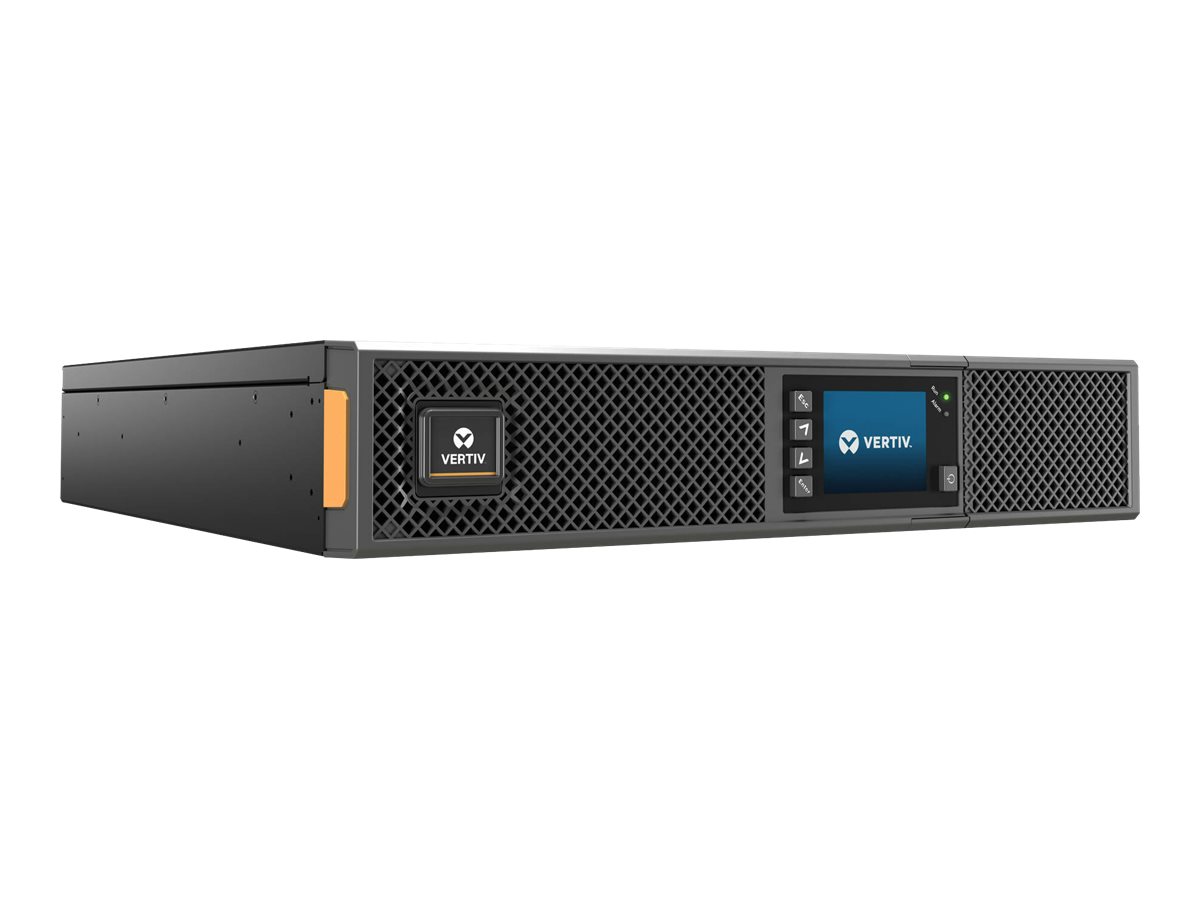

Vertiv Liebert GXT5 Double-conversion (Online) 1.5 kVA 1500 W 8 AC outlet(s)

The Vertiv Liebert GXT5 UPS 1500VA/1500W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.

Features
UPS topology:	Double-conversion (Online)
Output power capacity:	1.5 kVA
Output power:	1500 W
Waveform:	Pure sine
Input operation voltage (min):	115 V
Input operation voltage (max):	288 V
Input frequency:	40 - 70 Hz
Output operation voltage (max):	240 V
Output frequency:	50/60 Hz
Output voltage regulation:	3%
Number of input phases:	1
Number of output phases:	1
Efficiency:	95%
Efficiency (On-line mode):	95%
Input power factor:	0.99
Emergency Power Off (EPO):
Noise level:	58 dB
Power protection features:	Overload
Audible alarm(s):
Ports & interfaces
AC outlet types:	C13 coupler, C19 coupler
AC outlets quantity:	8 AC outlet(s)
USB port:
Serial interface type:	RS-232, RS-485
Serial ports quantity:	1
Battery
Battery technology:	Sealed Lead Acid (VRLA)
Battery capacity:	9 VAh
Battery voltage:	12 V
Typical backup time at full load:	5 min
Typical backup time at half load:	13 min
Battery recharge time:	4 h
Hot-swap battery:
Design
Form factor:	Rackmount/Tower
Product colour:	Black
Display type:	LCD
International Protection (IP) code:	IP20
Safety:	IEC62040-1:2008, GS; UL1778, c-UL
Certification:	IEC/EN/AS 62040-2 2nd Ed (Cat 2 6); FCC 15 A CISPR22 A(RFI)
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-15 - 40 °C
Operating relative humidity (H-H):	0 - 95%
Storage relative humidity (H-H):	0 - 95%
Operating altitude:	0 - 3000 m
Technical details
Sustainability certificates:	RoHS, ENERGY STAR
Weight & dimensions
Width:	430 mm
Depth:	630 mm
Height:	217 mm
Weight:	21 kg
Package width:	517 mm
Package depth:	617 mm
Package height:	262 mm
Package weight:	25.5 kg
Logistics data
Harmonized System (HS) code:	85078000
Other features
Battery type:	VRLA
Output connections:	IEC320 C13
Input connection type:	c14
Nominal output voltage:	230 V
Nominal input voltage:	230 V
Overload protection:
Bypass:	Yes
Non-operating relative humidity (non-condensing):	0 - 95%
