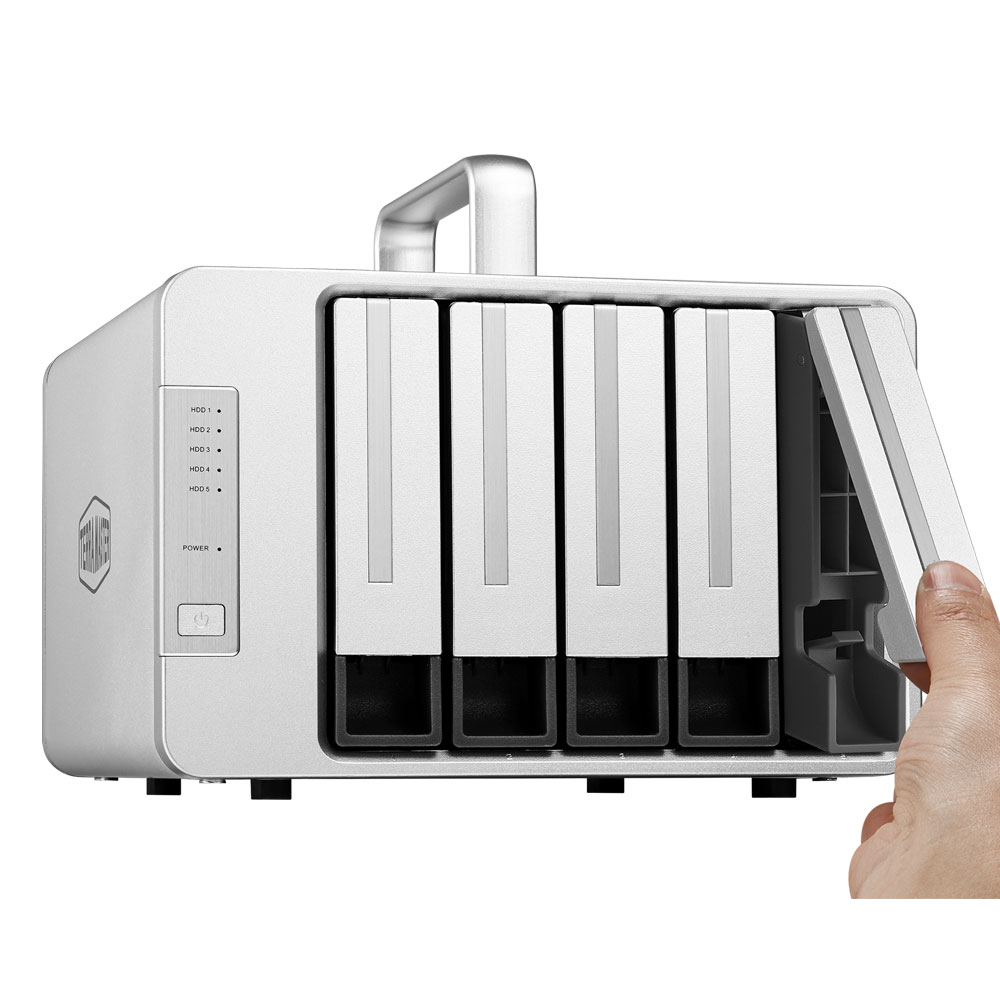

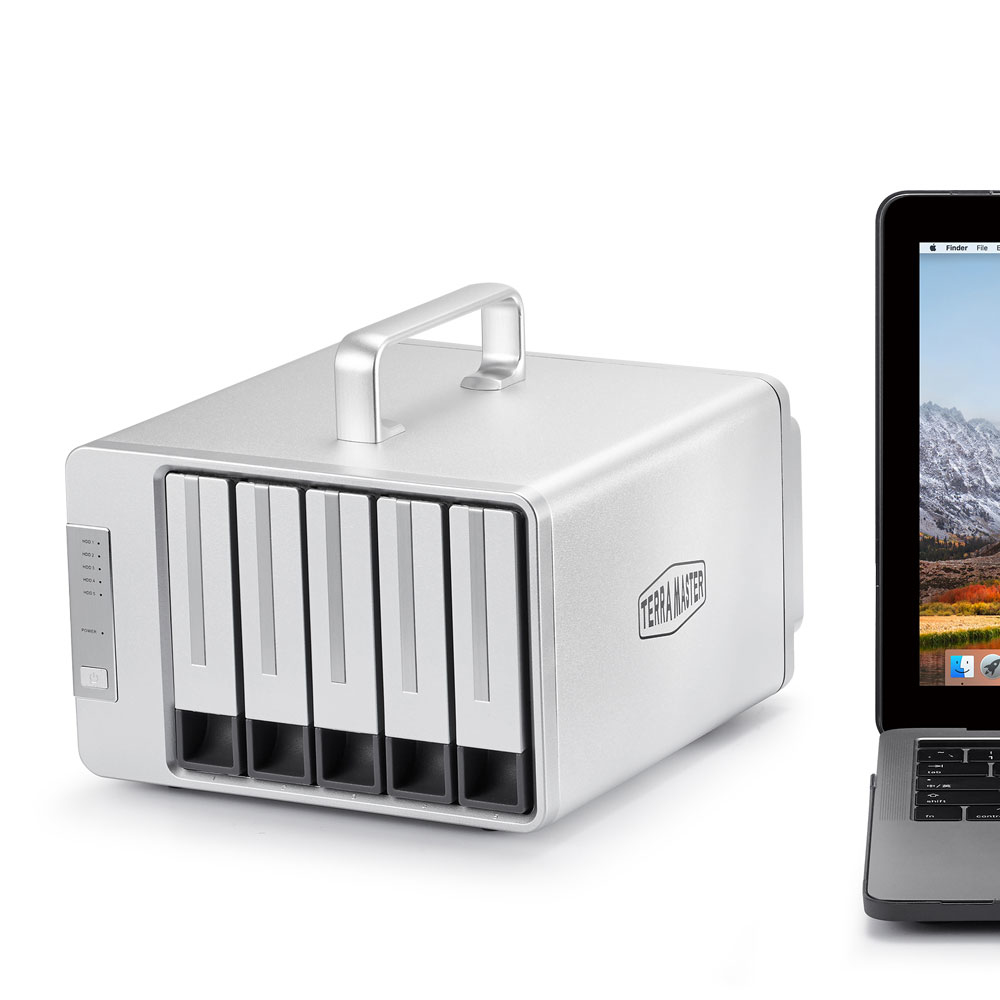

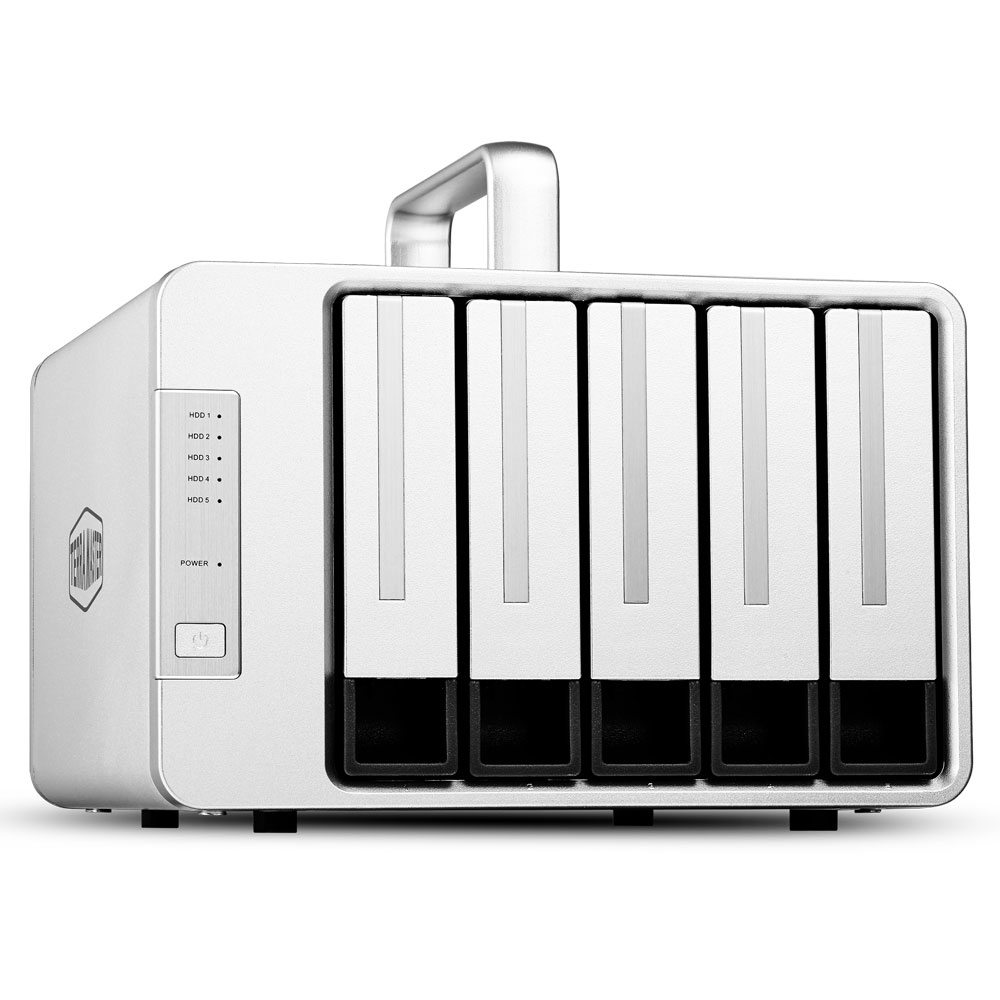

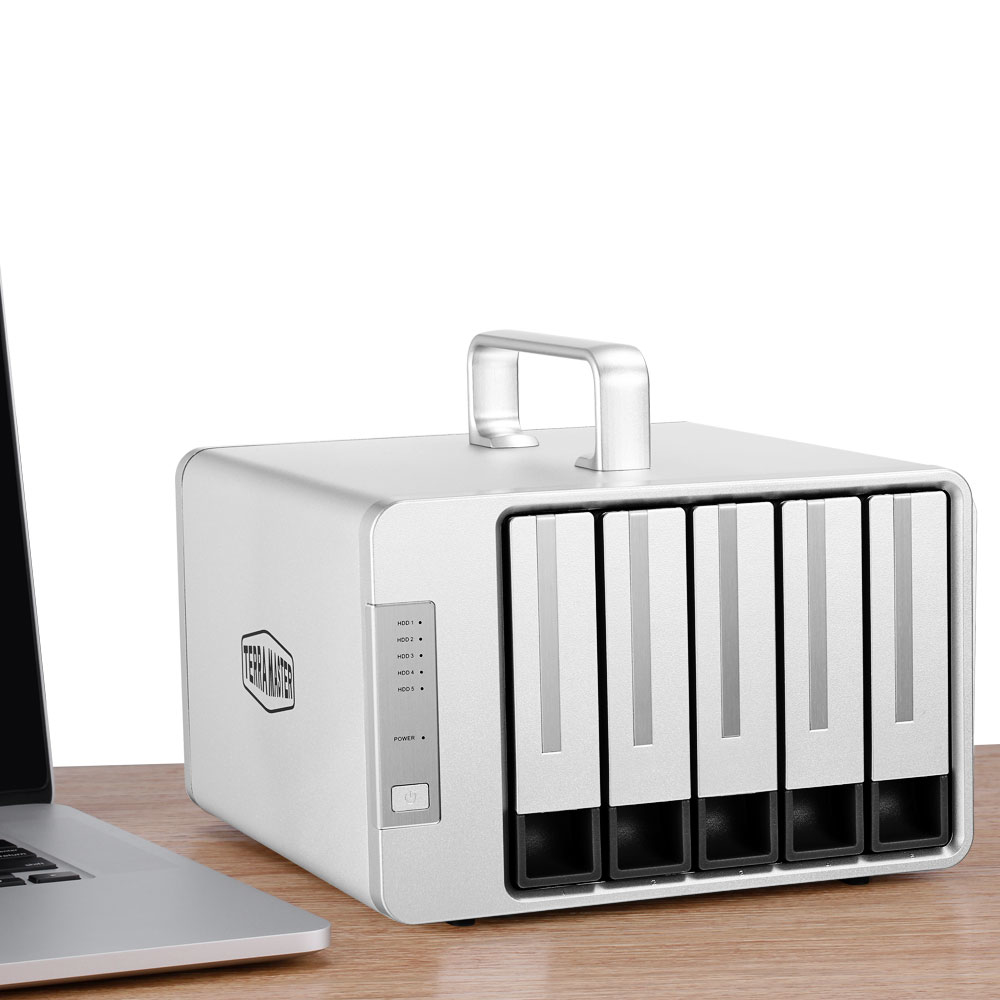

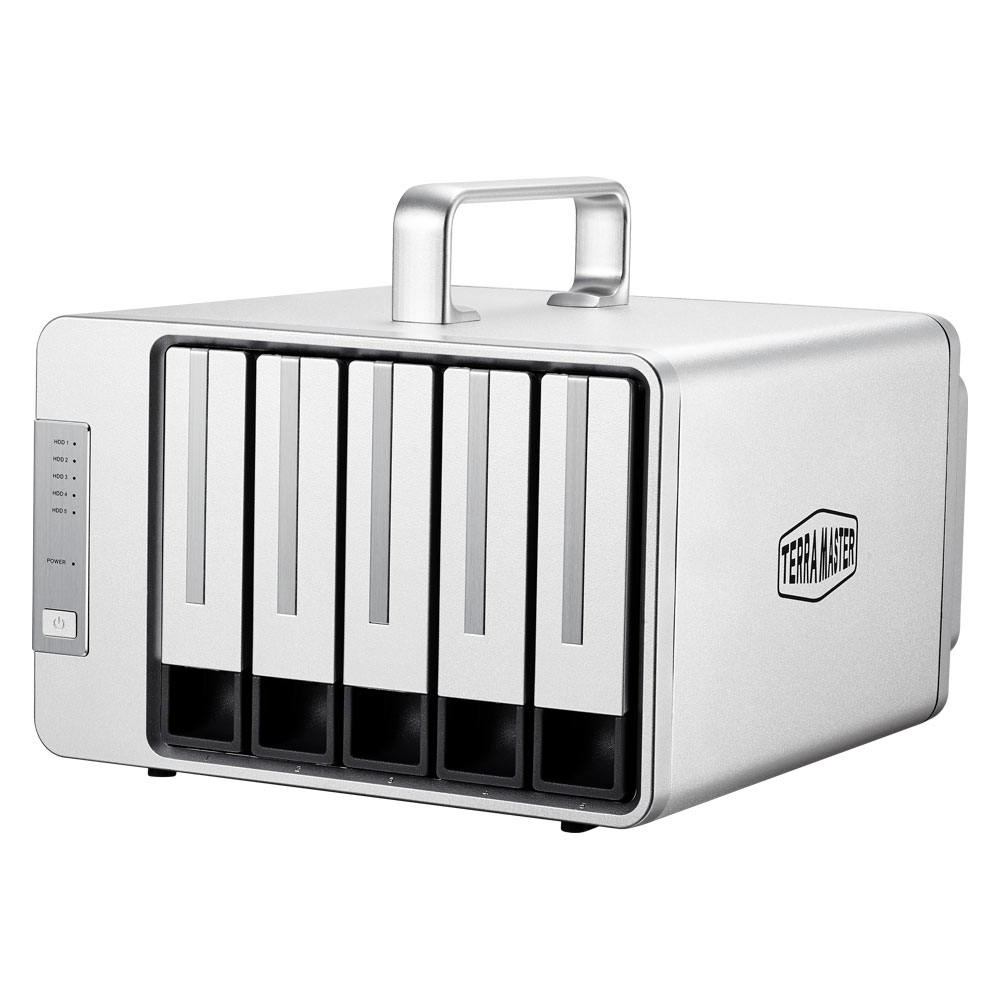

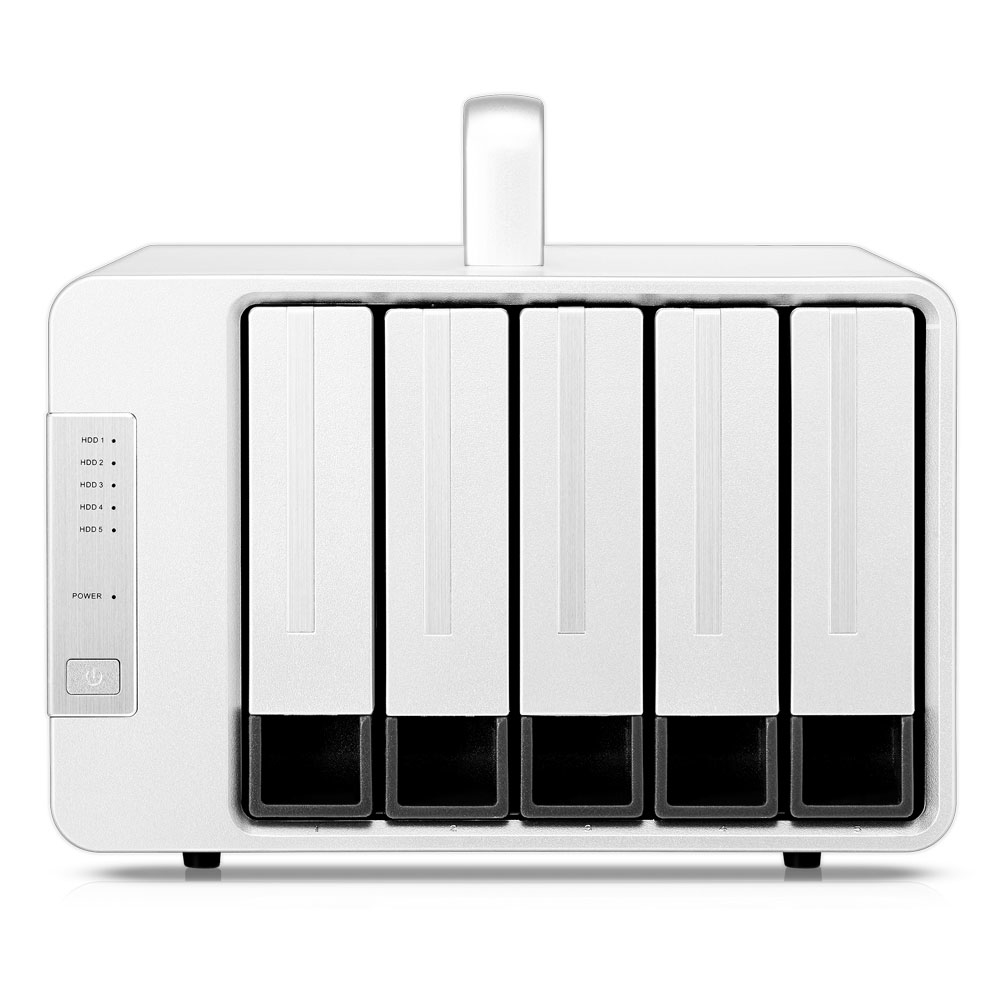

TerraMaster D5 Thunderbolt 3 disk array Desktop Grey

Large Storage CapacityTerraMaster s 5-bay D5 Thunderbolt 3 is compatible with 3.5" SATA disks and 2.5" SSDs, allowing professionals to capitalise on a total storage capacity of up to 80TB. As a result, you can be assured the device gives you the tools you need to overcome any storage challenge.Lightning Speed!The D5 Thunderbolt 3 is equipped with a 40-Gbps lightning speed interface, and the read and write support attains speeds of up to 1,035 MB/s (test conditions: 5 SSDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt 3 devices, and each one can be realized using the Thunderbolt interface.Dedicated DP InterfaceGiven its HD DP digital interface, video editors can connect the D5 Thunderbolt 3 to a 4K HD display to satisfy their needs.Multi-Screen DisplayCapitalising on the Thunderbolt 3 and DP interfaces, the D5 Thunderbolt 3 supports multi-screen display with up to 3 screens. This is an ideal solution for multitaskers, especially when efficiency is the end goal.Multiple RAID SupportsThe D5 Thunderbolt 3 can operate with RAID 0, 1, 5, and 10, as well as JBOD disk array modes for all your application needs. This underpins the all-important concern for guaranteed data security, and it ensures that your storage capacity is utilised in the most efficient way possible.Professional and SafeReplacing lost content is inconvenient, costly, and, ultimately, unworkable for all professionals. Therefore, with the D5 Thunderbolt 3, TerraMaster has not comprised on its use of state-of-the-art storage technologies to ensure data safety and security. Now, freed from concerns about inadequately protected data, users can focus on what matters to you.The Ideal Companion for All ProfessionalsGiven its compactness, its large storage capacity, and its lightning speed, the D5 Thunderbolt 3 is ideally suited for the most demanding applications, including 4K video editing, as well as seamless 4K streaming. Other users, especially those with strict speed and storage requirements, will find a valuable partner in this device.Authoritative Quality CertificationBoth Apple and Intel have certified the D5 Thunderbolt 3 s design and performance, ensuring the device s consistent performance and reliability.

Storage
Storage drives installed:
Installed storage drive type:
Supported storage drive types:	HDD & SSD
Number of storage drives supported:	5
Maximum supported storage capacity:	80 TB
Supported storage drive interfaces:	Serial ATA
Storage drive sizes supported:	2.5,3.5"
RAID levels:	0, 1, 5, 10, JBOD
Data transfer rate:	40 Gbit/s
Hot-swap drive bays:

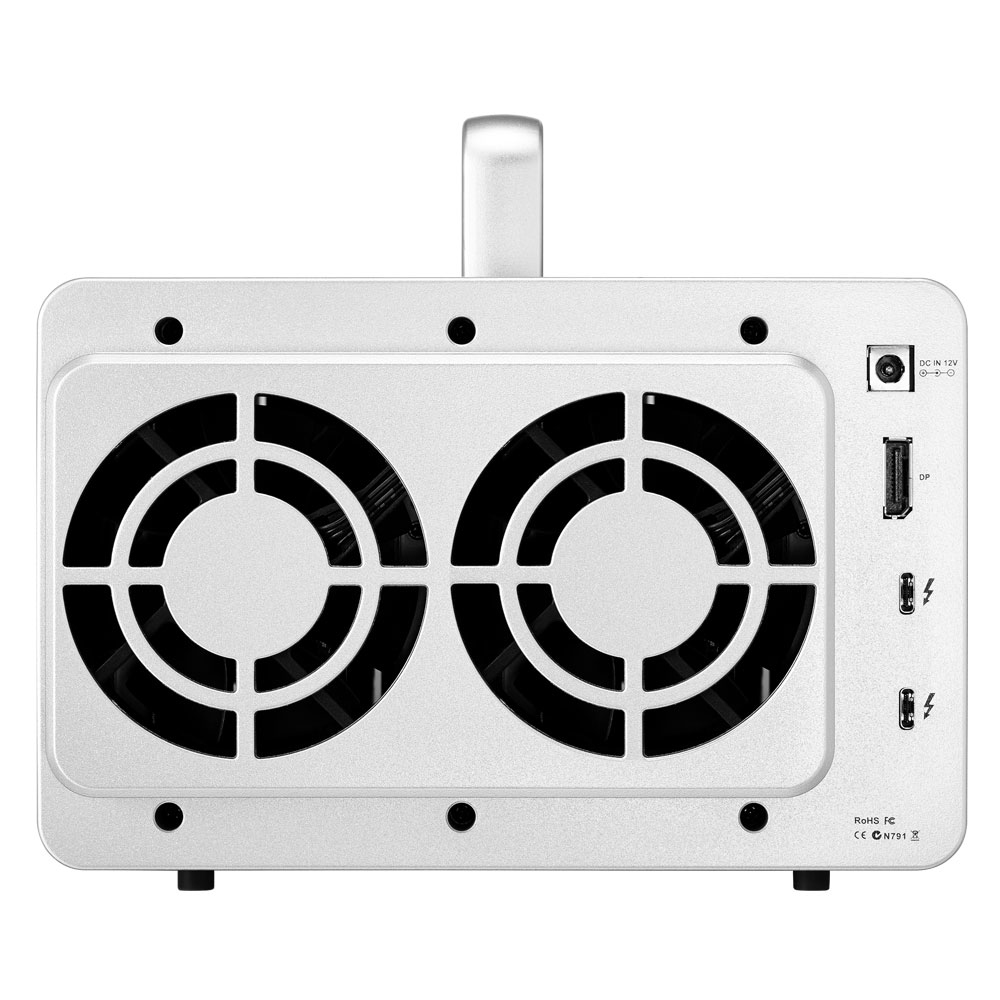

Ports & interfaces
USB connectivity:
Thunderbolt technology:
Thunderbolt ports quantity:	2
Thunderbolt version:	3
DisplayPorts quantity:	1
DisplayPort version:	1.2
Design
Chassis type:	Desktop
Product colour:	Grey
LED indicators:	HDD, Power
Number of fans:	2 fan(s)
Noise level:	19.8 dB
Fan diameter:	8 cm
Built-in display:
Certification:	CE, FCC, CCC, KC
Power
Power supply unit (PSU) capacity:	120 W
Number of power supply units:	1
Power consumption (typical):	76.8 W
AC input voltage:	100-240 V
AC input frequency:	50 - 60 Hz
DC output voltage:	12 V
System requirements
Mac compatibility:
Mac operating systems supported:	macOS
Windows operating systems supported:
Weight & dimensions
Width:	225 mm
Depth:	176 mm
Height:	227 mm
Weight:	2.3 kg
Package width:	275 mm
Package depth:	210 mm
Package height:	300 mm
Package weight:	3.5 kg
Technical details
Sustainability certificates:	RoHS
Packaging content
Cables included:	AC, Thunderbolt
Number of adapters included:	1 pc(s)
Screws included:
Operational conditions
Operating temperature (T-T):	5 - 40 °C
Operating relative humidity (H-H):	5 - 95%
Storage temperature (T-T):	-20 - 60 °C
