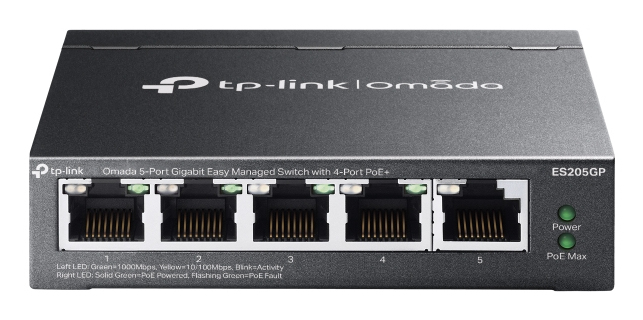

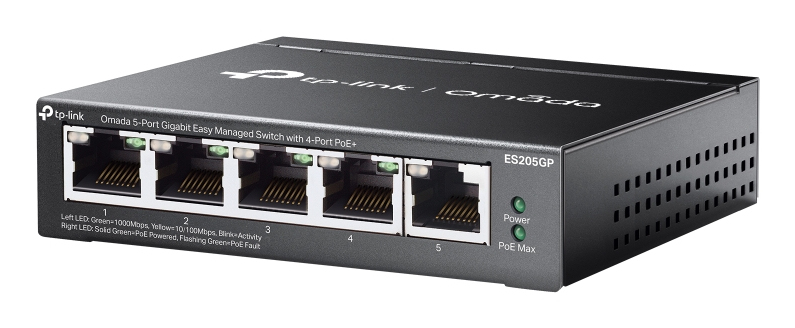

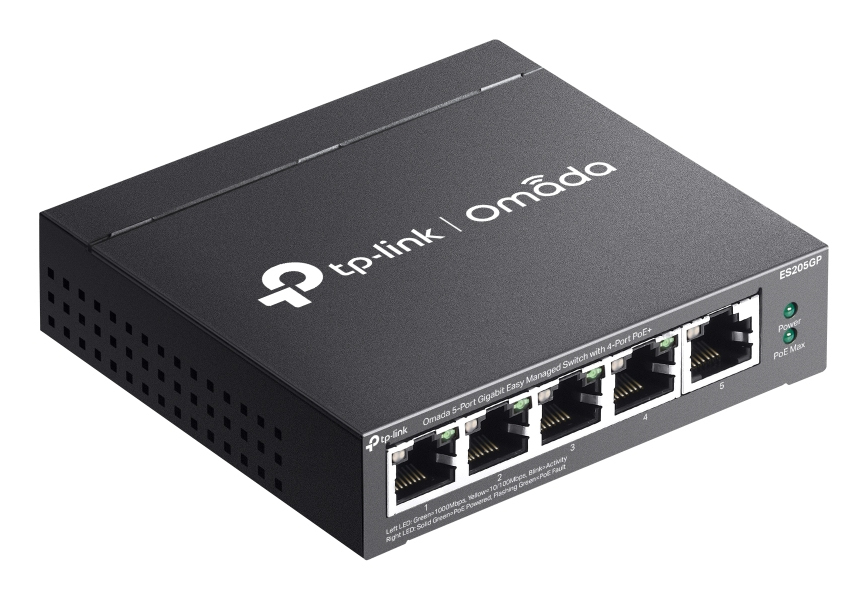

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- Easy to Use
- Hardware, Software, or Cloud-Based Controllers
- Centralized Management via Web or Omada App
- Zero-Touch Provisioning (ZTP)
Abundant Functions for Reliable Surveillance Networking
- Transmission Distance up to 250 m
- Priority Video Quality Guaranteed
- Secure Traffic Separation via Port Isolation
- PoE Auto Recovery
Multiple Application Scenarios
Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers

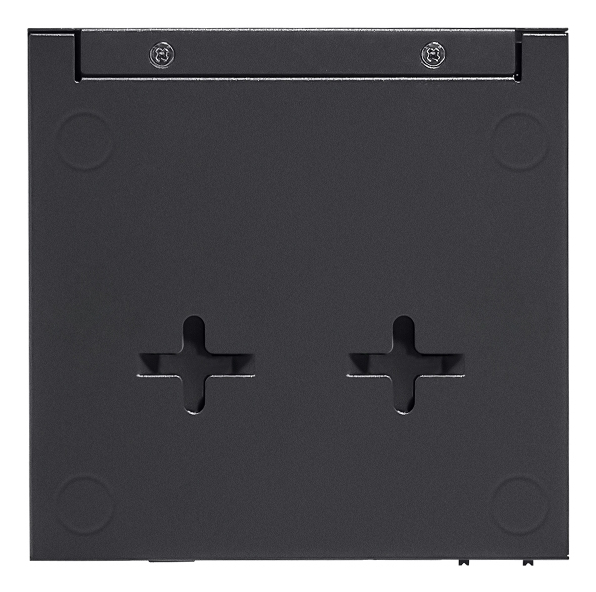

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design
| Management features | |
| Switch type: | Managed |
| Quality of Service (QoS) support: | Yes |
| Cloud-managed: | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 5 |
| Basic switching RJ-45 Ethernet ports type: | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards: | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x |
| 10G support: | No |
| Port mirroring: | Yes |
| Flow control support: | Yes |
| Link aggregation: | Yes |
| Auto MDI/MDI-X: | Yes |
| Auto-negotiation: | Yes |
| VLAN support: | Yes |
| Virtual LAN features: | MTU VLAN, Port-based VLAN, Tagged VLAN |
| Optical fiber | |
| Transmission distance (max): | 0.25 km |
| Data transmission | |
| MAC address table: | 8000 entries |
| Switching capacity: | 10 Gbit/s |
| Forwarding rate: | 7.4 Mpps |
| Store-and-forward: | Yes |
| Jumbo frames support: | Yes |
| Jumbo frames: | 15 |
| Packet buffer memory: | 4 MB |
| Security | |
| DHCP features: | DHCP client |
| IGMP snooping: | Yes |
| Loop protection: | Yes |
| Design | |
| Product colour: | Black |

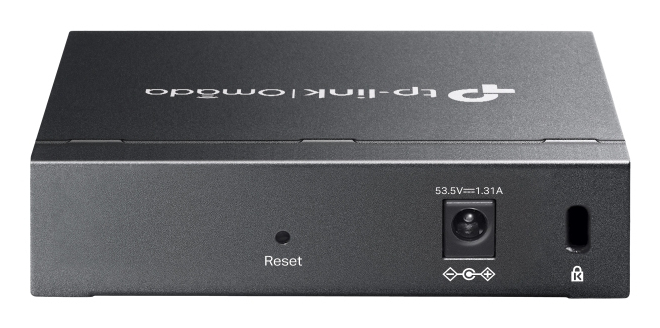

| Reset button: | Yes |
| LED indicators: | Yes |
| Wall mountable: | Yes |
| Performance | |
| Fanless: | Yes |
| Power | |
| Power source: | AC/DC |
| Power supply included: | Yes |
| DC input voltage: | 53.5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | Yes |
| Power over Ethernet (PoE) ports quantity: | 4 |
| Power over Ethernet plus (PoE+) ports quantity: | 4 |
| Power over Ethernet (PoE) power per port: | 30 W |
| Total Power over Ethernet (PoE) budget: | 65 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Weight & dimensions | |
| Width: | 100 mm |
| Depth: | 98 mm |
| Height: | 25 mm |
| Packaging content | |
| User guide: | Yes |
| Packaging data | |
| Package type: | Box |
| Certificates | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS |
