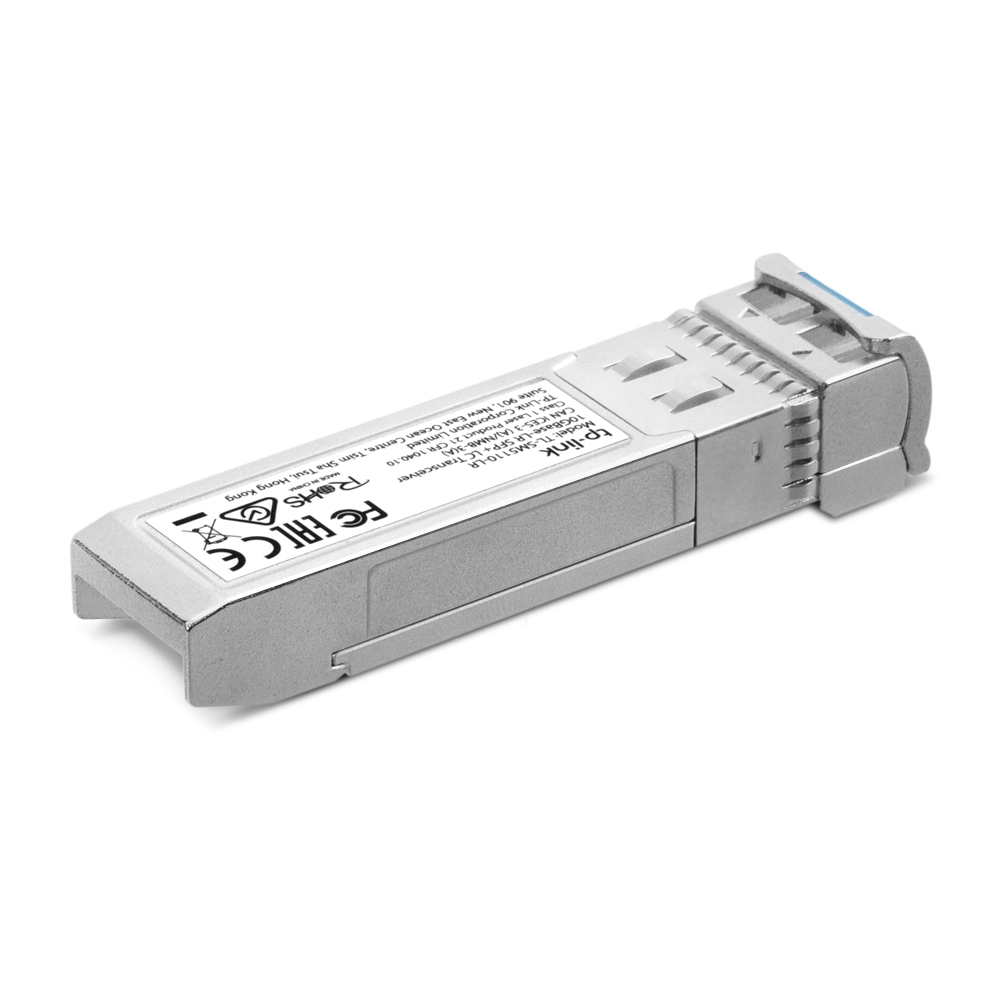

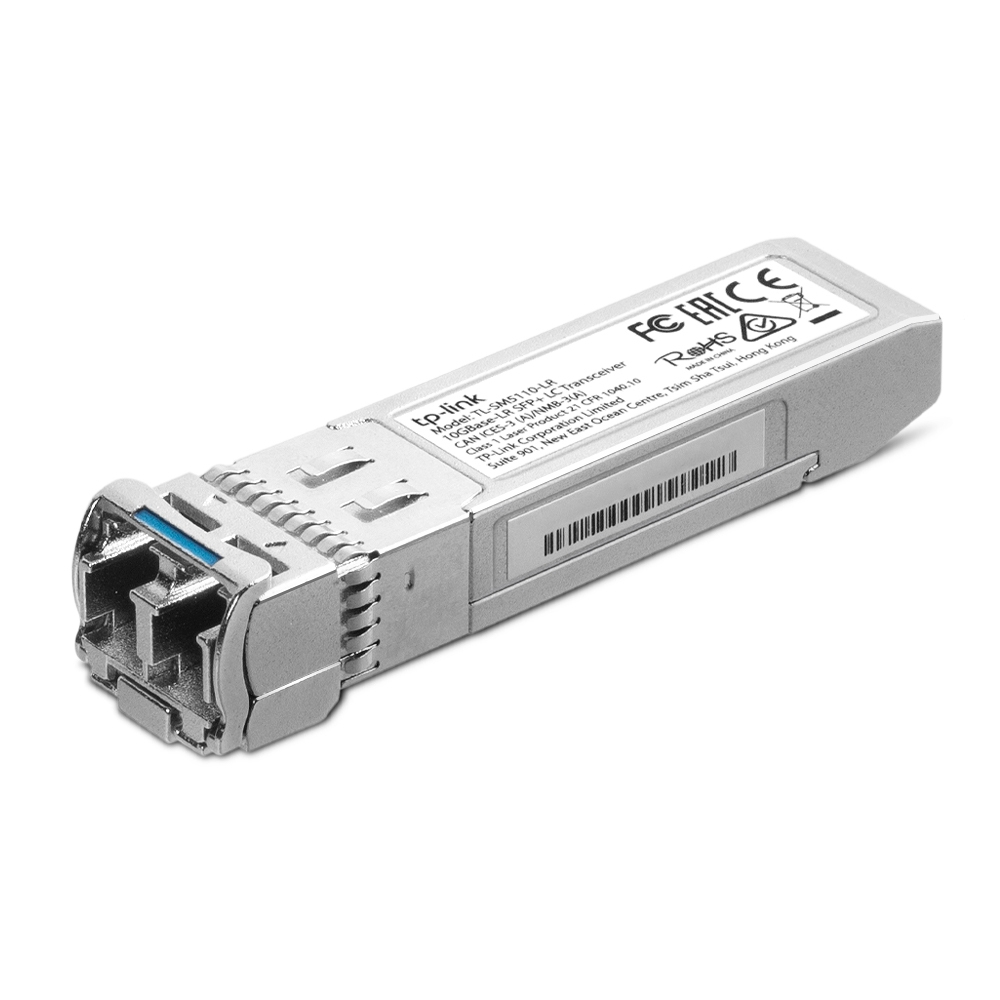

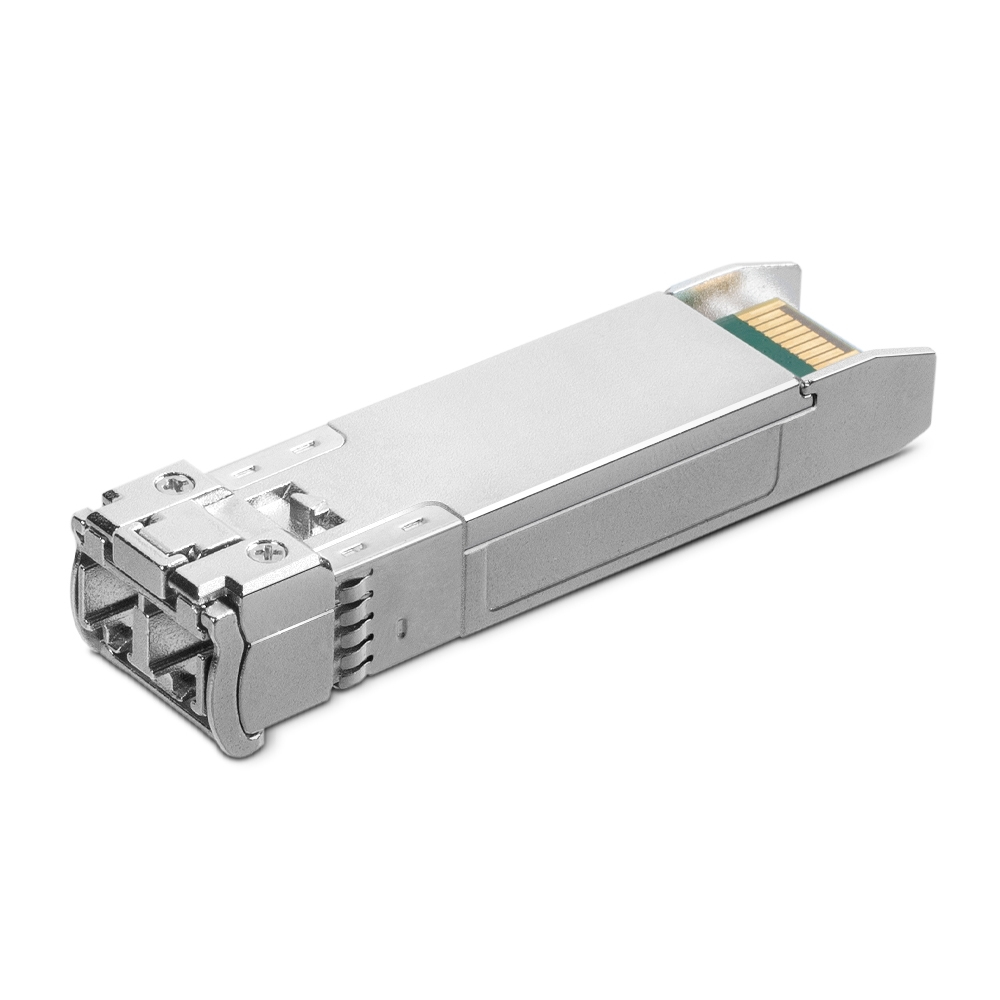

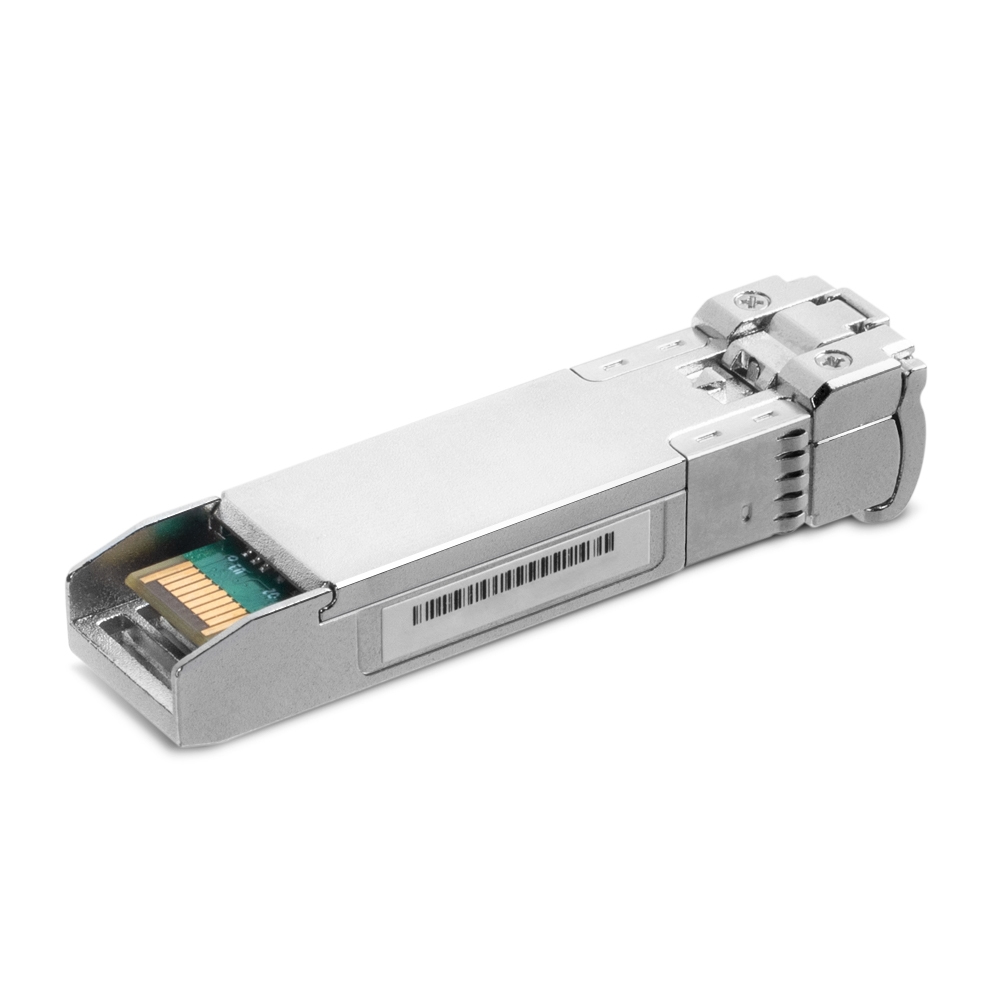

The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
| Performance | |
| SFP transceiver type: | Fiber optic |
| Maximum data transfer rate: | 10000 Mbit/s |
| Interface type: | SFP+ |
| Single-mode fiber (SMF) supported: |  |
| Multi-mode fiber (MMF) supported: |  |
| Fiber optic connector: | LC |
| Fiber cable diameters supported (core/cladding): | 9/125 µm |
| SFP transceiver standard: | LR |
| Maximum transfer distance: | 10000 m |
| Wavelength: | 1310 nm |
| Networking standards: | IEEE 802.3ae |
| Digital Diagnostics Monitoring (DDM): | |
| Features | |
| Hot-Plug support: | |
| Brand compatibility: | TP-Link |
| Compatible products: | Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Certification: | FCC, CE |
| Power | |
| Input voltage: | 3.3 V |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 70 °C |
| Storage temperature (T-T): | -40 - 85 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Storage relative humidity (H-H): | 5 - 90% |
| Packaging data | |
| Number of products included: | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code: | 85369010 |
