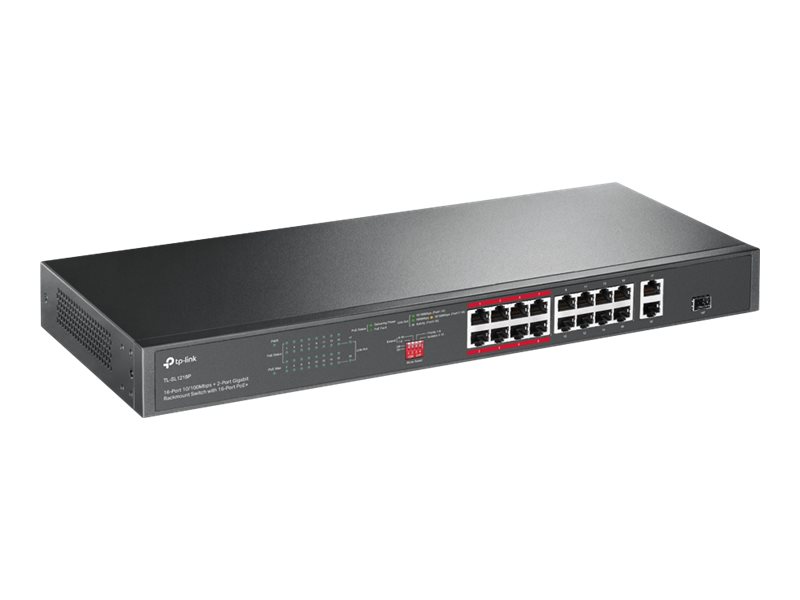

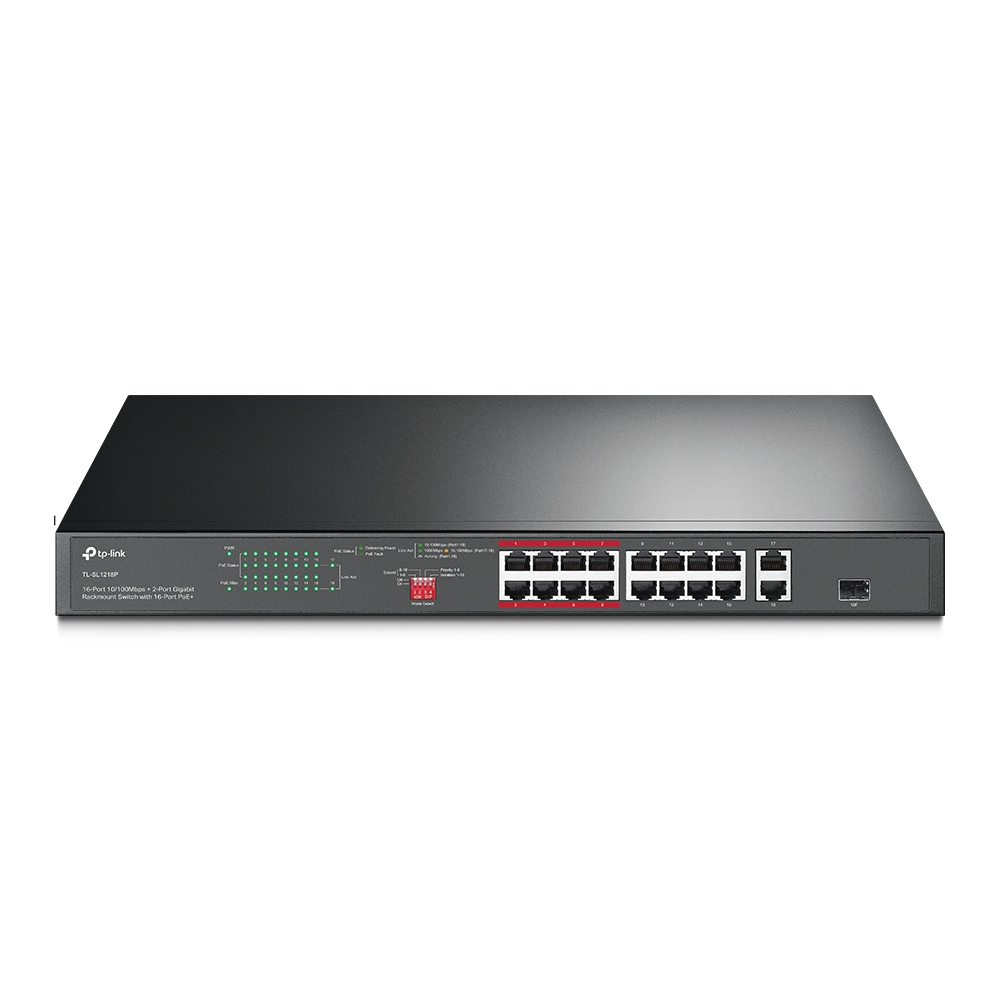

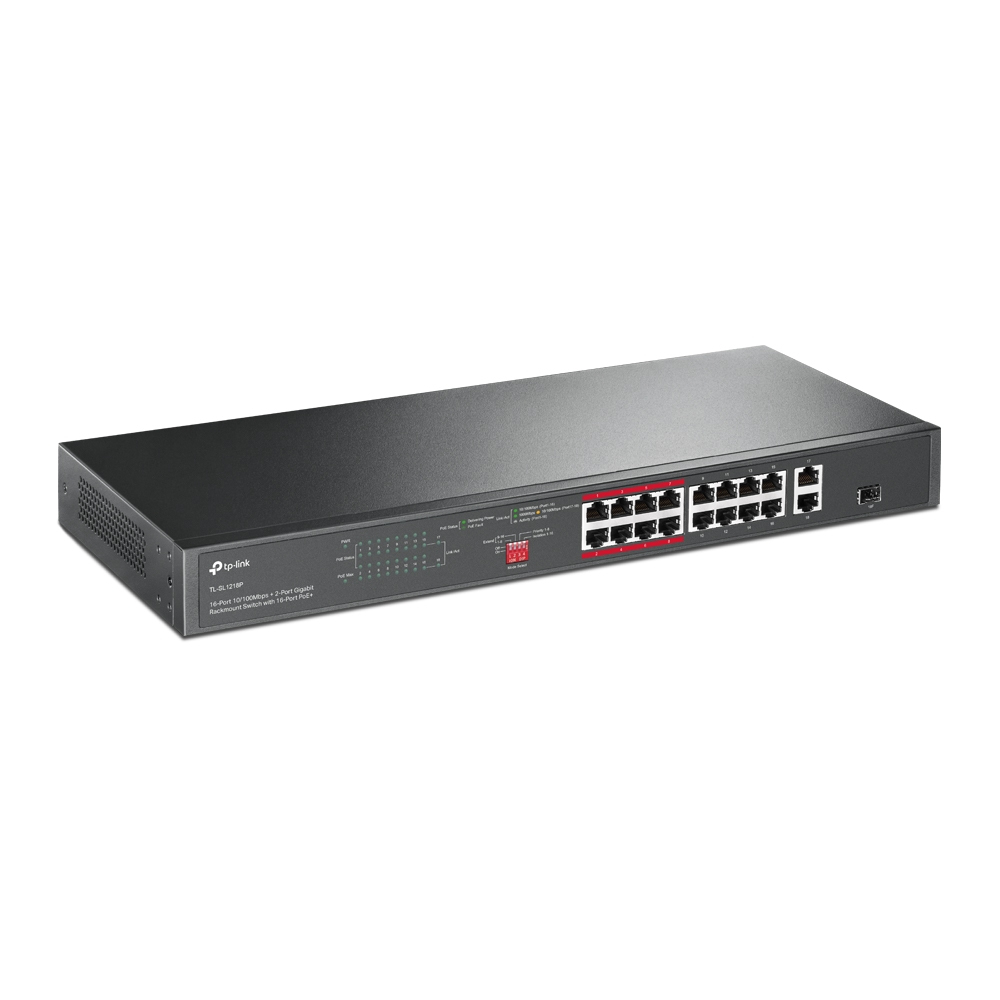

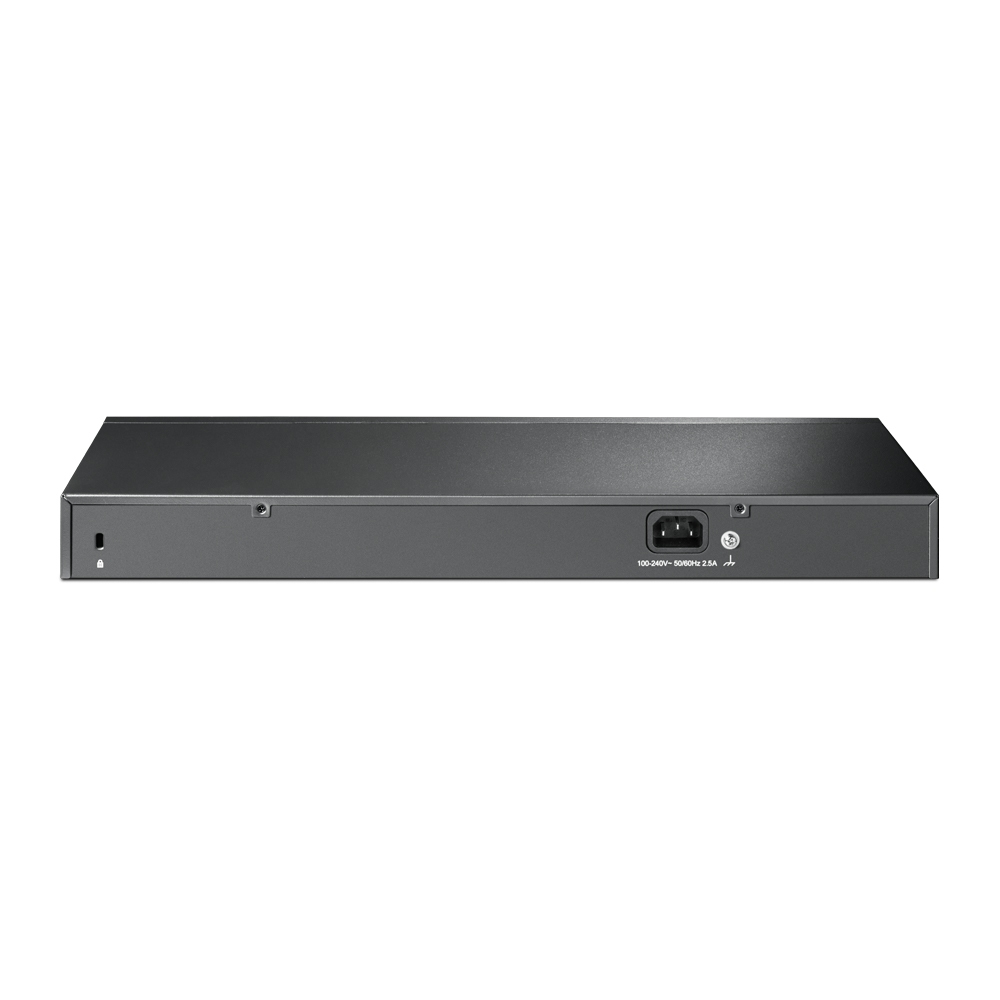

TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+

Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+Plug and Play, with PoE Transmission for Surveillance up to 250 mDedicated 16-Port PoE+ Switch (150 W Budget) for Numerous ApplicationsCompliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.Ideal for IP Surveillance Up to 250 m TransmissionWith extend mode, the PoE transmission distance reaches up to 250 m perfect for IP Camera deployment in large areas.Ideal for IP Surveillance Higher Performance and SecurityPriority Mode and Isolation Mode make surveillance smoother and safer.Priority Video Quality GuaranteedQuality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1 8 when one-touch Priority Mode is on.One-Click Traffic Separation for Ports 1-16With one click, Isolation Mode easily divides traffic for ports 1 16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.Smooth HD Video Monitoring2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.Intelligent Power Management to Prevent Power OverloadWhen your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports power to ensure high-priority ports power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.Wide Operating Temperature with Good Heat DissipationDurable metal casing and professional heat dissipation design ensure the wide operating temperature (0 50 ) with reliability.Multiple Application ScenariosThe TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

Management features
Switch type:	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	18
Basic switching RJ-45 Ethernet ports type:	Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity:	16
Gigabit Ethernet (copper) ports quantity:	2
Combo SFP ports quantity:	1
Network
Networking standards:	IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
10G support:
Cable types supported:	Cat3, Cat4, Cat5, Cat5e, Cat6
Auto MDI/MDI-X:
Auto-negotiation:
Data transmission
MAC address table:	8000 entries
Switching capacity:	7.2 Gbit/s
Forwarding rate:	5.36 Mpps
Jumbo frames support:
Jumbo frames:	10000
Packet buffer memory:	4.1 MB
Design
Rack mounting:
Form factor:	1U
Product colour:	Black
Housing material:	Metal
LED indicators:
Number of fans:	2 fan(s)
Certification:	CE, FCC, RoHS
Power
Power source:	AC
Power supply included:
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Power consumption (max):	172.8 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet plus (PoE+) ports quantity:	16
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	150 W
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Storage temperature (T-T):	-40 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	589.25 BTU/h
Weight & dimensions
Width:	440 mm
Depth:	180 mm
Height:	44 mm
Packaging data
Cables included:	AC
Quick start guide:
Logistics data
Harmonized System (HS) code:	85176990
