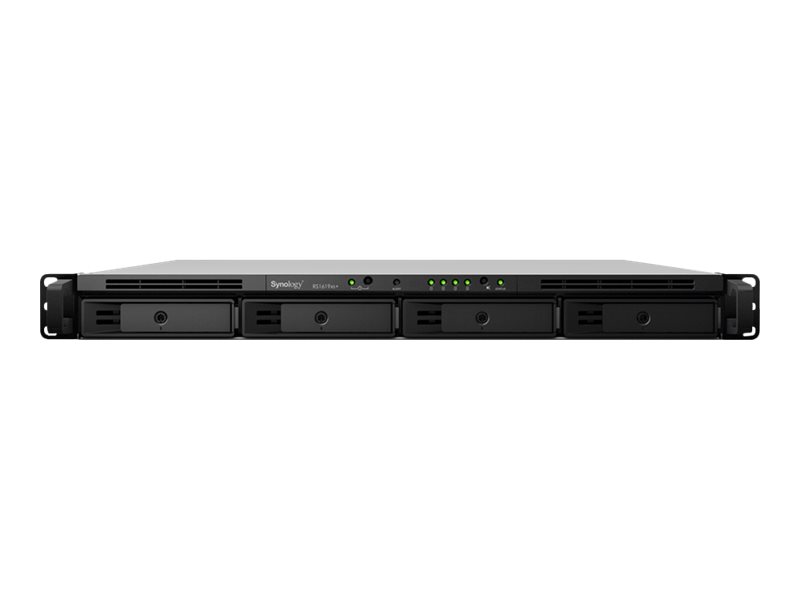

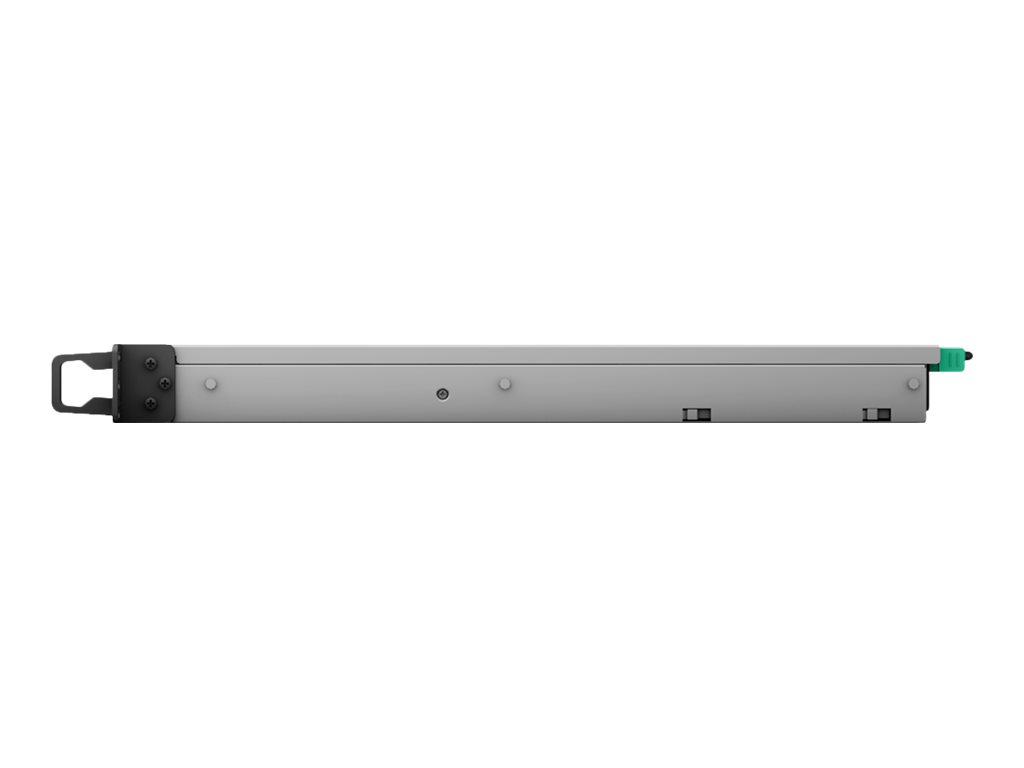

Synology RackStation RS1619XS+ NAS/storage server Rack (1U) Ethernet LAN Black D-1527

Synology RackStation RS1619xs+ is a high-performance 1U rackmount NAS with comprehensive storage, data backup, and collaboration applications, suitable for small- to medium-sized businesses. RS1619xs+ simplifies data management, optimizes virtualization environments, and rapidly expands storage capacity with minimal time investment in setup and maintenance. Synology RS1619xs+ is backed by Synology s 5-year limited warranty. Synology RS1619xs+ is a 1U 4-bay rackmount network attached storage solution equipped with a quad-core processor, 8 GB DDR4 memory (expandable up to 64 GB), and four Gigabit LAN ports. With an optional 10GbE network adapter card installed, RS1619xs+ delivers sequential reading throughput over 1,523 MB/s and 162,097 iSCSI random read IOPS under a RAID 5 configuration.RS1619xs+ comes with two onboard M.2 SSD slots, allowing fast system cache creation with M.2 2280 NVMe/SATA SSDs without occupying internal 3.5" drive bays. RS1619xs+ also provides great flexibility to easily scale up to 16 drives when connected to one Synology RX1217/RX1217RP expansion unit. Storage capacity can be expanded according to your business needs with minimal effort.

Storage
Storage drives installed:
Number of storage drives supported:	4
Installed storage drive type:
Supported storage drive types:	HDD & SSD
Storage drive interface:	Serial ATA, Serial ATA II, Serial ATA III
RAID support:
Storage drive sizes supported:	2.5,3.5"
Number of M.2 (M & B) slots:	2
RAID levels:	0, 1, 5, 6, 10, JBOD
Hot-swap drive bays:
Supported file systems:	BTRFS, Fat, HFS+, NTFS, ext3, ext4
Processor
Processor family:	Intel® Xeon® D
Processor manufacturer:	Intel
Processor model:	D-1527
Processor frequency:	2.2 GHz
Processor boost frequency:	2.7 GHz
Processor cores:	4
Processor threads:	8
Processor cache:	6 MB
CPU configuration (max):	1
ECC supported by processor:
PCI Express configurations:	1x16, 1x4, 1x8
PCI Express slots version:	2.0, 3.0
Processor cache type:	L3
Processor code:	SR2DK
Processor codename:	Broadwell
Processor lithography:	14 nm
Processor operating modes:	64-bit
Processor package size:	37.5 x 37.5 mm
Processor series:	Intel Xeon D-1500
Processor socket:	BGA 1667
Scalability:	1S
Stepping:	V2
Thermal Design Power (TDP):	35 W
On-board graphics card model:	Not available
Maximum internal memory supported by processor:	128 GB
Conflict-Free processor:
Memory
Internal memory:	8 GB
Internal memory type:	DDR4
Maximum RAM supported:	64 GB
Memory slots:	4
Network
Ethernet LAN:
Ethernet LAN data rates:	10,100,1000 Mbit/s
Wi-Fi:
iSCSI support:
Wake-on-LAN ready:
Supported network protocols:	CIFS, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, VPN (PPTP, OpenVPN, L2TP)
Link aggregation:
Ports & interfaces
Ethernet LAN (RJ-45) ports:	4
USB port:
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
PCI Express x8 (Gen 3.x) slots:	1
Expansion ports quantity:	1
Design
Chassis type:	Rack (1U)
Cooling type:	Active
Product colour:	Black
Number of fans:	2 fan(s)
Fan diameter:	4 cm
LED indicators:	Alarm, HDD, Power, Status
Performance
Type:	NAS
Device class:	Small & Medium Business
Backup function:
Backup features:	Cloud, iSCSI LUN
Multilingual support:
Noise level:	39.3 dB
Web-based management:
Security algorithms:	HTTPS, SSH, SSL/TLS
Access Control List (ACL):
Reset button:
On/off switch:
Browser supported:	Chrome, Firefox, Internet Explorer 10+, Safari 10+
Software
Operating system installed:	DiskStation Manager
Windows operating systems supported:	Windows 10, Windows 7
Mac operating systems supported:	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave
Server operating systems supported:	Windows Server 2016
Power
Power supply location:	Built-in
Power supply unit (PSU) capacity:	150 W
Number of power supply units:	2
Power consumption (typical):	68.68 W
Power consumption (HDD standby):	34.78 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Weight & dimensions
Width:	480 mm
Depth:	518.6 mm
Height:	44 mm
Weight:	8.16 kg
Packaging content
Cables included:	AC
Quick installation guide:
Technical details
Sustainability certificates:	RoHS
Processor special features
Embedded options available:
Enhanced Intel SpeedStep Technology:
Execute Disable Bit:
Idle States:
Intel 64:
Intel Enhanced Halt State:
Intel Secure Key Technology version:	1.00
Intel Trusted Execution Technology:
Intel TSX-NI:
Intel TSX-NI version:	1.00
Intel Virtualization Technology (VT-x):
Intel Virtualization Technology for Directed I/O (VT-d):
Intel VT-x with Extended Page Tables (EPT):
Intel® AES New Instructions (Intel® AES-NI):
Intel® Hyper Threading Technology (Intel® HT Technology):
Intel® OS Guard:
Intel® Secure Key:
Intel® Turbo Boost Technology:	2.0
Maximum number of PCI Express lanes:	32
Thermal Monitoring Technologies:
UART:
Memory channels supported by processor:	Dual
Memory types supported by processor:	DDR3-SDRAM, DDR4-SDRAM
Operational conditions
Operating temperature (T-T):	5 - 35 °C
Operating relative humidity (H-H):	5 - 95%
Storage temperature (T-T):	-20 - 60 °C
Operating altitude:	0 - 5000 m
Certificates
Certification:	EAC VCCI RCM FCC CE BSMI
Logistics data
Harmonized System (HS) code:	84714100
Other features
Processor ARK ID:	91195
