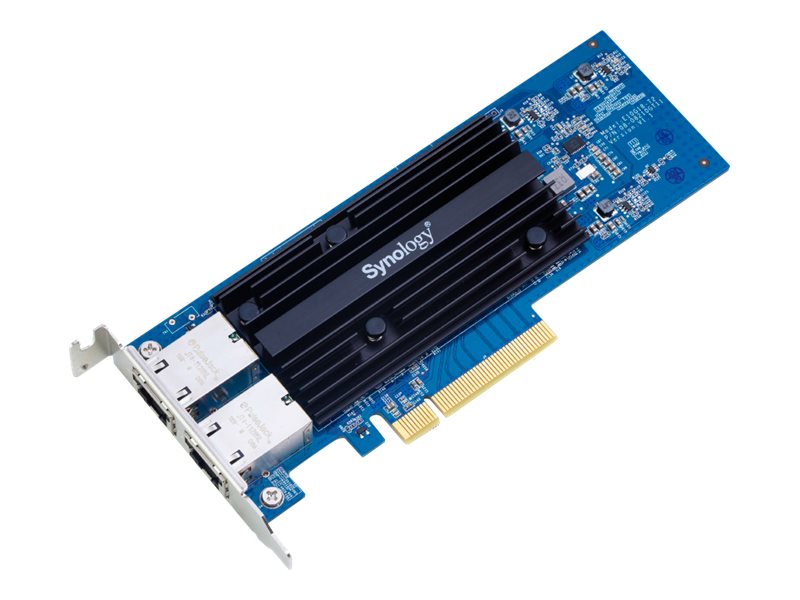

Synology E10G18-T2 network card Internal Ethernet 10000 Mbit/s

Achieve outstanding network performance with minimal effortEnjoy a smooth migration to high-speed 10Gbps Ethernet. E10G18-T2 delivers superior transmission performance with the capability to offload packet processing and free up CPU resources for more tasks. It supports IEEE 802.3an/ab (10GBASE-T/1000BASE-T) and 802.3x with dual RJ-45 connectors, providing a total data rate of 20Gbps using standard CAT6 or better UTP cabling connections. Features such as Link Aggregation, Jumbo Frame, TSO, and TCP/UDP/IP Checksum offloading satisfy most workloads requiring high performance, making E10G18-T2 an ideal and economical solution for 10Gbps networking adoption.5 year warrantyBuilt to handle intensive workloads, Synology network add-in-cards are backed by Synology's 5 year limited warranty.

Ports & interfaces
Connectivity technology:	Wired
Host interface:	PCI Express
Interface:	Ethernet
Ethernet LAN (RJ-45) ports:	2
PCI version:	3.0
Network
Maximum data transfer rate:	10000 Mbit/s
Networking standards:	IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3x
Ethernet LAN:
Ethernet interface type:	10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN data rates:	1000,10000 Mbit/s
Cabling technology:	10GBase-T
Wi-Fi:
Full duplex:
Design
Internal:
Component for:	Server
Product colour:	Black, Blue
Compatible products:	FS series:FS2500, FS6400, FS3600, FS3400, FS3017, FS2017, FS1018 SA series:SA3600, SA3400, SA3200D UC series:UC3200 22 series:DS3622xs+, DS2422+ 21 series:RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+, DS1821+, DS1621xs+, DS1621+ 20 series:RS820RP+, RS820+ 19 series:RS1619xs+, RS1219+, DS2419+, DS2419+II, DS1819+ 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+, RS818RP+, RS818+, DS3018xs, DS1618+ 17 series:RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs, DS3617xs, DS3617xsII, DS1817+, DS1517+ 16 series:RS18016xs+ 15 series:RC18015xs+, DS3615xs 14 series:RS3614xs+, RS3614RPxs, RS3614xs 13 series:RS10613xs+, RS3413xs+ 12 series:RS3412RPxs, RS3412xs, DS3612xs 11 series:RS3411RPxs, RS3411xs, DS3611xs
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-20 - 60 °C
Operating relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	68.9 mm
Depth:	13.6 mm
Height:	170.6 mm
Logistics data
Harmonized System (HS) code:	85176990
