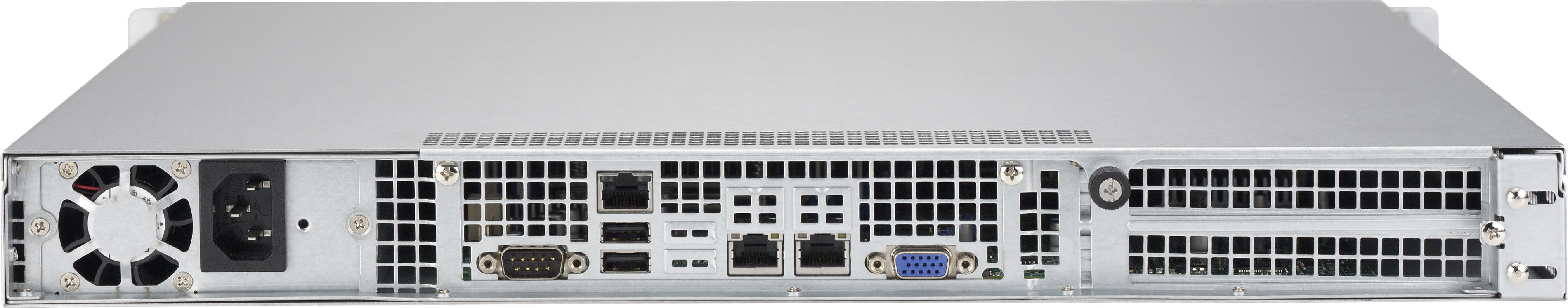

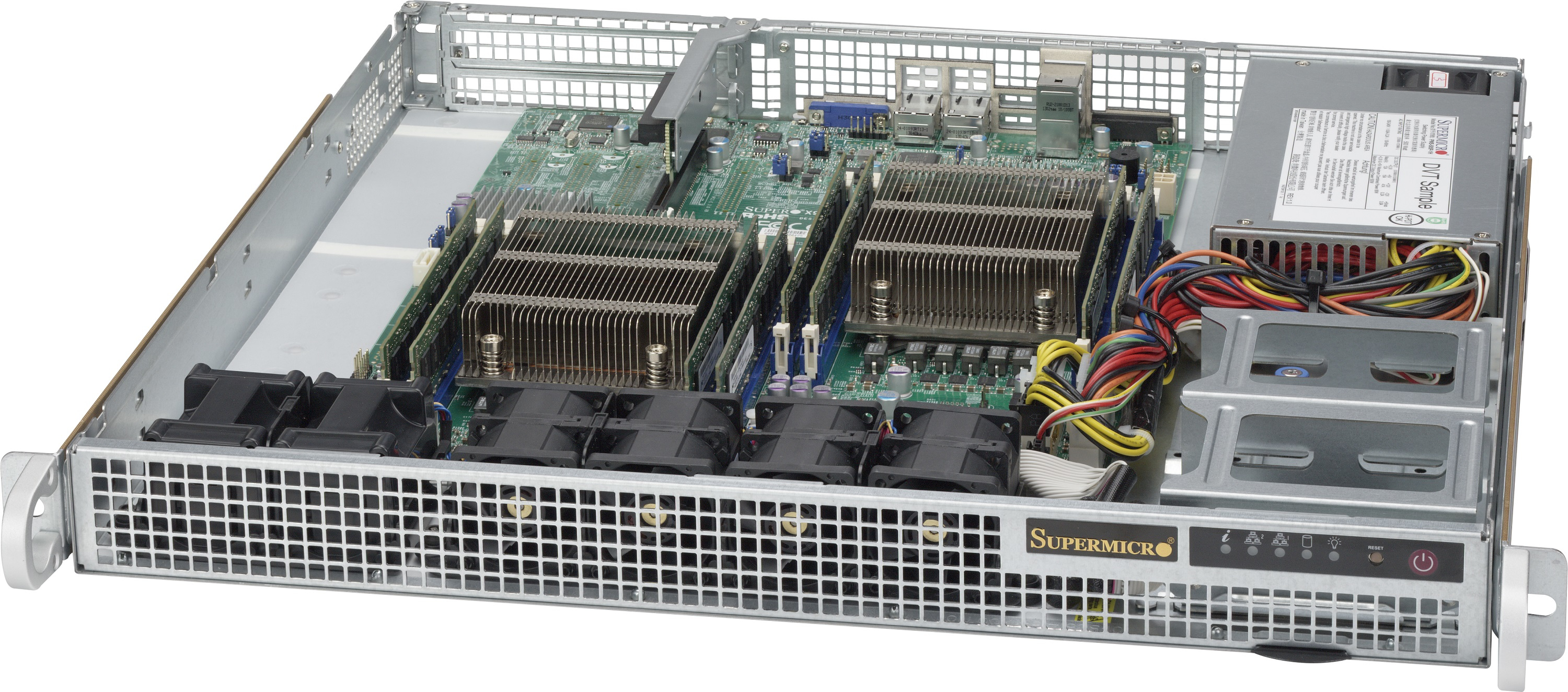

Supermicro 514-505 Rack White 500 W

- Short depth resource optimized chassis- 500W power supplies Platinum Level Certified- 4x 2.5" or 1x 3.5" Internal Drive Bays- Up to 2x Full-height AOC expansion slot- 4x 40x56mm high-efficiency fans (2x more optional; 6x fans maximum)

Design
Form factor:	Rack
Type:	Server
Product colour:	White
Supported motherboard form factors:	EATX
Number of expansion slots:	2
Rack mounting:
Rack capacity:	1U
Suitable for:	Home/Office
Top cover:
Reset button:
LED indicators:	Fan fail, HDD, Network, Power
Certification:	USA - UL listed, FCC Canada - CUL listed Germany - TUV Certified Europe/CE Mark EN 60950/IEC 60950-Compliant
Power supply
Power supply included:
Power supply:	500 W
Storage
Supported HDD sizes:	2.5"
Number of HDDs supported:	2
Operational conditions
Operating temperature (T-T):	5 - 35 °C
Storage temperature (T-T):	-40 - 60 °C
Operating relative humidity (H-H):	8 - 90%
Storage relative humidity (H-H):	5 - 95%
Weight & dimensions
Width:	437 mm
Depth:	429 mm
Height:	43 mm
Packaging data
Package width:	685.8 mm
Package depth:	609.6 mm
Package height:	203.2 mm
Package weight:	7.26 kg
Logistics data
Harmonized System (HS) code:	84733080
Other features
Ventilation fan(s):	4x 40x56mm PWM fan and 2x fans for AOC cooling
Fan diameter:	4 cm
