Products description
Add-on Card

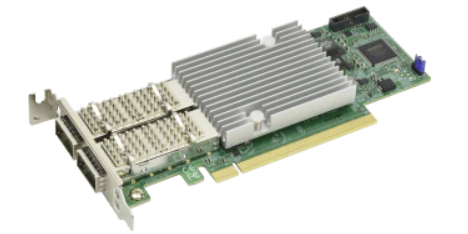

The Supermicro AOC-S100G-b2C is a high performance dual port 100Gb/s Ethernet adapter utilizing the Broadcom NetXtreme E-Series BCM57508 controller with PCIe Gen 4 support and backward compatibility to PCIe Gen 3. This is a highly scalable NIC that is suitable for cloud-scale networking, storage, machine learning, data analytics and HPC. It is also a feature rich adapter that provides support to DCDB, VXLAN, NVGRE, Geneve and RoCE. Supermicro Asset Management and thermal detection provide an extra layer of controller health management and peace of mind. The Supermicro AOC-S100G-b2C 100GbE adapter is an excellent choice for your enterprise computing infrastructure.
| Ports & interfaces | |
| Host interface: | PCIe |
| Output interface: | QSFP28 |
| Expansion card form factor: | Low-profile |
| Expansion card standard: | PCIe 4.0 |
| Design | |
| Internal: | Yes |
| Features | |
| Bandwidth: | 100 Gbit/s |
| Power | |
| Power consumption (typical): | 19.51 W |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 55 °C |
| Storage temperature (T-T): | -40 - 70 °C |
| Storage relative humidity (H-H): | 10 - 90% |
| Technical details | |
| Sustainability compliance: | Yes |
| Sustainability certificates: | RoHS |
| Weight & dimensions | |
| Width: | 167.7 mm |
| Depth: | 68.9 mm |
Product Safety Information
Responsible Person in the EU:
Super Micro Computer,B.V. Het Sterrenbeeld 12-16 5215 ML s-Hertogenbosch The Netherlands rma_europe@supermicro.com
