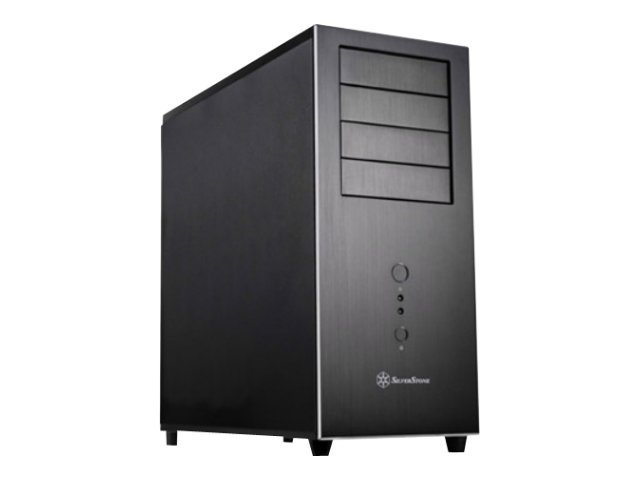

Silverstone TJ04-E Midi Tower Black, Silver

Introduced in 2004, the TJ04 has been a main stable of SilverStone s prestigious Temjin series of tower chassis. Its excellent original design needed only a few minor tweaks and improvements over the years to keep up with the demands of modern PC hardware. An important equation in keeping the TJ04 a popular choice among system builders was its understated and classic styling. So in designing the TJ04-E (Evolution), SilverStone engineers kept the exterior styling largely unchanged while vastly improving the internals.The power supply is now bottom-mounted with the ability to accommodate up to four 5.25 drives, nine 3.5 hard drives and six SSDs, raising the bar significantly for storage capacity in a mid tower format. In addition to increased storage capacity, the TJ04-E can also install cards up to 17 inches without the need to remove any hard drive cage, a feat usually accomplished in full towers. To make sure the myriad of component can operate effectively, the TJ04-E includes a custom cooling solution to reduce hard drive temperatures and two custom cables with built-in capacitors to facilitate cable management and improve drive stability.To finish up TJ04-E s already impressive layout efficiency, design details borrowed from other great SilverStone products such as positive pressure and quick removable filters will enable users to easily maintain consistently high performance for years to come. So it is possible that TJ04-E, like its predecessor, will again be able to outlast many generations of PC builds.- Positive pressure design for effective dust reduction- Support eight expansion slots and extra long graphic cards up to 17 inches- Classically styled 7mm thick aluminum front panel- Quick access and removal for fan filters- Smart backside cable routing design- Motherboard back plate opening for quick CPU cooler assembly- Support up to nine 3.5 hard drives and multiple 2.5 drive slots- Built-in innovative hard drive cooler- Includes two custom SATA cable for improved cable management

Design
Form factor:	Midi Tower
Type:	PC
Product colour:	Black, Silver
Supported motherboard form factors:	ATX, CEB, micro ATX
Number of 3.5" bays:	9
Number of 5.25" bays:	4
Material:	Aluminium, Steel
Number of expansion slots:	8
Side window:
LED indicators:
Maximum CPU cooler height:	16.8 cm
Power supply
Power supply included:
Power supply location:	Top
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
Audio input:
Audio output:
Cooling
Side fans installed:	1x 120 mm
Side fans diameters supported:	120 mm
Rear fans installed:	1x 120 mm
Rear fans diameters supported:	120 mm
Top fans installed:	1x 120 mm
Number of top fans supported (max):	1
Top fans diameters supported:	120,140 mm
Storage
Supported HDD sizes:	2.5,3.5"
Weight & dimensions
Width:	214 mm
Depth:	489 mm
Height:	489 mm
Weight:	9.6 kg
