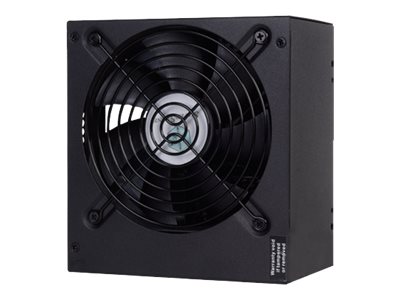

Silverstone ST50F-ES230 power supply unit 500 W 24-pin ATX ATX Black

The Strider Essential series model is a line of power supplies designed with high affordability and great performance. The ST50F-ES230 has at 82% efficiency or greater between 20%~100% load with a maximum efficiency up to 85% under 230V. A powerful single +12V rail and its quiet running fan ensures stable performance with minimum noise while its solid design and components support up to 40 degrees for 24/7 operation. The ST50F-ES230 can also fully support multi-GPU systems with 8pin/6pin PCI-E connectors. From a value and performance standpoint, the Strider Essential series is an outstanding choice.- High efficiency with 80 PLUS certification- 500W 24/7 continuous power output with 40 operating temperature- Class-leading single +12V rail with 34A- Active PFC Circuitry- Multiple protection circuitry- PCI-E 8pin and PCI-E 6pin connector support- Silent running 120mm fan with 18dBA

Power
Total power:	500 W
AC input voltage:	207 - 253 V
AC input frequency:	47 - 53 Hz
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	120 W
Combined power (+12V):	400 W
Combined power (+5V):	120 W
Max output current (+3.3V):	24 A
Max output current (+12V):	34 A
Max output current (+5V):	20 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	2.5 A
Efficiency:	82%
Power protection features:	Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	24-pin ATX
Peripheral (Molex) power connectors (4-pin):	3
Motherboard power cable length:	45 cm
Number of SATA power connectors:	6
EPS power connector (8-pin):
PCI Express power connectors (6+2 pin):	2
CPU P4 connector (4-pin):	1
Floppy drive power connector:	1
Floppy disk drive connector:
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS
ATX version:	2.4
Noise level:	18 dB
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Fan diameter:	12 cm
Number of fans:	1 fan(s)
On/off switch:
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Weight & dimensions
Width:	150 mm
Depth:	140 mm
Height:	86 mm
