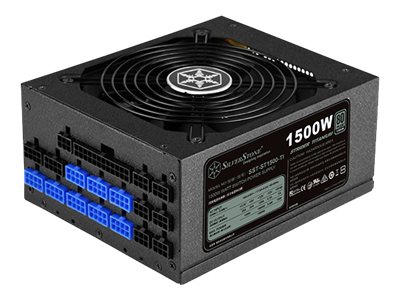

Silverstone ST1500-TI power supply unit 1500 W 20+4 pin ATX ATX Black

The 80 PLUS Titanium certification represents the pinnacle of power supply efficiency with requirement of at least 90% conversion efficiency even at the very low 10% loading condition. For SilverStone, achieving the highest efficiency is just one aspect to what makes for a technically advanced power supply. The available power also needs to be condensed into a physical package as small as possible so that users can freely utilize it in any case or system with minimal interference. For the Strider Titanium series power supplies, all models are among the smallest in size for their wattage levels. As befitting of being in the Strider series, abundant enthusiasts features are included such as all Japanese capacitors, ±3% regulation, powerful single +12V rail, 24/7 continuous power output at 50 , and dual EPS 8pin with multiple PCI-E 8 / 6pin connectors support. For those looking to build the most efficient systems possible with multiple GPUs for gaming, folding, mining, scientific calculations, or machine learning, the 1100W / 1300W / 1500W Strider Titanium series power supplies are definitely the top choices.

Power
Total power:	1500 W
AC input voltage:	90 - 264 V
Peak power:	1600 W
AC input frequency:	47 - 63 Hz
Power Factor Correction (PFC) type:	Active
Combined power (+3.3V):	120 W
Combined power (+12V):	1500 W
Combined power (+5V):	120 W
Max output current (+3.3V):	25 A
Max output current (+12V1):	125 A
Max output current (+5V):	22 A
Max output current (-12V):	0.3 A
Max output current (+5Vsb):	3 A
Efficiency:	94%
Power protection features:	Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector:	20+4 pin ATX
Peripheral (Molex) power connectors (4-pin):	6
Motherboard power cable length:	55 cm
Number of SATA power connectors:	16
SATA power cable length:	150,600 mm
Peripheral (Molex) power cable length:	150,600 mm
PCI Express power connectors (6+2 pin):	8
PCI Express power cable length:	55 cm
CPU power connector (4+4 pin):
ATX power connector (20+4 pin):
Floppy drive power connector:	1
Floppy disk drive connector:
Floppy disk drive cable length:	10 cm
PCI Express connector:
Cabling type:	Modular
Performance
Purpose:	PC
Power supply unit (PSU) form factor:	ATX
80 PLUS certification:	80 PLUS Titanium
ATX version:	2.4
Noise level:	36 dB
Mean time between failures (MTBF):	100000 h
Design
Product colour:	Black
Fan diameter:	13.5 cm
Number of fans:	1 fan(s)
Fan location:	Top
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Weight & dimensions
Width:	150 mm
Depth:	180 mm
Height:	86 mm
Weight:	3.96 kg
Packaging data
Package type:	Box
Logistics data
Harmonized System (HS) code:	84733020
