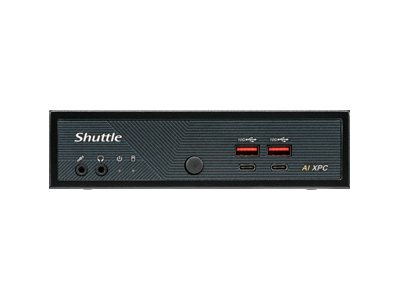

The Shuttle DN11H-series AI-PC is a 1.3-liter barebone PC powered by an Intel® Core Ultra series processor, delivering significantly upgraded performance from everyday tasks to business applications. This AI-focused platform integrates CPU, GPU, and a specialized NPU designed to accelerate neural network computations, offering up to 34 TOPS of total system performance to support complex AI workloads. The DN11H stands out with its exceptional connectivity, including four 2.5G LAN ports for high-bandwidth networking, eight high-speed USB-C/USB-A ports, four ports for UHD-displays and three M.2-2280 slots for SSD cards, making it ideal for data-intensive environments. The DN11H excels in diverse modern business and industrial scenarios, such as network video recorders, image processing and data visualization, virtual reality simulations, multimedia production, industrial process control, and more.
| Processor | |
| Built-in processor: | Yes |
| Processor manufacturer: | Intel |
| Processor family: | Intel Core Ultra 5 |
| Processor generation: | Intel® Core Ultra (Series 1) |
| Processor model: | 125H |
| Processor cores: | 14 |
| Processor threads: | 18 |
| Processor boost frequency: | 4.5 GHz |
| Performance cores: | 4 |
| Efficient cores: | 8 |
| Performance-core Max Turbo Frequency: | 4.5 GHz |
| Efficient-core Max Turbo Frequency: | 3.6 GHz |
| Low Power Efficient-core Max Turbo Frequency: | 2.5 GHz |
| Performance-core base frequency: | 1.2 GHz |
| Efficient-core base frequency: | 0.7 GHz |
| Low Power Efficient-core Base Frequency: | 700 MHz |
| Processor cache: | 18 MB |
| Memory | |
| Memory slots type: | SO-DIMM |
| Number of memory slots: | 2 |
| Maximum internal memory: | 96 GB |
| Supported memory clock speeds: | 5600 MHz |
| Supported memory types: | DDR5-SDRAM |
| Memory channels: | Dual-channel |
| Memory voltage: | 1.1 V |
| ECC: | No |
| Non-ECC: | Yes |
| Storage | |
| Supported storage drive types: | SSD |
| Storage drive sizes supported: | M.2 |
| SSD form factor: | M.2 |
| Storage drive interface: | PCI Express |
| NVMe: | Yes |
| Number of storage drives supported: | 3 |
| Graphics | |
| On-board graphics card: | Yes |
| Graphics card family: | Intel |
| On-board graphics card model: | Intel Arc Graphics |
| Maximum resolution: | 3840 x 2160 pixels |
| Number of displays supported: | 4 |
| Audio | |
| Built-in speaker(s): | No |
| Network | |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| LAN controller: | Intel I226-LM |
| Ports & interfaces | |
| USB 2.0 ports quantity: | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 0 |
| HDMI ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 0 |
| Ethernet LAN (RJ-45) ports: | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: | 2 |
| HDMI version: | 2.1 |
| DisplayPorts quantity: | 2 |
| DisplayPort version: | 1.4 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| DC-in jack: | Yes |
| Design | |
| Chassis type: | 1.35L sized PC |
| Product colour: | Black |
| Cooling type: | Active |
| Product type: | Mini PC barebone |
| Housing material: | Metal |
| Cable lock slot: | Yes |
| Cable lock slot type: | Kensington |
| VESA mounting: | Yes |
| Panel mounting interface: | 75 x 75,100 x 100 mm |
| Performance | |
| Motherboard chipset: | Intel SoC |
| BIOS type: | UEFI AMI |
| Trusted Platform Module (TPM): | Yes |
| Trusted Platform Module (TPM) version: | 2.0 |
| Audio chip: | Realtek ALC888S |
| Technical details | |
| Compliance certificates: | BSMI, CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Logistics data | |
| Harmonized System (HS) code: | 84733080 |
| Software | |
| Windows operating systems supported: | Windows 11 x64 |
| Linux operating systems supported: | Yes |
| Sustainability | |
| Sustainability certificates: | ENERGY STAR, ErP |
| Power | |
| Power supply type: | External AC adapter |
| Power supply: | 120 W |
| Number of power supply units: | 1 |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| AC adapter output voltage: | 19 V |
| AC adapter output current: | 6.32 A |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 50 °C |
| Operating relative humidity (H-H): | 10 - 90% |
| Weight & dimensions | |
| Width: | 190 mm |
| Depth: | 165 mm |
| Height: | 43 mm |
| Weight: | 1.23 kg |
| Package weight: | 2.46 kg |
| Packaging content | |
| Power cord included: | Yes |
| AC adapter included: | Yes |
| Quick start guide: | Yes |
