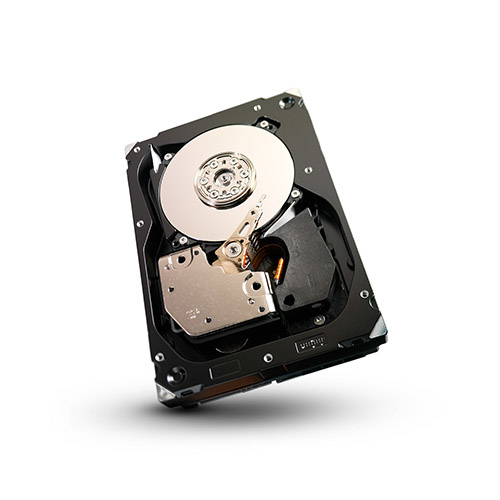

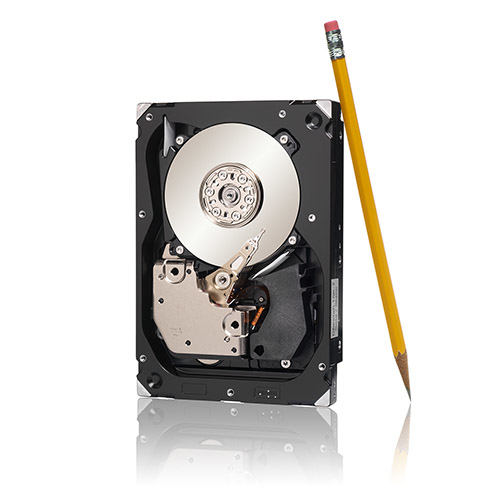

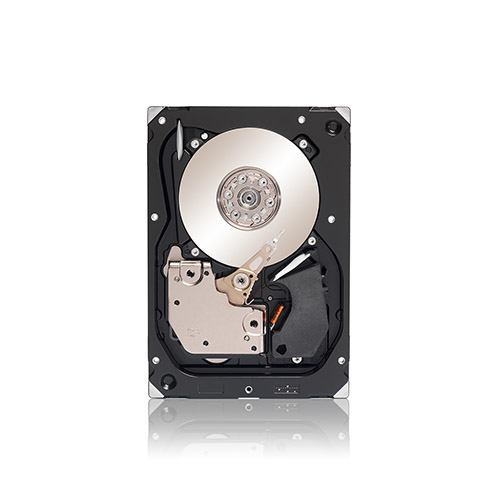

The higher performance and capacity of Seagate Cheetah 15K.7 drives reduce storage costs per GB and increase capacity per watt. The drive has the industry s highest reliability rating, reducing drive replacement costs. The Cheetah 15K.7 drive includes Seagate PowerTrim technology, which dynamically optimizes drive power consumption at all levels of activity.
- Third-generation perpendicular recording for maximum capacity
- Unprecedented performance with a 16 percent increase in sustained data rate over the last generation, up to 171 MB/sec.
- Industry s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim technology provides up to 21 percent improvement over the last generation in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10E16 and AFR of 0.55 percent
- Available in 4Gb/s FC or 6Gb/s SAS interfaces
Features | |
HDD size: | 3.5" |
HDD capacity: | 600 GB |
HDD speed: | 15000 RPM |
Interface: | SAS |
Type: | HDD |
Component for: | Server/workstation |
Storage drive buffer size: | 16 MB |
HDD number of heads: | 8 |
Read seek time: | 3.4 ms |
Write seek time: | 3.9 ms |
Average latency: | 2 ms |
Mean time between failures (MTBF): | 1600000 h |
Power | |
Power consumption (typical): | 16.35 W |
Power consumption (idle): | 11.68 W |
Operating voltage: | 5 / 12 V |
Operational conditions | |
Operating temperature (T-T): | 5 - 55 °C |
Storage temperature (T-T): | -40 - 70 °C |
Operating vibration: | 1 G |
Non-operating vibration: | 3 G |
Operating shock: | 60 G |
Non-operating shock: | 300 G |
Weight & dimensions | |
Width: | 101.6 mm |
Height: | 25.4 mm |
Depth: | 146.5 mm |
Weight: | 686 g |
Logistics data | |
Harmonized System (HS) code: | 84717050 |
