- Details
Robust 0.5L Industry PC supports three displays and optional 4G

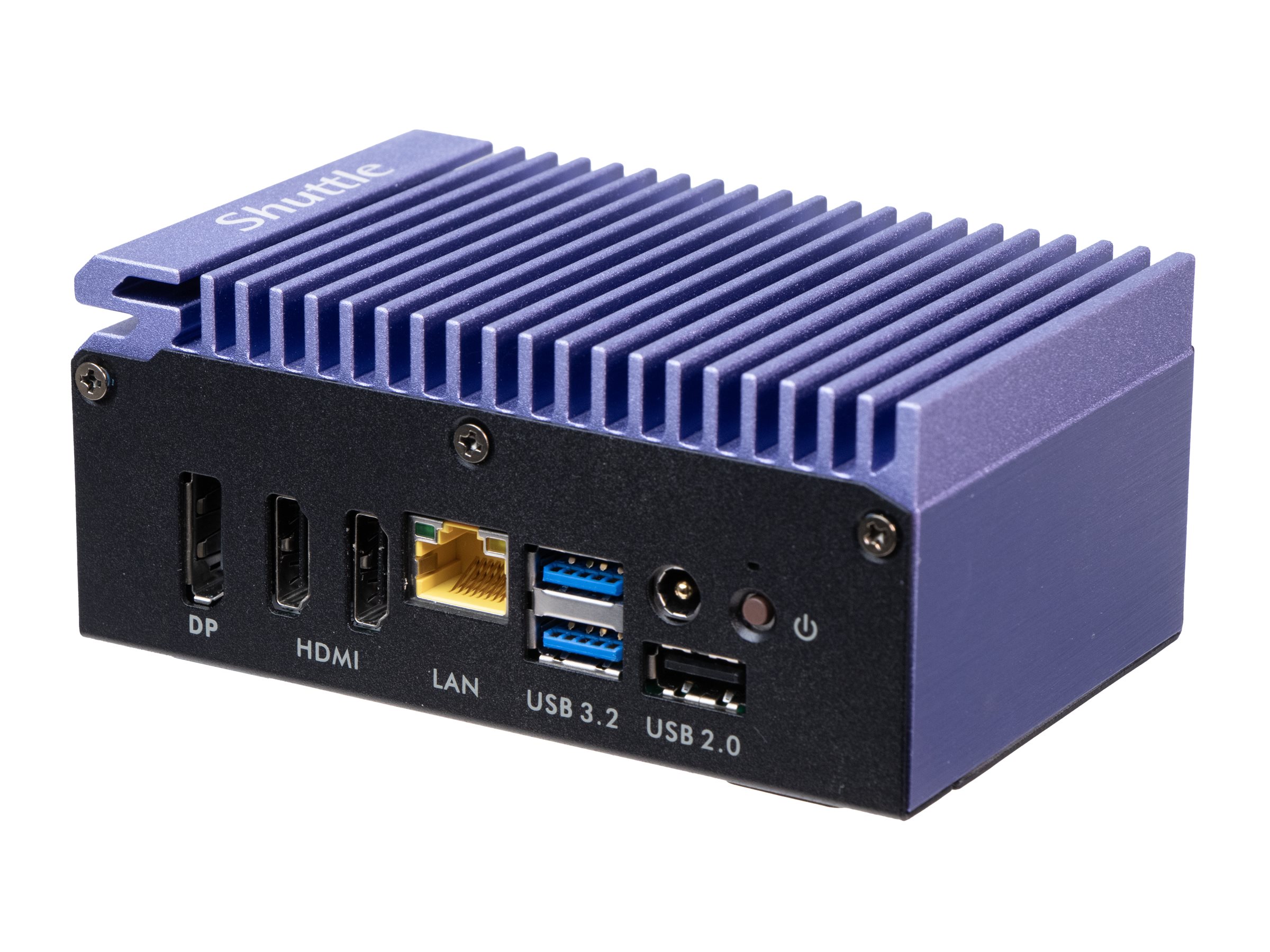

The Shuttle Edge PC SPCEL12 is a fanless Industrial PC barebone in a robust metal chassis and intended for VESA mounting. It is flexible in use and de-signed for maintenance-free 24/7 operation at ambient temperatures of up to 40°C. Inside there is an Intel Celeron "Elkhart Lake" processor with slots for RAM module, M.2 SSD card and optional WLAN or 4G card. The small housing offers an amazing variety of connections, including three graphics ports, dual LAN, Audio, and slots for Micro SD and Nano SIM. This product is targeted at professional applications such as digital signage (media player), edge computing (IoT gateway), automation, control, data logging and video surveillance.
| Processor | |
| Built-in processor: | Yes |
| Processor manufacturer: | Intel |
| Processor family: | Intel® Celeron® |
| Processor model: | J6412 |
| Processor cores: | 4 |
| Processor threads: | 4 |
| Processor boost frequency: | 2.6 GHz |
| Processor frequency: | 2 GHz |
| L2 cache: | 1.5 MB |
| Thermal Design Power (TDP): | 10 W |
| Memory | |
| Memory slots type: | SO-DIMM |
| Number of memory slots: | 1 |
| Maximum internal memory: | 32 GB |
| Supported memory clock speeds: | 3200 MHz |
| Supported memory types: | DDR4-SDRAM |
| Memory channels: | Single-channel |
| Memory voltage: | 1.2 V |
| ECC: | No |
| Non-ECC: | Yes |
| Storage | |
| Supported storage drive types: | SSD |
| Storage drive sizes supported: | M.2 |
| SSD form factor: | M.2 |
| Storage drive interface: | Serial ATA |
| Card reader integrated: | Yes |
| Compatible memory cards: | MicroSD (TransFlash) |
| Graphics | |
| On-board graphics card: | Yes |
| Graphics card family: | Intel |
| On-board graphics card model: | Intel® UHD Graphics |
| Maximum resolution: | 3840 x 2160 pixels |
| Audio | |
| Built-in speaker(s): | No |
| Network | |
| Ethernet LAN: | Yes |
| Wi-Fi: | No |
| LAN controller: | Intel I226-V |
| Ports & interfaces | |
| USB 2.0 ports quantity: | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 0 |
| HDMI ports quantity: | 2 |
| VGA (D-Sub) ports quantity: | 0 |
| Ethernet LAN (RJ-45) ports: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 2 |
| HDMI version: | 2.0b |
| DisplayPorts quantity: | 1 |
| DisplayPort version: | 1.4 |
| Microphone in: | Yes |
| Headphone outputs: | 1 |
| DC-in jack: | Yes |
| Design | |
| Chassis type: | 0.46L sized PC |
| Product colour: | Black, Blue |
| Cooling type: | Passive |
| Product type: | Mini PC barebone |
| LED indicators: | Power |
| Housing material: | Aluminium |
| VESA mounting: | Yes |
| Panel mounting interface: | 100 x 100 mm |
| Performance | |
| Motherboard chipset: | Intel SoC |
| Processor socket: | BGA 1493 |
| Number of processors supported: | 1 |
| BIOS type: | UEFI AMI |
| Trusted Platform Module (TPM): | Yes |
| Trusted Platform Module (TPM) version: | 2.0 |
| Audio chip: | Realtek ALC888-VD |
| Technical details | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), RoHS, VCCI |
| Logistics data | |
| Harmonized System (HS) code: | 84733080 |
| Software | |
| Windows operating systems supported: | Windows 10, Windows 11 |
| Linux operating systems supported: | Yes |
| Operating system installed: | No |
| Sustainability | |
| Sustainability certificates: | ENERGY STAR |
| Power | |
| Power supply type: | External AC adapter |
| Power supply: | 65 W |
| Number of power supply units: | 1 |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| AC adapter output voltage: | 19 V |
| AC adapter output current: | 3.42 A |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Weight & dimensions | |
| Width: | 120 mm |
| Depth: | 75 mm |
| Height: | 51 mm |
| Weight: | 720 g |
| Package weight: | 1.2 kg |
| Packaging content | |
| Power cord included: | Yes |
| AC adapter included: | Yes |
