Products description

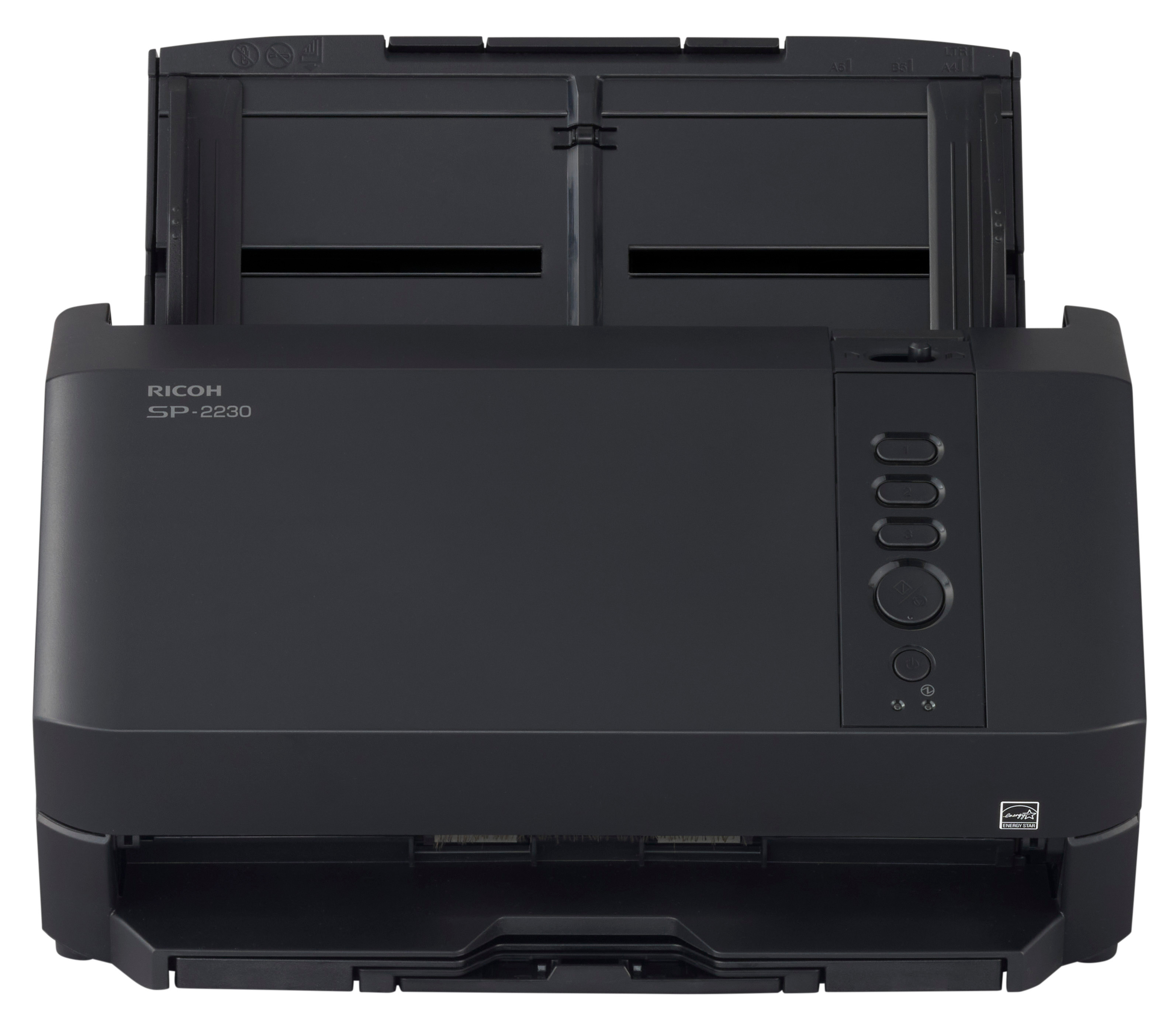

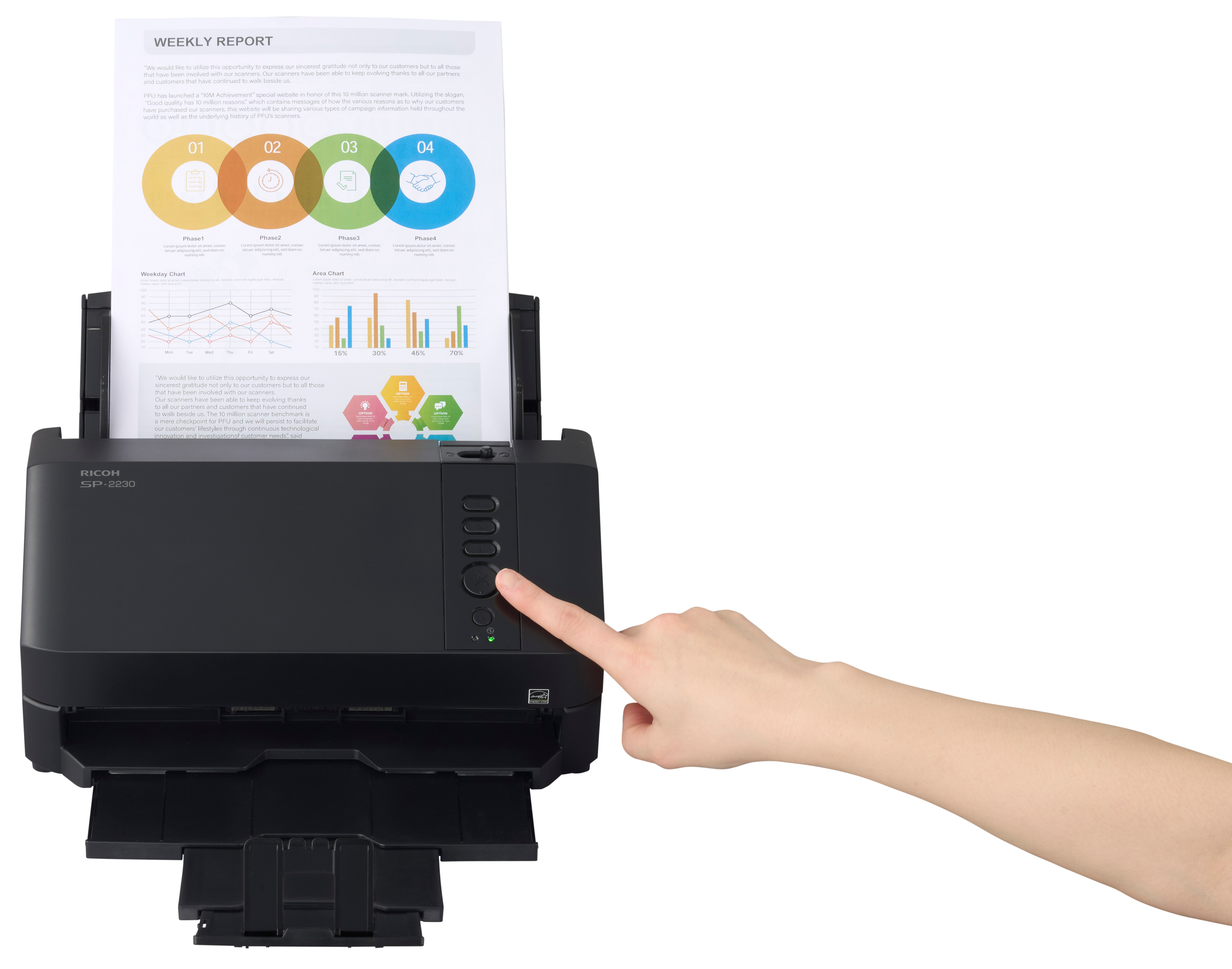

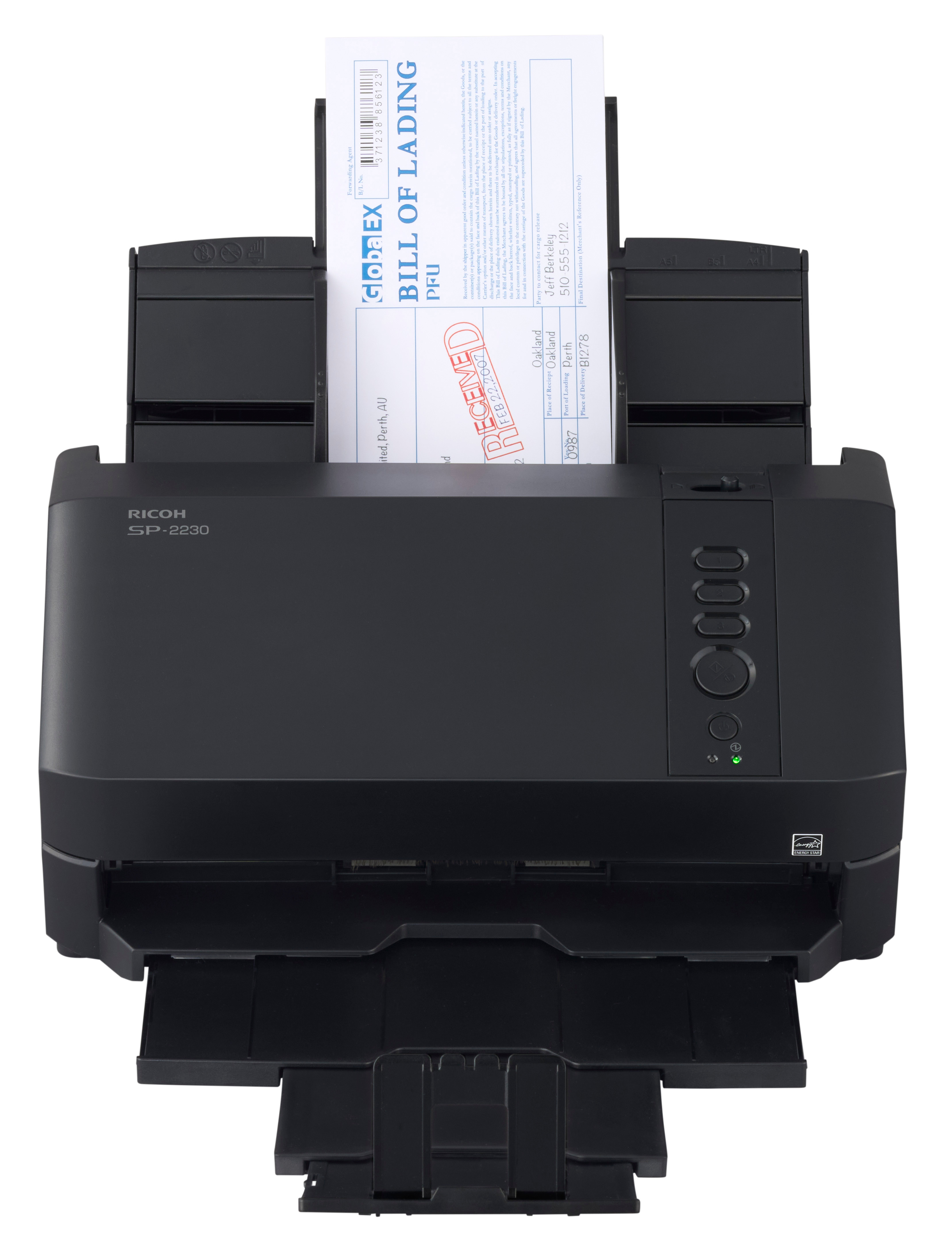

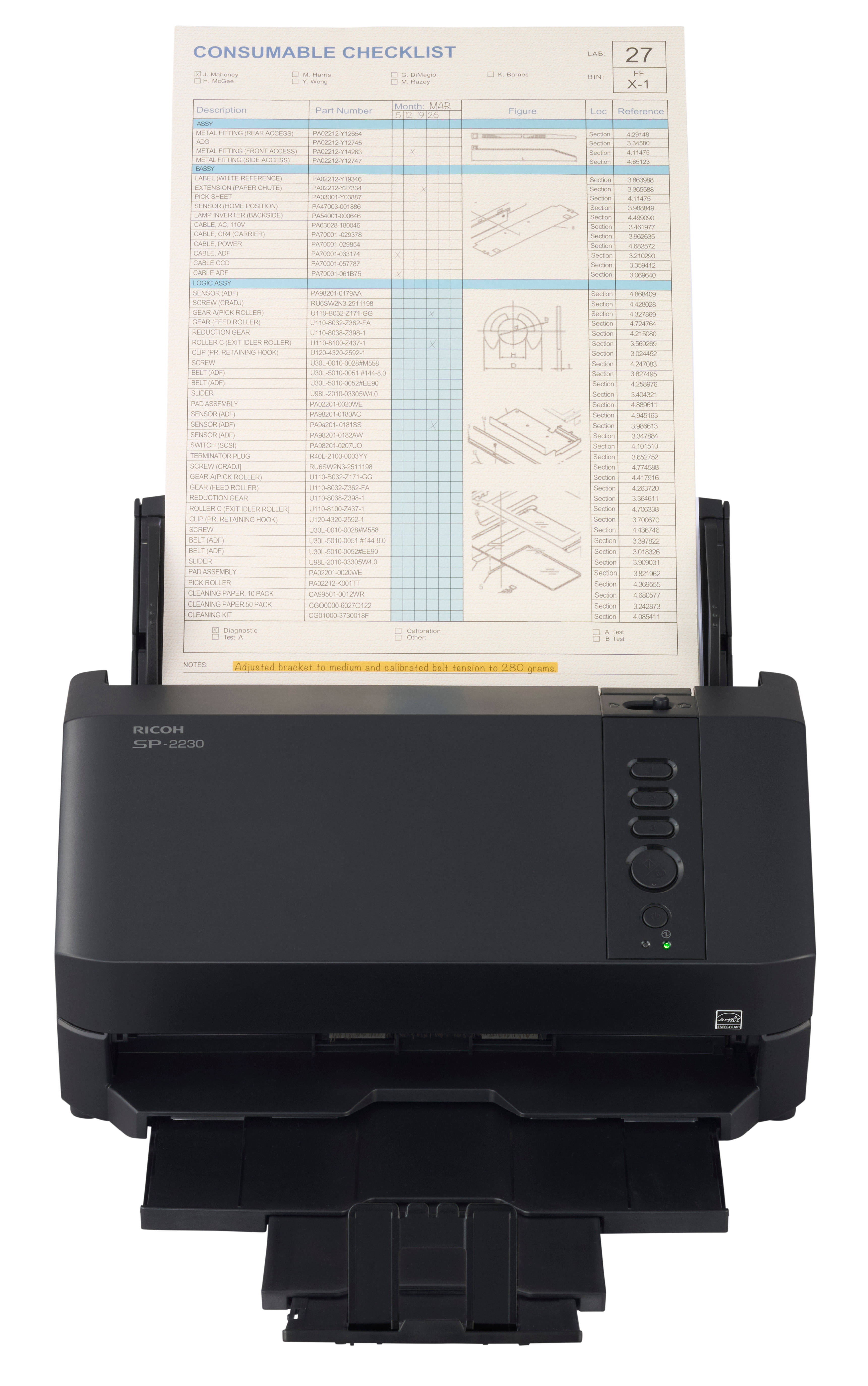

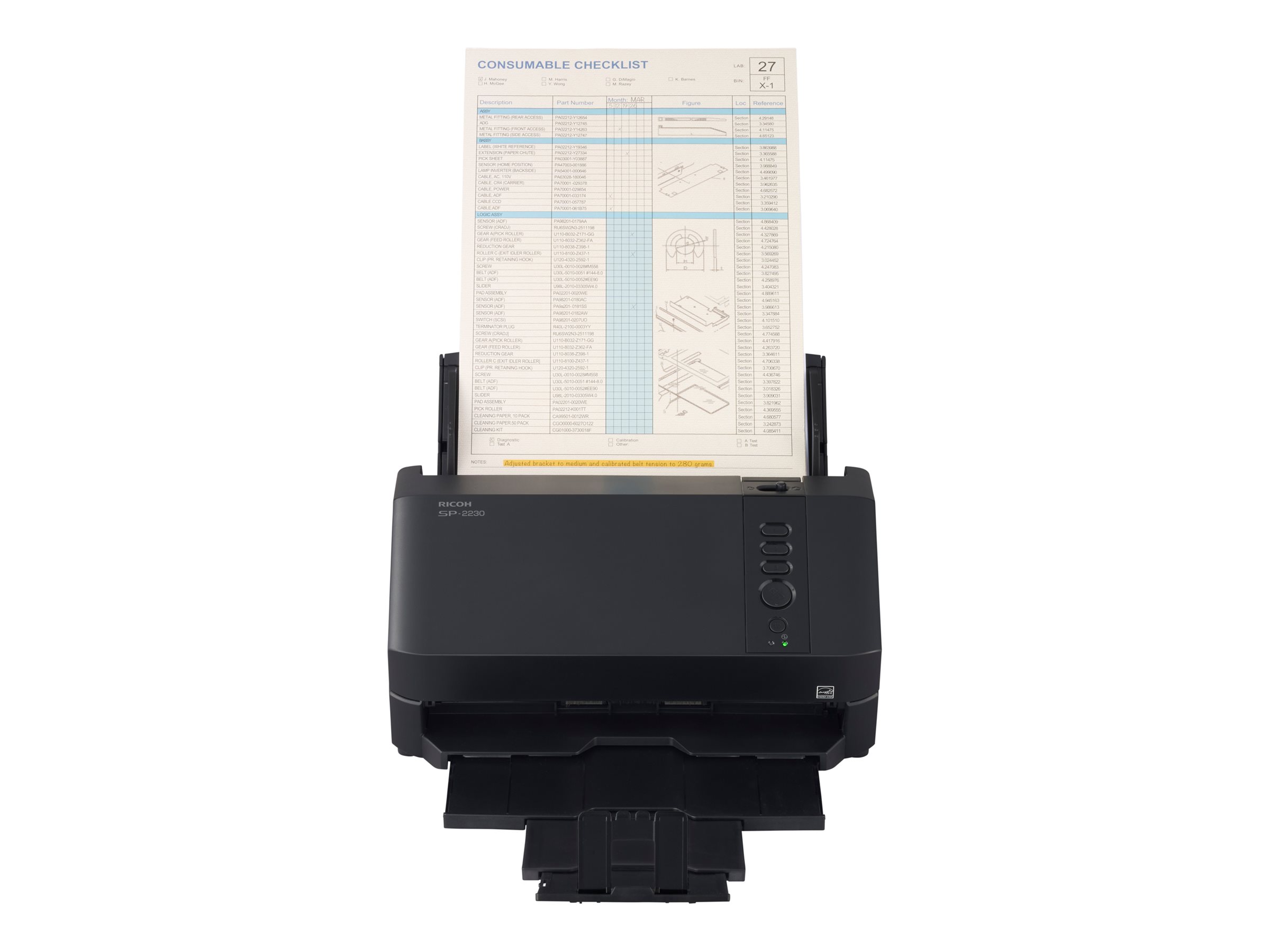

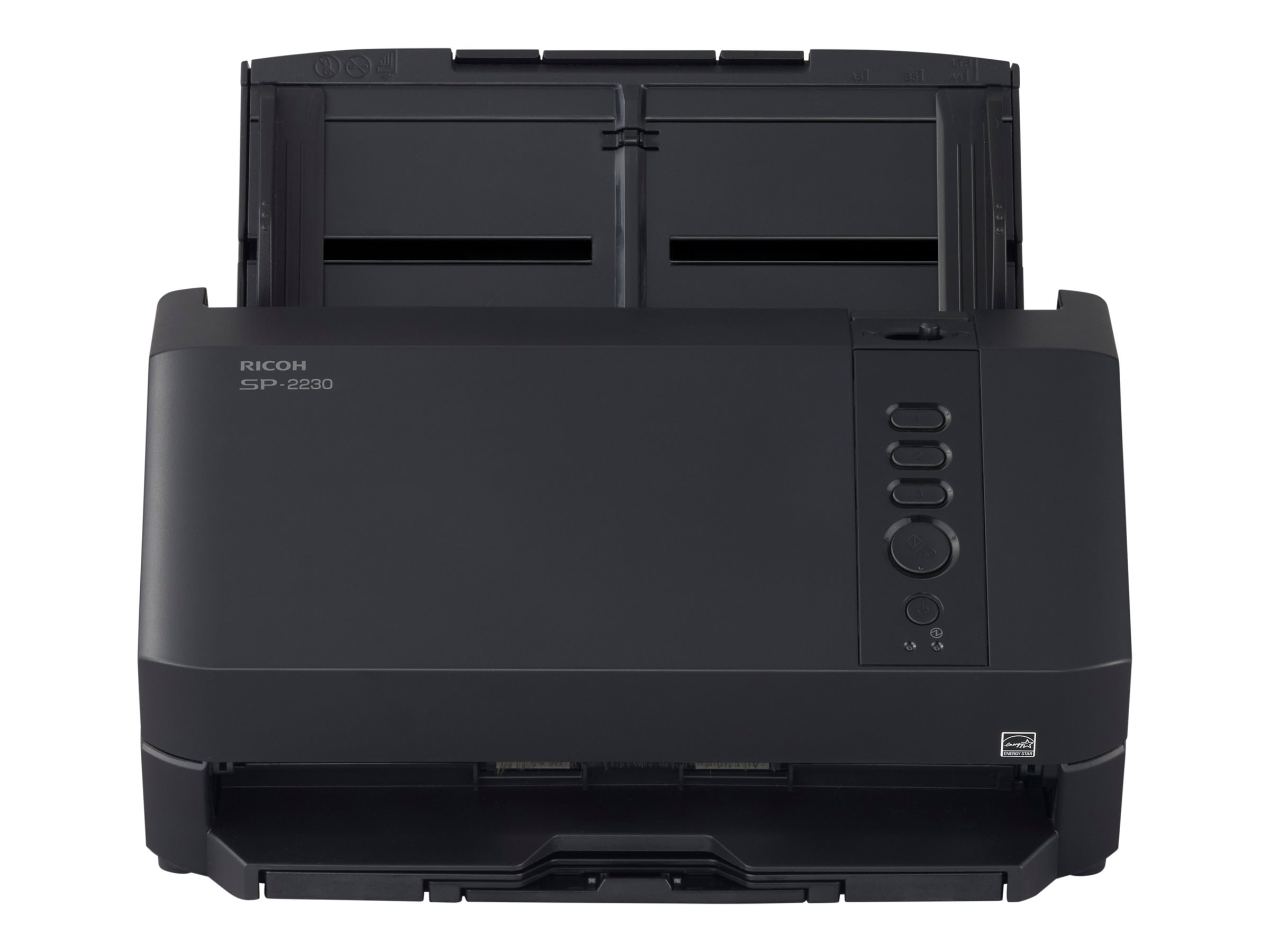

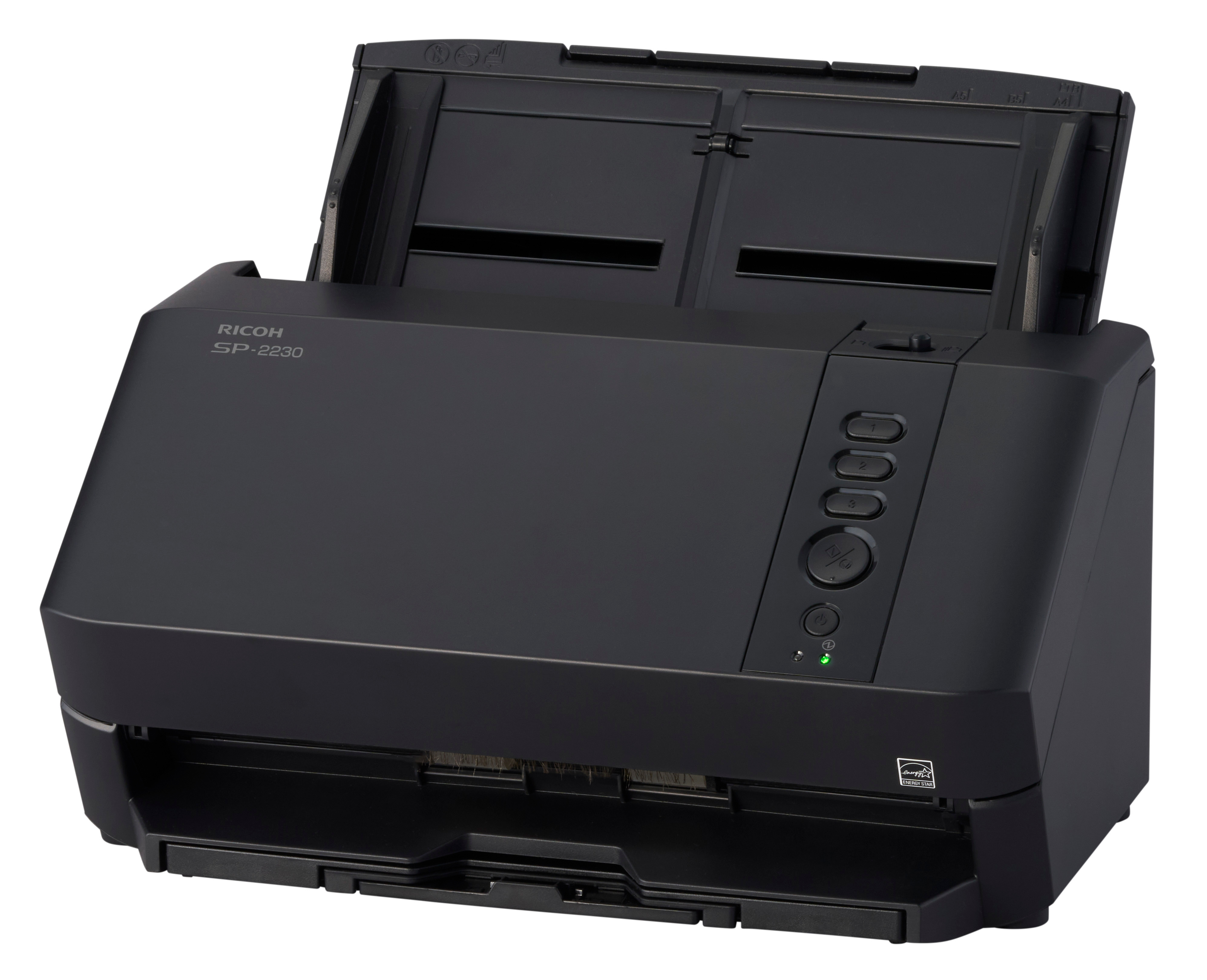

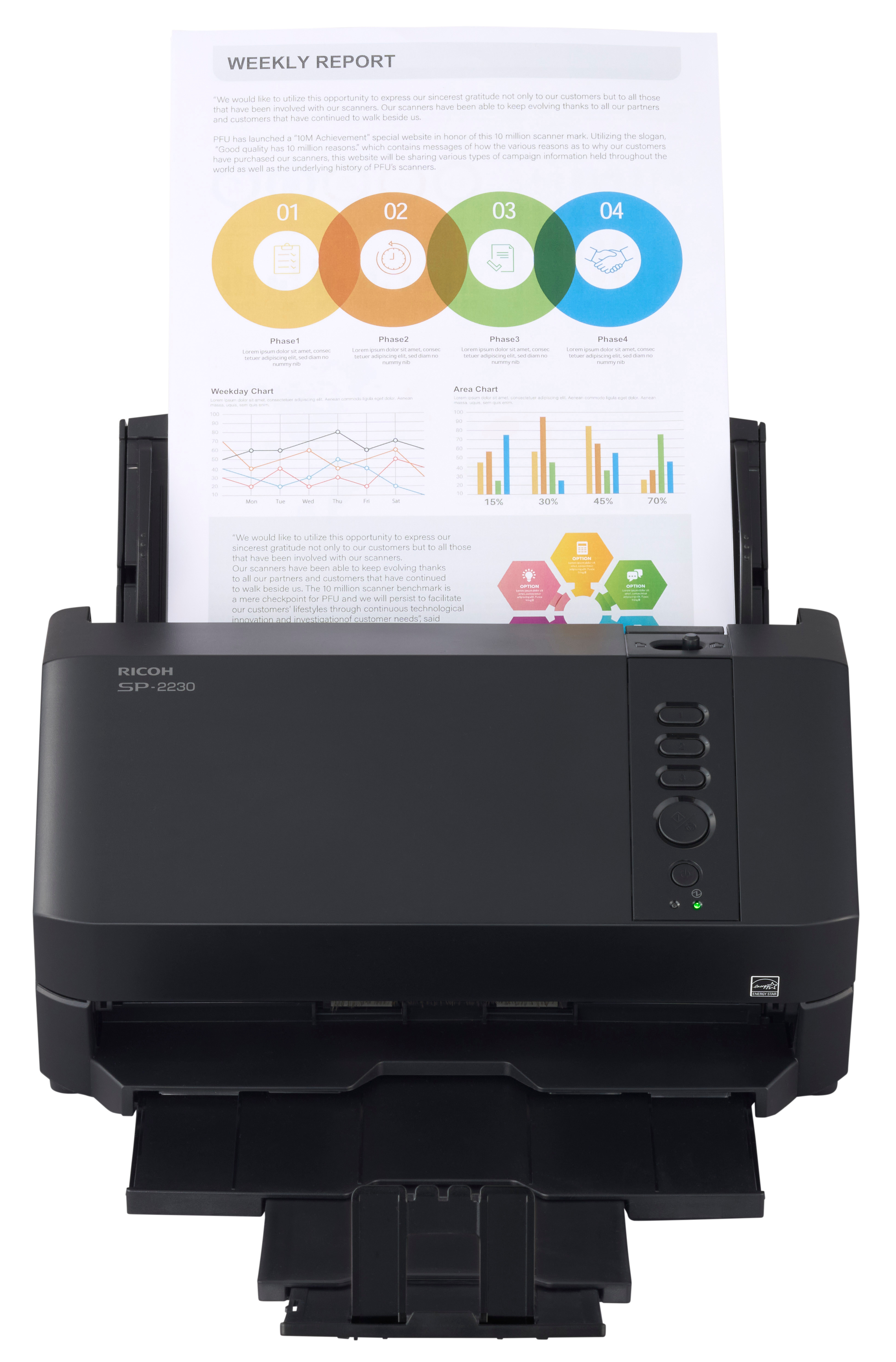

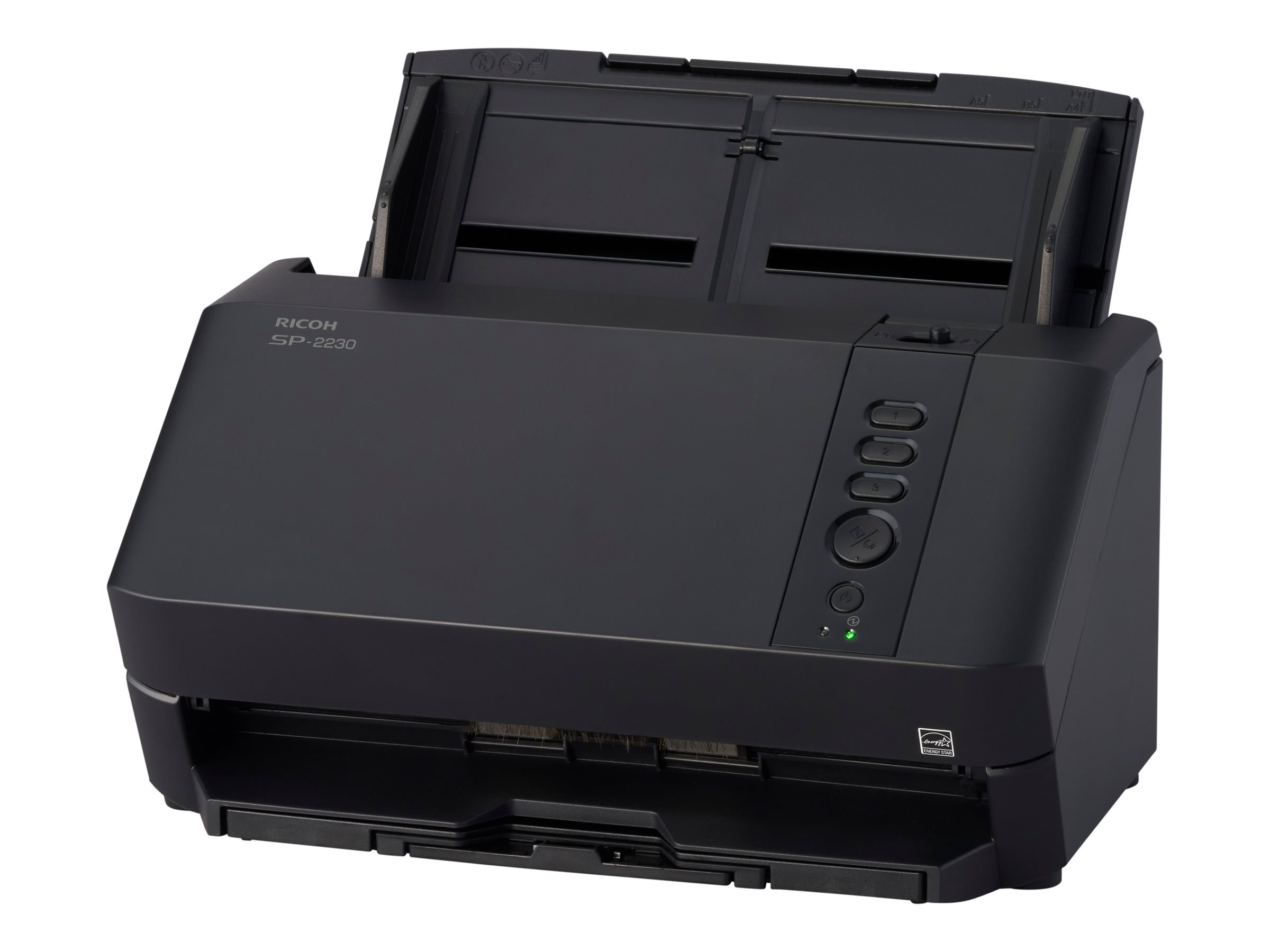

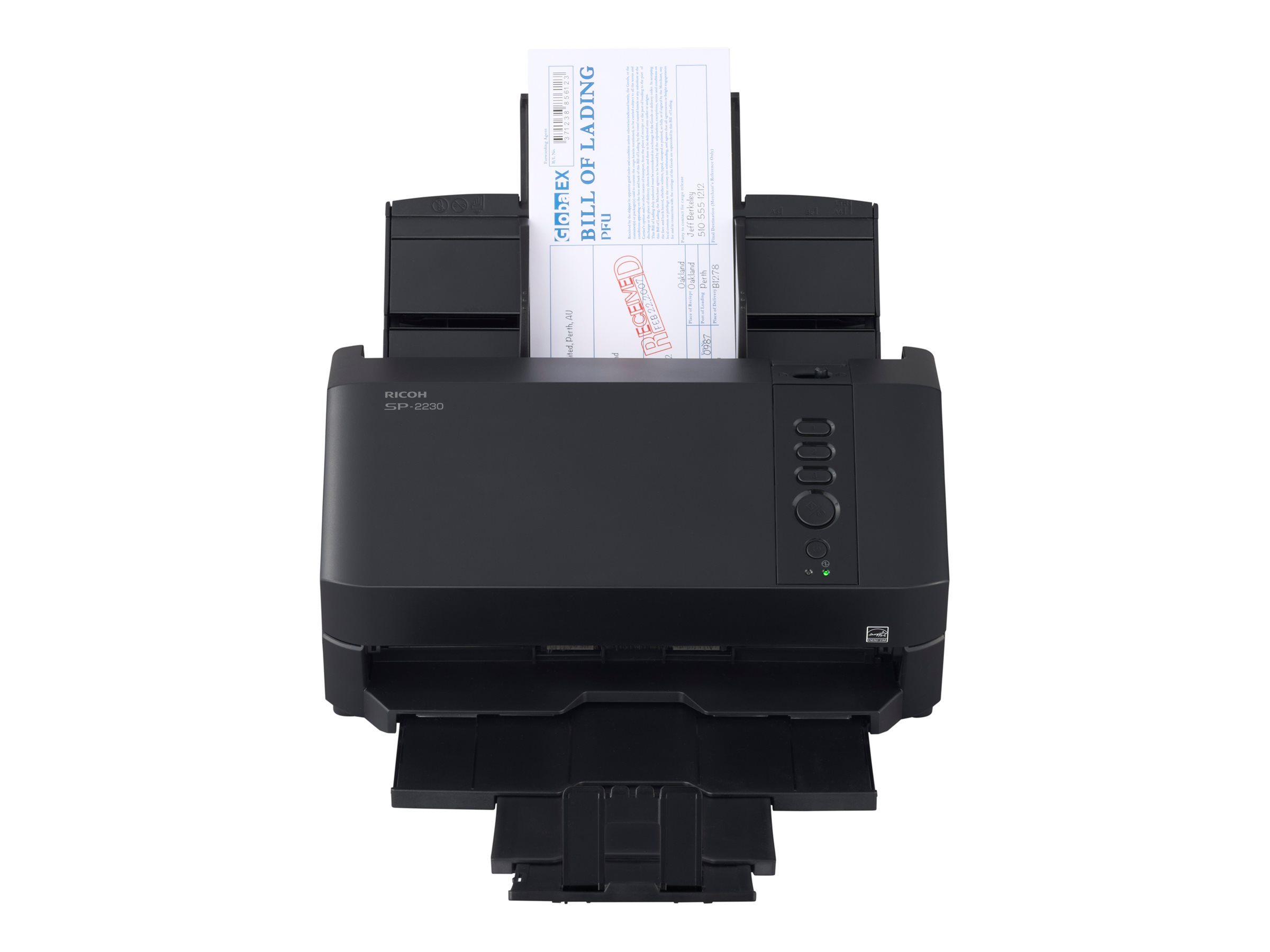

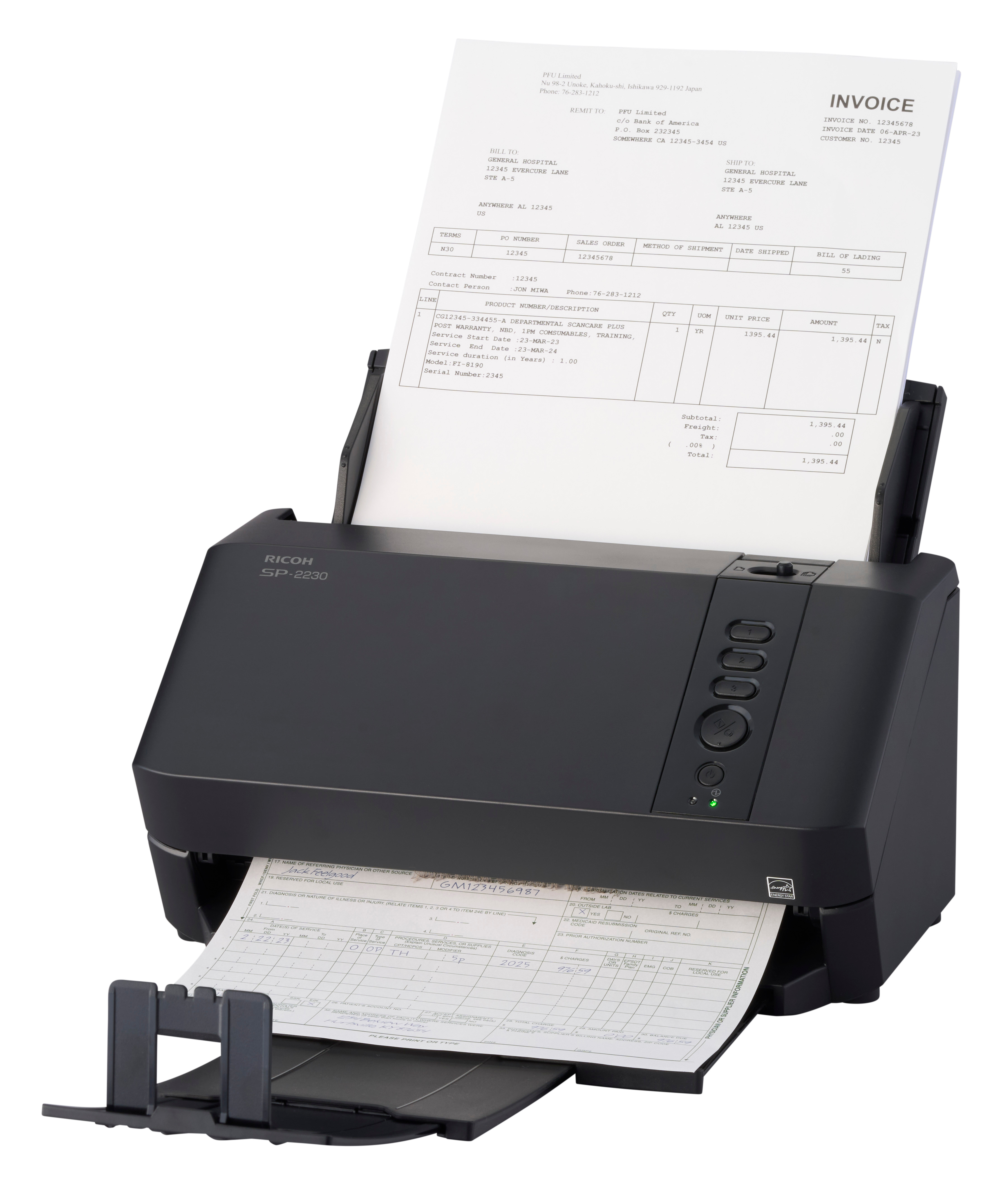

Whether scanning to cloud, network folder or PC, the RICOH SP-2230 Scanner combines affordability and class-leading performance. State-of-the-art image quality leads to top-rated OCR accuracy. This model also boasts lag detection paper protection and the ability to handle a wide range of document types. The RICOH SP-2230 delivers compact, efficient and reliable PC-based scanning at 30 ppm.
| Scanning | |
| Maximum scan size: | 215.9 x 355.6 mm |
| Optical scanning resolution: | 600 x 600 DPI |
| Duplex scanning: | Yes |
| Output colour depth: | 24 bit |
| Output greyscale depth: | 8 bit |
| Output monochrome depth: | 1 bit |
| ADF scan speed (b/w, A4): | 30 ppm |
| Design | |
| Scanner type: | ADF scanner |
| Built-in display: | No |
| Product colour: | Black |
| Performance | |
| Sensor type: | Dual CIS |
| Daily duty cycle (max): | 4500 pages |
| Light source: | RGB LED |
| Ultrasonic sensor: | Yes |
| Input capacity | |
| Auto document feeder (ADF) input capacity: | 80 sheets |
| Paper handling | |
| Maximum ISO A-series paper size: | A4 |
| ISO A-series sizes (A0...A9): | A4, A5, A6 |
| ISO B-series sizes (B0...B9): | B6, B4, B5 |
| ID-cards (ISO/IEC 7810) compliant: | Yes |
| Letter: | Yes |
| Legal: | Yes |
| Card thickness (max): | 1.4 mm |
| Maximum scan length: | 6.1 m |
| Ports & interfaces | |
| USB port: | Yes |
| USB version: | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type: | USB Type-C |
| Power | |
| Power supply type: | AC |
| Power consumption (typical): | 15 W |
| Power consumption (standby): | 0.1 W |
| AC input frequency: | 50/60 Hz |
| Input voltage: | 100 - 240 V |
| Weight & dimensions | |
| Width: | 292 mm |
| Depth: | 163 mm |
| Height: | 150 mm |
| Weight: | 3.3 kg |
| Packaging content | |
| Cables included: | USB |
| Bundled software: | Paper Chute, AC Adapter, EU/GB Power Cords, USB Cable, Getting Started Guide, Safety Precautions, Warranty Sheet, Downloadable Software. |
| System requirements | |
| Windows operating systems supported: | Windows 11 x64, Windows 10 x64 |
| Server operating systems supported: | Windows Server 2025, Windows Server 2022, Windows Server 2019, Windows Server 2016 |
| Operational conditions | |
| Operating temperature (T-T): | 5 - 35 °C |
| Operating relative humidity (H-H): | 15 - 80% |
| Other features | |
| Compliance certificates: | RoHS |
| Background colours: | White |
