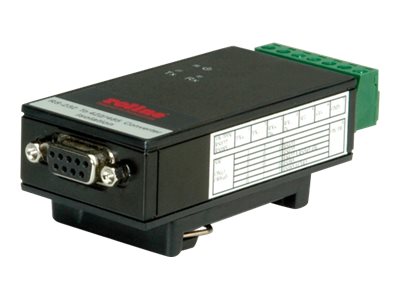

ROLINE RS-232 to RS-422/485 Converter, Din Rail, self powered

Converts RS-422 or RS-485 devices to a RS-232 port

• Connectors: RS-232: DB9 Female, RS-422/485: 7-pin terminal block
• High speed baud rate up to 921.6 Kbit/s
• Data transfer rate of up to 115.2 Kbit/s at 1.2 km
• Built-in Terminator 120 Ohm by DIP switch settings
• Signals for RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
• Signals for RS-422/4-wire: Tx+, Tx-, Rx+, Rx-, GND
• Signals for RS-485/2-wire: D+, D-, GND
• Protection: 15 KV ESD protection for all signals, 600 W surge protection for RS-422/485 signals
• For DIN rail mounting (DIN rail kit included) or desktop use
• Hardware solution, no software required
• RS-232 port powered technology, optional: Power input 10~30 VDC

• Contents: Converter, manual
