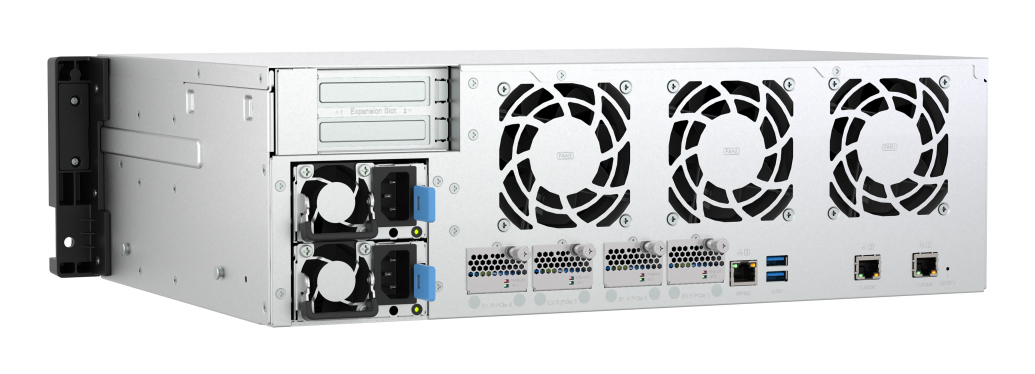

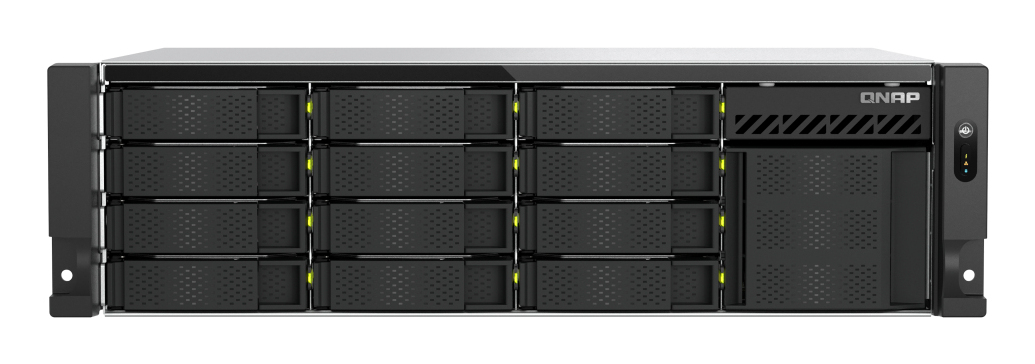

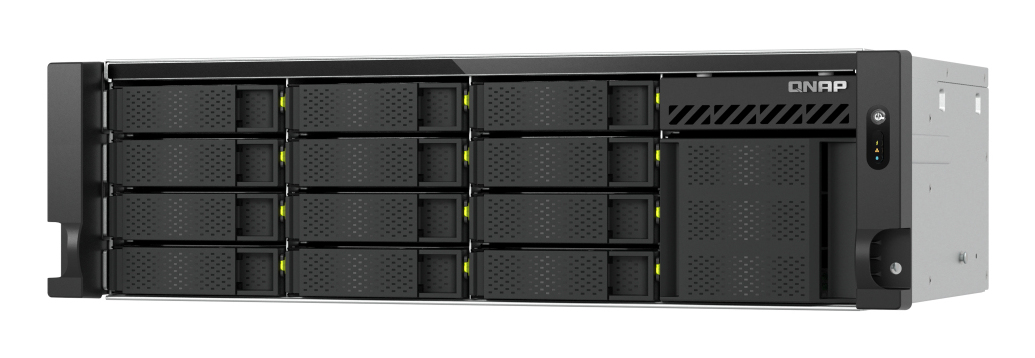

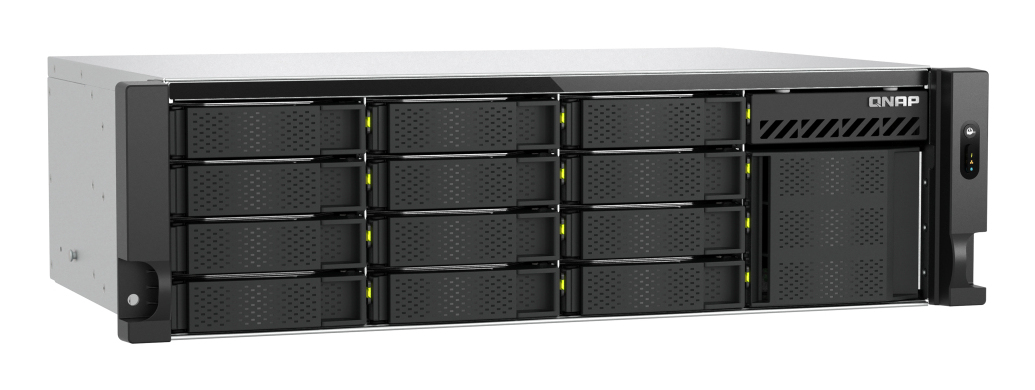

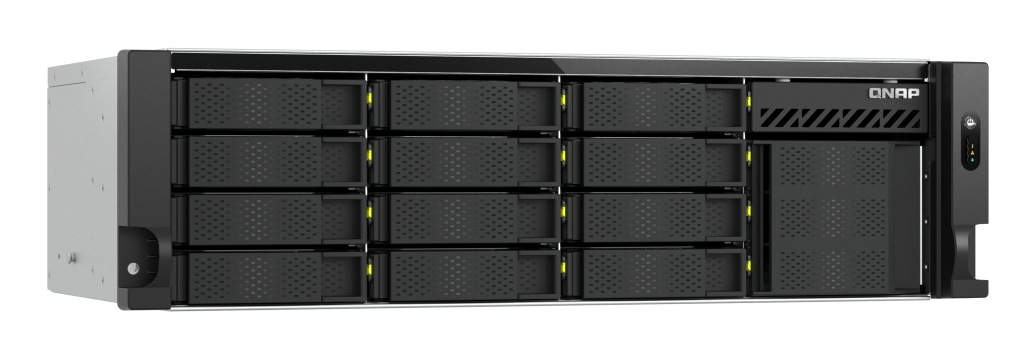

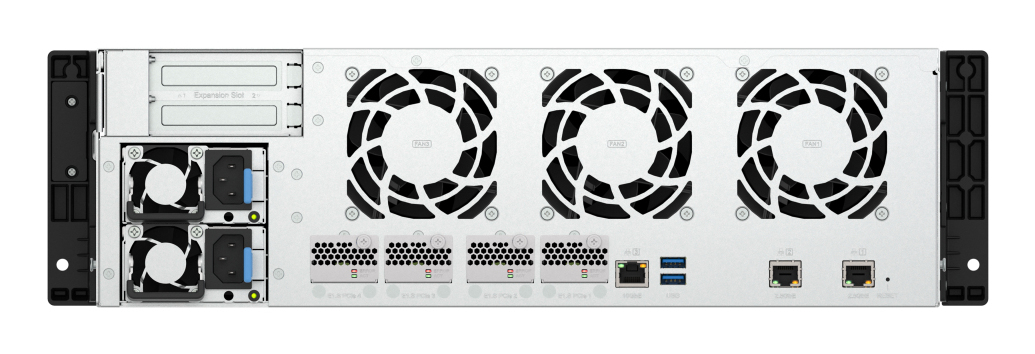

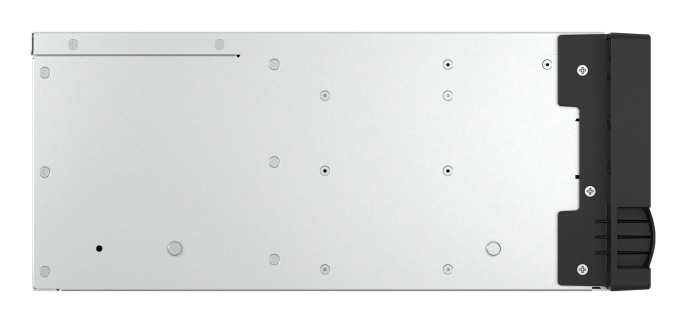

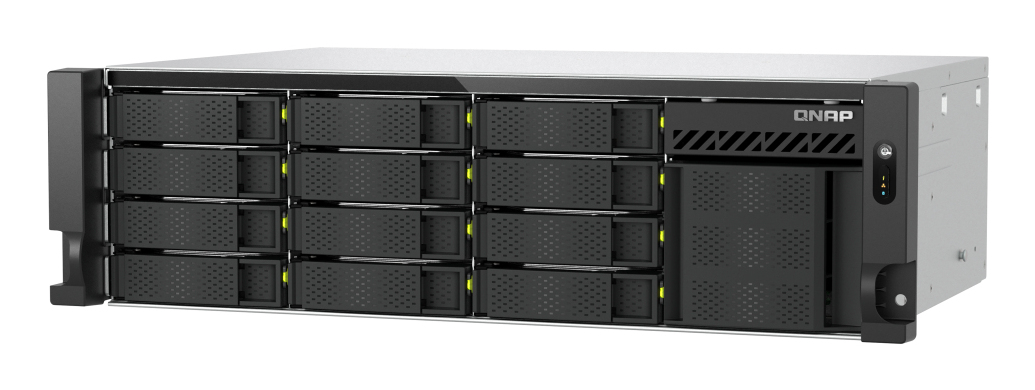

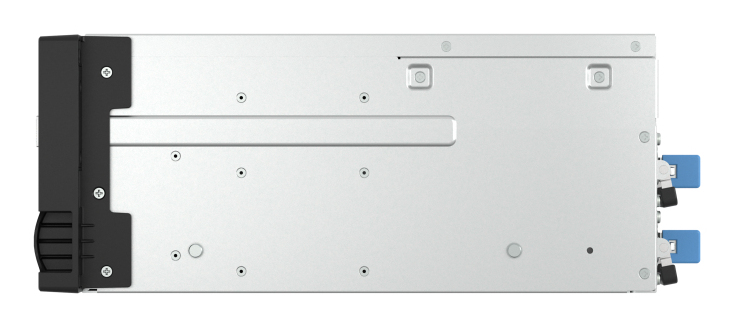

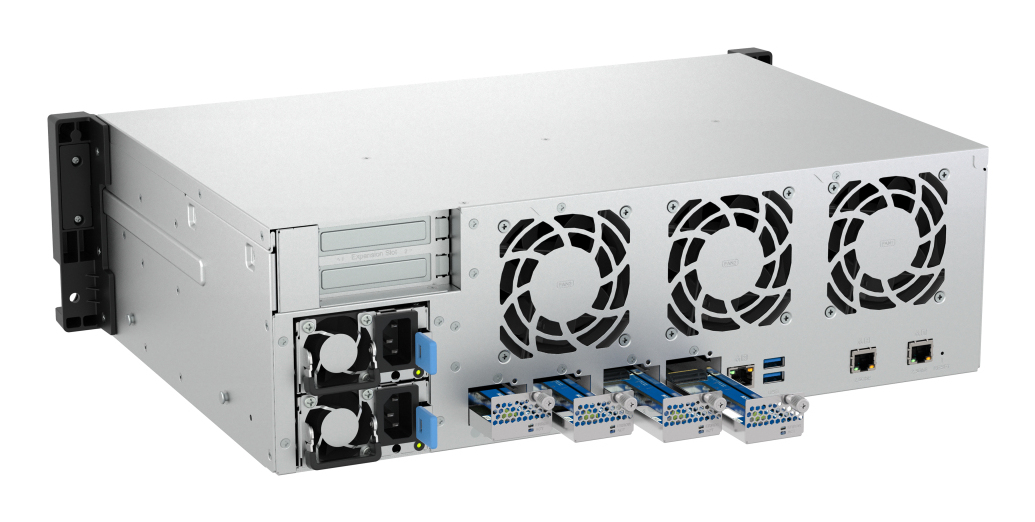

TS-h1655XeU-RP
Short-depth, high-performance 10GbE ZFS NAS Hybrid storage for virtualization & demanding workloads

The TS-h1655XeU-RP 10GbE NAS packs powerful performance into a compact 3U short-depth chassis (29.6 cm/11.6 inches), perfect for space-constrained server rooms. Powered by an Intel® 8-core processor and featuring 12x 3.5-inch SATA bays with 4x E1.S/M.2 PCIe NVMe slots, the TS-h1655XeU-RP delivers flexible hybrid storage for demanding workloads such as virtualization (VMware® and Hyper-V®) and data-intensive applications. Moreover, the redundant power supplies help ensure system reliability for dependable operations.

Storage
Storage drives installed:	No
Total installed storage capacity:	0 TB
Number of storage drives installed:	0
Number of storage drives supported:	16
Installed storage drive type:	No
Supported storage drive types:	HDD & SSD
RAID support:	Yes
Supported storage drive interfaces:	M.2, Serial ATA III
Storage drive sizes supported:	2.5,3.5,E1.S,M.2
RAID levels:	0, 1, 1+0, 5, 6, 10, 50, 60, JBOD
Online RAID migration:	Yes
Online RAID expansion:	Yes
RAID rebuild:	Yes
Hot-swap drive bays:	Yes
Supported file systems:	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Bad block scan:	Yes
Disk roaming:	Yes
Processor
Processor family:	Intel Atom®
Processor manufacturer:	Intel
Processor model:	C5125
Processor frequency:	2.8 GHz
Processor cores:	8
Processor threads:	8
Processor cache:	9 MB
Number of processors supported:	1
Memory
Internal memory:	8 GB
Internal memory type:	DDR4
Maximum RAM supported:	64 GB
Memory slots:	2
Memory form factor:	SO-DIMM
Flash memory:	4096 MB
Network
Ethernet LAN:	Yes
Ethernet LAN data rates:	10,100,1000,2500,10000 Mbit/s
DHCP server:	Yes
iSCSI support:	Yes
Link aggregation:	Yes
Dynamic DNS (DDNS):	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports:	3
USB port:	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
PCI Express x4 (Gen 3.x) slots:	2
Design
Chassis type:	Rack (3U)
Cooling type:	Active
Product colour:	Black, Grey
Number of fans:	3 fan(s)
Fan diameter:	8 cm
LED indicators:	Yes
Performance
Type:	Storage server
Device class:	Small & Medium Business
Backup function:	Yes
Backup features:	Cloud, USB drive, iSCSI LUN
Buzzer:	Yes
Multilingual support:	Yes
Web-based management:	Yes
On/off switch:	Yes
System log:	Yes
Password authentication:	Yes
Disk scan:	Yes
S.M.A.R.T. support:	Yes
Universal Plug and Play (UPnP):	Yes
Software
Operating system installed:	QuTS hero
Operating system version:	h5.2.6
Windows operating systems supported:	Yes
Linux operating systems supported:	Yes
Mac operating systems supported:	Yes
Power
Power supply location:	Built-in
Power supply unit (PSU) capacity:	300 W
Number of power supply units:	2
Redundant power supply (RPS) support:	Yes
Power consumption (typical):	121.7 W
Power consumption (HDD standby):	112.42 W
AC input voltage:	100 - 240 V
Weight & dimensions
Width:	432 mm
Depth:	296 mm
Height:	133 mm
Package width:	581 mm
Package depth:	293 mm
Package height:	595 mm
Package weight:	16 kg
Packaging content
Cables included:	AC, LAN (RJ-45)
Number of screws:	84
Package type:	Box
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	5 - 95%
Storage temperature (T-T):	-20 - 70 °C
Other features
Warranty period:	3 year(s)
