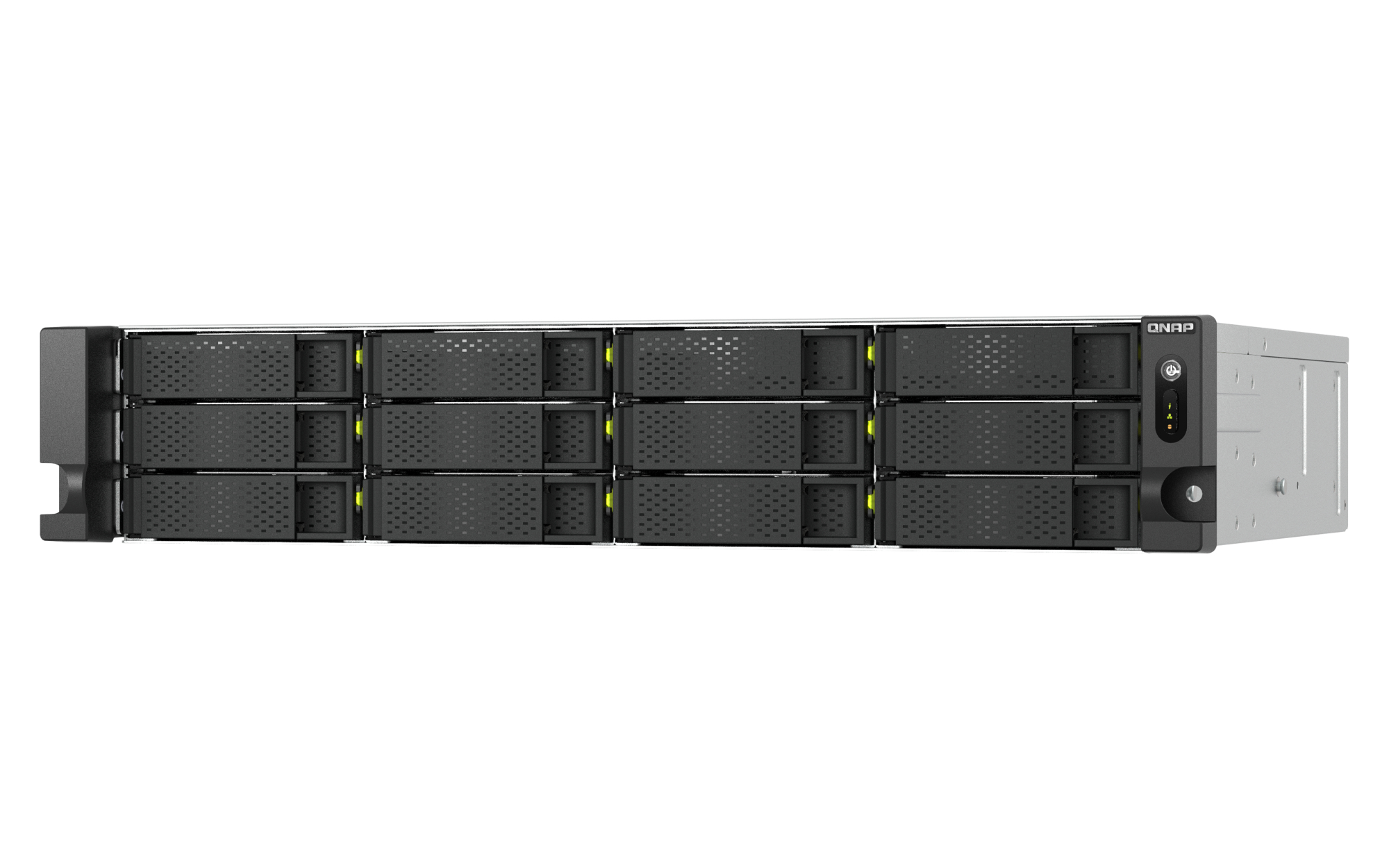

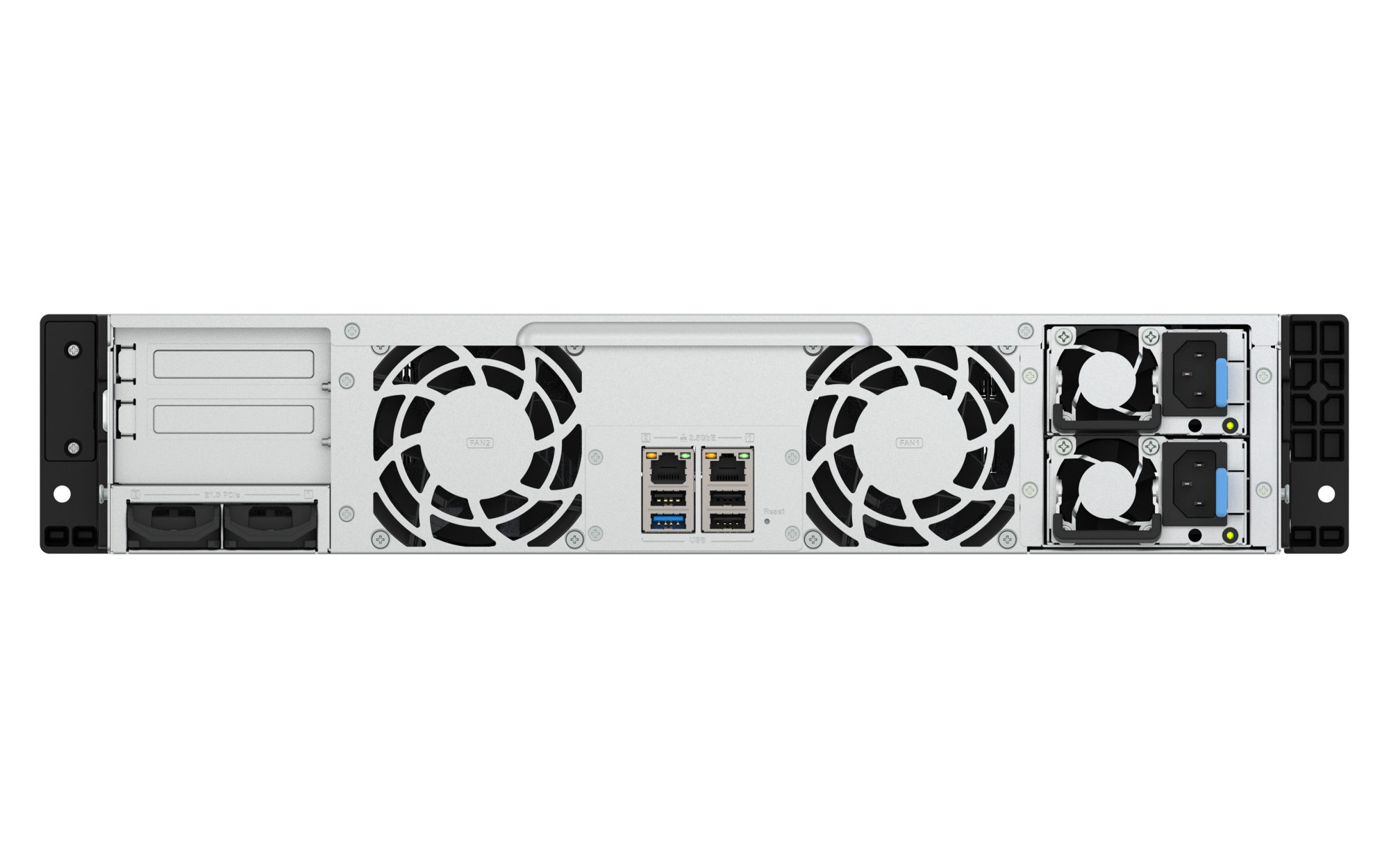

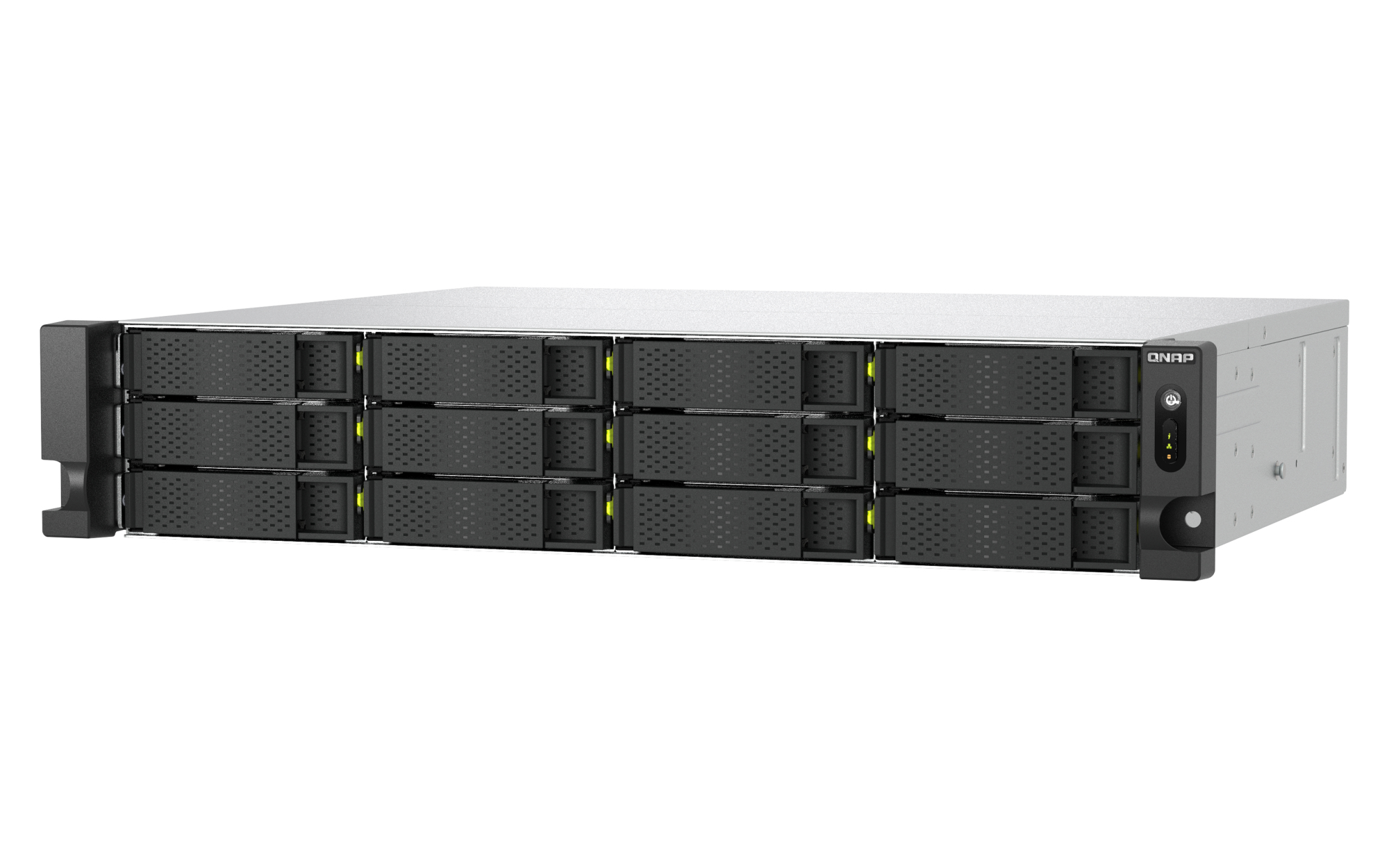

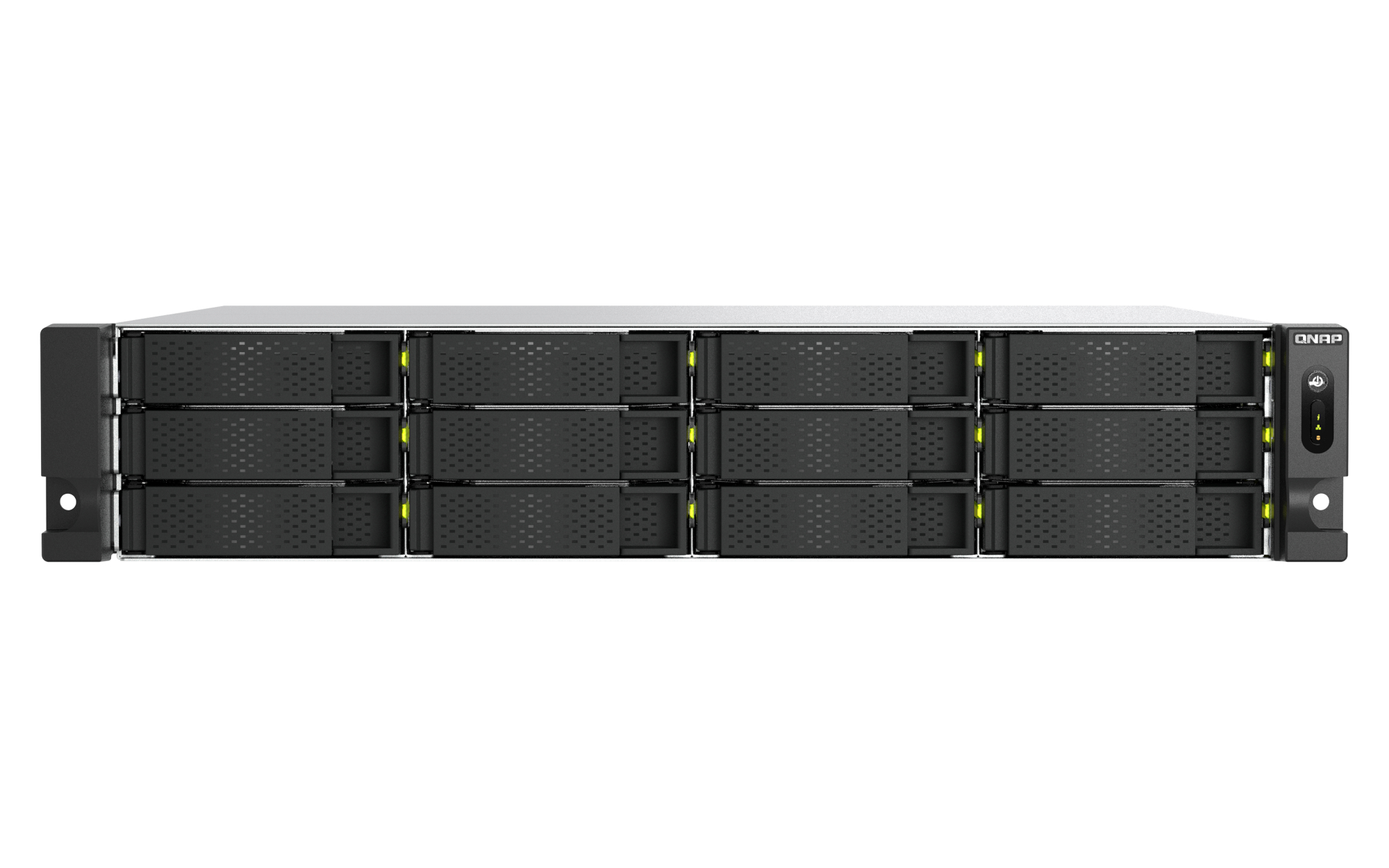

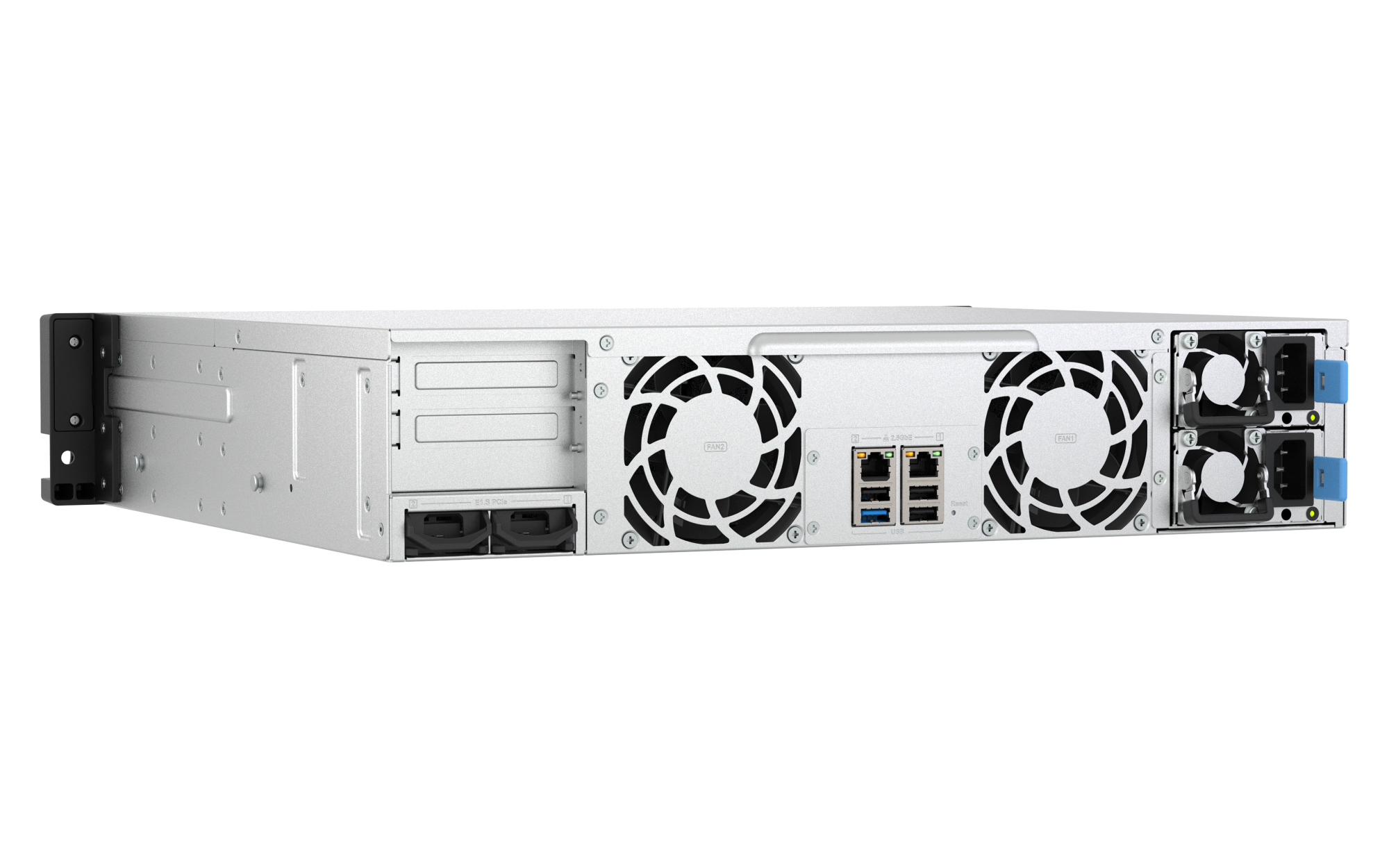

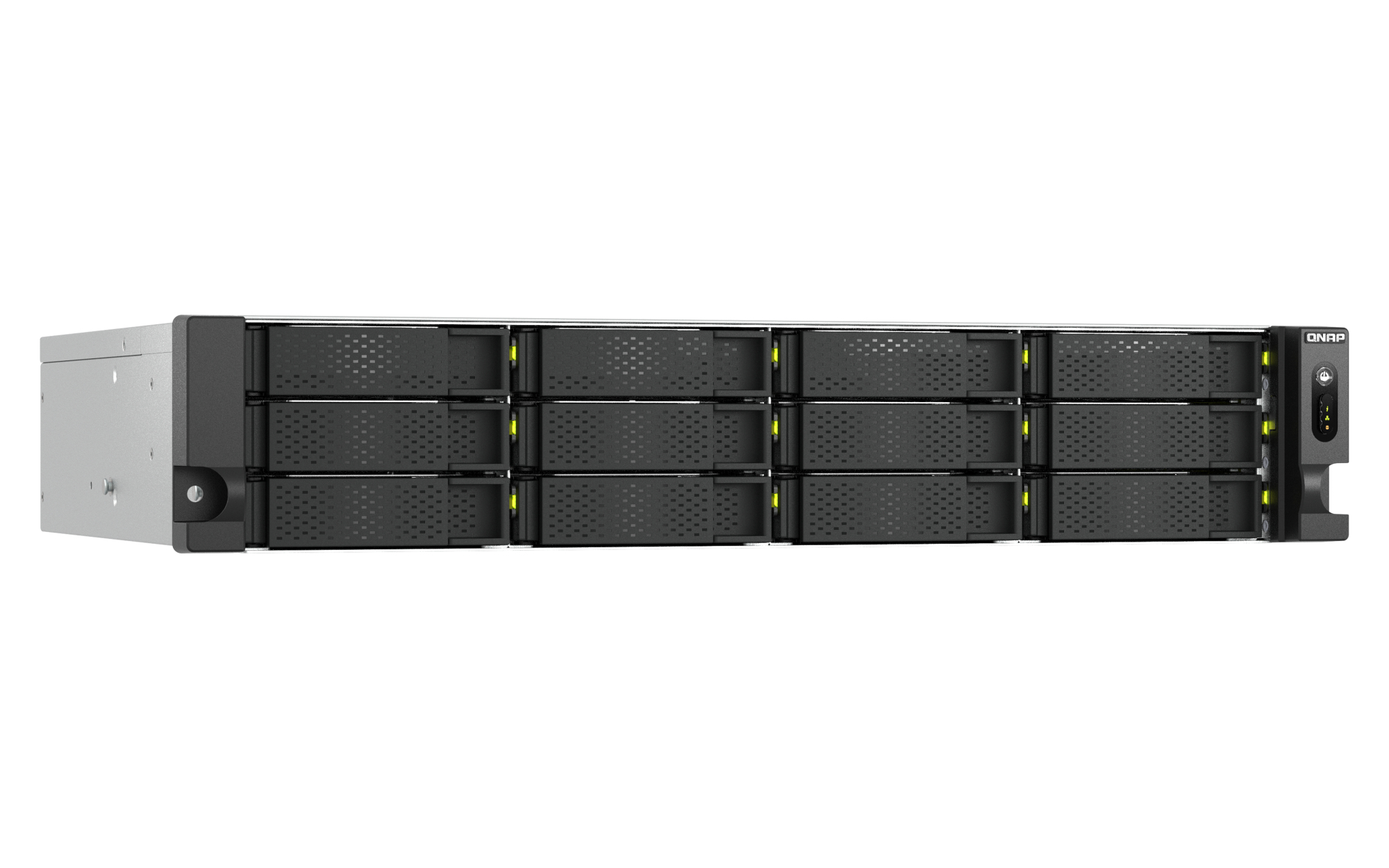

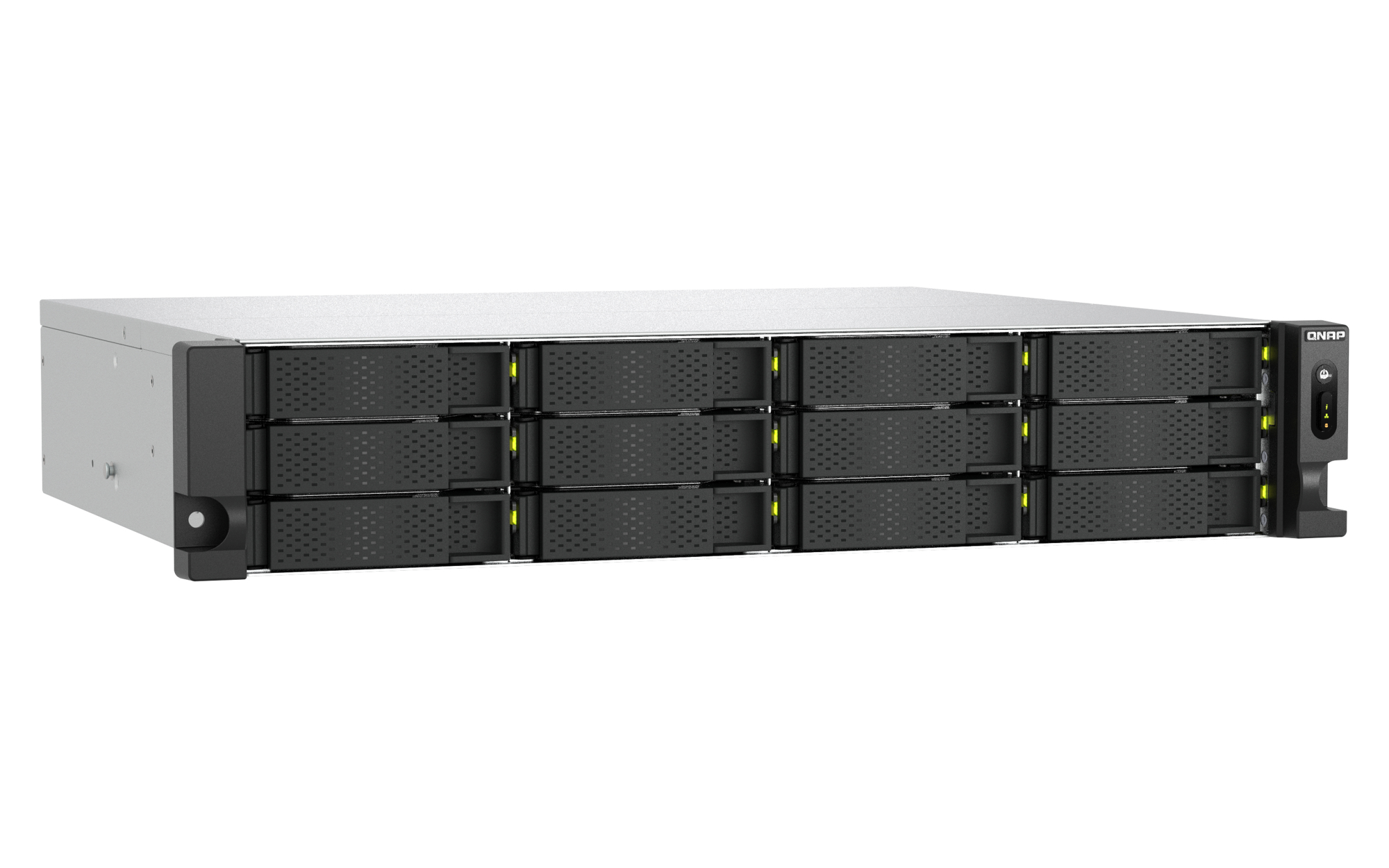

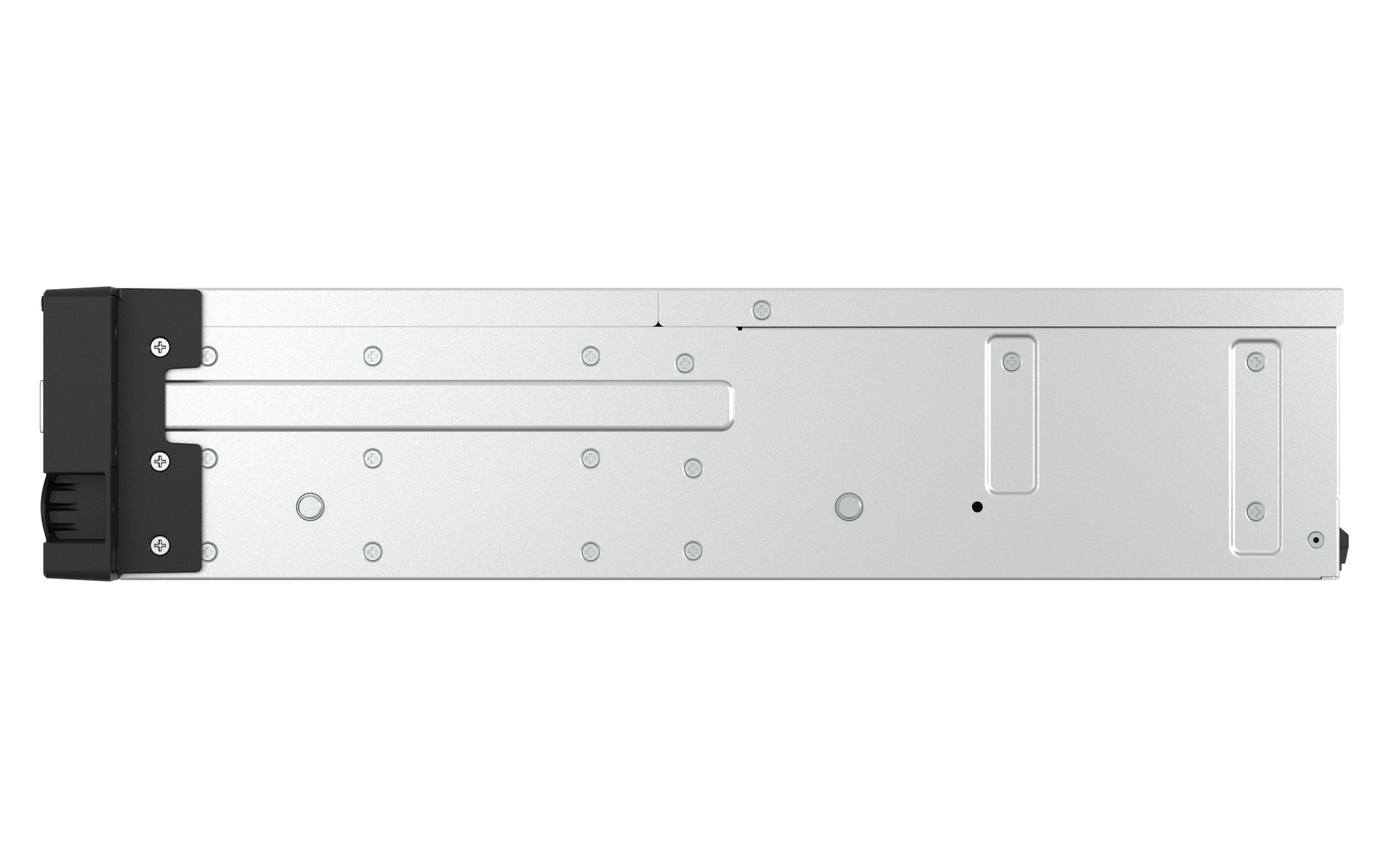

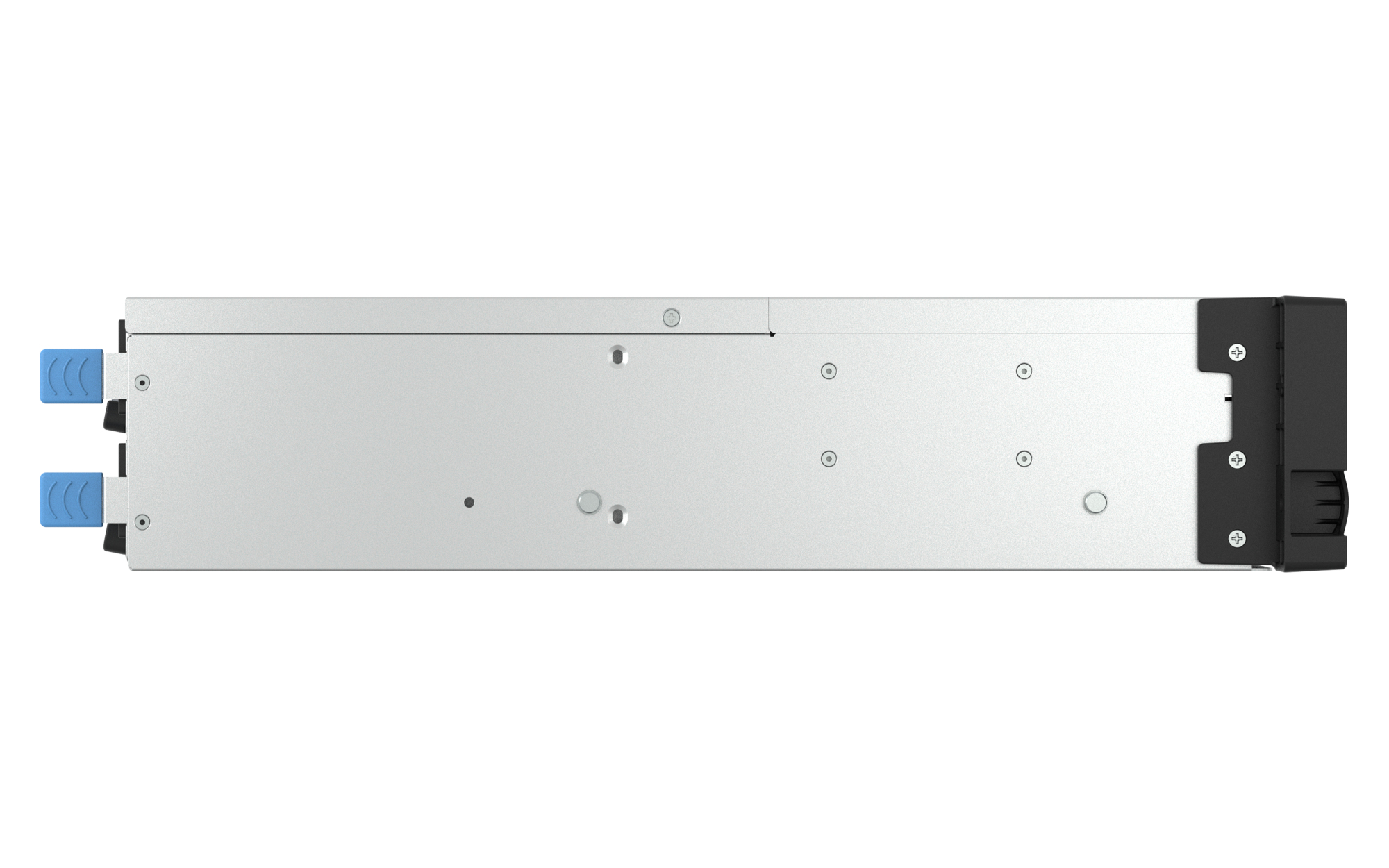

TS-h1465U-RP
Intel® quad-core 2U rackmount NAS with dual E1.S slots, dual 2.5GbE ports, and PCIe expansion delivering high-speed performance and versatile scalability
TS-h1465U-RP is designed for small and medium-sized businesses, powered by an Intel® quad-core processor, and equipped with dual 2.5GbE network ports that support port trunking for up to 5 Gbps network bandwidth. A PCIe expansion slot allows flexible upgrades, such as adding a 10GbE/5GbE network card or a QM2 card for M.2 SSD caching, delivering exceptional expandability. With the built-in Intel® AES-NI encryption engine, TS-h1465U-RP maintains outstanding data access performance even when accelerating AES 256-bit encryption.
Within a 2U chassis, TS-h1465U-RP offers twelve 3.5-inch SATA bays and two high-expandability E1.S slots, delivering a powerful and efficient multitasking NAS solution. TS-h1465U-RP comes with the QuTS operating system preinstalled, offering ZFS data integrity and immutability to protect against data tampering.
TS-h1465U-RP is equipped with dual power supplies for superior redundancy, ensuring uninterrupted 24/7 operation of critical services.
| Storage | |
| Storage drives installed: | No |
| Total installed storage capacity: | 0 TB |
| Number of storage drives installed: | 0 |
| Number of storage drives supported: | 14 |
| Installed storage drive type: | No |
| Supported storage drive types: | SSD |
| Storage drive capacity: | 0 GB |
| RAID support: | Yes |
| Supported storage drive interfaces: | Serial ATA III, M.2 |
| Storage drive sizes supported: | 3.5,E1.S,M.2 |
| RAID levels: | 0, 1, 5, 6, 10, 50, JBOD |
| Online RAID migration: | Yes |
| Online RAID expansion: | Yes |
| RAID rebuild: | Yes |
| Hot-swap drive bays: | Yes |
| Supported file systems: | ext4, ext3, HFS+, FAT32, exFAT |
| Auto-rebuild: | Yes |
| Bad block scan: | Yes |
| Disk roaming: | Yes |
| Processor | |
| Processor manufacturer: | Intel |
| Processor cores: | 4 |
| Memory | |
| Internal memory: | 8 GB |
| Internal memory type: | DDR5 |
| Maximum RAM supported: | 16 GB |
| Memory slots: | 1 |
| Memory form factor: | SO-DIMM |
| Flash memory: | 4000 MB |
| Network | |
| Ethernet LAN: | Yes |
| Ethernet LAN data rates: | 2500,1000,100,10 Mbit/s |
| DHCP server: | Yes |
| Jumbo frames support: | Yes |
| Wake-on-LAN ready: | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 2 |
| USB port: | Yes |
| USB 2.0 ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Design | |
| Chassis type: | Rack (2U) |
| Cooling type: | Active |
| Product colour: | Black |
| LED indicators: | Yes |
| Performance | |
| Type: | Storage server |
| Device class: | Home & Home Office |
| Backup function: | Yes |
| Buzzer: | Yes |
| Reset button: | Yes |
| On/off switch: | Yes |
| Disk scan: | Yes |
| S.M.A.R.T. support: | Yes |
| Software | |
| Operating system installed: | QNAP QTS |
| Operating system version: | 5.2.9 |
| Power | |
| Power supply location: | Built-in |
| Power supply unit (PSU) capacity: | 300 W |
| Number of power supply units: | 2 |
| AC input voltage: | 100 - 240 V |
| Weight & dimensions | |
| Width: | 432 mm |
| Depth: | 370.9 mm |
| Height: | 88.7 mm |
| Package width: | 581 mm |
| Package depth: | 252 mm |
| Package height: | 595 mm |
| Package weight: | 11.1 kg |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Storage temperature (T-T): | -20 - 70 °C |
| Storage relative humidity (H-H): | 5 - 95% |
