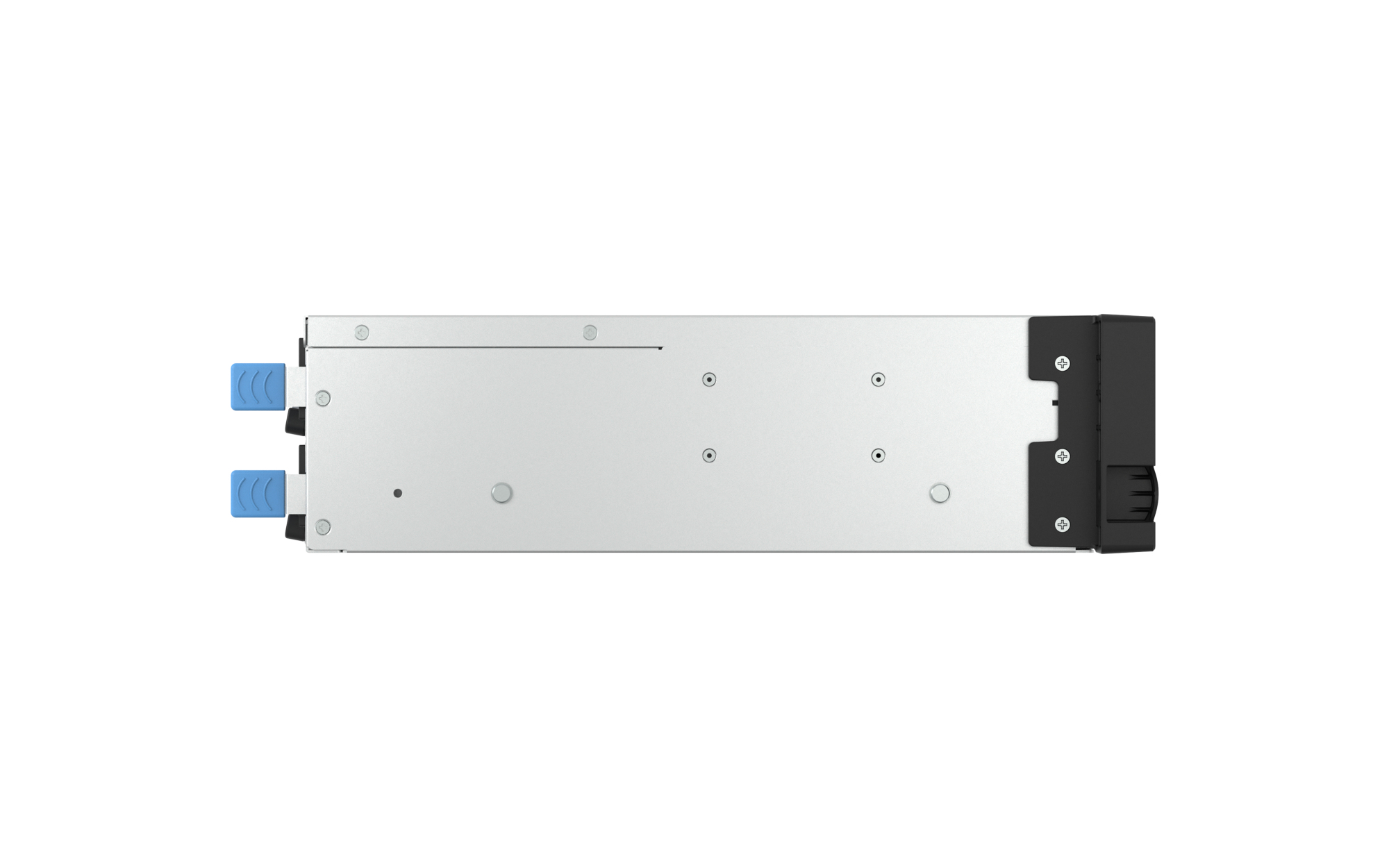

TS-h1065eU-RP
2U short-depth NAS equipped with advanced E1.S/M.2 PCIe NVMe slots and expandable with 10GbE connectivity
TS-h1065eU-RP is designed for small and medium-sized businesses. Its 2U short-depth rackmount design makes it ideal for deployment in space-constrained environments. TS-h1065eU-RP is powered by an Intel® quad-core processor, delivering 8 × 3.5-inch SATA drive bays, two highly expandable E1.S/M.2 PCIe NVMe slots, and a dual power supply design, significantly reducing the risk of unexpected power outages and ensuring stable system operation all within a compact 30 cm (12-inch) chassis. This combination of features is unmatched by competitors, making it a high-performance and highly efficient NAS solution for multitasking workloads.
| Storage | |
| Storage drives installed: | No |
| Total installed storage capacity: | 0 TB |
| Number of storage drives installed: | 0 |
| Number of storage drives supported: | 10 |
| Installed storage drive type: | No |
| Supported storage drive types: | SSD |
| Storage drive capacity: | 0 GB |
| RAID support: | Yes |
| Supported storage drive interfaces: | Serial ATA III, M.2 |
| Storage drive sizes supported: | 3.5,E1.S,M.2 |
| RAID levels: | 0, 1, 5, 6, 10, 50, JBOD |
| Online RAID migration: | Yes |
| Online RAID expansion: | Yes |
| RAID rebuild: | Yes |
| Hot-swap drive bays: | Yes |
| Supported file systems: | ext4, ext3, HFS+, FAT32, exFAT |
| Auto-rebuild: | Yes |
| Bad block scan: | Yes |
| Disk roaming: | Yes |
| Processor | |
| Processor manufacturer: | Intel |
| Processor cores: | 4 |
| Memory | |
| Internal memory: | 8 GB |
| Internal memory type: | DDR5 |
| Maximum RAM supported: | 16 GB |
| Memory slots: | 1 |
| Memory form factor: | SO-DIMM |
| Flash memory: | 4000 MB |
| Network | |
| Ethernet LAN: | Yes |
| Ethernet LAN data rates: | 2500,1000,100,10 Mbit/s |
| DHCP server: | Yes |
| Jumbo frames support: | Yes |
| Wake-on-LAN ready: | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports: | 2 |
| USB port: | Yes |
| USB 2.0 ports quantity: | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Design | |
| Chassis type: | Rack (2U) |
| Cooling type: | Active |
| Product colour: | Black |
| LED indicators: | Yes |
| Performance | |
| Type: | Storage server |
| Device class: | Home & Home Office |
| Backup function: | Yes |
| Buzzer: | Yes |
| Reset button: | Yes |
| On/off switch: | Yes |
| Disk scan: | Yes |
| S.M.A.R.T. support: | Yes |
| Software | |
| Operating system installed: | QNAP QTS |
| Operating system version: | 5.2.9 |
| Power | |
| Power supply location: | Built-in |
| Power supply unit (PSU) capacity: | 300 W |
| Number of power supply units: | 2 |
| Power consumption (typical): | 55.83 W |
| Power consumption (HDD standby): | 31.742 W |
| AC input voltage: | 100 - 240 V |
| Weight & dimensions | |
| Width: | 432 mm |
| Depth: | 294.9 mm |
| Height: | 88.6 mm |
| Package width: | 530 mm |
| Package depth: | 210 mm |
| Package height: | 592 mm |
| Package weight: | 9.47 kg |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Storage temperature (T-T): | -20 - 70 °C |
| Storage relative humidity (H-H): | 5 - 95% |
