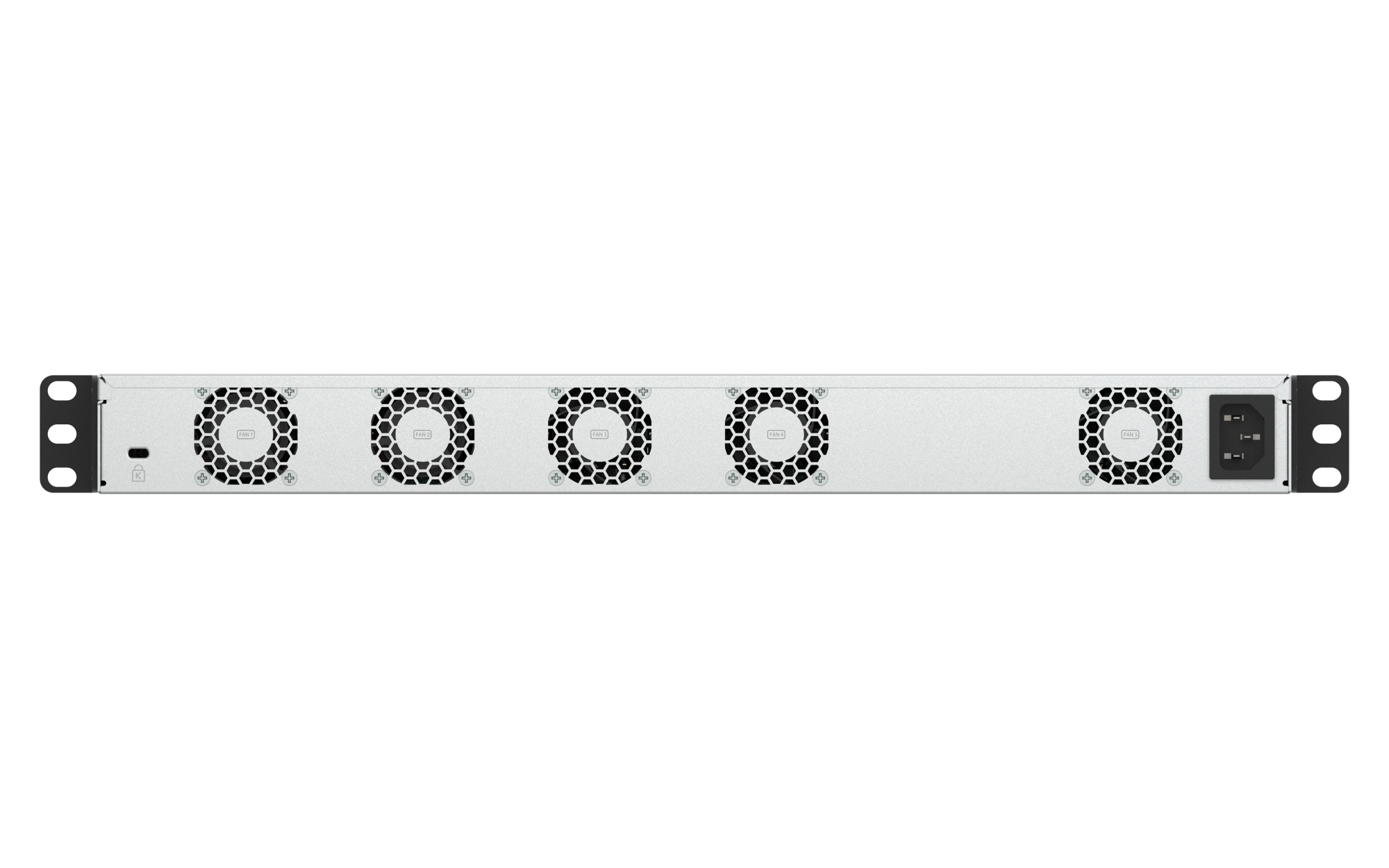

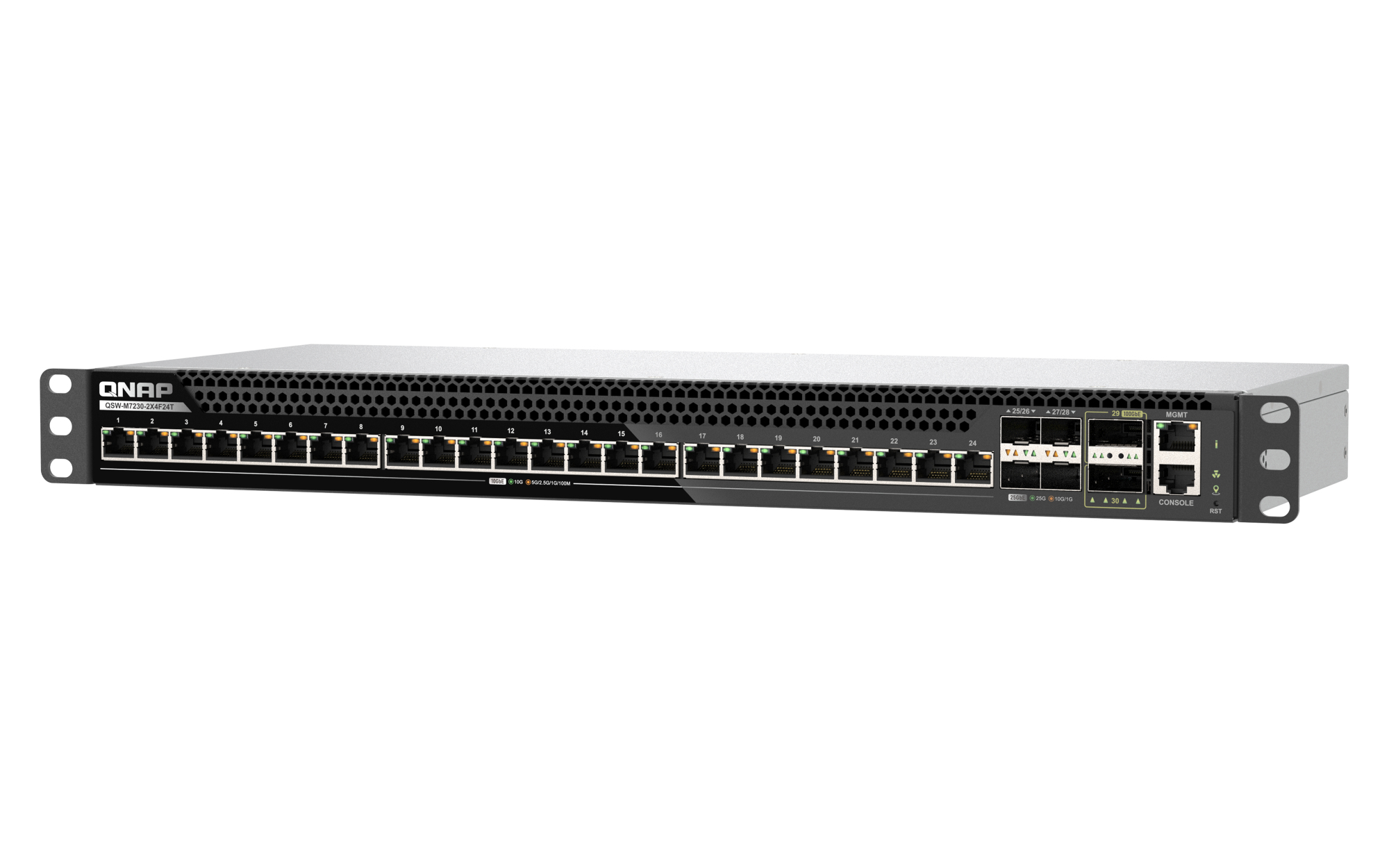

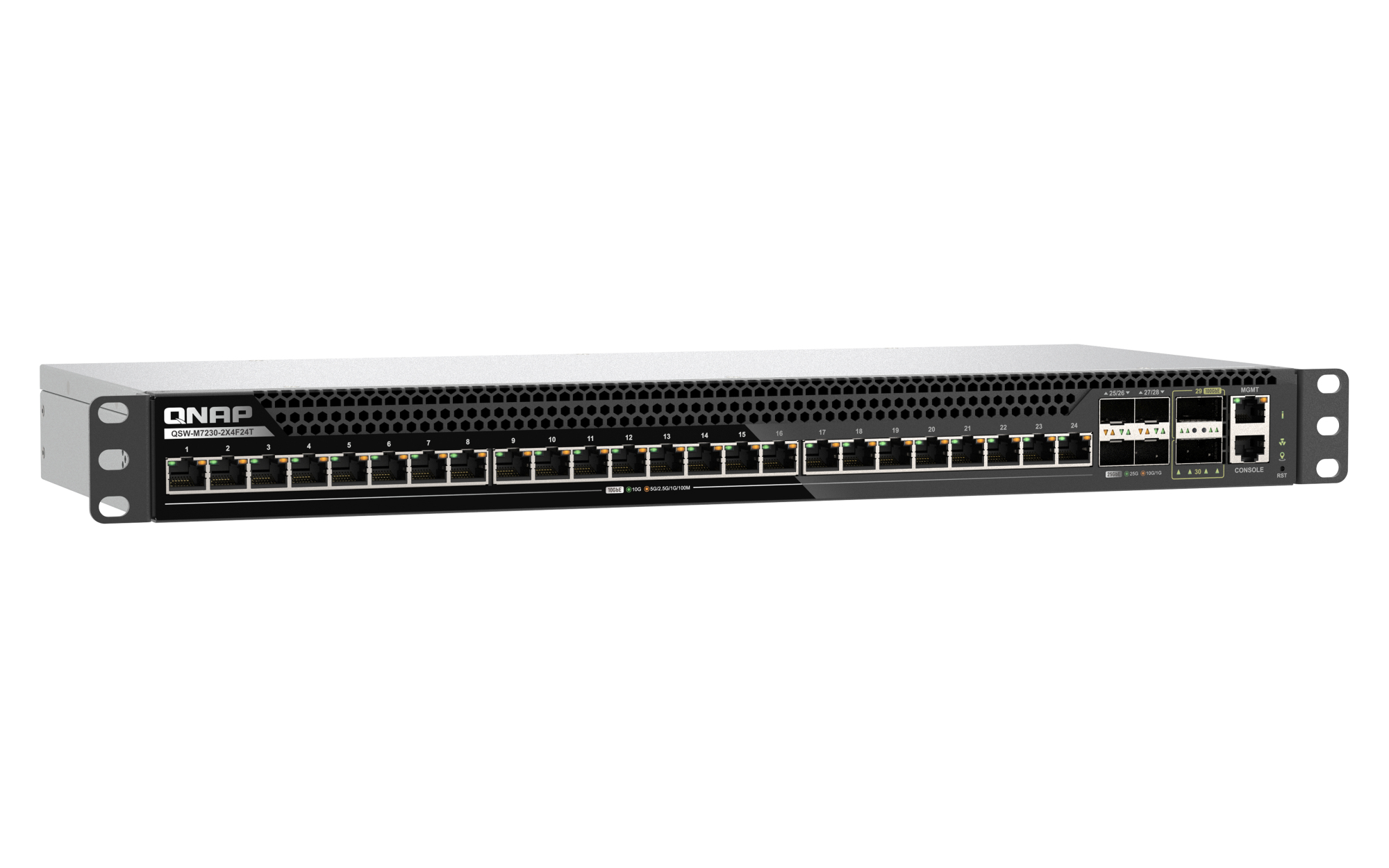

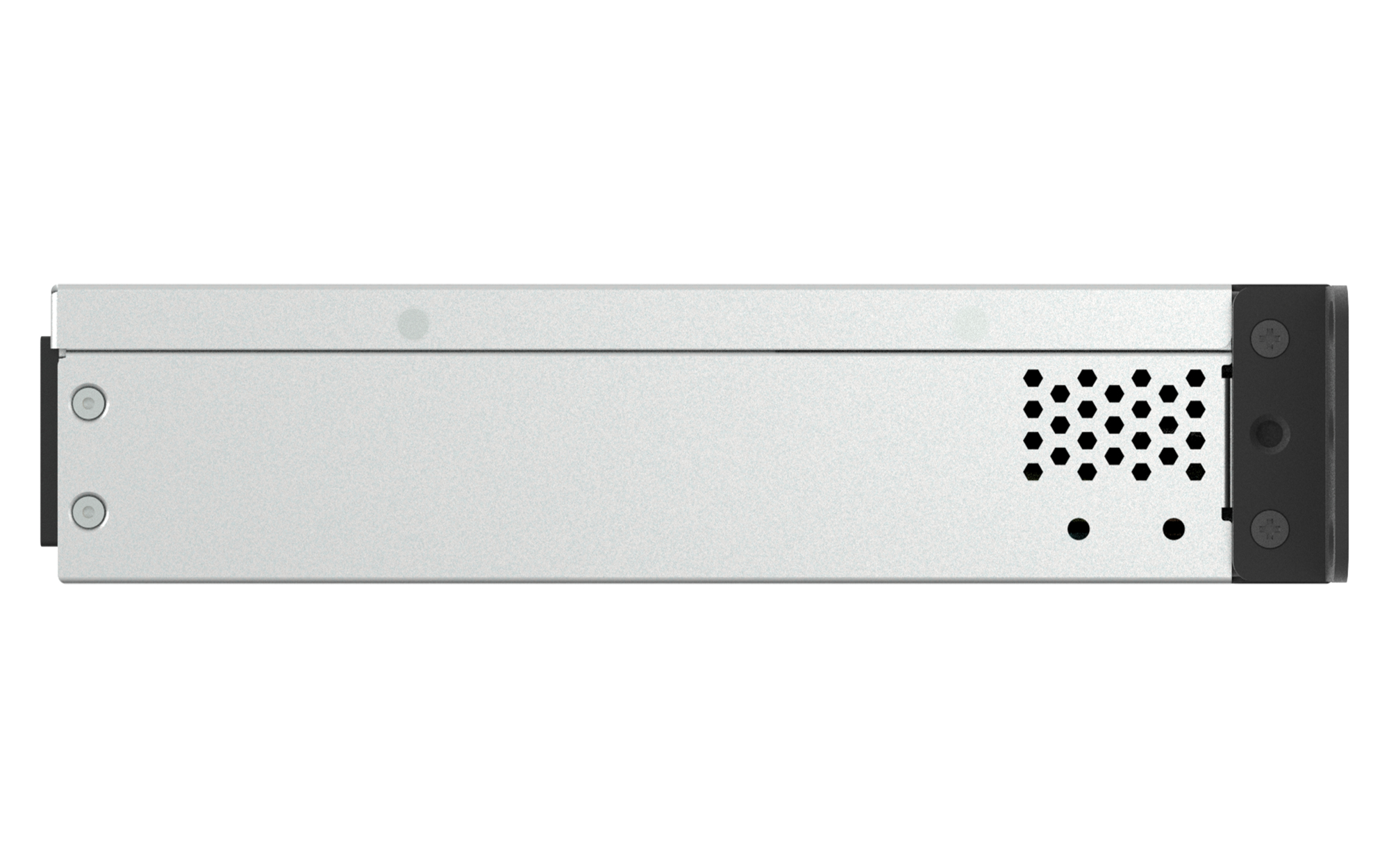

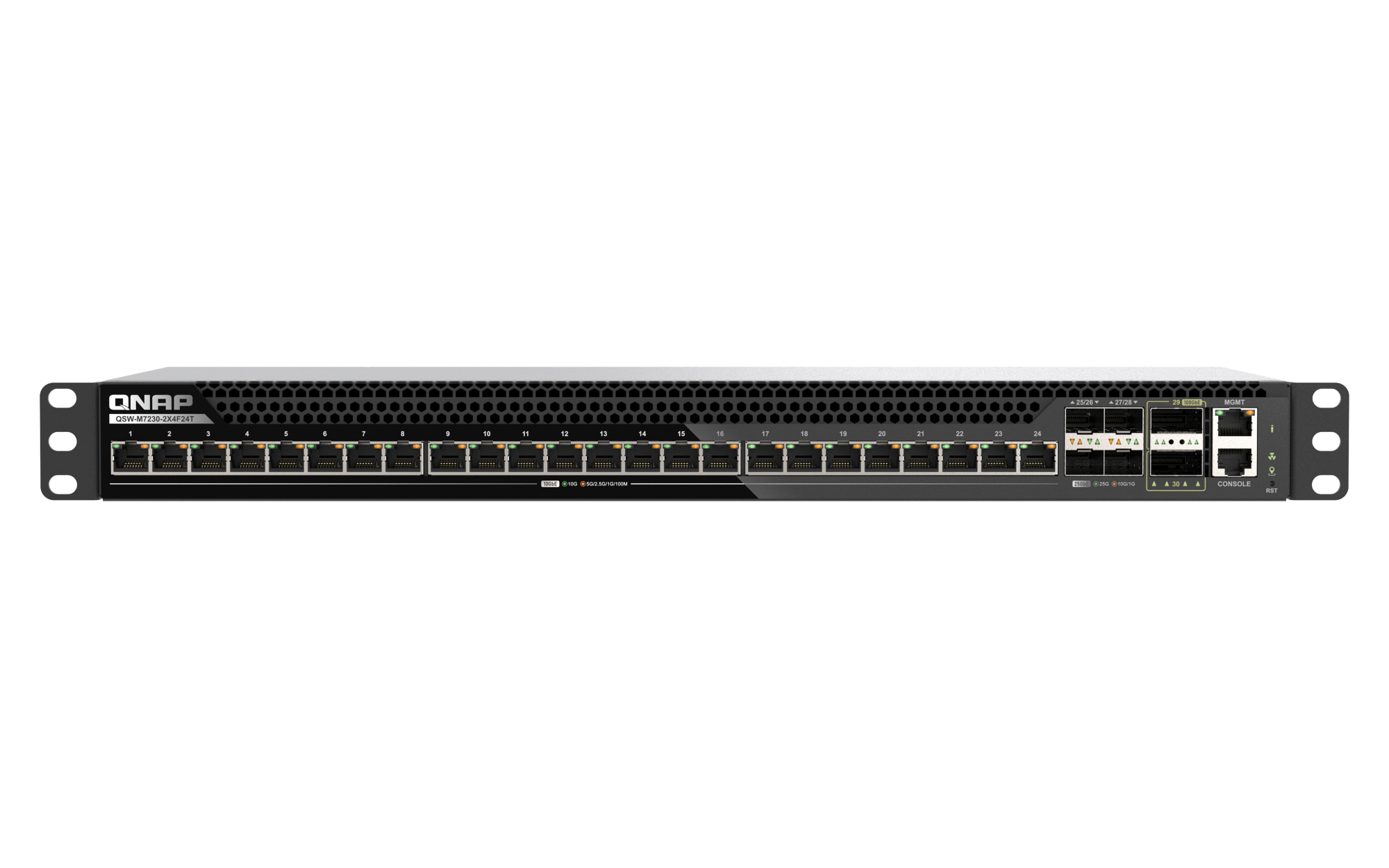

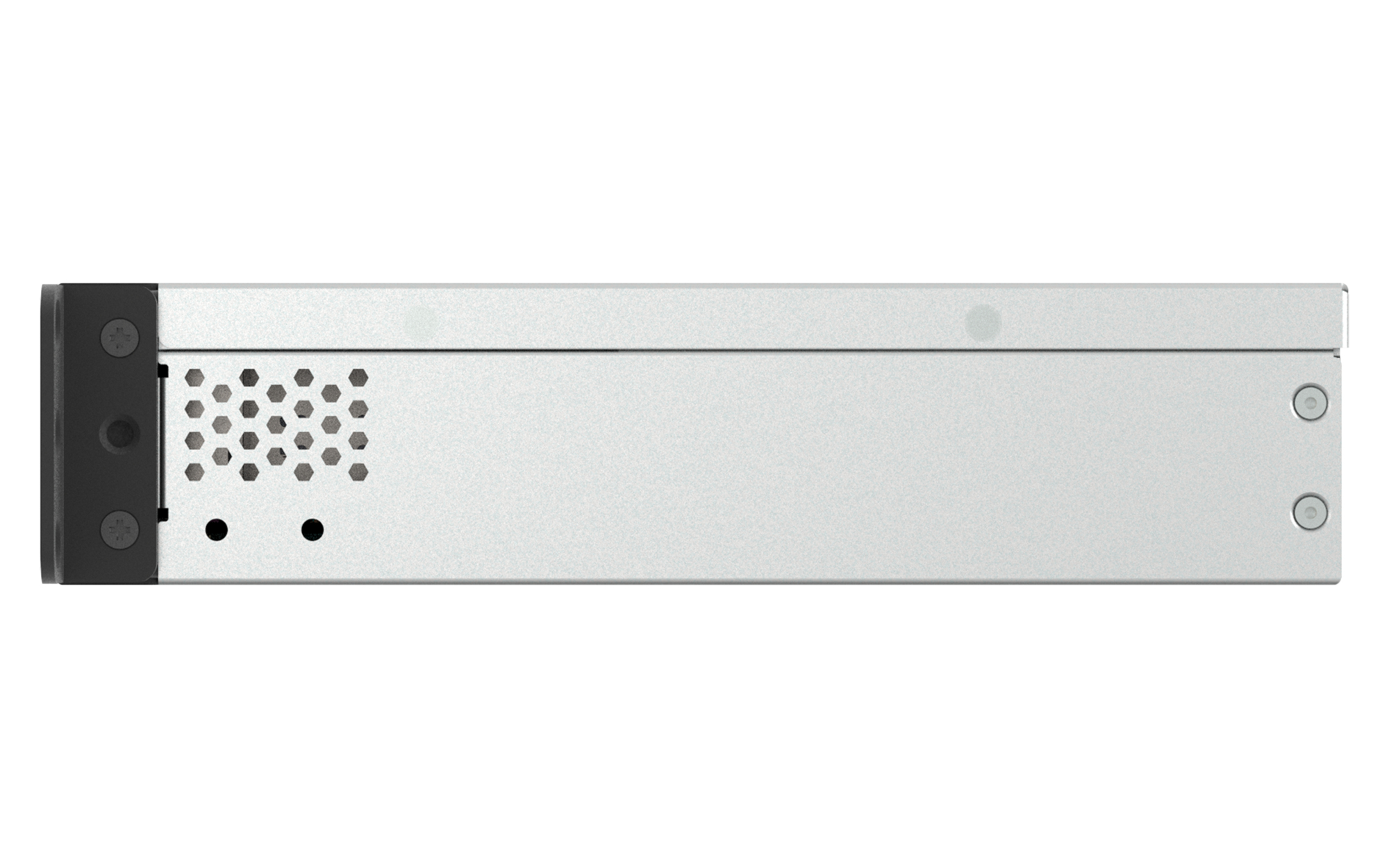

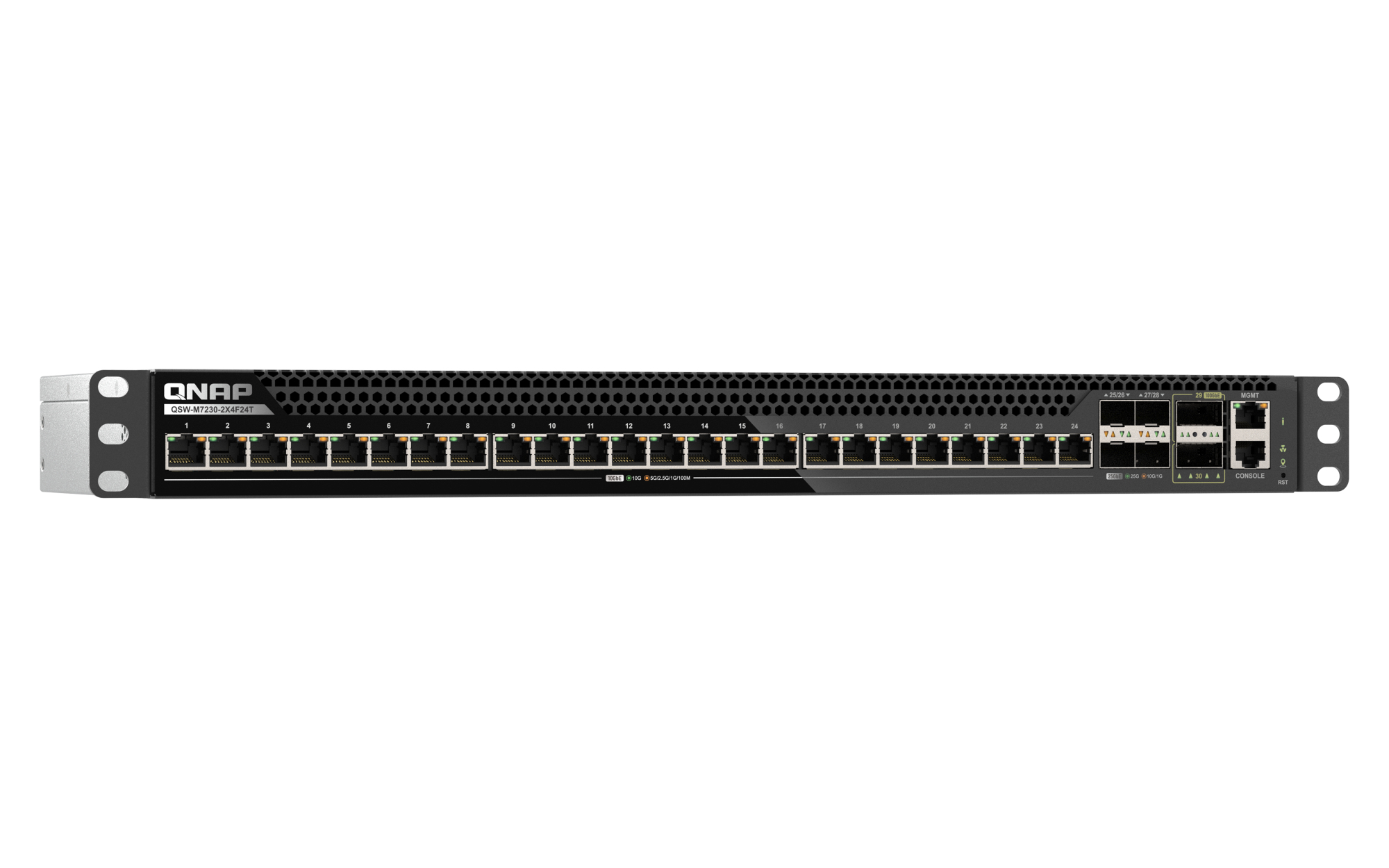

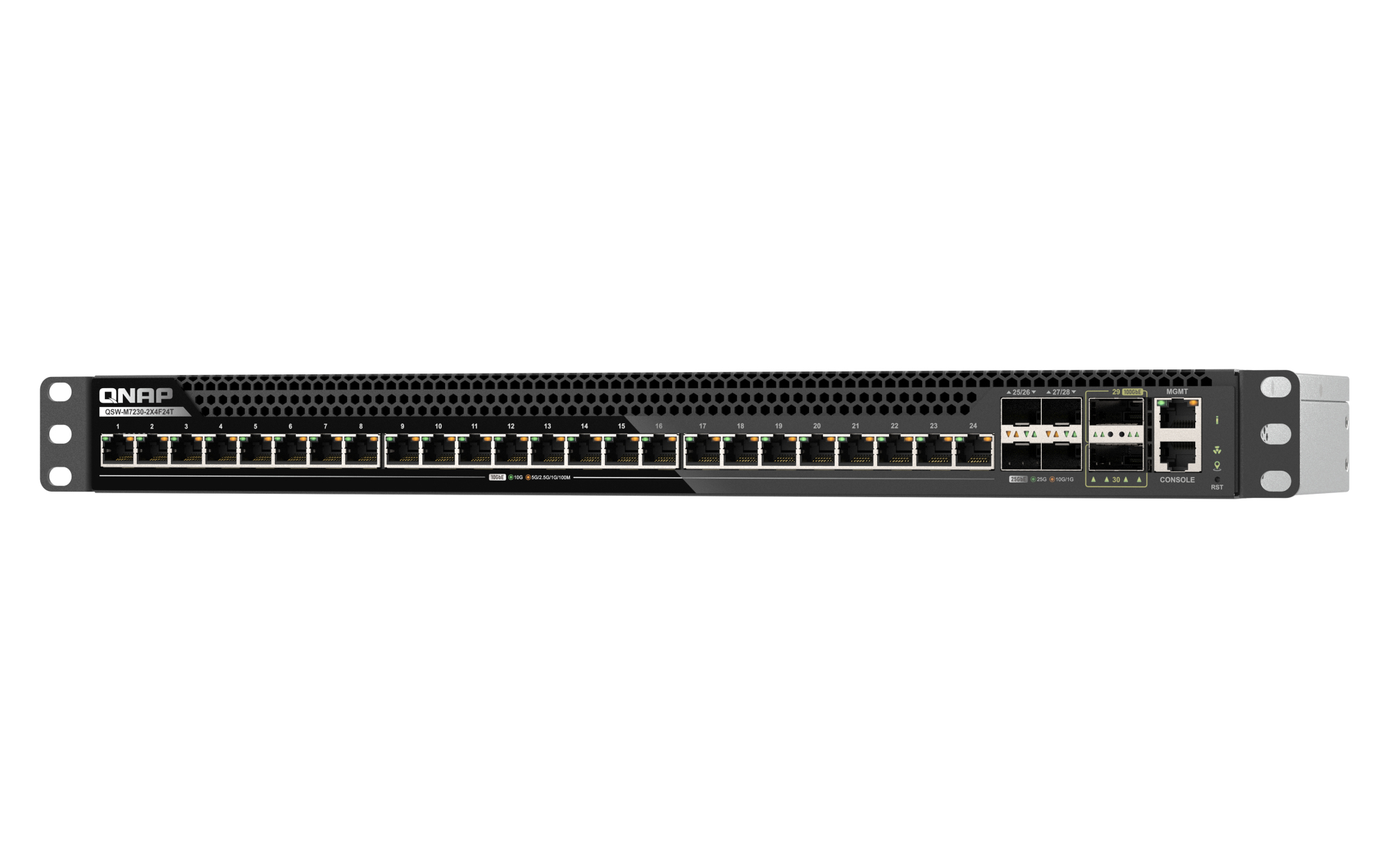

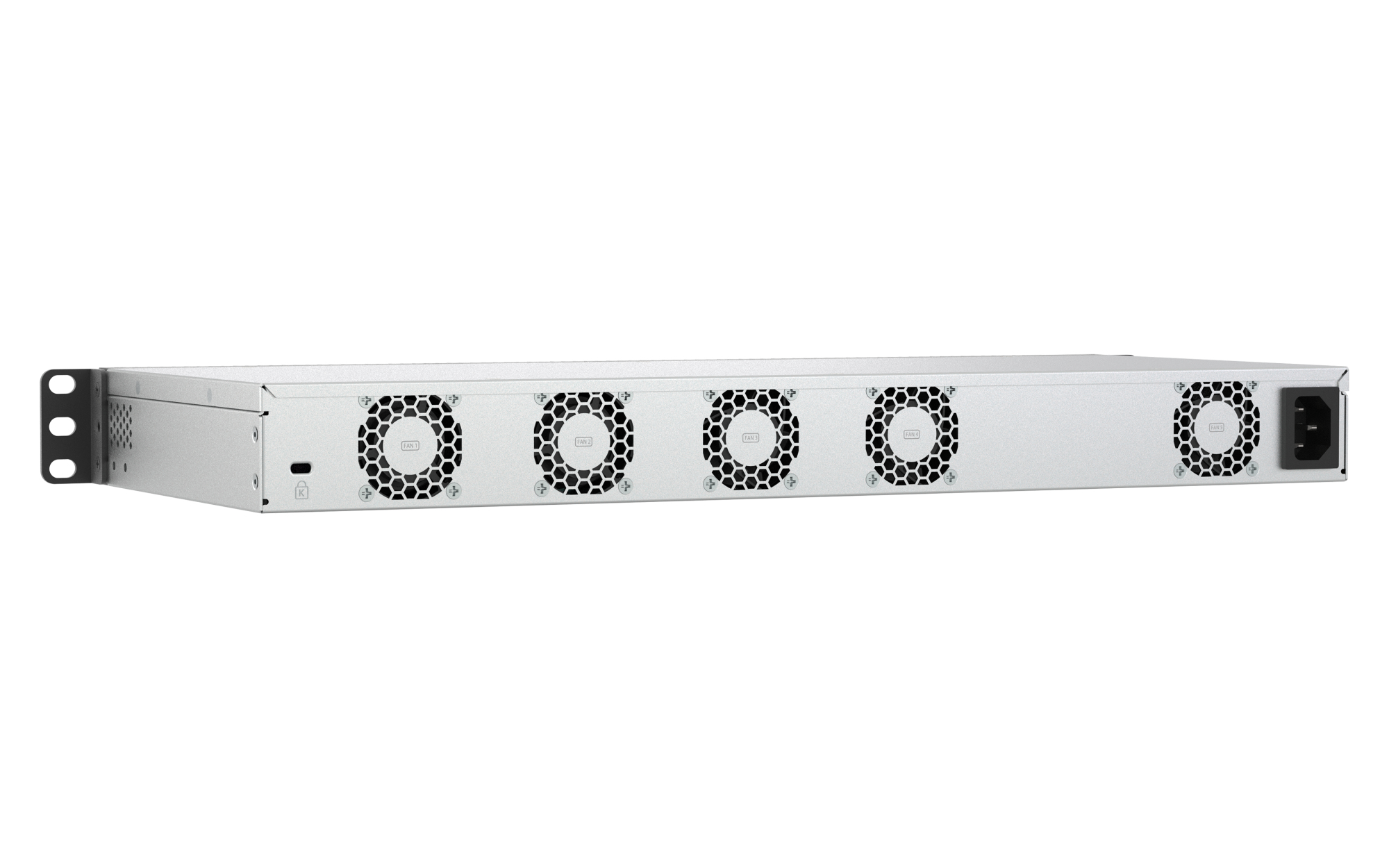

QSW-M7230-2X4F24T
Three-speed, high-value choice upgrade to a 100GbE enterprise backbone with ease
QSW-M7230-2X4F24T is an L3 Lite managed 100GbE switch built for high-performance storage environments and mid-to-large enterprise backbones. It integrates 2×100GbE QSFP28 ports, 4×25GbE SFP28 ports, and 24×10GbE RJ45 ports, enabling 100G/25G uplinks for servers and NAS on a single platform while supporting large-scale 10G access from servers, workstations, and aggregation switches. With L3 Lite routing and an MC-LAG high-availability architecture, it keeps mission-critical traffic stable and low-latency even under heavy workloads helping enterprises build a scalable, cost-effective 100GbE backbone network.
The QSW-M7230-2X4F24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
| Management features | |
| Switch type: | Managed |
| Switch layer: | L3 |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity: | 24 |
| Basic switching RJ-45 Ethernet ports type: | 10G Ethernet (100/1000/10000) |
| Console port: | RJ-45 |
| QSFP28 ports quantity: | 2 |
| SFP28 ports quantity: | 4 |
| Network | |
| Networking standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad, IEEE 802.1ab, IEEE 802.1p |
| 10G support: | Yes |
| Data transmission | |
| MAC address table: | 32000 entries |
| Switching capacity: | 1080 Gbit/s |
| Throughput: | 540 Gbit/s |
| Design | |
| Rack mounting: | Yes |
| Form factor: | 1U |
| Product colour: | Black |
| Reset button: | Yes |
| Power | |
| Power source: | AC |
| Power supply included: | Yes |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Power consumption (max): | 158.21 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE): | No |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 5 - 95% |
| Weight & dimensions | |
| Width: | 439 mm |
| Depth: | 190 mm |
| Height: | 44 mm |
| Weight: | 3.1 kg |
| Packaging data | |
| Package width: | 582 mm |
| Package depth: | 362 mm |
| Package height: | 170 mm |
| Package weight: | 4.67 kg |
