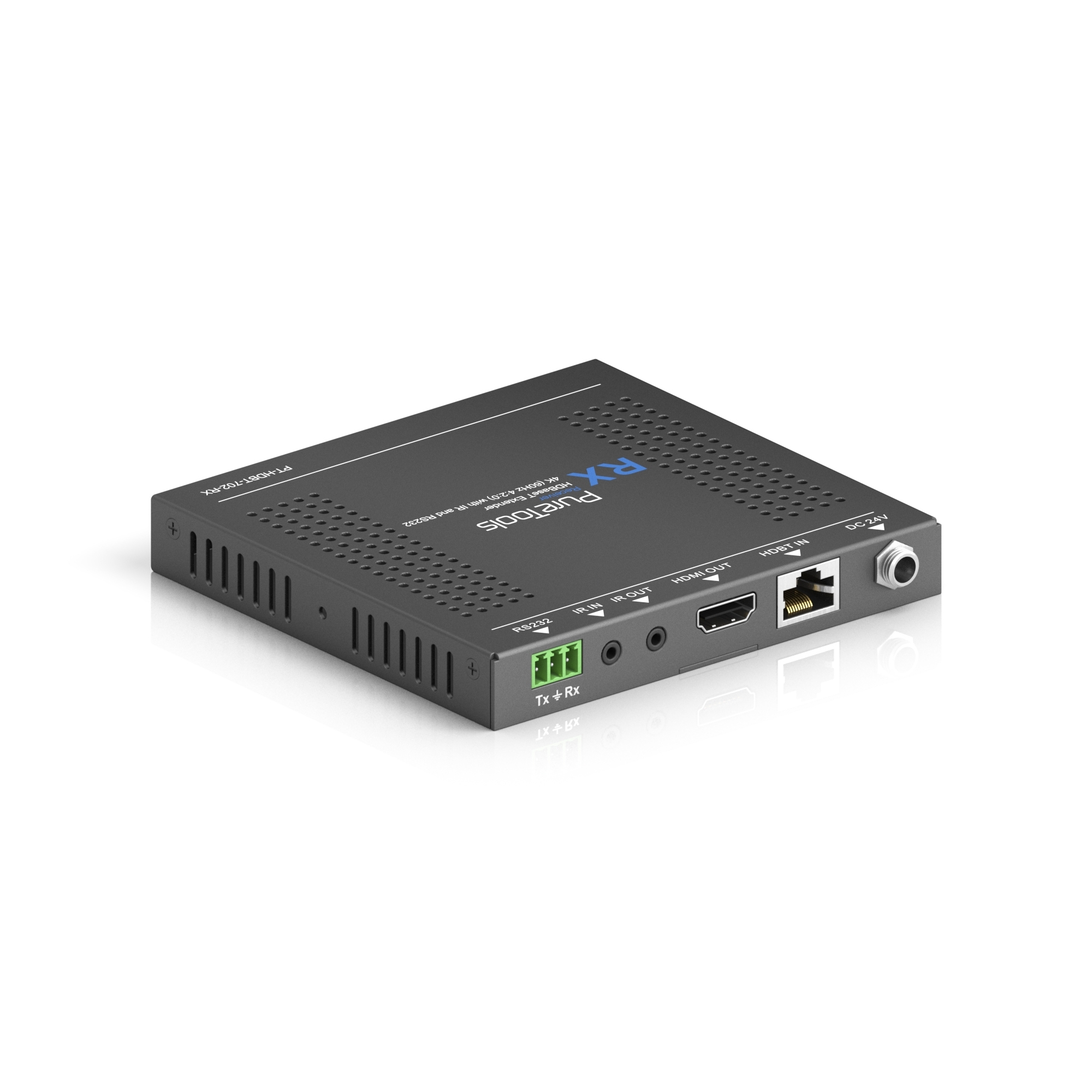

PureTools PT-HDBT-702-RX AV extender AV receiver Black

4K HDBaseT Receiver with PoHPT-HDBT-702-RX is a fully HDBaseT compliant receiver. It is able to receive Full HD up to 70m and 4K/UHD up to 40m with embedded multi-channel audio, and control signals. It is even CEC capable allowing the pass through of CEC to simplify system control with a single remote. Its two way PoH allows for remote powering of a source or transmitter unit or it can be powered from any other PoH capable device.HDMI - 4K 60HZ 4:2:0Compatible with 4K HDMI sources and displays, displaying signals at resolutions up to 4K @60 4:2:0 (10.2Gbps). SMART SIGNAL MANAGEMENTWith CEC pass through, smart EDID management, IR and RS232 pass through, the PT-HDBT-702-RX is perfectly equipped to handle all your data without difficulties. Simply plug and play. HDBT TRANSMISSIONWith HDBaseT transmission up to 40m range at 4K (70m at 1080p), and two way PoH, the PT-HDBT-702-RX is a professional HDBaseT receiver for use with all HDBaseT rated equipment. ULTRA COMPACT SIZEAll of this technology is packed into an ultra slim light weight enclosure, for installation almost anywhere.

Features
Type:	AV receiver
Maximum resolution:	3840 x 2160 pixels
Maximum transfer distance:	70 m
Maximum refresh rate:	60 Hz
Extended display identification data (EDID):
EDID management:
RS-232 pass-through:
CEC pass-through:
LED indicators:
Supported video modes:	1080p
Bandwidth:	10.2 Gbit/s
HDCP:
Consumer Electronics Control (CEC) support:
Plug and Play:
Impedance:	75
HDCP version:	2.2
Product colour:	Black
Certification:	CE, FCC
Ports & interfaces
Connectivity technology:	Wired
RJ-45 input ports:	1
HDMI in:	1
HDMI version:	1.4a
RS-232 input ports:	1
Remote (IR) input:	1
Remote (IR) output:	1
Power
Input current:	1.25 A
Operating voltage (receiver):	24 V
Power consumption (receiver) (max):	14 W
Operational conditions
Operating temperature (T-T):	0 - 50 °C
Operating relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	115 mm
Depth:	109 mm
Height:	16.2 mm
Weight:	196 g
