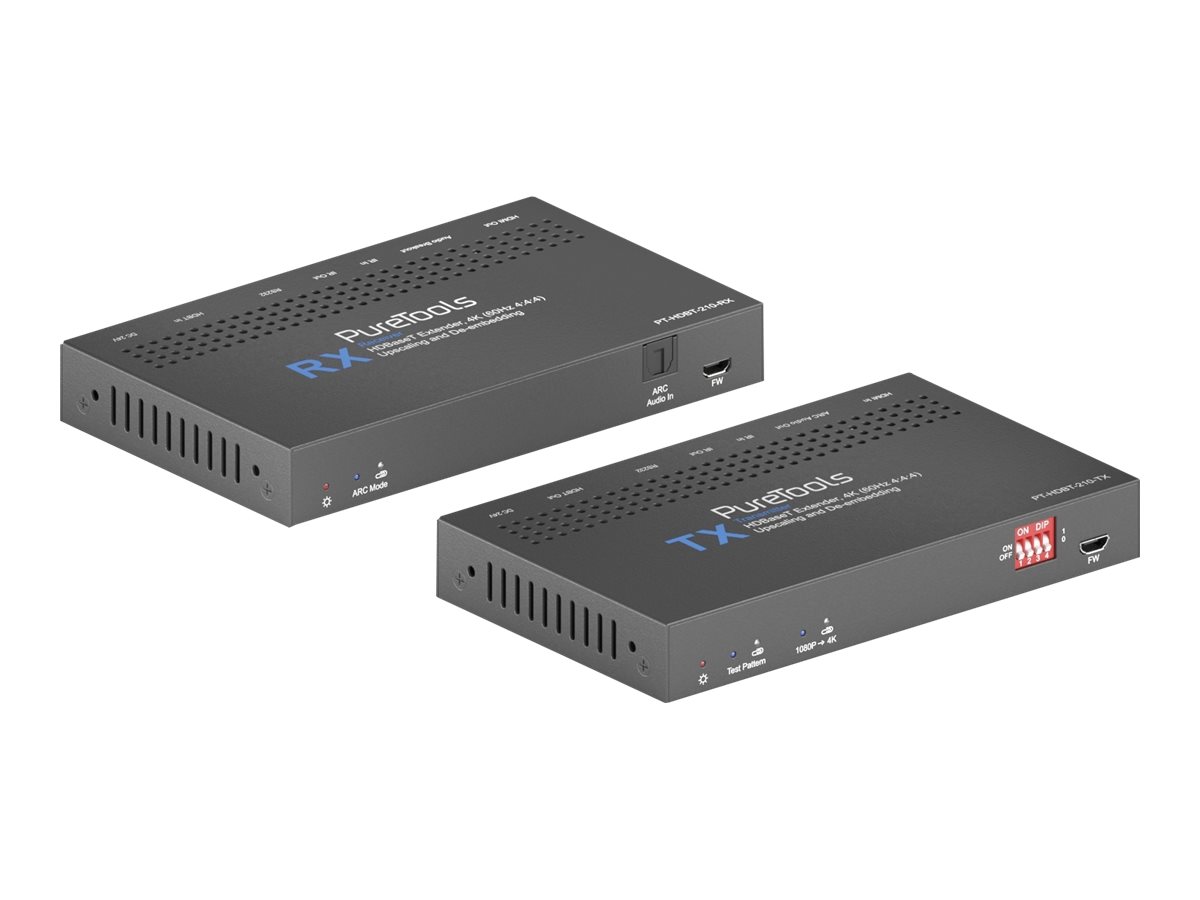

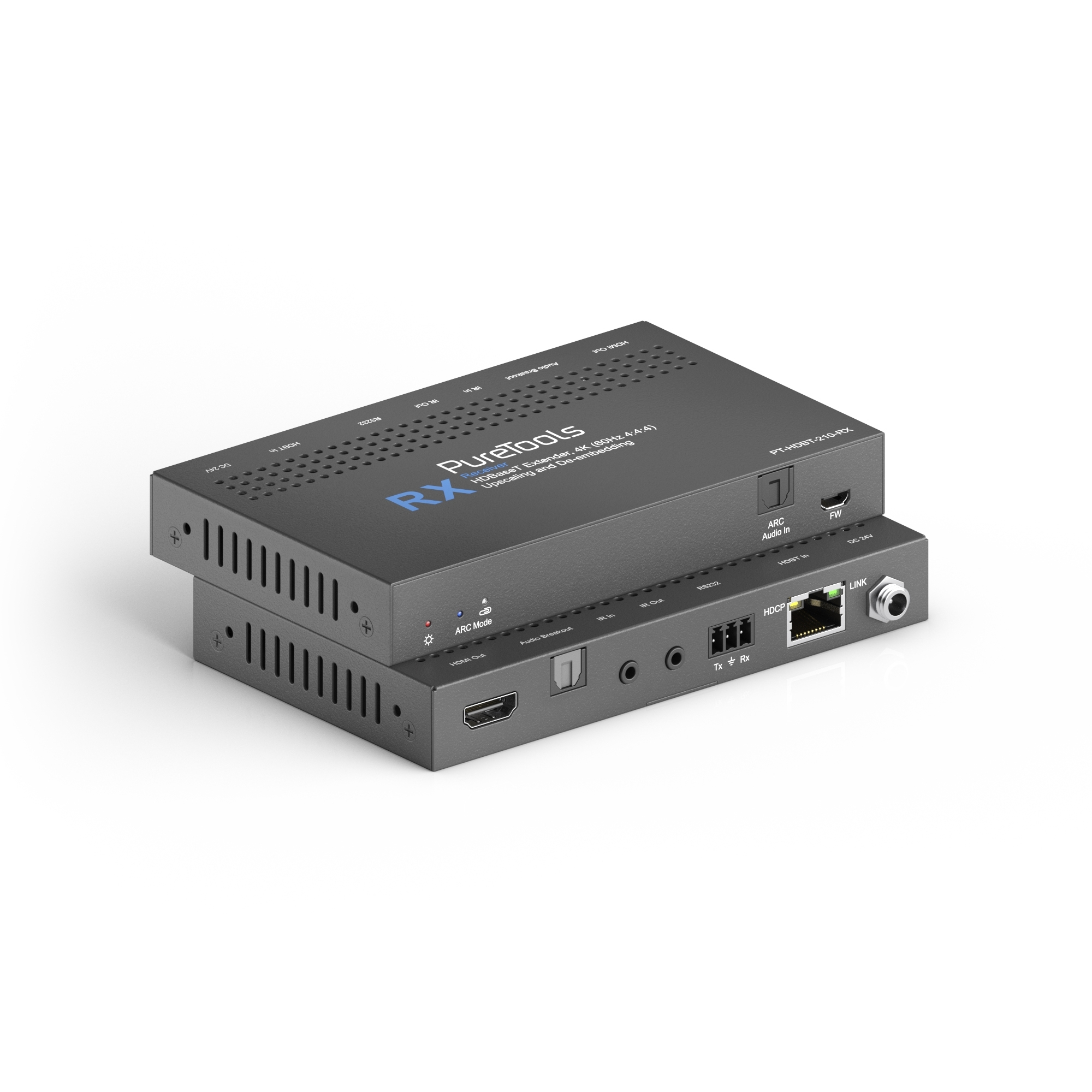

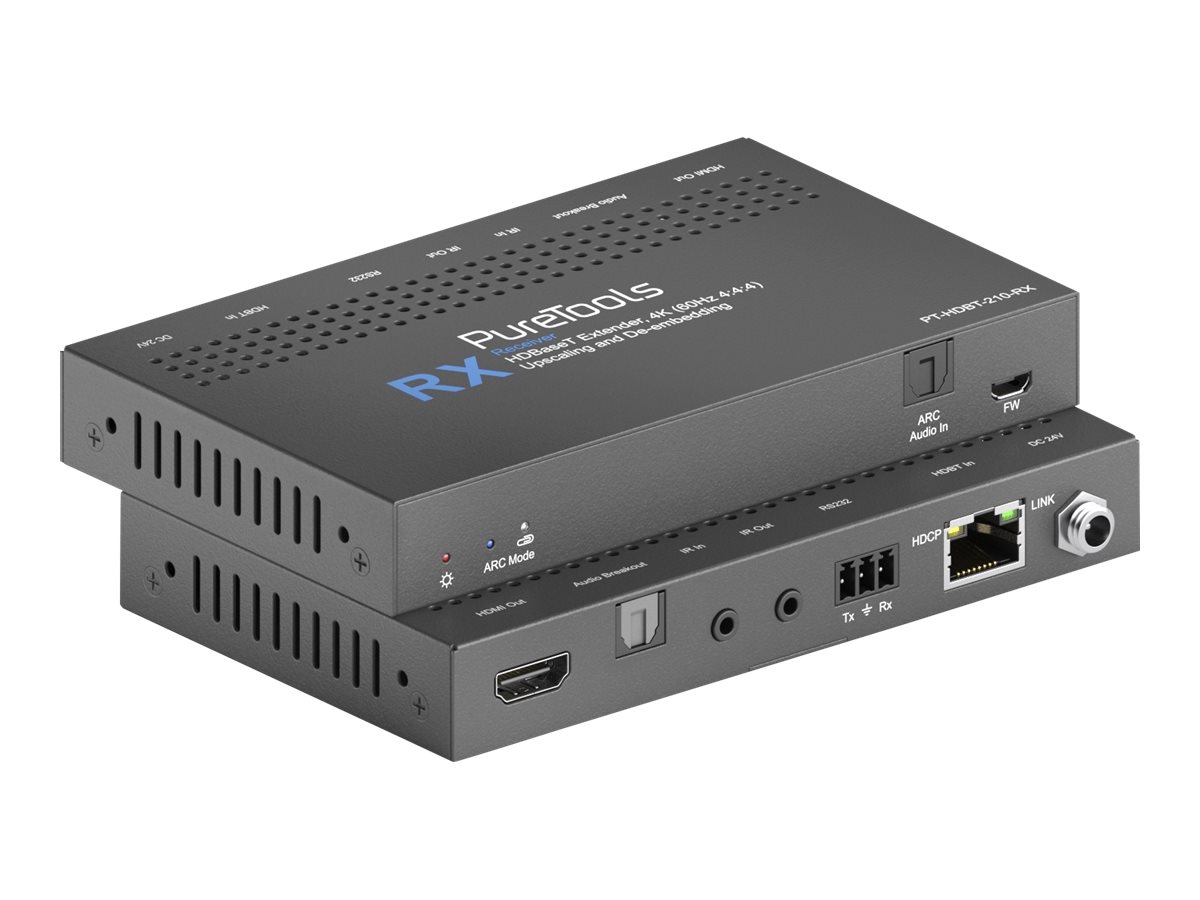

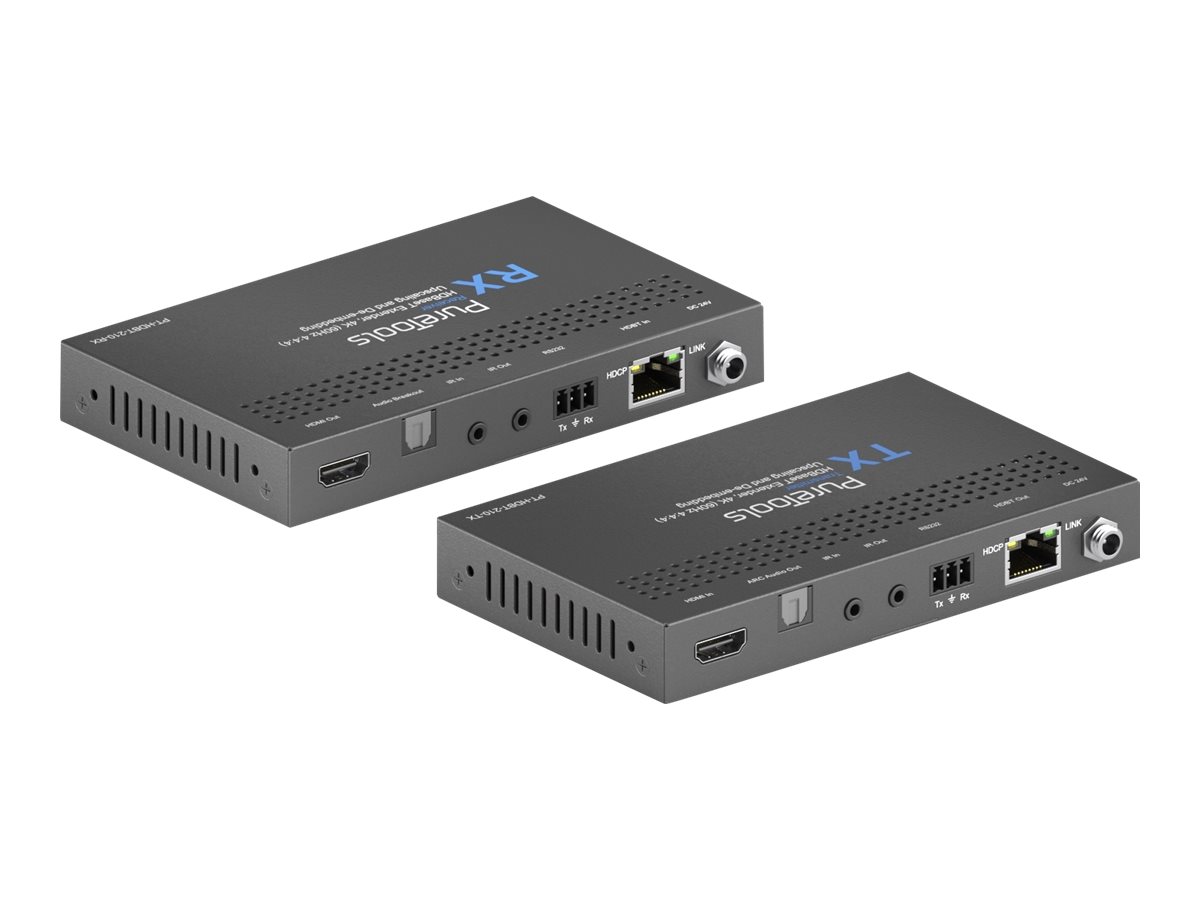

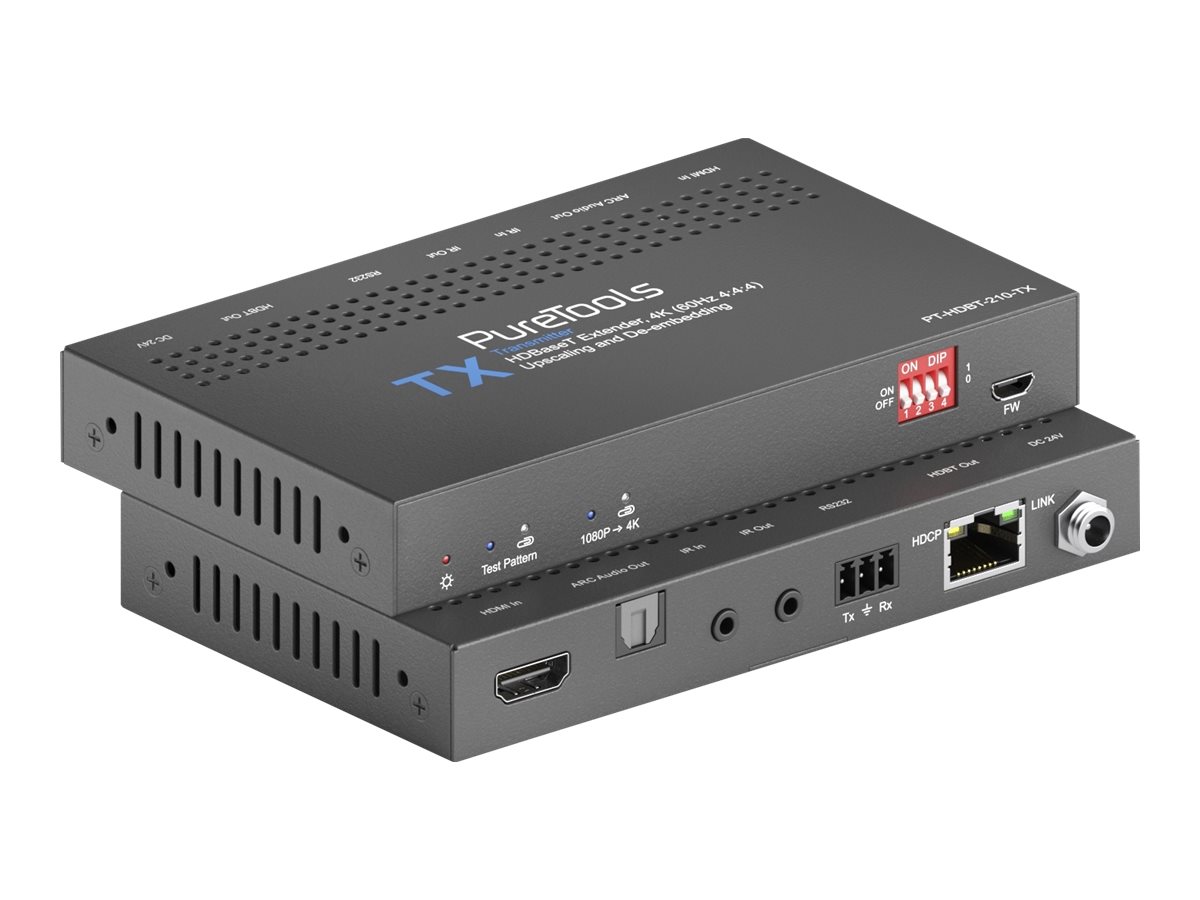

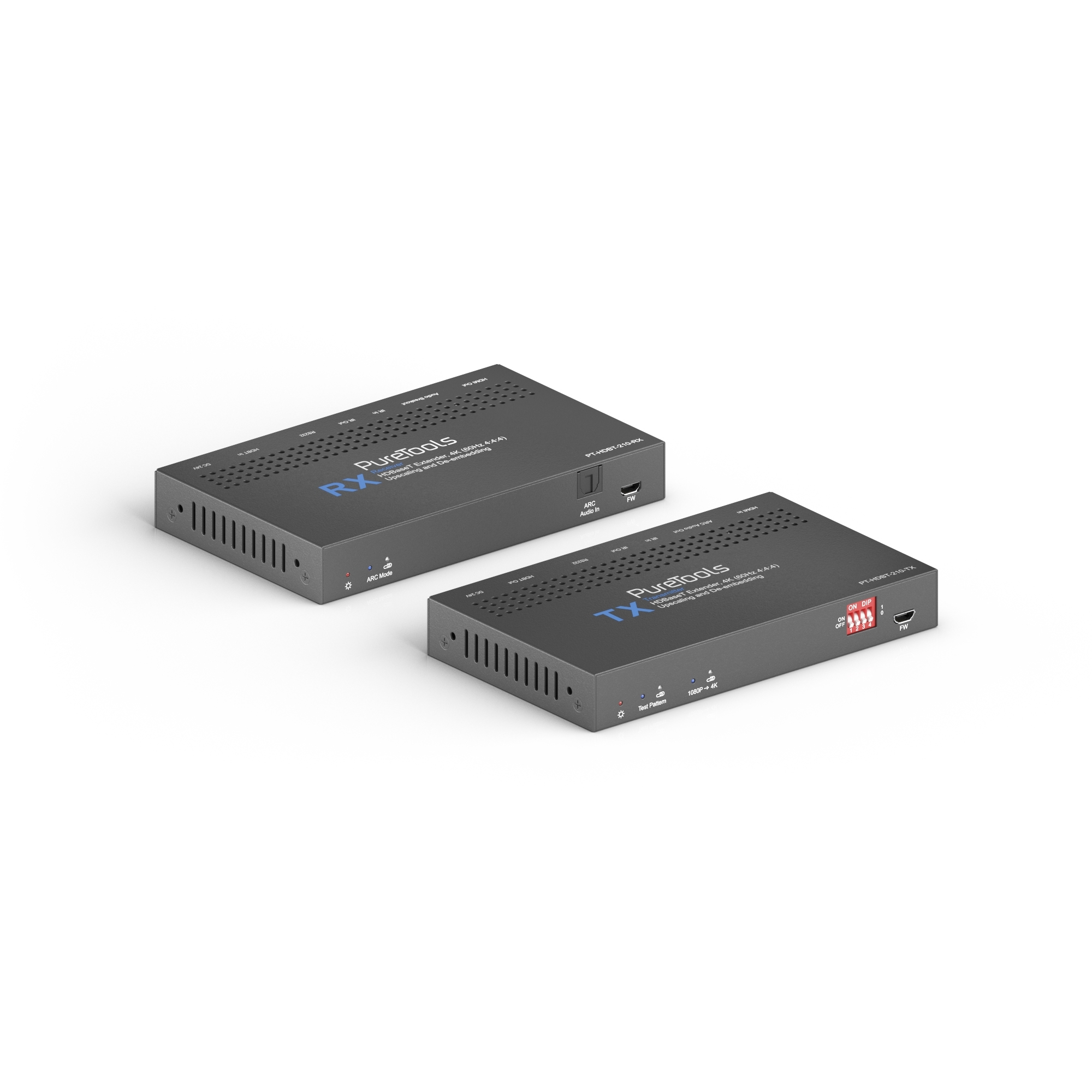

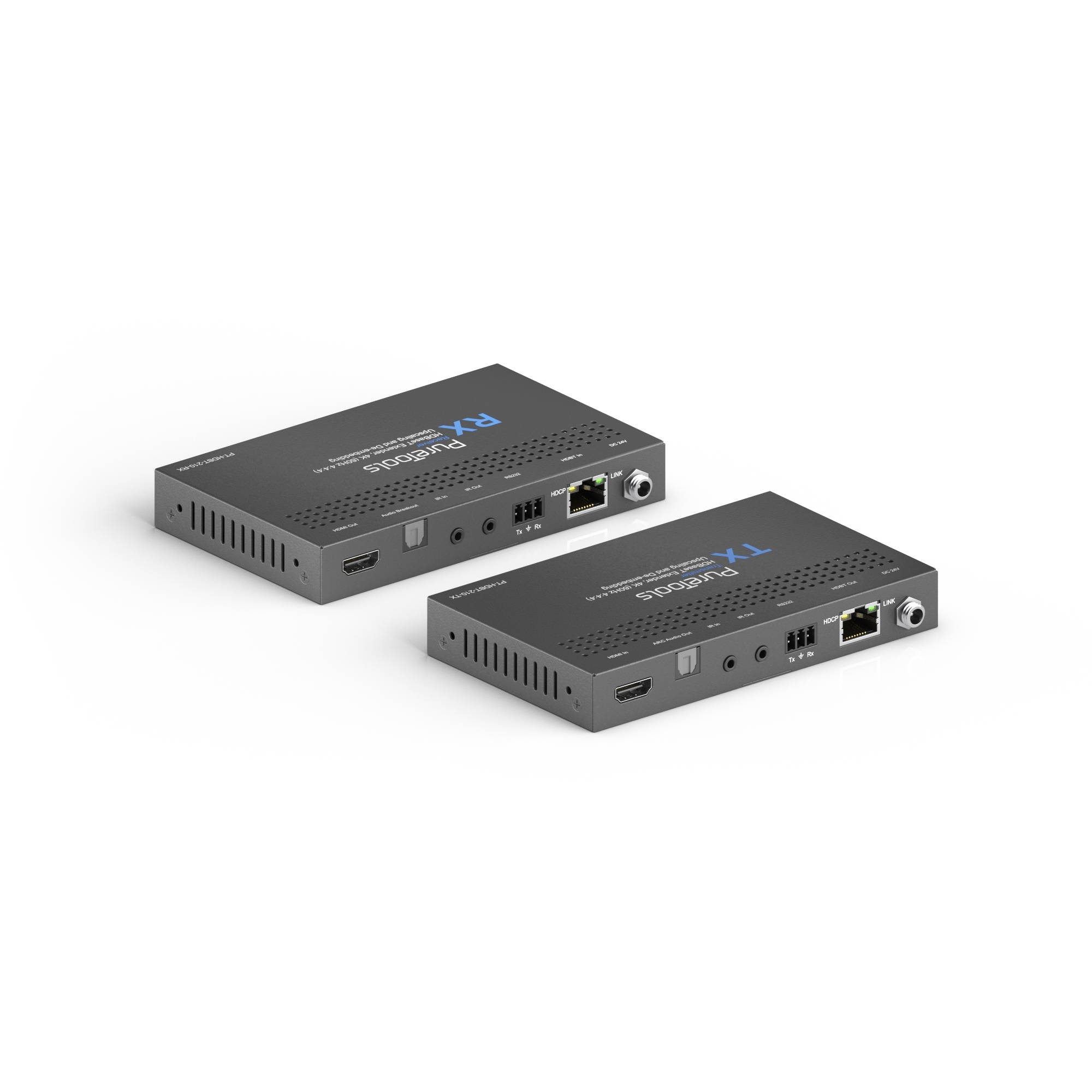

PureTools PT-HDBT-210 AV extender AV transmitter & receiver Black

High-grade elctronic products for commercial applicationsThe PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product line's focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an "Install and Forget" experience thanks to top grade performance.

Features
Type:	AV transmitter & receiver
Maximum resolution:	3840 x 2160 pixels
Maximum transfer distance:	70 m
Maximum refresh rate:	60 Hz
Extended display identification data (EDID):
CEC pass-through:
LED indicators:
Supported video modes:	1080p
HDCP:
Firmware upgradeable:
Consumer Electronics Control (CEC) support:
Signal-to-Noise Ratio (SNR):	85 dB
HDCP version:	2.2
Product colour:	Black
Certification:	FCC
Ports & interfaces
Connectivity technology:	Wired
RJ-45 input ports:	1
RJ-45 output ports:	1
HDBaseT port:
HDMI in:	1
Number of HDMI outputs:	1
HDMI version:	2.0
USB ports quantity:	1
USB connector type:	Micro-USB
RS-232 input ports:	2
Video in:	1
Video out:	1
Remote (IR) input:	1
Remote (IR) output:	1
DC-in jack:
Power
AC input voltage:	100 - 240 V
Operating voltage:	24 V
Output current:	1.25 A
Power consumption (max):	12 W
Operational conditions
Operating temperature (T-T):	-5 - 55 °C
Storage temperature (T-T):	-25 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Weight & dimensions
Width:	145 mm
Depth:	90 mm
Height:	20 mm
Weight:	710 g
Receiver weight:	290 g
Transmitter weight:	275 g
Packaging data
Package width:	185 mm
Package depth:	160 mm
Package height:	130 mm
Package weight:	810 g
Packaging content
AC adapter included:
Manual:
Mounting kit:
