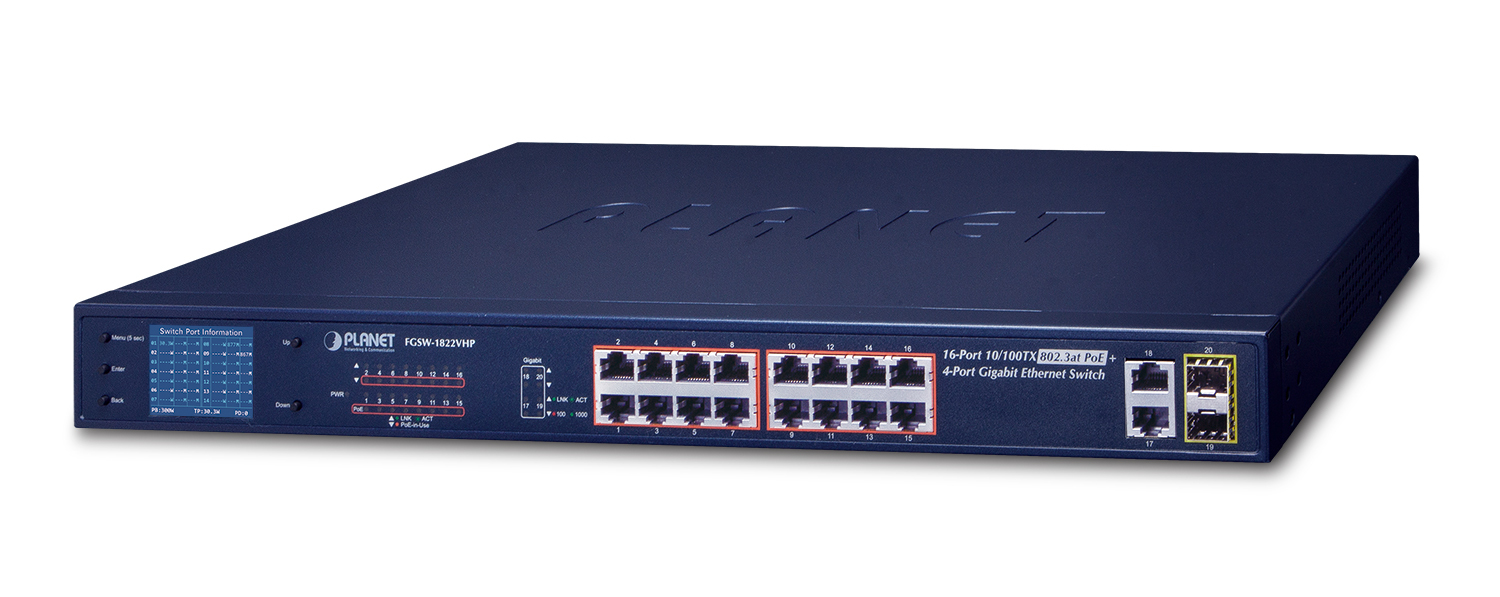

PLANET FGSW-1822VHP network switch Unmanaged Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Blue

Simple Plug and Watch for a Quick SolutionPLANET FGSW-1822VHP is an ideal Plug and Watch Power over Ethernet solution which provides quick installation, real-time PoE work status monitoring and immediate troubleshooting through its unique LCD display to improve work efficiency and quality without any PC or software required. The FGSW-1822VHP is equipped with 16 10/100BASE-TX ports with each port taking up 30 watts of PoE+ power and 2 Gigabit TP and 2 Gigabit SFP interfaces with inner power system. With a total PoE+ power budget of 300 watts and non-blocking data switching performance, the FGSW-1822VHP can fulfill the demand of sufficient PoE power for HD IP surveillance. It offers a desktop-sized, reliable and visible power solution for small businesses and system integrators deploying Power over Ethernet networks. Smart and Intuitive LCD ControlPLANET FGSW-1822VHP provides an intuitive color panel on its front panel that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks for enterprises, hotels, shopping malls, government buildings and other public areas, and feature the following special management and status functions:-PoE management and status-Port management and status-Switch mode: Standard, VLAN, Extend-Budget and bandwidth control-PD alive check-Maintenance: Screen saver, fan control, factory default and save configuration Standard, VLAN and Extend Operation ModesPLANET FGSW-1822VHP provides Standard, VLAN and Extend operation modes. The FGSW-1822VHP operates as a normal IEEE 802.3af/at PoE Switch in the Standard operation mode. The VLAN operation mode features the port-based VLAN function that can help to prevent the IP camera s multicast or broadcast storm from influencing each other. In the Extend operation mode, the FGSW-1822VHP operates on a per-port basis at 10Mbps duplex operation but can support 20-watt PoE power output over a distance of up to 250 meters overcoming the 100m limit on Ethernet UTP cable. With this brand-new feature, the FGSW-1822VHP provides an additional solution for 802.3af/at PoE distance extension, thus saving the cost of Ethernet cable installation. Its VLAN isolation function isolates ports so as to prevent broadcast storm and defend DHCP spoofing in the Extend operation mode. Flexible Extension SolutionThe two mini-GBIC slots built in the FGSW-1822VHP is compatible with the 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber transceiver, uplinked to the backbone switch and monitoring center in long distance. The distance can be extended from 550 meters to 10/20/30/40/50/60/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. Robust ProtectionThe FGSW-1822VHP provides contact discharge of ±6KV DC and air discharge of ±8KV DC for Ethernet ESD protection. It also supports ±6KV surge immunity to improve product stability and protects users networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Easy Installation and Cable ConnectionAs data and power are transmitted over one cable, the FGSW-1822VHP does not need a second cable and electrical outlets on the wall, ceiling or any unreachable place. Thus, it helps to lower the installation costs and simplify the installation effort. All the RJ45 copper interfaces of the FGSW-1822VHP support 10/100/1000Mbps auto-negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cable. It also supports standard auto-MDI/MDI-X that can detect the type of connection to any Ethernet device without requiring special straight-through or crossover cables.

Management features
Switch type:	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	16
Basic switching RJ-45 Ethernet ports type:	Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity:	16
Combo SFP ports quantity:	2
Network
Networking standards:	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support:
Copper ethernet cabling technology:	10BASE-T, 100BASE-TX, 1000BASE-T
Full duplex:
Flow control support:
Auto MDI/MDI-X:
Auto-negotiation:
MAC address auto-learning supported:
MAC address auto-aging supported:
VLAN support:
Virtual LAN features:	Tagged VLAN
Data transmission
MAC address table:	8000 entries
Switching capacity:	11.2 Gbit/s
Throughput:	8.3 Mpps
Store-and-forward:
Protocols
Supported network protocols:	IPv4 / IPv6
Design
Rack mounting:
Form factor:	1U
Product colour:	Blue
Housing material:	Metal
LED indicators:
Number of fans:	3 fan(s)
Certification:	FCC, CE
Power
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Input current:	5 A
Output current:	5 A
Power consumption (max):	330 W
Power protection features:	Short circuit
Power over Ethernet (PoE)
Power over Ethernet (PoE):
Power over Ethernet plus (PoE+) ports quantity:	16
Power over Ethernet (PoE) power per port:	30 W
Total Power over Ethernet (PoE) budget:	300 W
Operational conditions
Operating temperature (T-T):	-10 - 60 °C
Storage temperature (T-T):	-10 - 70 °C
Operating relative humidity (H-H):	10 - 90%
Storage relative humidity (H-H):	5 - 90%
Heat dissipation:	1132 BTU/h
Weight & dimensions
Width:	440 mm
Depth:	233 mm
Height:	44 mm
Weight:	3.4 kg
Logistics data
Harmonized System (HS) code:	85176990
