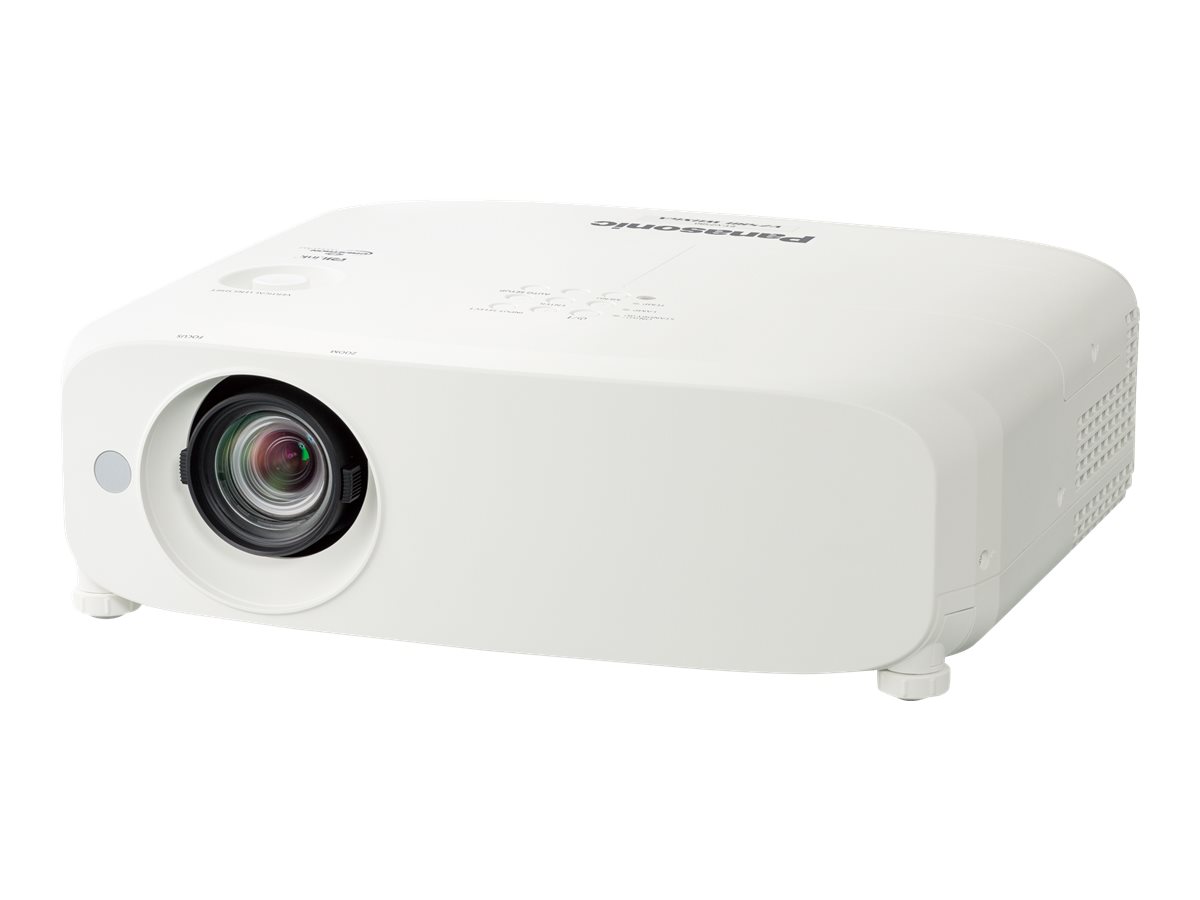

Panasonic PT-VZ580 data projector Standard throw projector 5000 ANSI lumens LCD WUXGA (1920x1200) White

Best Qualified for CollaborationGet the best of both worlds in a projector that works brilliantly as a high-brightness portable for large boardrooms, meeting spaces, and classrooms, or as an easily managed ceiling installation solution thanks to single-cable DIGITAL LINK. However it's used, there's full wireless media casting support so everybody can serve punchy, pin-sharp pictures in well-lit spaces.Deep Imaging PowerBoosted Picture Quality with Up to 5,500 lm and 16,000:1 ContrastWUXGA (1920 x 1200 pixel) resolution native to the PT-VZ585N/VZ580/VZ470 brings crisp Full HD to meeting spaces and classrooms for immersive viewing. With brightness of up to 5,500 lm and a class-leading 16,000:1 contrast ratio, your audience is treated to vivid colors, inky blacks, pure highlights, and clearly legible text reproduction even in bright conditions.6-Colors Adjustment and Color Correction FunctionsCorrect slight color variations in the reproduction range of individual units set up for multi-projection. This is particularly useful for side-by-side configurations delivering ultra-wide-screen pictures. Very large images can be seamlessly presented in auditoriums and boardrooms.Efficient Low-Maintenance DesignLess maintenance is not only good for your budget, but also the environment. Air filter replacement cycle is at a class-leading 7,000 hours, and the unit can be washed and reused twice to minimize waste. Lamp life is also pushed out to 7,000 hours in ECO2 mode, meaning part refreshment can be performed together with filter maintenance to reduce downtime.Daylight View BasicPanasonic technology assures sharp and comfortably viewed images even with the blinds open by enhancing fine details (particularly in dark areas of the image) that are normally difficult to see in bright rooms. A built-in sensor measures ambient light while Daylight View Basic adjusts halftone color and brightness to suit ambient illumination.Quiet OperationTechnologies combine to keep noise levels down to just 29 dB, so the sound of the cooling fan is less distracting. This helps to keep attention focused on the presentation and quiet video scenes.Comprehensive Wireless SupportSupports Multiple Display ModesEasily control how content on your device is displayed on the big screen by selecting the appropriate mode.Selectable ChannelsSelectable 5 GHz/2.4 GHz channels are offered to provide a stable connection in rooms with network congestion or radio interference.Apps Support Any DevicePanasonic offers free applications for smartphones, tablets, and personal computers enabling 3-step connection to get your media on the big screen swiftly and easily. Further, a new plug-and-share feature allows your to cast from PC without software or driver installation.Plug and ShareInsert a USB memory device into the projector port. In less than a minute, configuration setting files and an application are copied. Plug the USB memory device into your PC, click the player icon, and transmit video and stills wirelessly to the projector no software or network setup required.Wireless Manager ME 6.4Included Panasonic Wireless Manager software for Mac and Windows PC lets you cast media from the screen of your computer via wireless LAN with a host of display options right at your fingertips.Wireless ProjectorDedicated apps for iOS and Android devices feature simple 3-step initial connection and support a variety of media and business document transmission. These apps also allow SSID and key information to be easily obtained via a QR Code that s projected on a standby screen, again saving on setup time.Easy Wireless Stick (Optional)Supporting a full suite of features and eliminating the need for software installation, the Easy Wireless Stick dongle lets you plug and project from PC. After one-time initial setup, projection is automatic, and the device will display images from up to 16 computers at once, and is compatible with Windows 10.Multi-Projector ModeApplications for PC, iOS, Android, and the optional Easy Wireless Stick dongle support Multi-Projector Mode. This function enables media display from up to 16 different devices in split-screen configuration. You can also transmit content from one PC to up to eight projectors or displays.DIGITAL LINK ConnectionDIGITAL LINK transmits uncompressed video, audio, and control commands through a single CAT 5e or higher STP cable for distances of up to 150 m (492 ft). Optional DIGITAL LINK Switcher or Digital Interface Box further simplifies installation, reduces cabling and associated costs, and enhances reliability.Memory ViewerYou don't need a computer to start presenting just insert a USB memory device containing media and start projecting straight away. This includes Full HD video as well as still images. A simple Graphical User Interface (GUI) assures a smooth and stress-free presentation.Supports IEEE802.1X ProtocolOnly authenticated users can connect to the IEEE802.1X network (EAP over LAN), preventing access by unauthorized users. Compatible projectors support IEEE802.1X protocol over wired or wireless LAN.Free and Flexible Installation1.6x Zoom Lens and Lens Shift FunctionZoom lens allows you to project from wide range of distances from tabletops or ceiling. Use vertical lens shift to quickly adjust image position without distortion.Quick Lamp and Filter ReplacementFor convenience, the filter can be replaced via the side and the lamp from the top of the projector. There s no need to remove the unit from its ceiling mount for periodic maintenance.Auto Screen Image RotationImages are automatically rotated depending on installation orientation upside down on the ceiling or set on a table using a built-in angle sensor.Easy Geometric Adjustment FunctionHorizontal, vertical, and corner keystone correction adjusts the image shape for clear visibility when projecting off-axis or from an unusual angle. Curved Screen Correction allows for the projection of natural, distortion-free images onto curved or cylindrical surfaces.USB Display FunctionInstall Wireless Manager software on your PC, connect computer and projector with a USB cable, and Wireless Manager will automatically start up and output media (including audio) to the projector.

Projector
Projector brightness:	5000 ANSI lumens
Projection technology:	LCD
Projector native resolution:	WUXGA (1920x1200)
Contrast ratio (typical):	16000:1
Native aspect ratio:	16:10
Screen size compatibility:	762 - 7620 mm (30 - 300")
Projection distance:	0.76 - 7.62 m
Number of colours:	16.78 million colours
Uniformity:	85%
Optical axis:	44%
Keystone correction, horizontal:	-30 - 30°
Keystone correction, vertical:	-25 - 25°
Matrix size:	1.63 cm (0.64")
Heat dissipation:	1399 BTU/h
Light source
Light source type:	Lamp
Service life of light source:	5000 h
Service life of light source (economic mode):	6000 h
Lamp type:	UHM
Lamp power:	280 W
Lamps quantity:	1 lamp(s)
Lens system
Focus:	Manual
Focal length range:	15.3 - 24.64 mm
Aperture range (F-F):	1.6 - 2.12
Zoom capability:
Zoom type:	Manual
Zoom ratio:	1.6:1
Throw ratio:	1.09 - 1.77:1
Video
Analog signal format system:	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Full HD:
3D:
Supported graphics resolutions:	640 x 400, 640 x 480 (VGA), 720 x 480, 720 x 576, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1152 x 870, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1366 768, 1400 x 1050 (SXGA+), 1400 x 900, 1600 x 1200 (UXGA), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes:	480i, 480p, 720p, 1080i, 1080p
Ports & interfaces
VGA (D-Sub) ports quantity:	2
HDMI ports quantity:	2
Composite video in:	1
Component video (YPbPr/YCbCr) in:	1
DVI port:
USB 2.0 ports quantity:	1
Serial interface type:	RS-232C
PC Audio in:
AC (power) in:
Network
Ethernet LAN:
Wi-Fi:
Ethernet LAN (RJ-45) ports:	1
Ethernet LAN data rates:	100 Mbit/s
Storage
Card reader integrated:
Features
Noise level:	37 dB
Noise level (economic mode):	35 dB
HDCP:
Dot clock scanning frequency:	162 MHz
Multimedia
Built-in speaker(s):
RMS rated power:	10 W
Number of built-in speakers:	1
Design
Product type:	Standard throw projector
Product colour:	White
Housing material:	Plastic
Placement:	Desktop, Ceiling
Cable lock slot:
Cable lock slot type:	Kensington
Display
Built-in display:
Power
Power source:	AC
Power consumption (typical):	410 W
Power consumption (standby):	8 W
AC input voltage:	100 - 240 V
AC input frequency:	50 - 60 Hz
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	20 - 80%
Operating altitude:	0 - 2700 m
Weight & dimensions
Weight:	4.8 kg
Width:	389 mm
Depth:	332 mm
Height:	125 mm
Packaging content
Remote control included:
Batteries included:
Cables included:	AC
Manual:
Logistics data
Harmonized System (HS) code:	85286200
Other features
RS-232 ports:	1
RS-232C:
