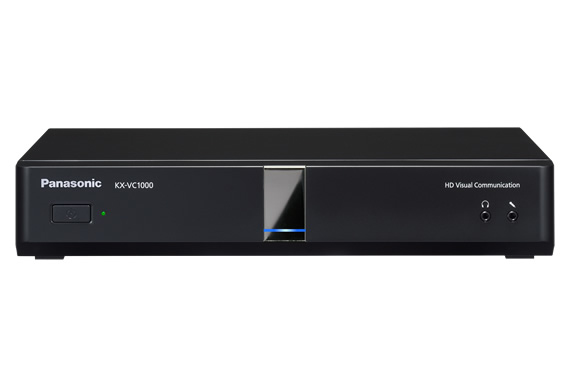

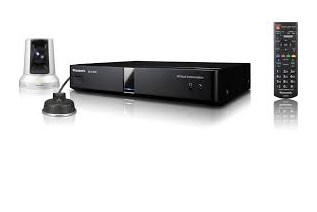

Panasonic KX-VC1000 video conferencing system Ethernet LAN

Panasonic's HD Visual Communications System reduces initial costs while enabling multi-site connection. Its high image and sound quality is another very appealing point. And it allows people to participate in videoconferences from just about anywhere via mobile devices.- Point to Point Connection- Multicast- Participation in videoconferences using mobile devices- Meetings can be held while displaying images of the other party's site and PC data each on one of two monitors. (Optional license is required.)- Broadband Stereo Full Duplex Audio- High quality video Full-HD 1080/60p- The Rate Control function adjusts data traffic based on network congestion- Remote Camera Control- Smooth 2-way conversation with broadband stereo and unique Echo Canceller- Easy-to-understand remote lectures and seminars are conducted at multiple sites- Connect to a sub-camera to share zoom and still images- Other brand device compatibility and MCU interoperability- Low Bandwidth Communication Support- External Control Interface- NAT/FW Traversal

Performance
PTZ control:
Video
Supported video modes:	240p, 480p, 576p, 720p, 1080p
Supported graphics resolutions:	176 x 144, 320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 768 x 432, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1920 x 1080 (HD 1080)
Maximum frame rate:	60 fps
Aspect ratio:	16:9
Video formats supported:	H.261, H.263, H.264
Audio
Voice codecs:	G.711, G.722, G.722.1, G.722.1C
Noise reduction:
Echo cancellation:
Automatic gain control:

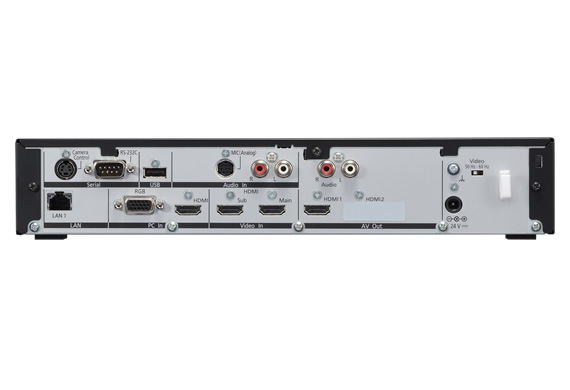

Ports & interfaces
VGA (D-Sub) ports quantity:	1
HDMI ports quantity:	4
USB 2.0 ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
RS-232 ports:	1
AC (power) in:
Network
Ethernet LAN:
Ethernet LAN data rates:	100 Mbit/s
Supported network protocols:	TCP/IPv4, TCP/IPv6, UDP/IPv4, UDP/IPv6, DHCP, DNS, HTTP, HTTPS, TELNET, NTP
Security algorithms:	128-bit AES, SRTP
Web-based management:
Management protocols:	HTTP CGI, TELNET
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Operating relative humidity (H-H):	10 - 90%
Power
AC input voltage:	100-240 V
AC input frequency:	50 - 60 Hz
Current:	1.4 A
Packaging content
Remote control included:
Camera included:
Microphone included:
User guide:
Manual:
