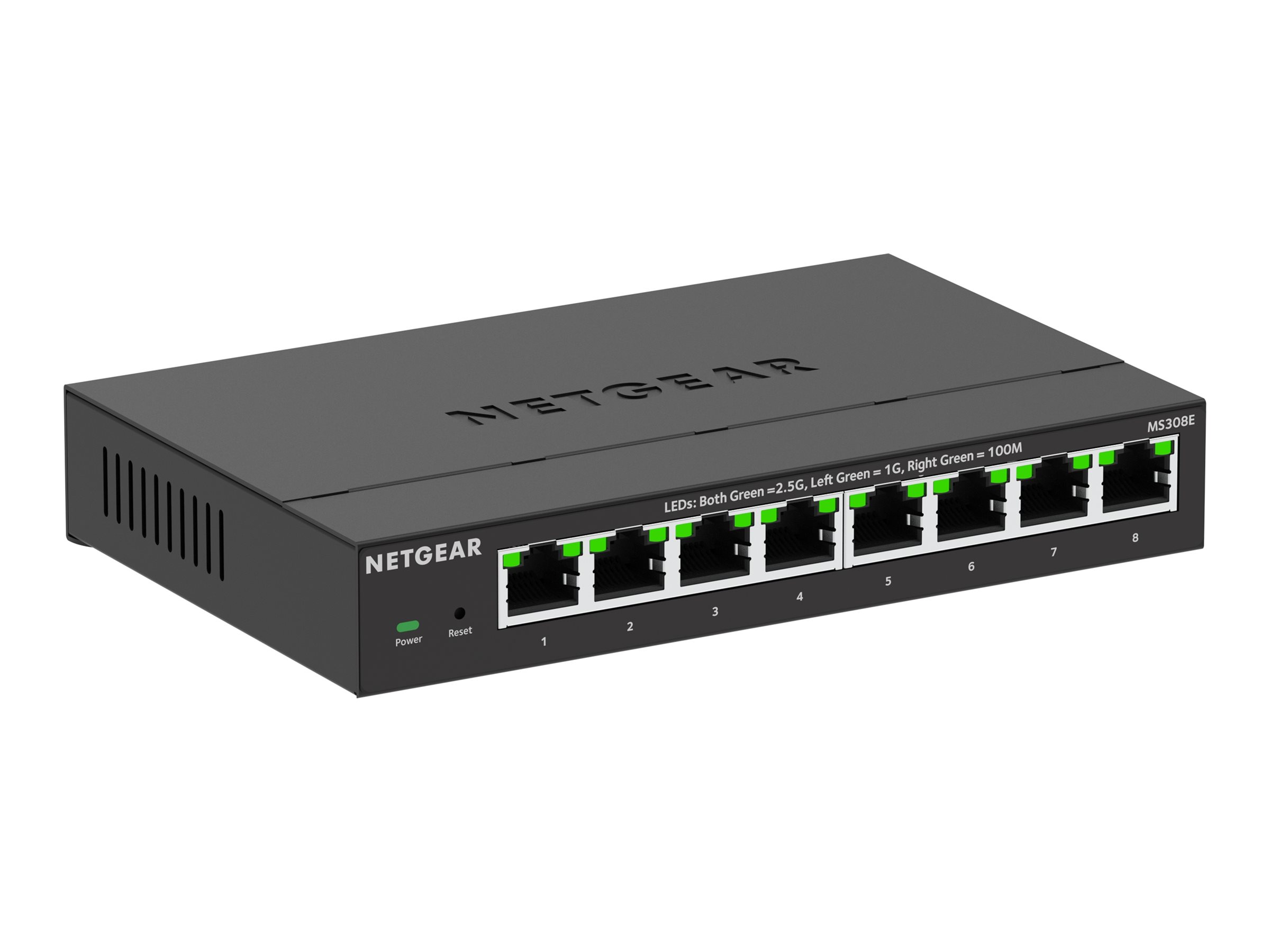

NETGEAR MS308E Unmanaged 2.5G Ethernet (100/1000/2500) Black

NETGEAR 8-port 2.5G Multi-Gigabit Ethernet Plus Switch

MULTI-GIGABIT ETHERNET
8 ports provide up to 2.5 Gbps of dedicated, non-blocking bandwidth each

NON-BLOCKING SWITCHING
40Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices

AUTO-NEGOTIATION
Automatic connection at the highest common speed between the switch and an end device

FANLESS DESIGN
Silent operation makes this switch perfect for noise-sensitive environments

VERSITILE MOUNTING OPTIONS
Install your switch on your desktop or mount it to your wall with the hardware provided in the box

ENERGY EFFICIENT
Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected

Management features
Switch type:	Unmanaged
Quality of Service (QoS) support:	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity:	8
Basic switching RJ-45 Ethernet ports type:	2.5G Ethernet (100/1000/2500)
Network
Networking standards:	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
10G support:	No
Full duplex:	Yes
Half duplex:	Yes
Auto MDI/MDI-X:	Yes
Head-of-line (HOL) blocking:	Yes
Ethernet LAN data rates:	100,1000,2500 Mbit/s
Cable length detection:	Yes
Data transmission
MAC address table:	16000 entries
Switching capacity:	40 Gbit/s
Forwarding rate:	3.72 Mpps
Latency (1 Gbps):	4.9 µs
Jumbo frames support:	Yes
Jumbo frames:	12288
Packet buffer memory:	1 MB
Design
Rack mounting:	No
Stackable:	No
Product colour:	Black
Housing material:	Metal
LED indicators:	Yes
Wall mountable:	Yes
Number of fans:	0 fan(s)
Performance
Noise level:	0 dB
Fanless:	Yes
Mean time between failures (MTBF):	3309911 h
Power
Power source:	DC
Power supply included:	Yes
DC input voltage:	12 V
Input current:	1 A
Input voltage:	12 V
Power consumption (max):	8.1 W
Power over Ethernet (PoE)
Power over Ethernet (PoE):	No
Other features
Warranty period:	5 year(s)
Operational conditions
Operating temperature (T-T):	0 - 40 °C
Storage temperature (T-T):	-20 - 70 °C
Operating relative humidity (H-H):	0 - 90%
Storage relative humidity (H-H):	0 - 95%
Operating altitude:	0 - 3000 m
Heat dissipation:	8.27 BTU/h
Weight & dimensions
Width:	158 mm
Depth:	101 mm
Height:	27 mm
Weight:	430 g
Certificates
Compliance certificates:	CCC, Low Voltage Directive (LVD)
