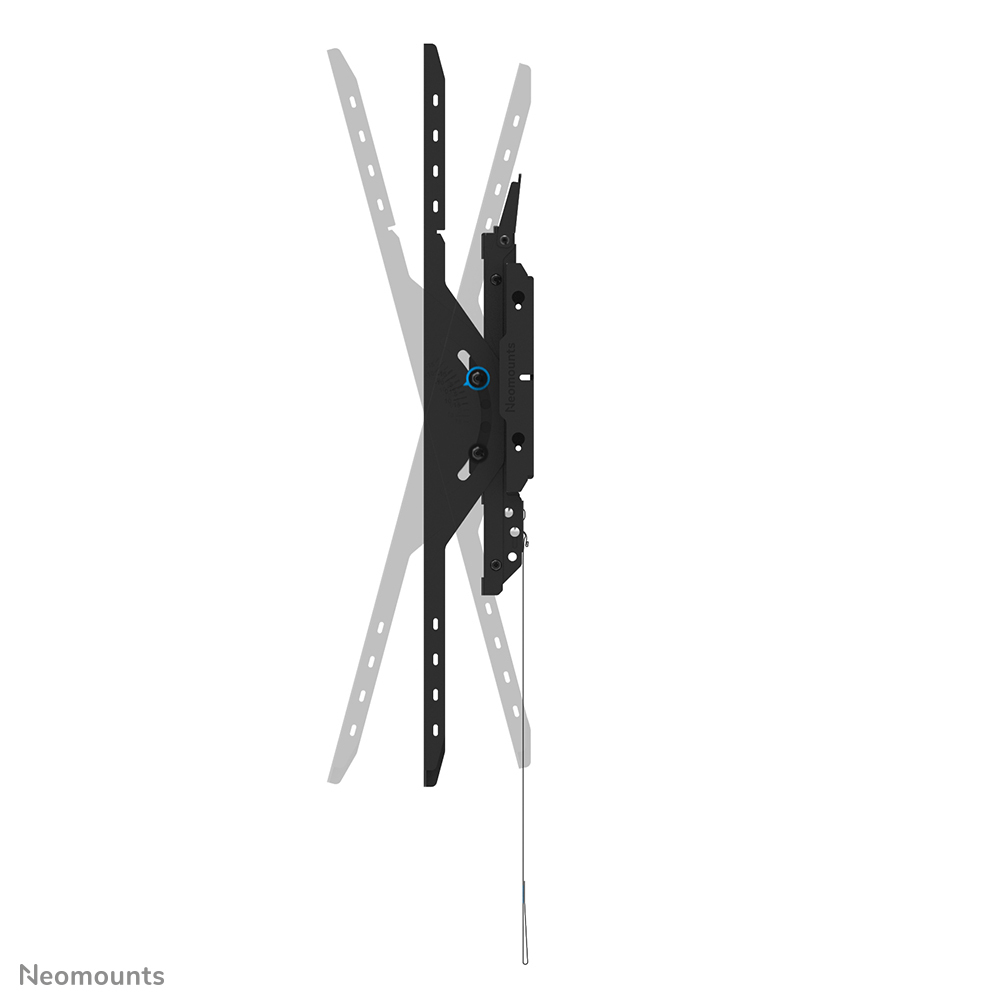

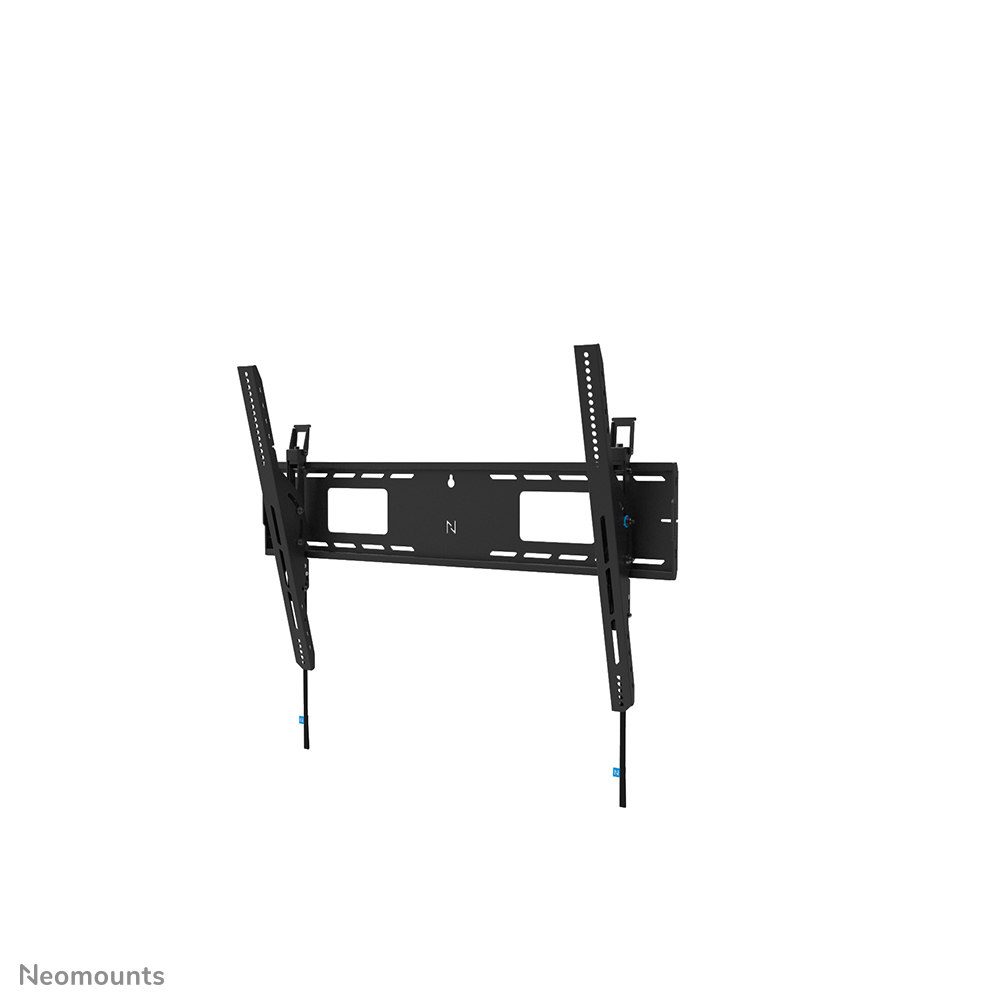

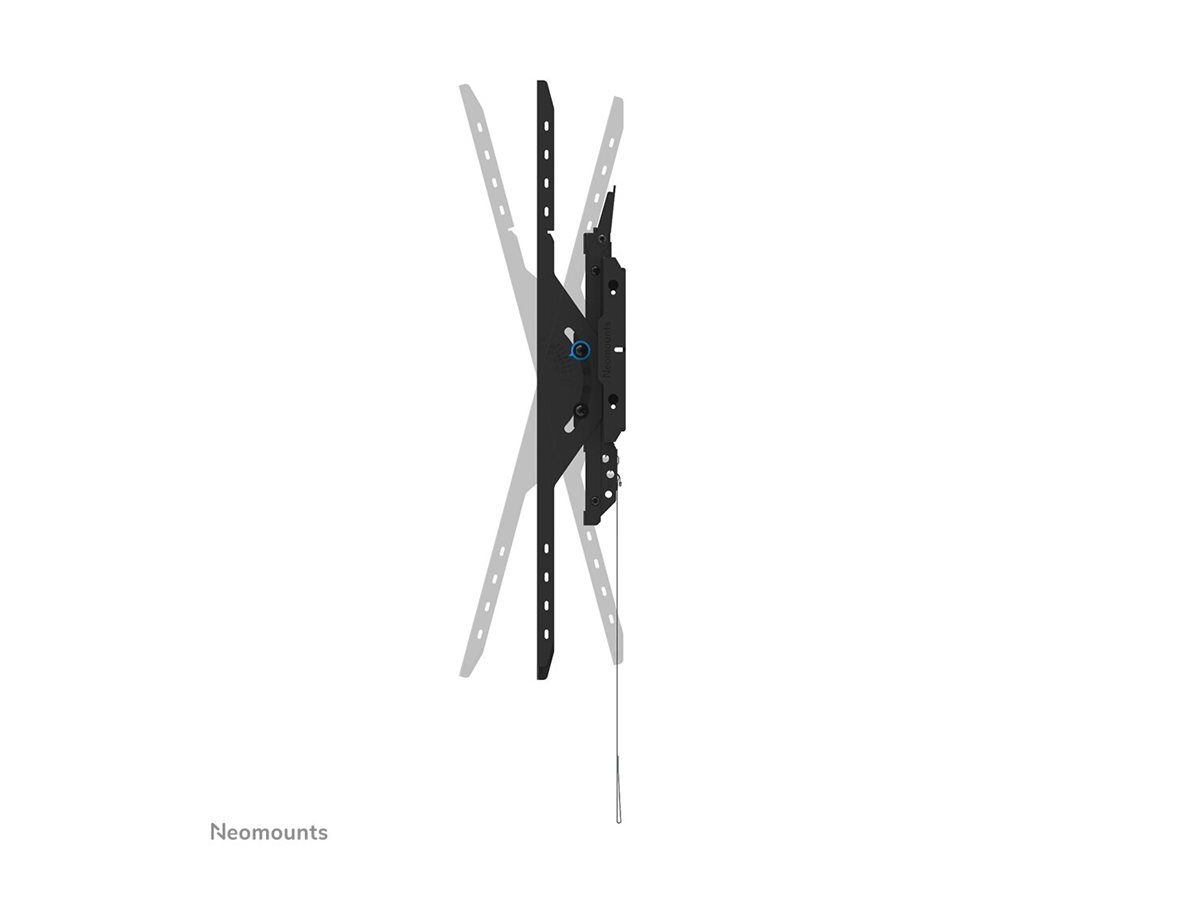

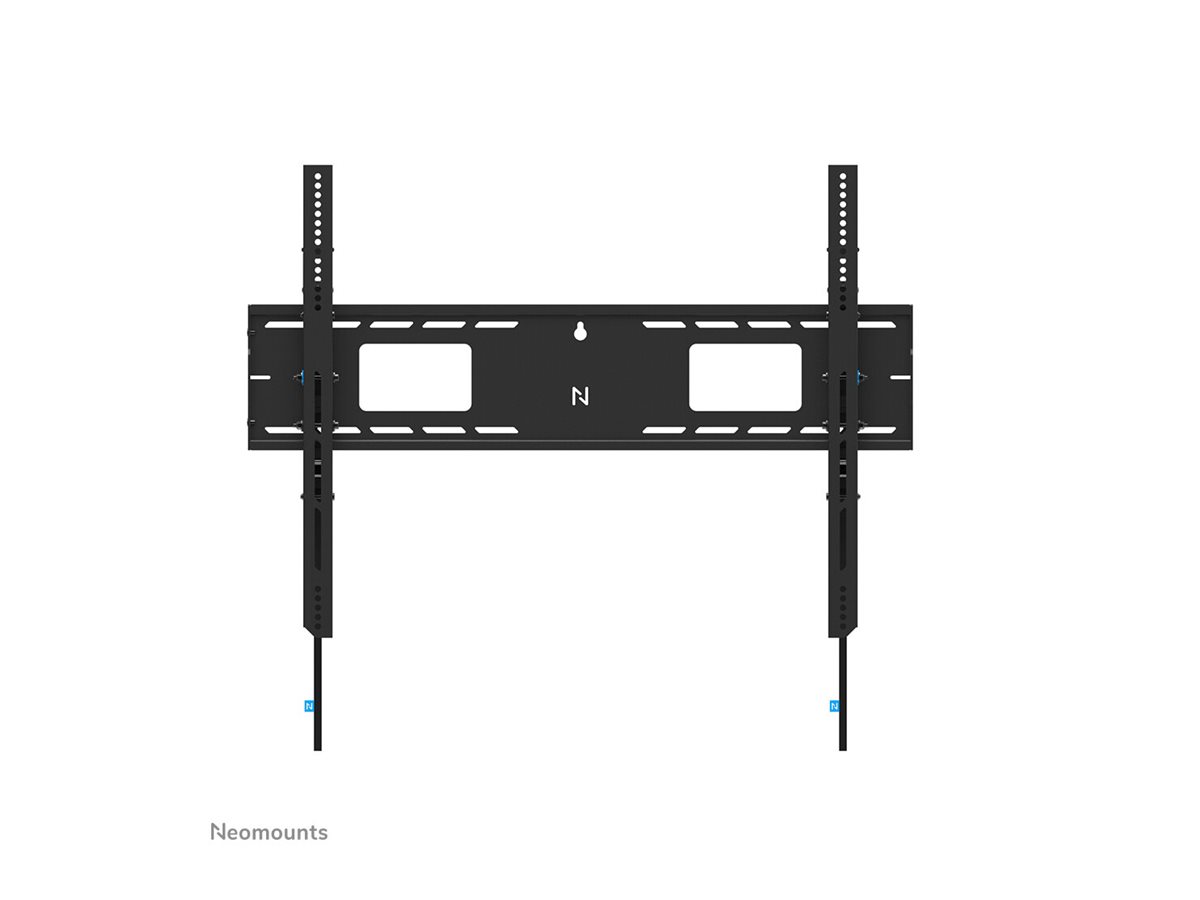

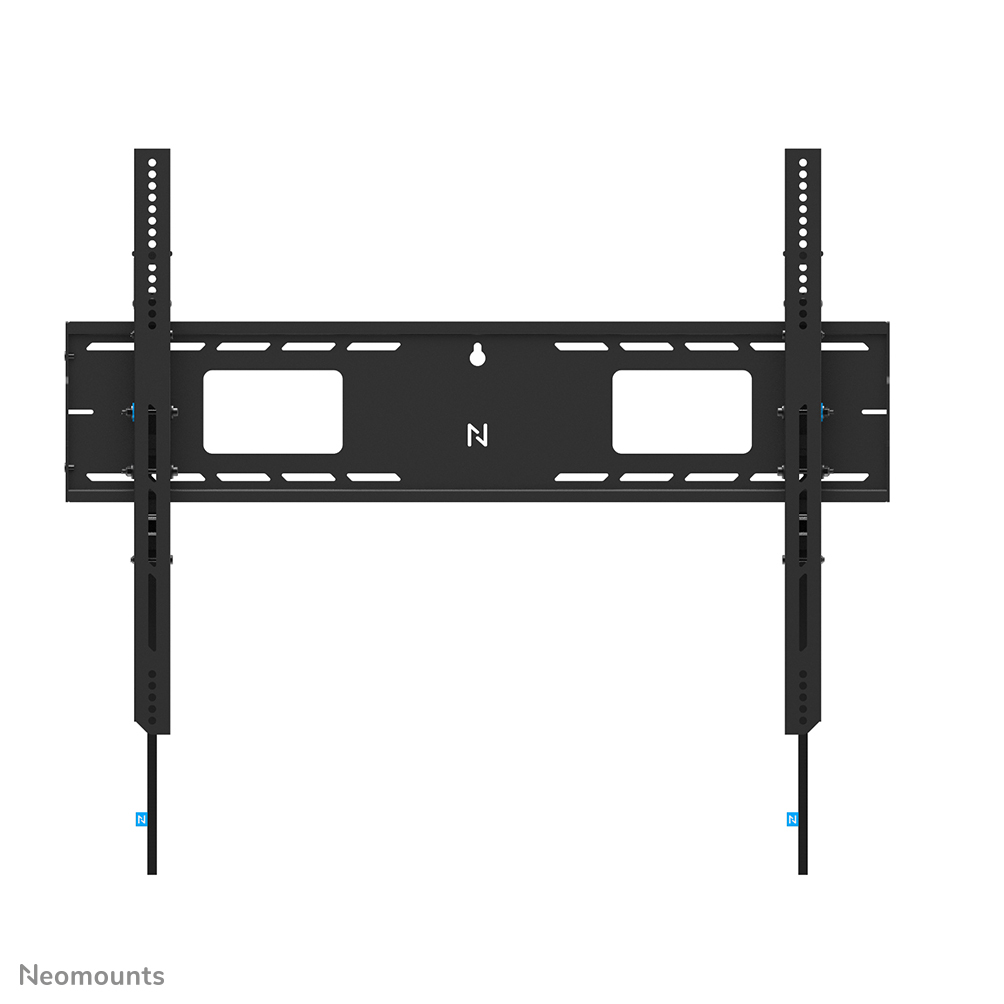

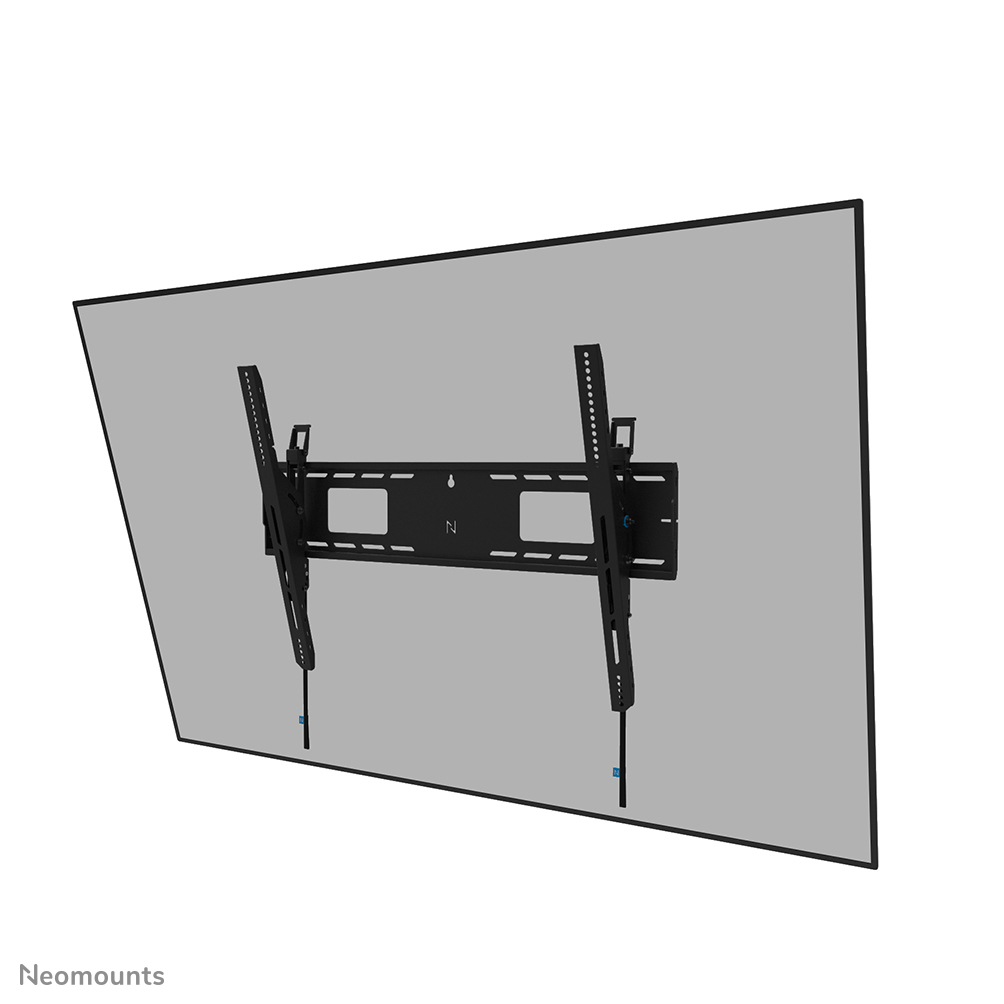

The Neomounts WL35-750BL18 LEVEL is the ultimate tiltable solution for securely mounting an interactive or heavy weight display up to 98" with a maximum capacity of 125 kg. The toolless tilt adjustment (+15°/-15°) allows you to create the optimum viewing angle. This heavy-duty wall mount features a sturdy high profile wall plate and is engineered for stability and precision, ensuring your screen is securely mounted even on uneven surfaces. The mount features individual adjustable brackets (10 mm) for securely adjusting the display height or levelling it.

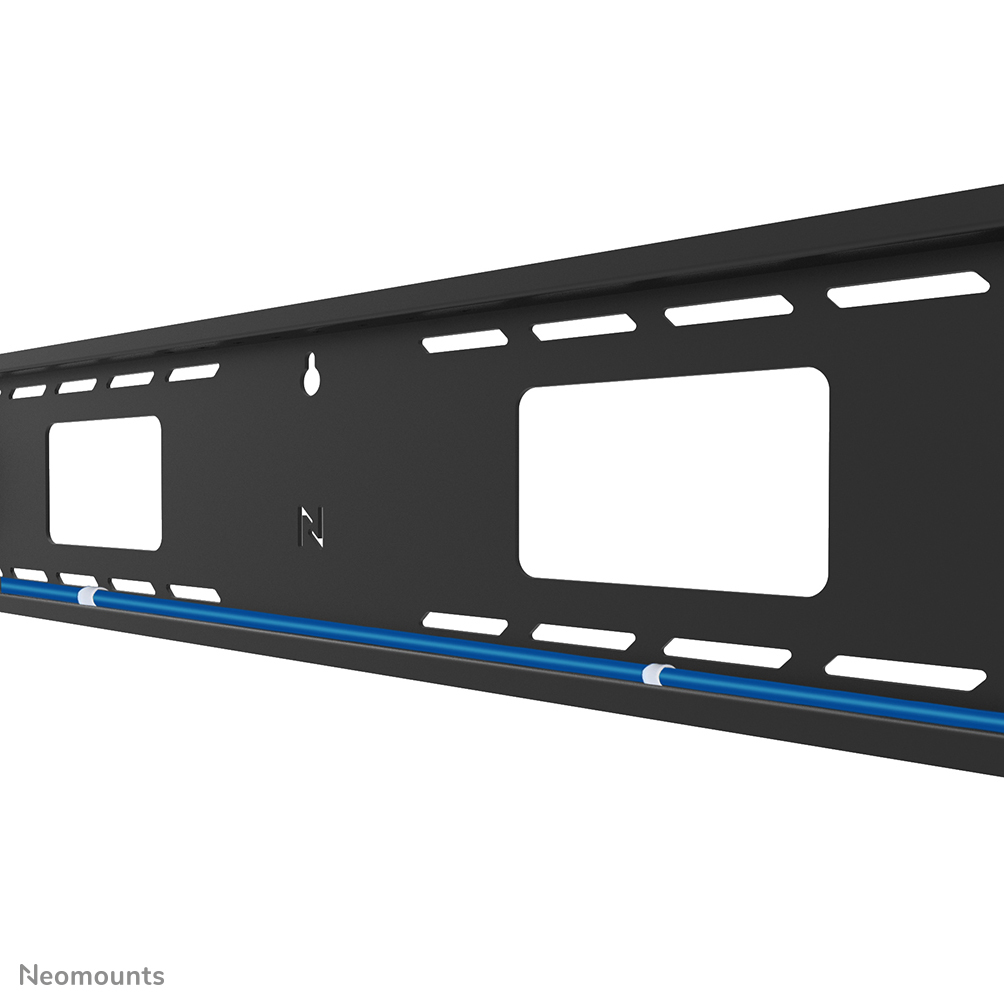

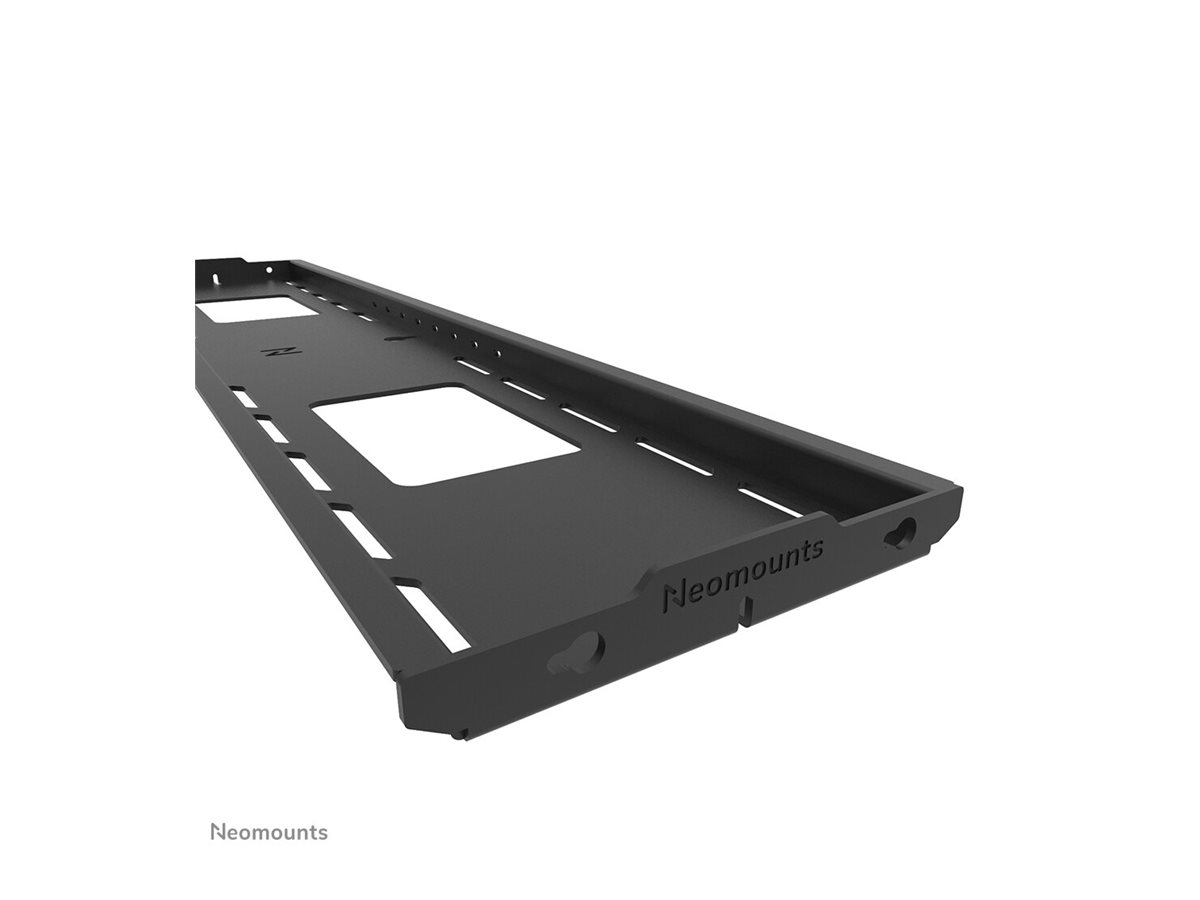

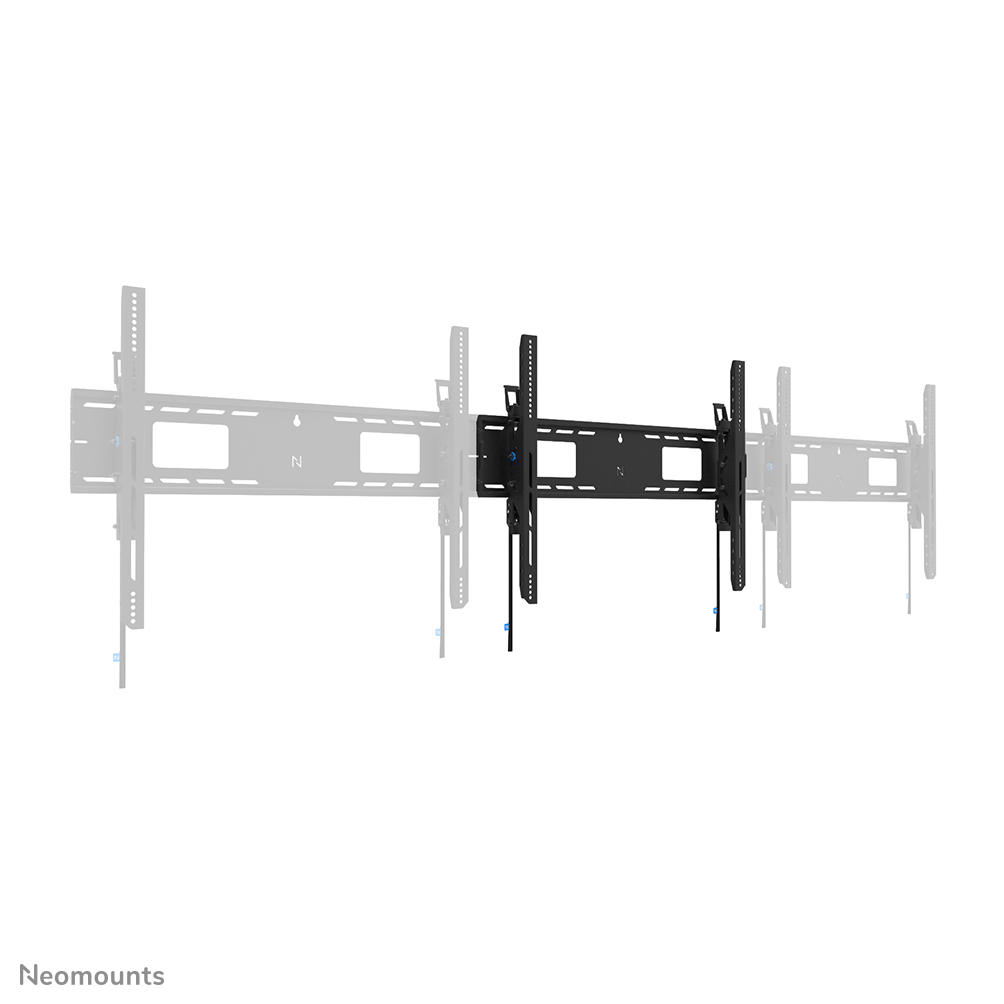

The LEVEL-750 wall mount has a profile of 9,3 cm and is suitable for screens that meet VESA hole pattern 100x100 to 800x600 mm. Its quickly connectable wall plate allows for multiple screen mounting. Additionally, the wall plate is designed with specific cut-outs for wall sockets and securing devices and cables. It features various perforated holes for easy tie-wrap cable fixing and provides space for cable storage, ensuring a clean and tidy finishing.

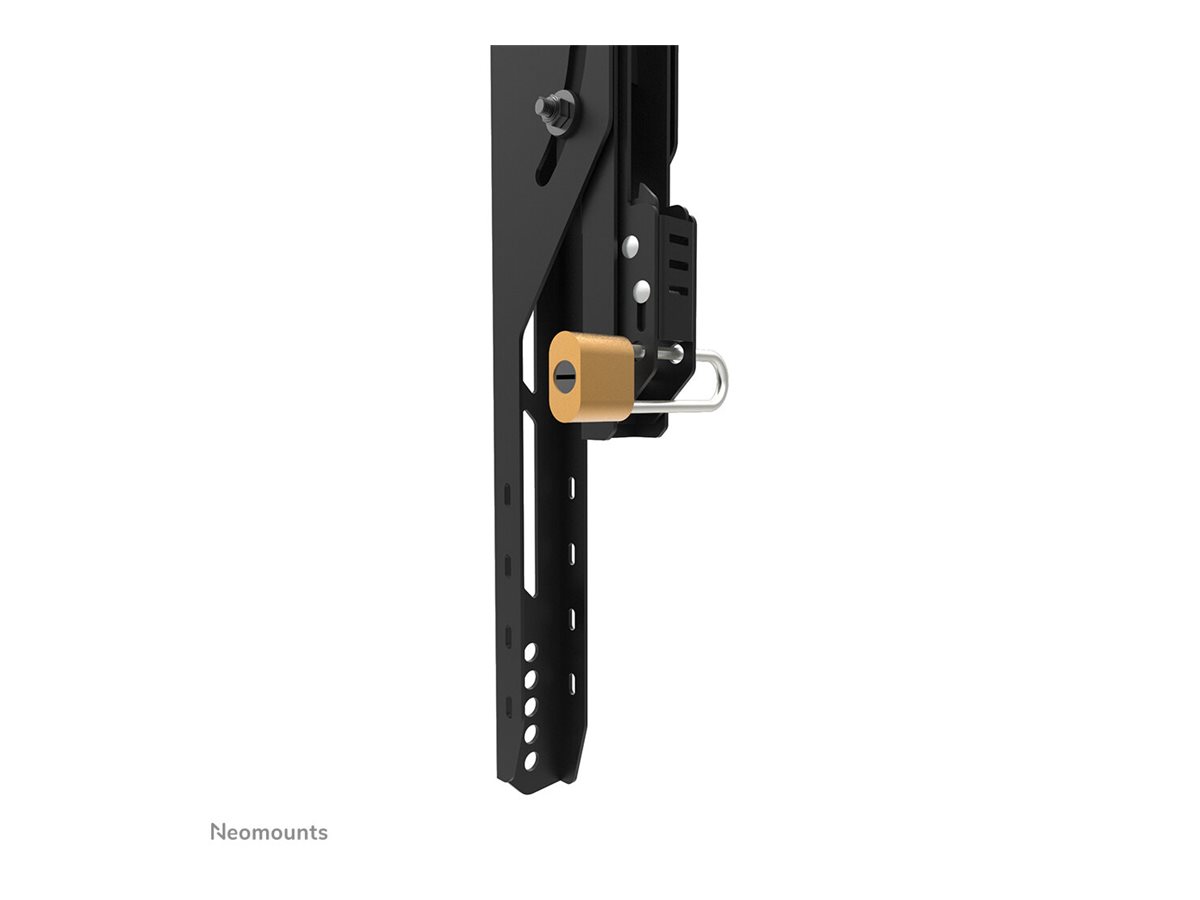

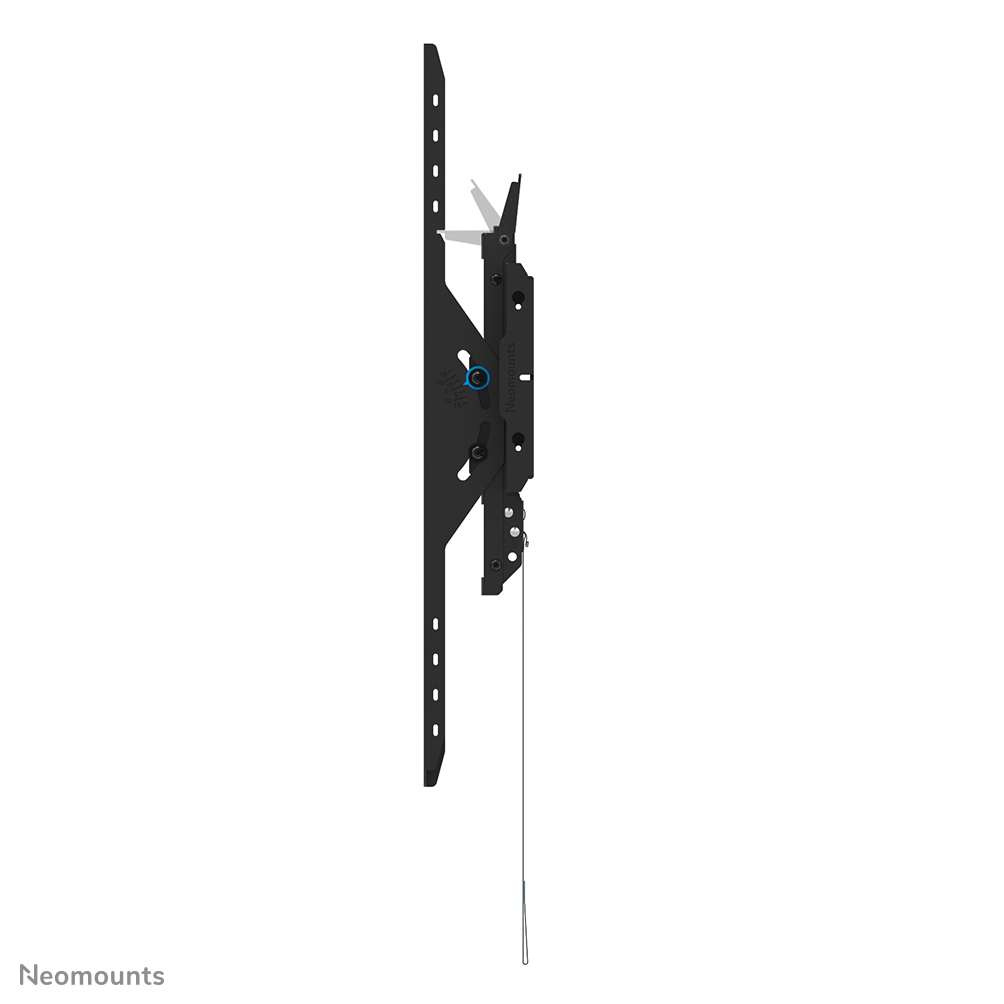

The WL35-750BL18 includes a safe and practical pull & release system, allowing you to quickly attach and detach the display in a safe and secure manner. The tilt-lock prevents the display from tilting upwards when attaching it on or detaching it from the mount to enable a safe install. It is possible to lock the bracket using a padlock (not included) for extra screen security.
For a simple and effective storage, an optionally available, AV-rack can be installed to the left or right side of the mount.
| Mounting | |
| Maximum weight capacity: | 125 kg |
| Maximum screen size: | 2.49 m (98") |
| Mounting type: | Wall |
| Minimum VESA mount: | 100 x 100 mm |
| Maximum VESA mount: | 800 x 600 mm |
| Minimum screen size: | 109.2 cm (43") |
| Panel mounting interface: | 100 x 100,100 x 150,100 x 200,120 x 120,200 x 100,200 x 200,200 x 300,200 x 400,300 x 100,300 x 200,300 x 300,350 x 350,400 x 200,400 x 300,400 x 400,400 x 500,400 x 600,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,600 x 500,600 x 600,680 x 300,800 x 200,800 x 400,800 x 500,800 x 600 |
| Number of displays supported: | 1 |
| Ergonomics | |
| Height adjustment: | Yes |
| Height adjustment range: | 0 - 10 mm |
| Tilt adjustment: | Yes |
| Tilt angle range: | -15 - 15° |
| Cable management: | Yes |
| Distance to the wall (max): | 9.3 cm |
| Design | |
| Product colour: | Black |
| Housing material: | Steel |
| Technical details | |
| Country of origin: | China |
| Weight & dimensions | |
| Width: | 886 mm |
| Depth: | 93 mm |
| Height: | 684 mm |
| Packaging data | |
| Package width: | 928 mm |
| Package depth: | 102 mm |
| Package height: | 209 mm |
| Logistics data | |
| Master (outer) case width: | 946 mm |
| Master (outer) case length: | 227 mm |
| Master (outer) case height: | 324 mm |
| Master (outer) case gross weight: | 26.3 kg |
| Master (outer) case net weight: | 20.4 kg |
| Products per master (outer) case: | 3 pc(s) |
| Harmonized System (HS) code: | 7326909890 |
| Products per pallet (EU): | 39 pc(s) |
| Lockable: | Padlock not included |
