- Details

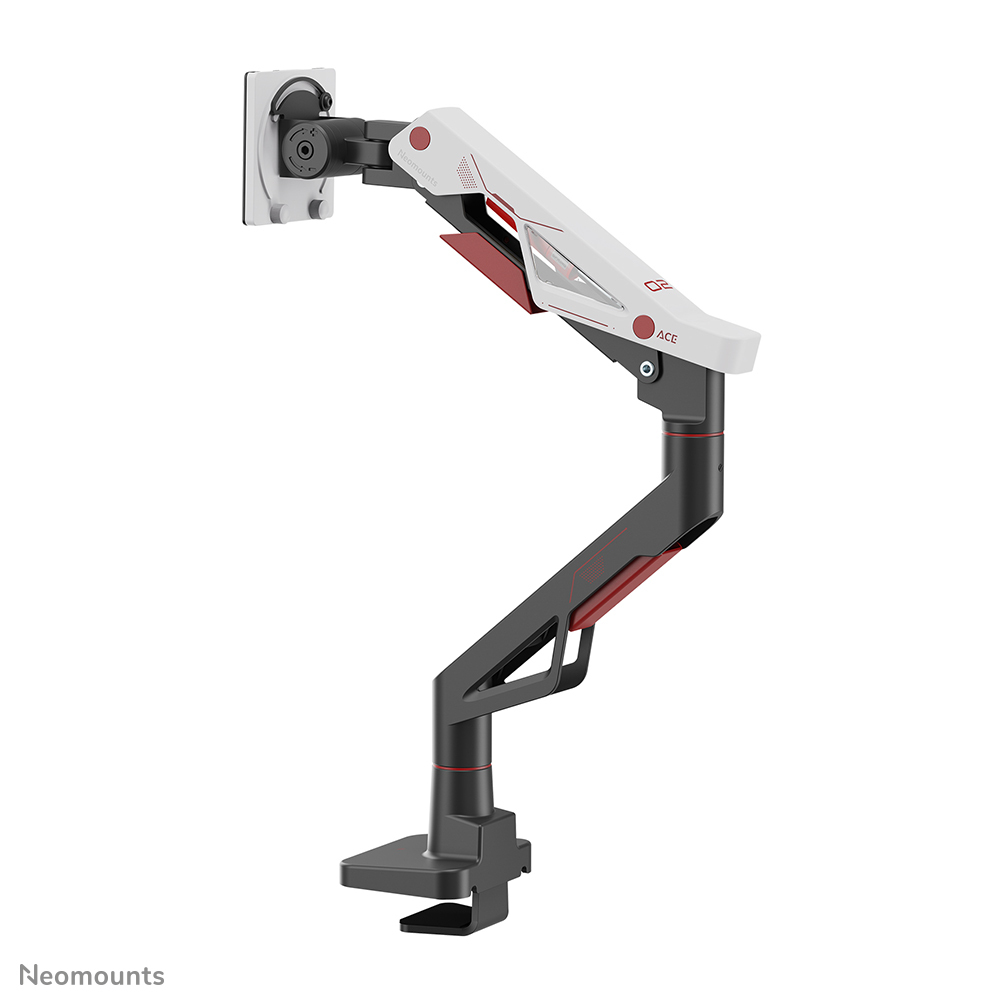

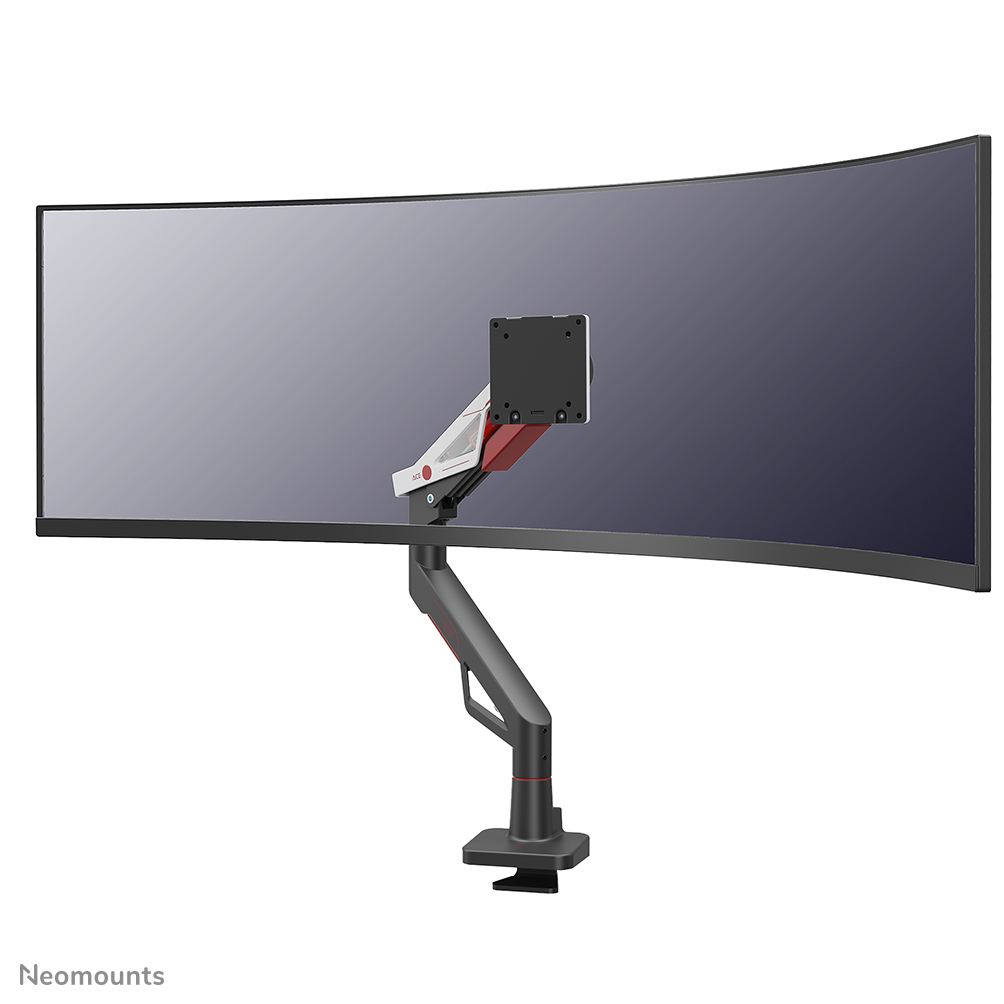

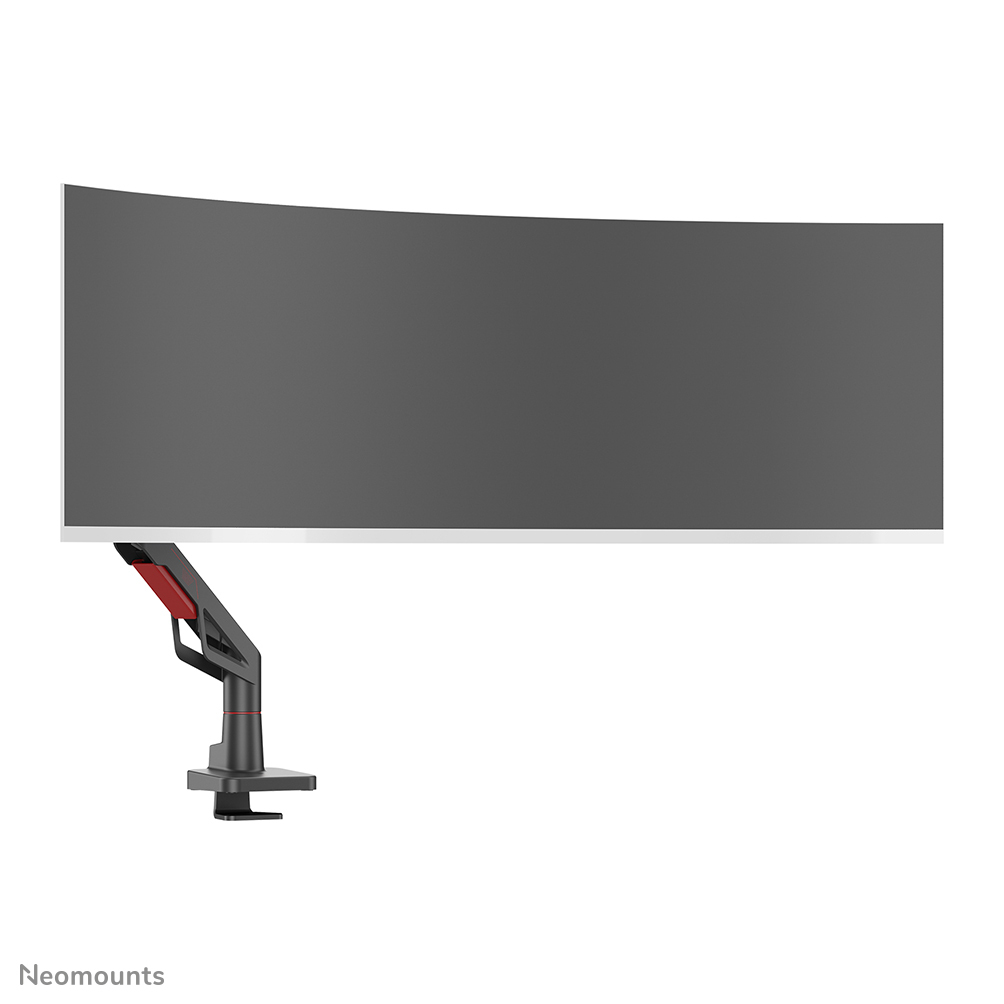

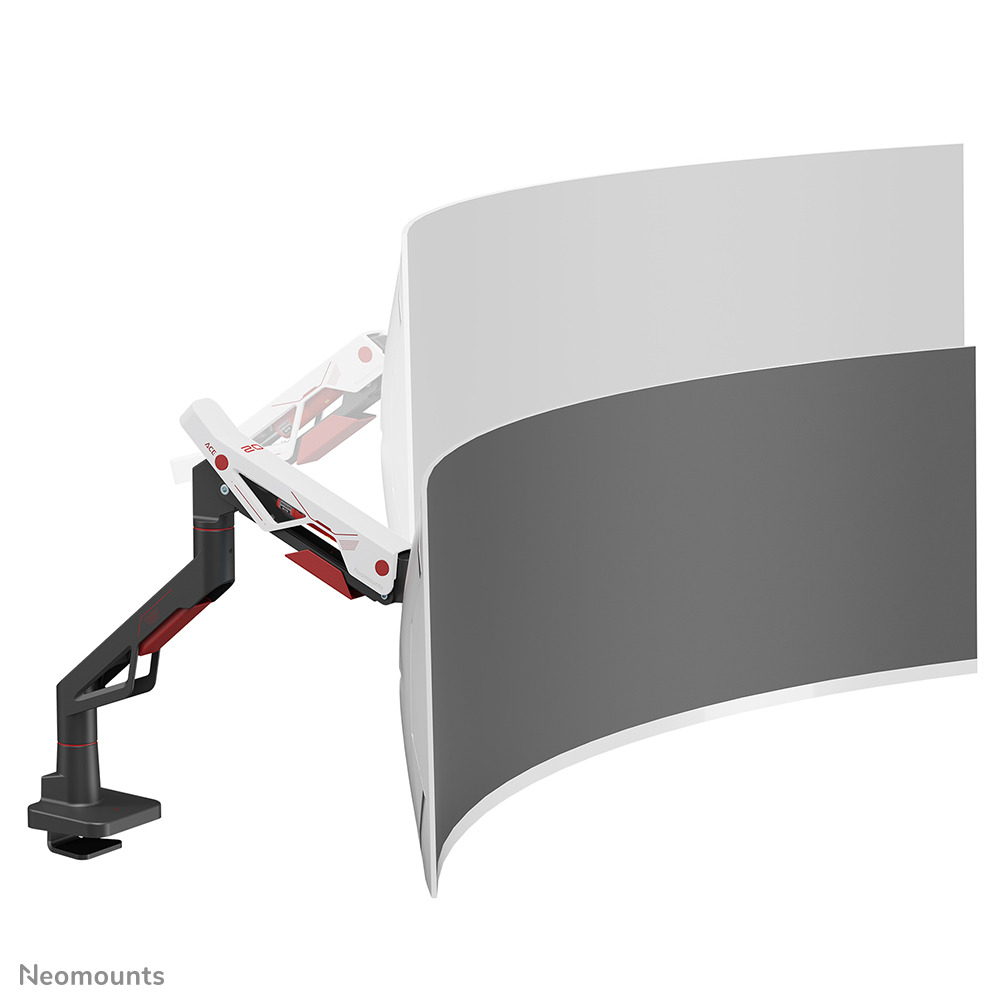

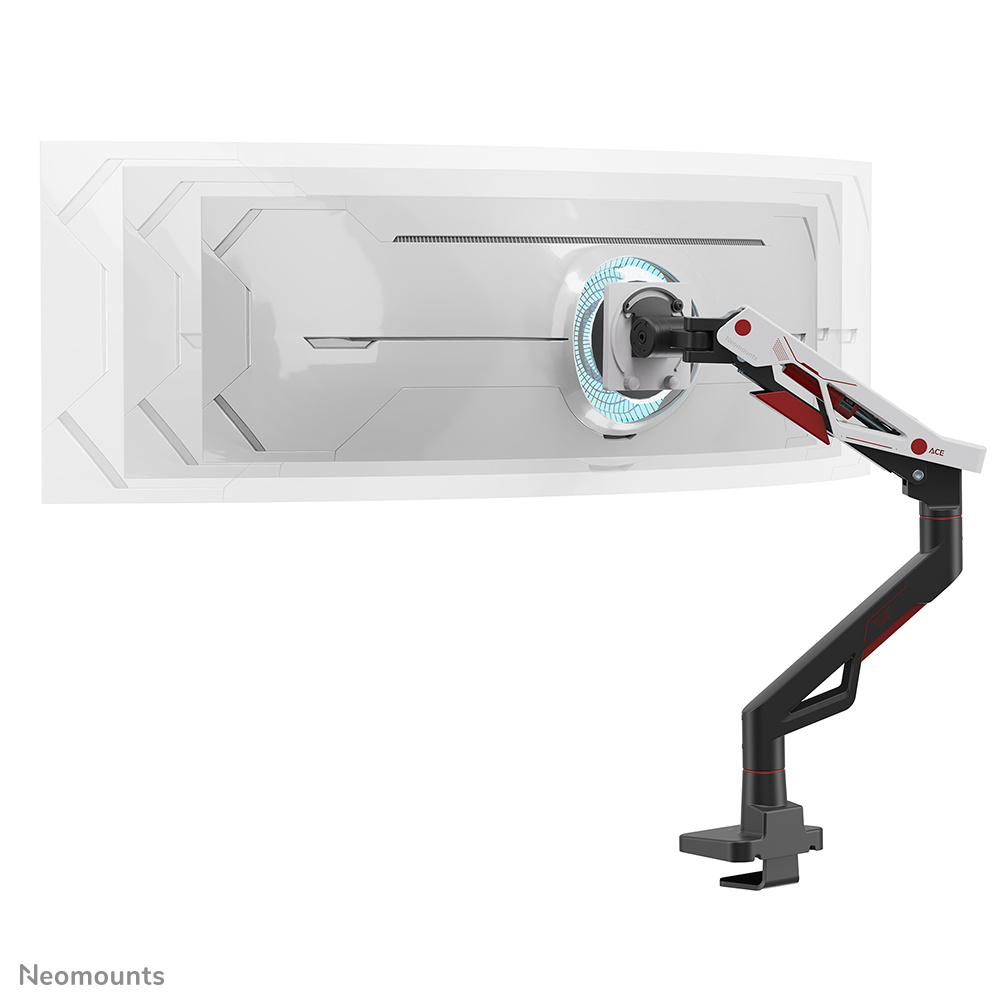

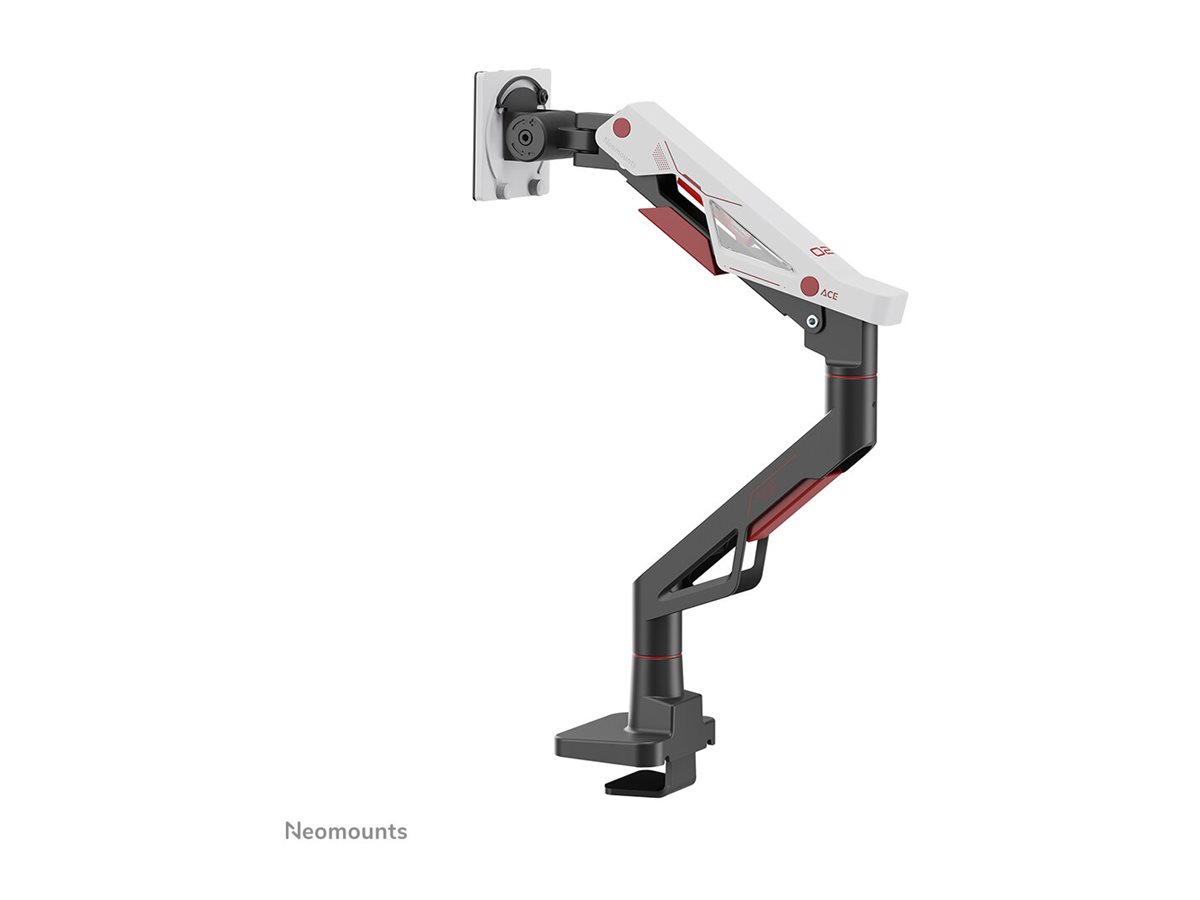

The Neomounts DS70-256RD1 ACE delivers exceptional performance and ergonomic comfort for gamers that want to take their setup to the highest level. Supporting screen sizes up to an impressive 57", including extra-wide models like the Samsung Odyssey G9, this arm is built to handle the most ambitious set-ups. With a heavy-duty weight capacity ranging from 2 to 30 kg (and up to 24 kg for curved monitors), it ensures maximum stability even during intense gaming sessions.
Thanks to its broad VESA compatibility from 75x75 to 200x200, the ACE offers seamless integration with a wide range of monitors. The inclusion of precision tilt functionality allows for finely tuned angle adjustments, reducing screen glare and enhancing viewing comfort no matter your setup. Combined with gas spring height adjustment and depth adjustment, positioning your screen in the ideal position becomes smooth and effortless, supporting better posture and sustained focus during marathon sessions.

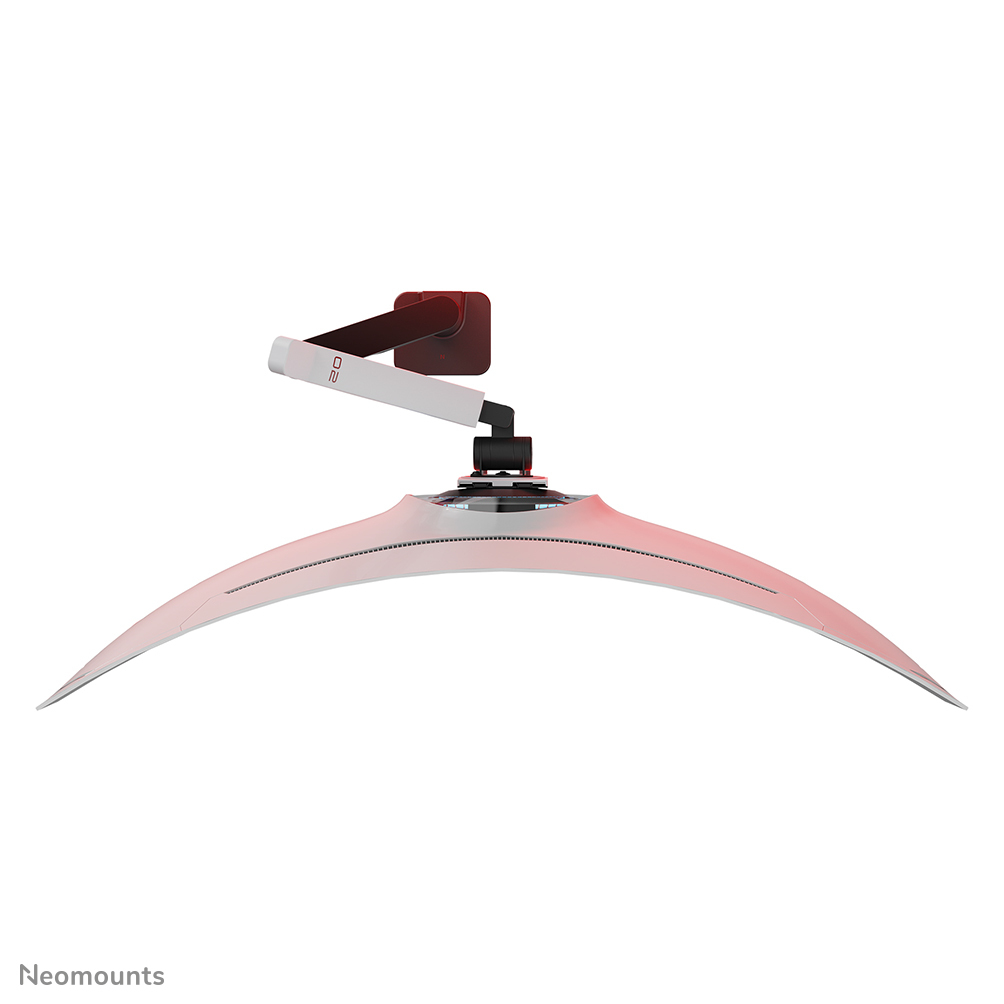

For added practicality, the DS70-256RD1 monitor arm includes a smart 180° stop mechanism to prevent contact with nearby walls, ideal for space-constrained installations. The Quick-release VESA system ensures easy monitor mounting, while the included topfix clamp and grommet offer fast and secure installation.
Whether you're engaged in high-speed action, managing tactical operations, or streaming for hours, the full motion DS70-256RD1 ACE monitor arm empowers you with precision control, robust support, and optimum comfort so you can stay locked in and ahead of the competition.
| Mounting | |
| Number of displays supported: | 1 |
| Maximum weight capacity (per display): | 30 kg |
| Maximum screen size: | 144.8 cm (57") |
| Mounting type: | Desk |
| Maximum weight capacity: | 30 kg |
| Minimum screen size: | 61 cm (24") |
| Minimum VESA mount: | 75 x 75 mm |
| Maximum VESA mount: | 200 x 200 mm |
| Maximum weight capacity (per curved/ultra-wide display): | 24 kg |

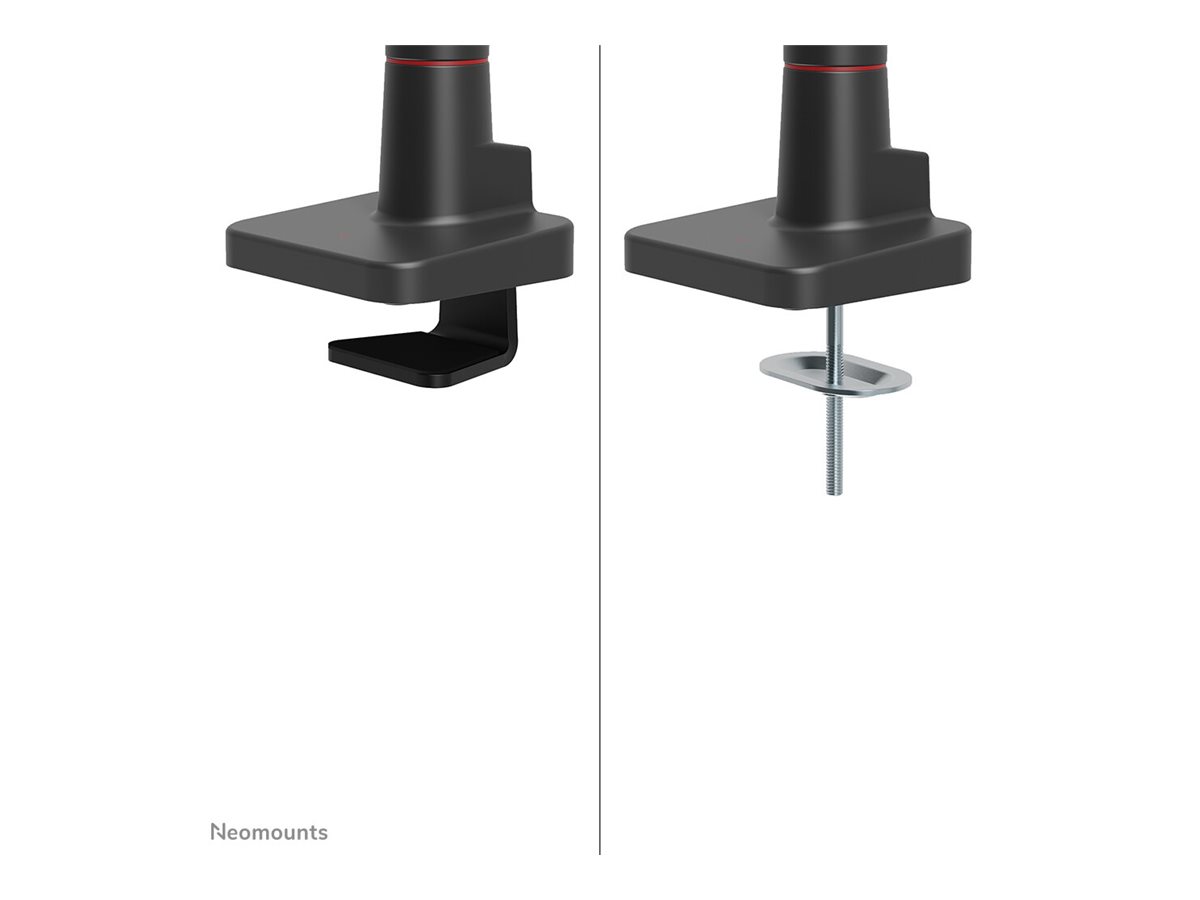

| Mounting: | Clamp/Grommet |
| Panel mounting interface: | 100 x 200,100 x 100,100 x 150,100 x 75,150 x 200,200 x 100,200 x 150,200 x 200,75 x 75,75 x 100 |
| Desk thickness (min): | 1.2 cm |
| Desk thickness (max): | 4.5 cm |
| Distance to the wall (min): | 12.3 cm |
| Distance to the wall (max): | 61.9 cm |
| Ergonomics | |
| Height adjustment: | Yes |
| Height adjustment range: | 310 - 570 mm |
| Adjustable depth: | Yes |
| Depth adjustment range: | 90 - 586 mm |
| Width adjustment: | 99.2 cm |
| Tilt adjustment: | Yes |
| Tilt angle range: | -45 - 70° |
| Swivelling: | Yes |
| Swivel angle range: | -90 - 90° |
| Rotating: | Yes |
| Angle of rotation: | 180° |

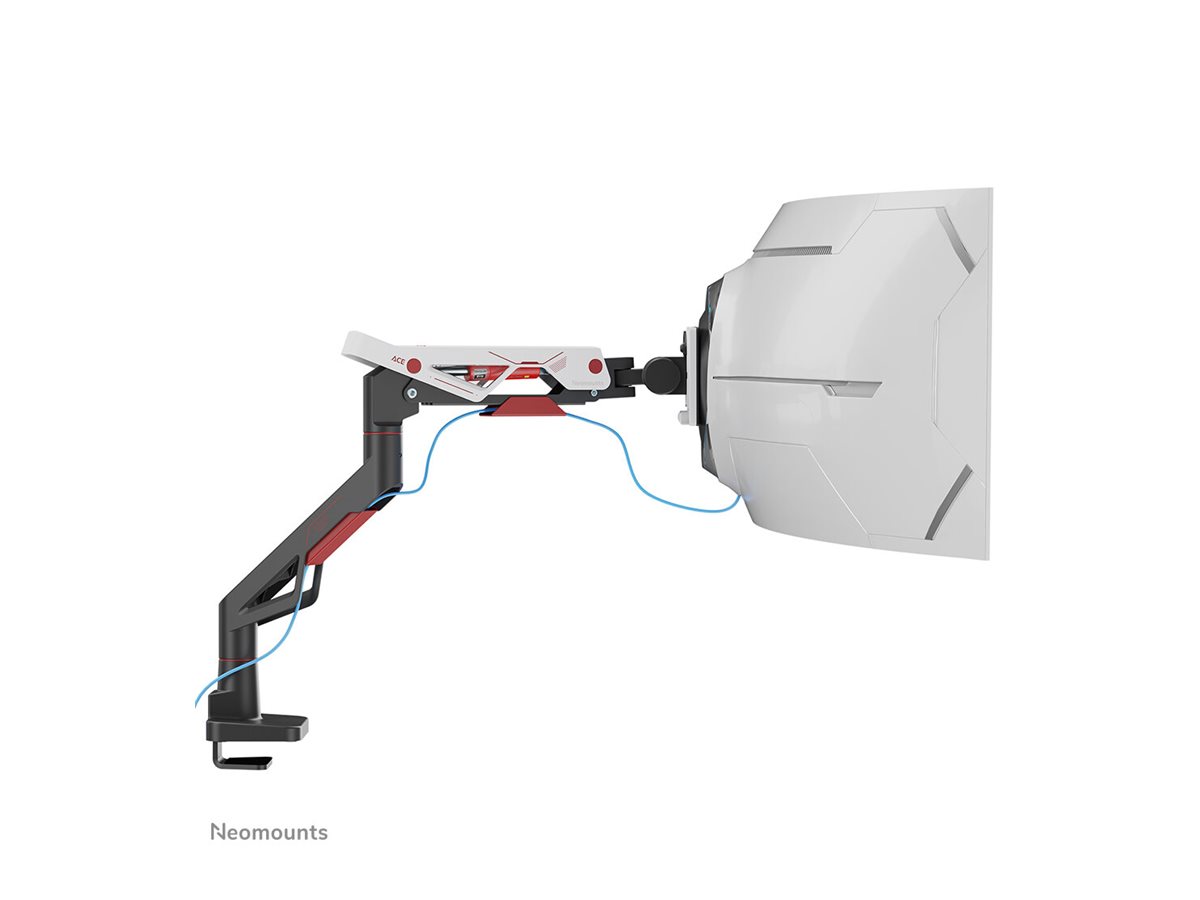

| Cable management: | Yes |
| Design | |
| Product colour: | Black |
| Housing material: | Aluminium |
| Weight & dimensions | |
| Width: | 130 mm |
| Depth: | 123 mm |
| Height: | 675 mm |
| Weight: | 4.72 kg |
| Packaging data | |
| Package width: | 155 mm |
| Package depth: | 423 mm |
| Package height: | 143 mm |
| Package weight: | 5.29 kg |
| Other features | |
| Minimum weight: | 2 kg |
| Width adjustment range: | 0 - 992 mm |
| Logistics data | |
| Master (outer) case width: | 325 mm |
| Master (outer) case length: | 440 mm |
| Master (outer) case height: | 303 mm |
| Master (outer) case gross weight: | 21.2 kg |
| Products per master (outer) case: | 4 pc(s) |
| Country of origin: | China |
| Master (outer) case net weight: | 18.9 kg |
| Harmonized System (HS) code: | 7616991099 |
| Products per pallet (EU): | 100 pc(s) |
| Warranty period: | 5 year(s) |
