- Details

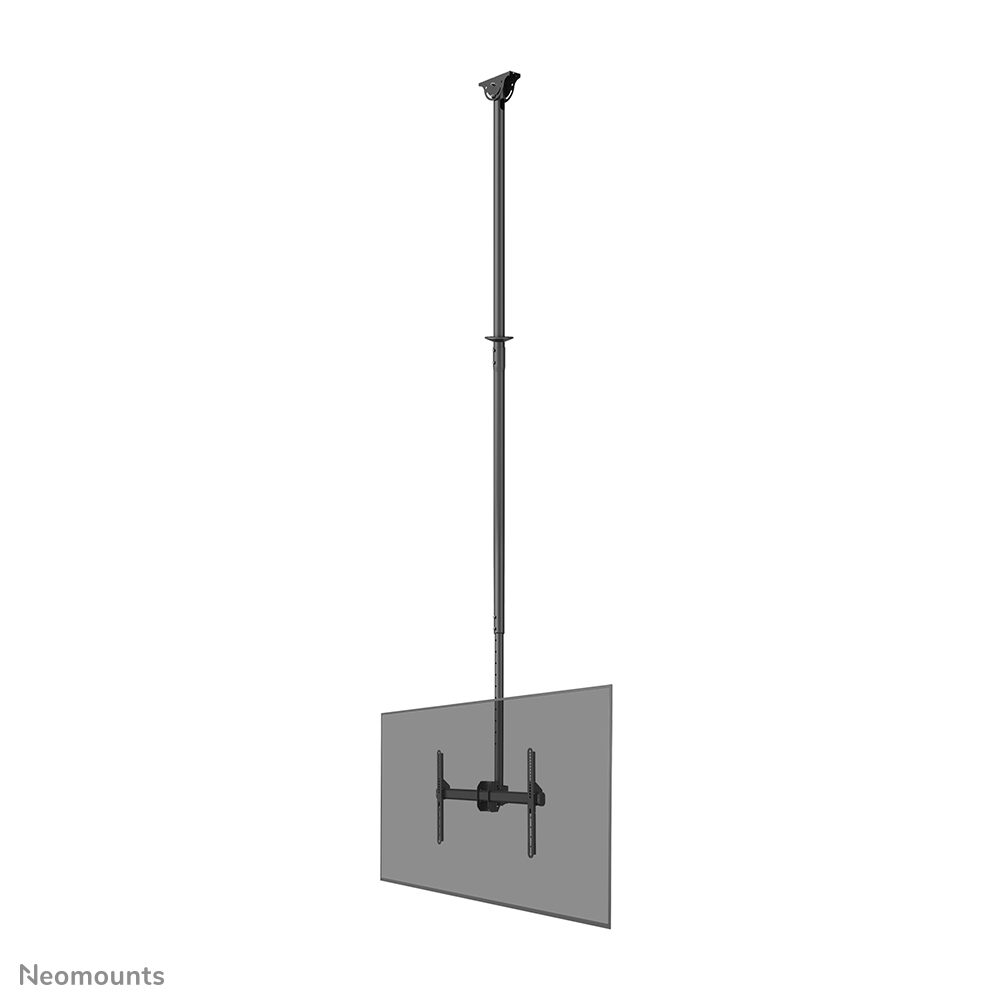

The Neomounts CL35-440BL16XL is an ultra-long full motion ceiling mount for flat screens up to 70". The unique tilt (25°) and swivel (360°) technology allows the mount to change to the optimal viewing angle. Level adjustment is available for the perfect installation.
The ceiling mount has an extra-long pole, that can be easily adjusted in height from 250 to 300 cm* and has a weight capacity of 50 kg. The CL35-440BL16XL is suitable for screens that meet VESA hole pattern 150x200 to 600x400 mm. A practical cable management system conceals and routes cables from ceiling to screen. The mount features an adjustable mounting angle for sloped ceilings and comes with an additional cover for installation on suspended ceilings.
* The Neomounts NS-EP100BLACK extension pole can be used as extra extension to the pole included with the ceiling mount. In this way, the height of the mount can be increased with an extra 107,5 cm.
| Mounting | |
| Maximum weight capacity: | 50 kg |
| Maximum screen size: | 177.8 cm (70") |
| Mounting type: | Ceiling |
| Minimum VESA mount: | 200 x 200 mm |
| Maximum VESA mount: | 600 x 400 mm |
| Minimum screen size: | 94 cm (37") |
| Panel mounting interface: | 200 x 200,200 x 400,400 x 400,200 x 300,300 x 300,440 x 400,500 x 400,600 x 200,600 x 300,600 x 400,300 x 200,400 x 300,200 x 100,300 x 100,350 x 350,400 x 200 |
| Number of displays supported: | 1 |
| Ergonomics | |
| Height adjustment: | Yes |
| Height adjustment type: | Manual |
| Height adjustment range: | 2500 - 3000 mm |
| Tilt adjustment: | Yes |
| Tilt angle range: | -25 - 0° |
| Swivelling: | Yes |
| Swivel angle range: | -180 - 180° |
| Rotating: | Yes |
| Angle of rotation: | 6° |
| Cable management: | Yes |
| Design | |
| Product colour: | Black |
| Housing material: | Steel |
| Technical details | |
| Country of origin: | China |
| Warranty period: | 5 year(s) |
| Weight & dimensions | |
| Width: | 680 mm |
| Depth: | 138 mm |
| Depth (max): | 13.8 cm |
| Height: | 3220 mm |
| Packaging data | |
| Package width: | 320 mm |
| Package depth: | 115 mm |
| Package height: | 1270 mm |
| Package weight: | 10.2 kg |
| Logistics data | |
| Master (outer) case width: | 320 mm |
| Master (outer) case length: | 115 mm |
| Master (outer) case height: | 1270 mm |
| Master (outer) case gross weight: | 102 g |
| Master (outer) case net weight: | 102 g |
| Products per master (outer) case: | 1 pc(s) |
| Harmonized System (HS) code: | 7326909890 |
