Products description

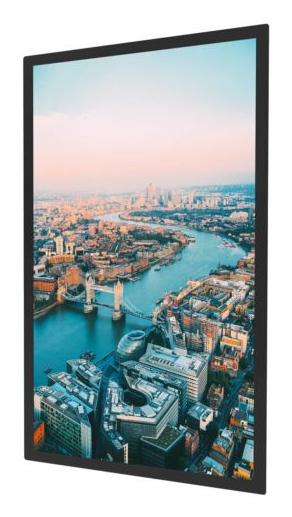

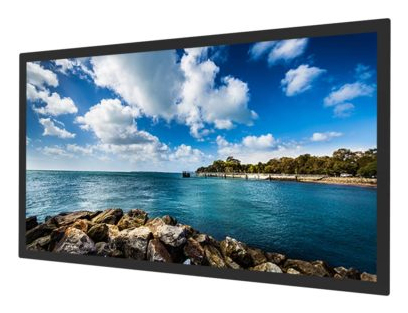

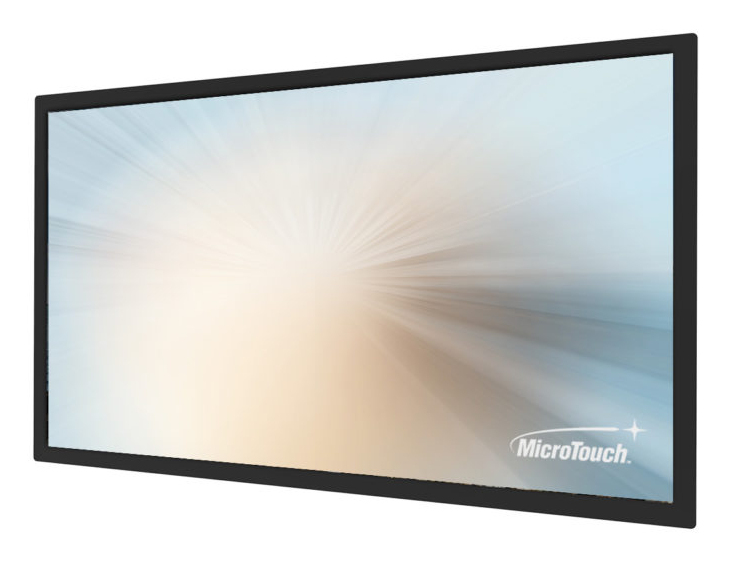

The OF-320P-A1 is a 32 Full HD (1920 x 1080) PCAP, 30-point touch solution encouraging effective and efficient user collaboration and engagement for many environments. The ultra slim build coupled with input/output versatility, a 20 mm slim bezel design and high contrast showcases its ability to exceed all your aesthetic and performance requirements. From collaborative settings to an embedded application for a point-of-service kiosk, wayfinding, or content sharing the OF-320P-A1 delivers everything desired in a large format touchscreen.
| Display | |
| Display diagonal: | 80 cm (31.5") |
| Display technology: | LCD |
| Display resolution: | 1920 x 1080 pixels |
| Display brightness: | 500 cd/m² |
| HD type: | Full HD |
| Touchscreen: | Yes |
| Panel type: | TFT-LCD |
| Touchscreen technology: | Capacitive |
| Number of simultaneous touchpoints: | 30 |
| Multi-touch: | Yes |
| Native aspect ratio: | 16:9 |
| Contrast ratio (typical): | 3000:1 |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Supported graphics resolutions: | 1920 x 1080 (HD 1080) |
| Supported video modes: | 1080p |

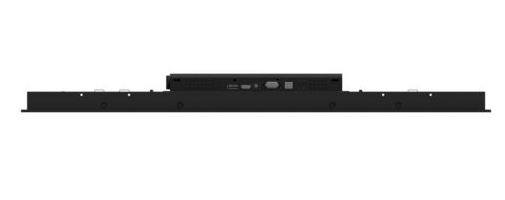

| Ports & interfaces | |
| HDMI ports quantity: | 1 |
| DVI port: | No |
| DisplayPorts quantity: | 1 |
| USB port: | Yes |
| HDMI version: | 1.3 |
| VGA (D-Sub) input ports: | 1 |
| USB ports quantity: | 1 |
| USB version: | 2.0 |
| USB connector type: | USB Type-B |
| DC-in jack: | No |
| Audio | |
| Built-in speaker(s): | No |
| Design | |
| Product design: | Interactive flat panel |
| Product colour: | Black |
| Placement supported: | Indoor |

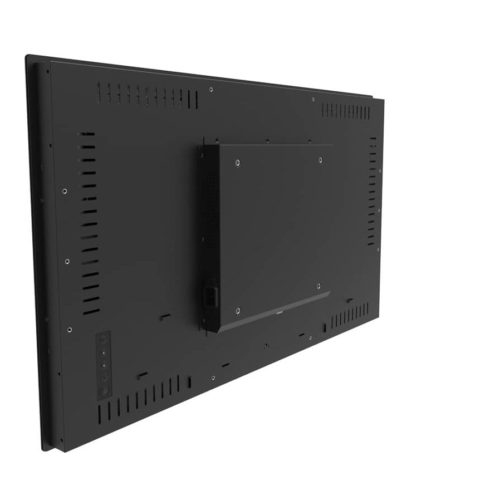

| VESA mounting: | Yes |
| Orientation: | Horizontal/Vertical |
| Screen shape: | Flat |
| Panel mounting interface: | 200 x 200 mm |
| Mounting type: | Wall |
| Performance | |
| Purpose: | Commercial |
| International Protection (IP) code: | IP65 |
| HID support: | Yes |
| Power | |
| AC input voltage: | 100 - 240 V |
| AC input frequency: | 50/60 Hz |
| Computer system | |
| Computer system: | No |
| Built-in processor: | No |
| Weight & dimensions | |
| Width: | 739.4 mm |
| Depth: | 61 mm |
| Height: | 433.9 mm |
| Weight: | 10.4 kg |
| Packaging data | |
| Package width: | 890 mm |
| Package depth: | 630 mm |
| Package height: | 155 mm |
| Package weight: | 13.5 kg |
| Packaging content | |
| Cables included: | Power, USB Type-A to USB Type-B, HDMI |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage temperature (T-T): | -20 - 60 °C |
| Storage relative humidity (H-H): | 20 - 90% |
| Certificates | |
| Waste Electrical and Electronic Equipment (WEEE) compliance: | Yes |
| Network | |
| Ethernet LAN: | No |
| Wi-Fi: | No |
| Technical details | |
| Doesn't contain: | Lead, Mercury, Cadmium |
| Warranty period: | 3 year(s) |
| Compliance certificates: | CE, Federal Communications Commission (FCC), cUL, UL, CCC, RoHS |
| Other features | |
| Screws included: | Yes |
| Housing material: | Glass, SECC, Metal |
| Plug and Play: | Yes |
