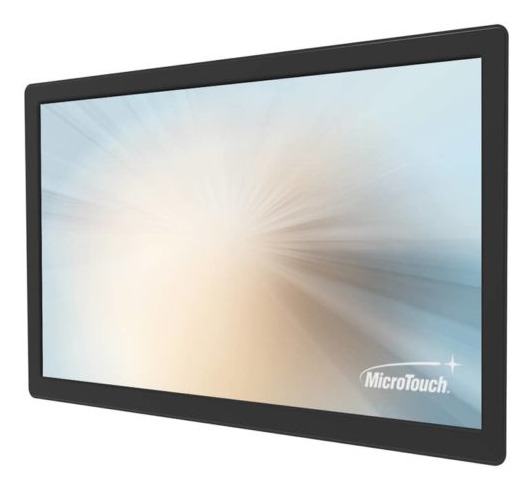

The OF-240P-A1 is a 24 , newly designed, commercial-grade open frame solution. The refined aesthetics, standard gasketed bezel, and cable management feature ensures that the customer specific application remains clean, aesthetically remarkable with the ability to endure harshest of environments. A stylish thin cable management bracket and versatile design, the OF-240P-A1 is an exceptional choice for applications for all business sectors and well suited for point-of-sales, point-of-information, point-of-service and interactive signage. The OF-240P-A1 retains all capabilities to mold a unique solution for any customer application.
| Display | |
| Display diagonal: | 60.5 cm (23.8") |
| Display resolution: | 1920 x 1080 pixels |
| HD type: | HD |
| Touchscreen: | Yes |
| Display type: | TFT |
| Display brightness: | 250 cd/m² |
| Touchscreen type: | Projected Capacitive (PCAP) |
| Contrast ratio (typical): | 3000:1 |
| Viewing angle, horizontal: | 178° |
| Viewing angle, vertical: | 178° |
| Native aspect ratio: | 16:9 |
| Features | |
| Product colour: | Black |
| VESA mounting: | Yes |
| Housing material: | Glass, Acrylonitrile butadiene styrene (ABS), SECC, Metal |
| Ports & interfaces | |
| USB 2.0 ports quantity: | 1 |
| Power | |
| Power source type: | DC |
| Power: | 36 W |
| AC adapter output voltage: | 12 V |
| AC adapter output current: | 3 A |
| Weight & dimensions | |
| Width: | 575 mm |
| Depth: | 42.4 mm |
| Height: | 347 mm |
| Weight: | 5.8 kg |
| Packaging data | |
| Package width: | 685 mm |
| Package depth: | 455 mm |
| Package height: | 150 mm |
| Package weight: | 8 kg |
| Operational conditions | |
| Operating temperature (T-T): | 0 - 40 °C |
| Operating relative humidity (H-H): | 20 - 80% |
| Storage temperature (T-T): | -20 - 60 °C |
| Storage relative humidity (H-H): | 10 - 95% |
| Technical details | |
| Compliance certificates: | CE, Federal Communications Commission (FCC), CB, UL |
