- Details

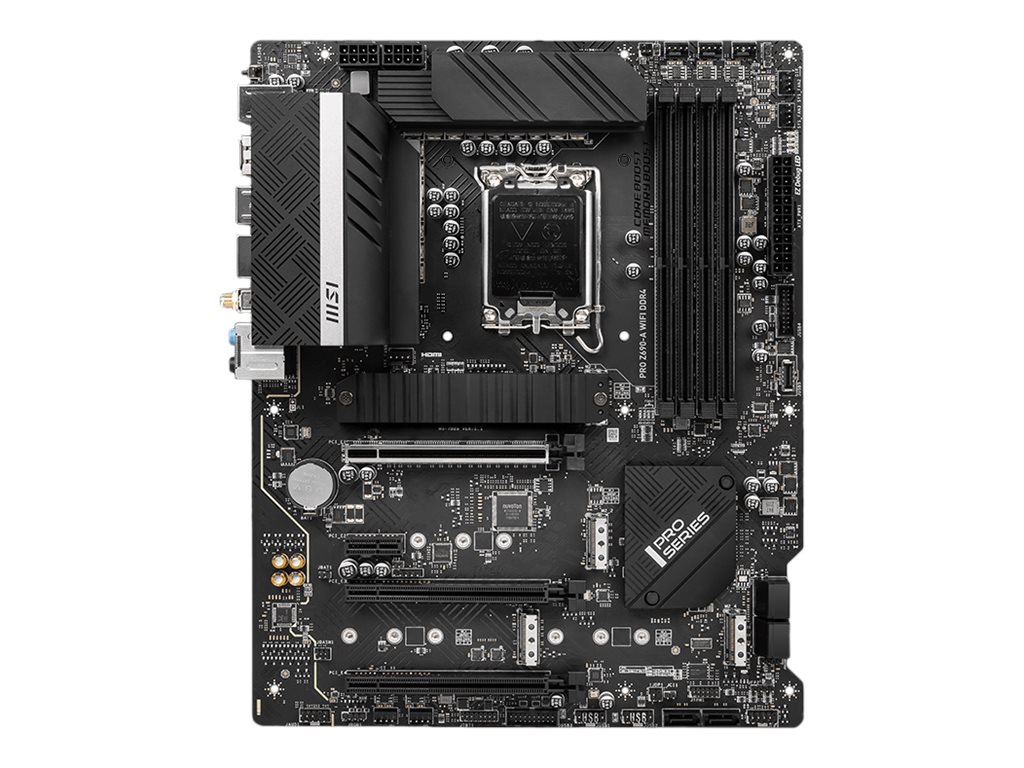

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.HIGH-BANDWIDTH AND LOW-LATENCY NETWORK2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.14 + 1 +1 POWER DESIGNUnleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
| Processor | |
| Processor manufacturer: | Intel |
| Processor socket: | LGA 1700 |
| Compatible processor series: | Intel® Celeron®, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold |
| Supported processor sockets: | LGA 1700 |
| Memory | |
| Supported memory types: | DDR4-SDRAM |
| Number of memory slots: | 4 |
| Maximum internal memory: | 128 GB |
| Memory slots type: | DIMM |
| Memory channels: | Dual-channel |
| Supported memory clock speeds: | 2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4200,4266,4400,4600,4800,5000,5066,5200 MHz |
| Storage controllers | |
| Supported storage drive interfaces: | M.2, SATA III |
| Supported storage drive types: | HDD & SSD |
| RAID support: |  |
| RAID levels: | 0, 1, 5, 10 |
| Graphics | |
| Parallel processing technology support: | Crossfire |
| DirectX version: | 12.0 |
| Internal I/O | |
| USB 2.0 connectors: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors: | 4 |
| Number of SATA III connectors: | 6 |
| Total number of SATA connectors: | 6 |
| Front panel audio connector: | |
| TPM connector: | |
| Rear panel I/O ports | |
| USB 2.0 ports quantity: | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: | 1 |
| Ethernet LAN (RJ-45) ports: | 1 |
| HDMI ports quantity: | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity: | 1 |
| DisplayPorts quantity: | 1 |
| Network | |
| Wi-Fi: | |
| Ethernet LAN: | |
| Ethernet interface type: | 2.5 Gigabit Ethernet |
| LAN controller: | Intel I225-V |
| Top Wi-Fi standard: | Wi-Fi 6 (802.11ax) |
| Bluetooth: | |
| Bluetooth version: | 5.2 |
| Features | |
| Component for: | PC |
| Motherboard form factor: | ATX |
| Motherboard chipset family: | Intel |
| Motherboard chipset: | Intel Z690 |
| Audio output channels: | 7.1 channels |
| Audio chip: | Realtek ALC897 |
| Windows operating systems supported: | Windows 10 x64, Windows 11 x64 |
| Expansion slots | |
| PCI Express x1 slots: | 1 |
| PCI Express x16 slots: | 3 |
| Number of M.2 (M) slots: | 4 |
| BIOS | |
| BIOS type: | UEFI AMI |
| Logistics data | |
| Harmonized System (HS) code: | 84733020 |
| Weight & dimensions | |
| Width: | 305 mm |
| Depth: | 244 mm |
| Height: | 65 mm |
| Other features | |
| Weight: | 1 kg |
