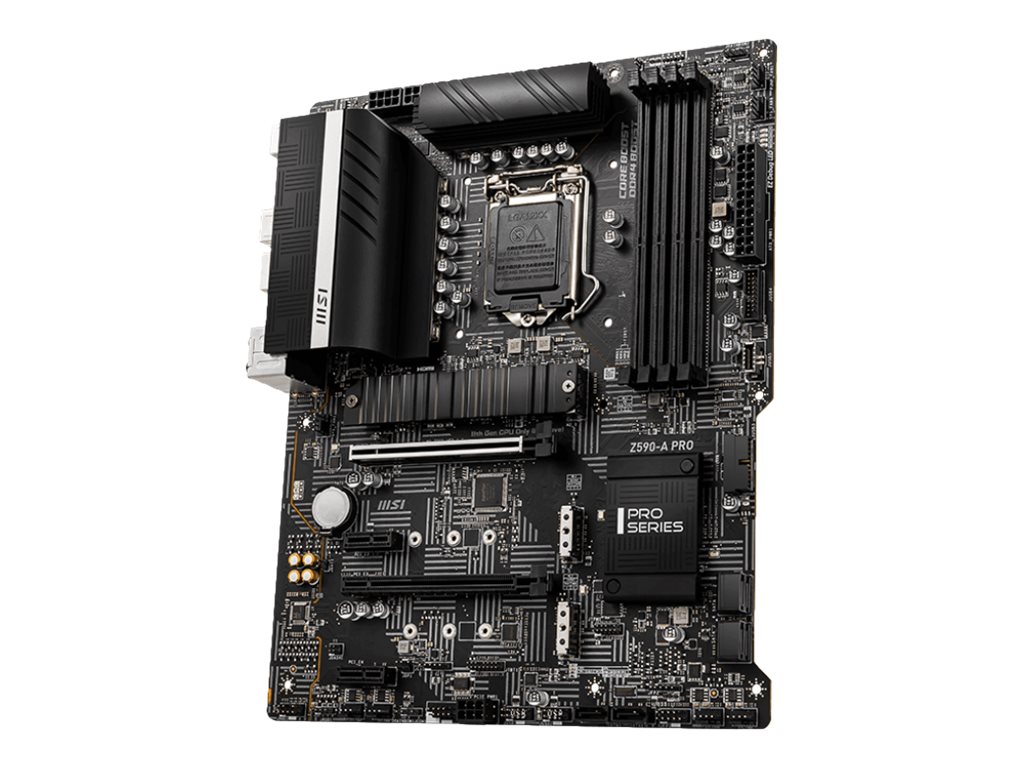

MSI Z590-A PRO motherboard Intel Z590 LGA 1200 (Socket H5) ATX

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.USER FRIENDLY DESIGNMSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue.THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCEWith more cores processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.M.2 SHIELD FROZRWorld s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.FULLY CONTROLLABLE IN BIOS AND SOFTWAREMSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.FROZR AI COOLINGDetecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.OPTIMIZED FOR WATER COOLINGDesigned to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 2 amp, giving you full control of the water pump speed. A clearly marked keep-out-zone allows for easy and safe installation and a perfect fit.CONNECTIVITYThe most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.HIGH-BANDWIDTH AND LOW-LATENCY NETWORK2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.OPTIMIZE NETWORK FOR LOWER LATENCY!MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.EXPERIENCE MOREMSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance.12 + 2 +1 POWER DESIGNUnleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.A HUGE STEP OF DDR PERFORMANCEMSI OC LAB does not merely work hard on extreme overclocking. The XMP memory profile has great improvement on performance and efficiency for Z590 . Easy to enable XMP profile with auto power settings to get the best memory speed and stability.CORE BOOSTCore Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

Processor
Processor manufacturer:	Intel
Processor socket:	LGA 1200 (Socket H5)
Compatible processor series:	Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium®
Memory
Supported memory types:	DDR4-SDRAM
Number of memory slots:	4
Maximum internal memory:	128 GB
Memory slots type:	DIMM
Memory channels:	Dual-channel
Non-ECC:
Supported memory clock speeds:	2133,2666,2933,3200 MHz
Unbuffered memory:
Storage controllers
Supported storage drive interfaces:	M.2, SATA III
Supported storage drive types:	HDD & SSD
RAID levels:	0, 1, 5, 10
Graphics
Parallel processing technology support:	2-Way CrossFireX
Maximum resolution:	4096 x 2160 pixels
Internal I/O
USB 2.0 connectors:	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors:	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors:	1
Number of SATA III connectors:	6
Front panel audio connector:
Front panel connector:
ATX Power connector (24-pin):
CPU fan connector:
Number of chassis fan connectors:	6
Chassis intrusion connector:
EPS power connector (8-pin):
TPM connector:
Serial port headers:	1
12V power connector:
Rear panel I/O ports
USB 2.0 ports quantity:	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity:	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity:	1
Ethernet LAN (RJ-45) ports:	1
HDMI ports quantity:	1
PS/2 ports quantity:	1
DisplayPorts quantity:	1
Headphone outputs:	1
Microphone in:
Serial ports quantity:	1
Network
Wi-Fi:
Ethernet LAN:
Ethernet interface type:	2.5 Gigabit Ethernet
LAN controller:	Intel I225-V
Features
Component for:	PC
Motherboard form factor:	ATX
Motherboard chipset family:	Intel
Motherboard chipset:	Intel Z590
Audio output channels:	7.1 channels
Audio chip:	Realtek ALC897
Windows operating systems supported:	Windows 10 x64
Expansion slots
PCI Express x1 (Gen 3.x) slots:	2
PCI Express x16 (Gen 3.x) slots:	2
Number of M.2 (M) slots:	3
BIOS
BIOS type:	UEFI AMI
Clear CMOS jumper:
Logistics data
Harmonized System (HS) code:	84733020
Weight & dimensions
Width:	305 mm
Depth:	244 mm
Height:	65 mm
Other features
Weight:	1 kg
