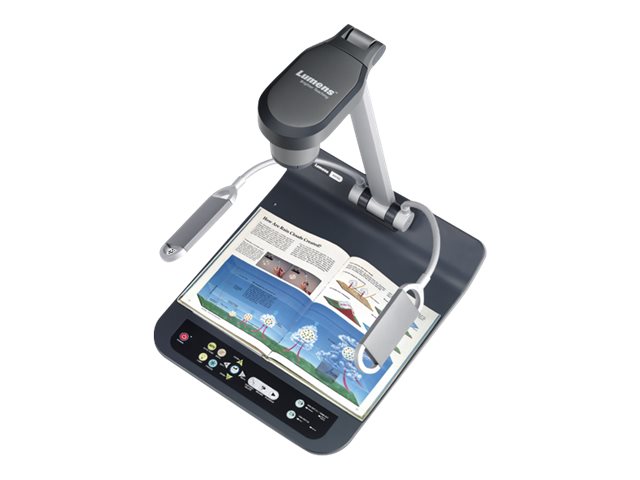

The Lumens PS752 document camera has 20x zoom capability and a professional image sensor to deliver vivid colors atFull HD 1080p output resolution with 30 fps. The PS752 supports HDMI input/output and it is compatible with several high definition audio/video equipment. The internal memory stores up to 240 images and is expandable with a USB flash drive (up to 4TB). With a one-touch audio/video recording function presentations are recorded without the need for a PC. A built-in backlight design achieves the multi-image display requirements. The dual adjustable side lamp design preventsreflections. Single-button auto-tune provides the perfect image quality every time. The unique projector mode is forconnecting a LCD or DLP projector to reduce the interference caused by different types of projector technology, allowingthe best image quality to be delivered.
| Camera | |
| Supported graphics resolutions: | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 768 (WXGA), 1920 x 1080 (HD 1080) |
| Maximum frame rate: | 30 fps |
| Light source: | LED |
| Lens system | |
| Optical zoom: | 20x |
| Digital zoom: | 12x |
| Shooting area (WxD): | 440 x 330 mm |
| Ports & interfaces | |
| Interface: | USB 2.0 |
| USB connector type: | USB Type-A, USB Type-B |
| VGA (D-Sub) input ports: | 1 |
| VGA (D-Sub) output ports: | 2 |
| RS-232 ports: | 1 |
| USB 2.0 ports quantity: | 2 |
| DC-in jack: |  |
| Storage | |
| Memory capacity (images): | 240 |
| Technical details | |
| Product colour: | Black, Grey |
| Horizontal rotation angle: | -90 - 90° |
| Vertical rotation angle: | -90 - 90° |
| Cable lock slot: | |
| Cable lock slot type: | Kensington |
| Built-in microphone: | |
| Lamp type: | LED |
| Lamps quantity: | 2 lamp(s) |
| Image formats supported: | JPG |
| Power | |
| Power supply type: | DC |
| System requirements | |
| Windows operating systems supported: | Windows 10, Windows 7, Windows 8, Windows Vista |
| Mac compatibility: | |
| Mac operating systems supported: | Mac OS X 10.0 Cheetah, Mac OS X 10.1 Puma, Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.2 Jaguar, Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Weight & dimensions | |
| Width: | 466 mm |
| Depth: | 385 mm |
| Height: | 152 mm |
| Dimensions folded (WxDxH): | 566 x 385 x 152 mm |
