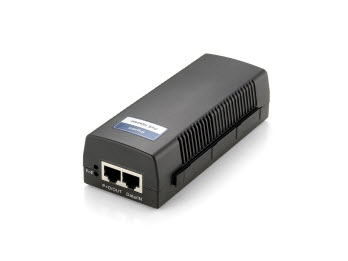

Advanced PoE SolutionThe LevelOne POI-2001 is a single port, PoE PSE solution for remote PoE PD devices. Generating up to 15.4W, the POI-2001 supplies remote power for new applications such as wireless access points, IP cameras and videophones. It complies with the IEEE 802.3af PoE standard.It can work with 10/100Base-T networking devices and emerging 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. With all the functions featured in POI-2001, people can get the benefit of flexible network installation at lower cost and less downtime. It also provides a high-bandwidth pipe to the network.- Up to 15.4W of PoE Power- Safe on Low Power Devices - Receive Only the Power They Need- Safe and Reliable Power to WLAN Access Points- Automatic Detection and Protection of Non standard Ethernet Terminals- Supports 10/100/1000Base-T LAN environnements- Unique interlocking feature for easy installation
Network | |
Ethernet interface type: | Gigabit Ethernet |
Ethernet LAN data rates: | 10,100,1000 Mbit/s |
Power over Ethernet (PoE): | |
Features | |
Product colour: | Black |
LED indicators: | PoE, Power |
Certification: | RoHS, CE/FCC |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports: | 2 |
Power | |
Power over Ethernet (PoE) voltage: | 52 V |
Output power: | 15.4 W |
AC adapter input voltage: | 100 - 240 V |
AC adapter frequency: | 50/60 Hz |
Input current: | 0.8 A |
Operational conditions | |
Operating temperature (T-T): | 0 - 45 °C |
Operating relative humidity (H-H): | 0 - 95% |
Weight & dimensions | |
Width: | 143 mm |
Depth: | 51 mm |
Height: | 38 mm |
Weight: | 350 g |
Packaging data | |
Package width: | 210 mm |
Package depth: | 125 mm |
Package height: | 55 mm |
Package weight: | 50 g |
Packaging content | |
Number of products included: | 1 pc(s) |
Logistics data | |
Harmonized System (HS) code: | 85044095 |
